Reliable Circuit Design for Steady Power
The +5V & 3.3V DC to DC circuit design enhances efficiency and stabilizes output voltage for consistent system performance.
Home
Products Power Supply

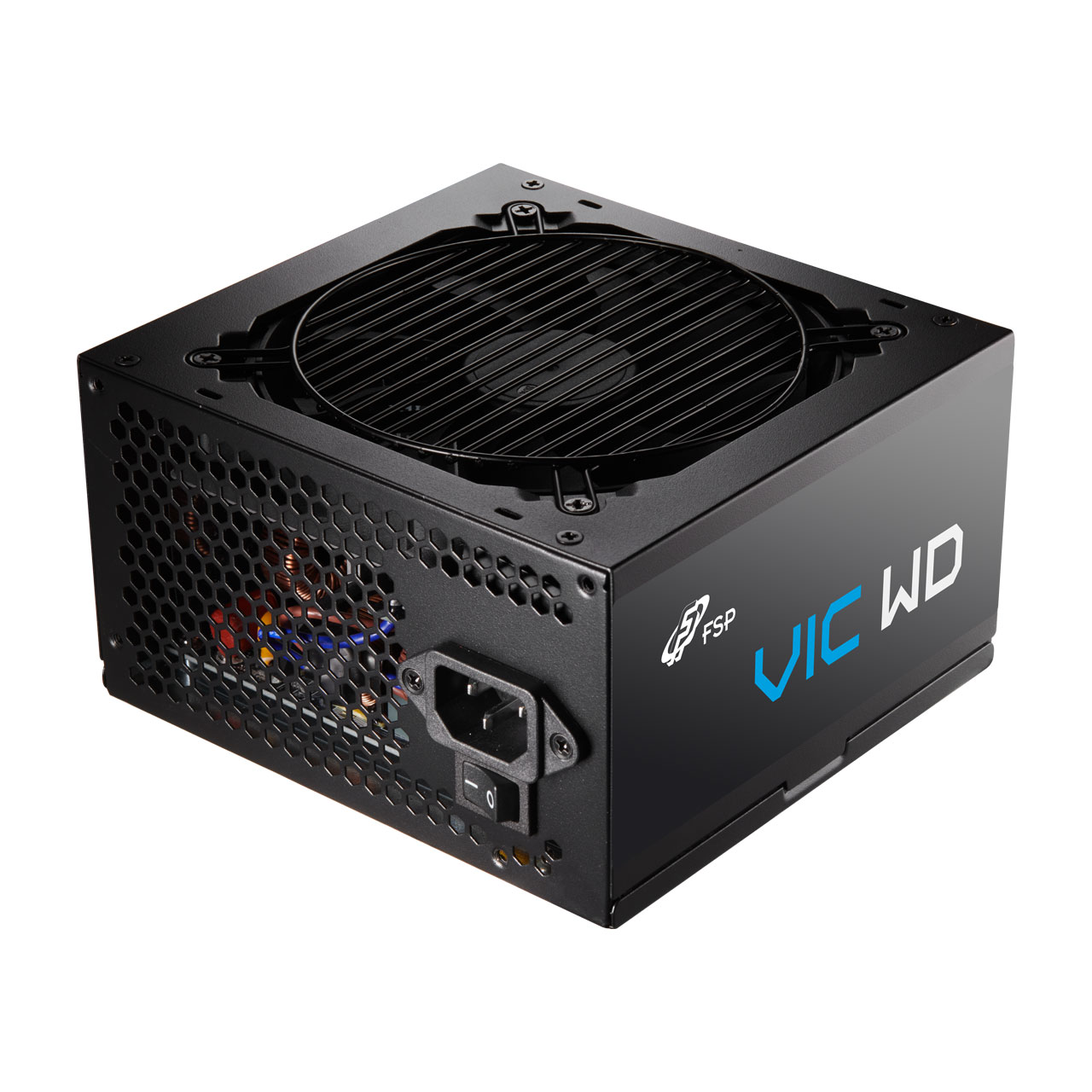

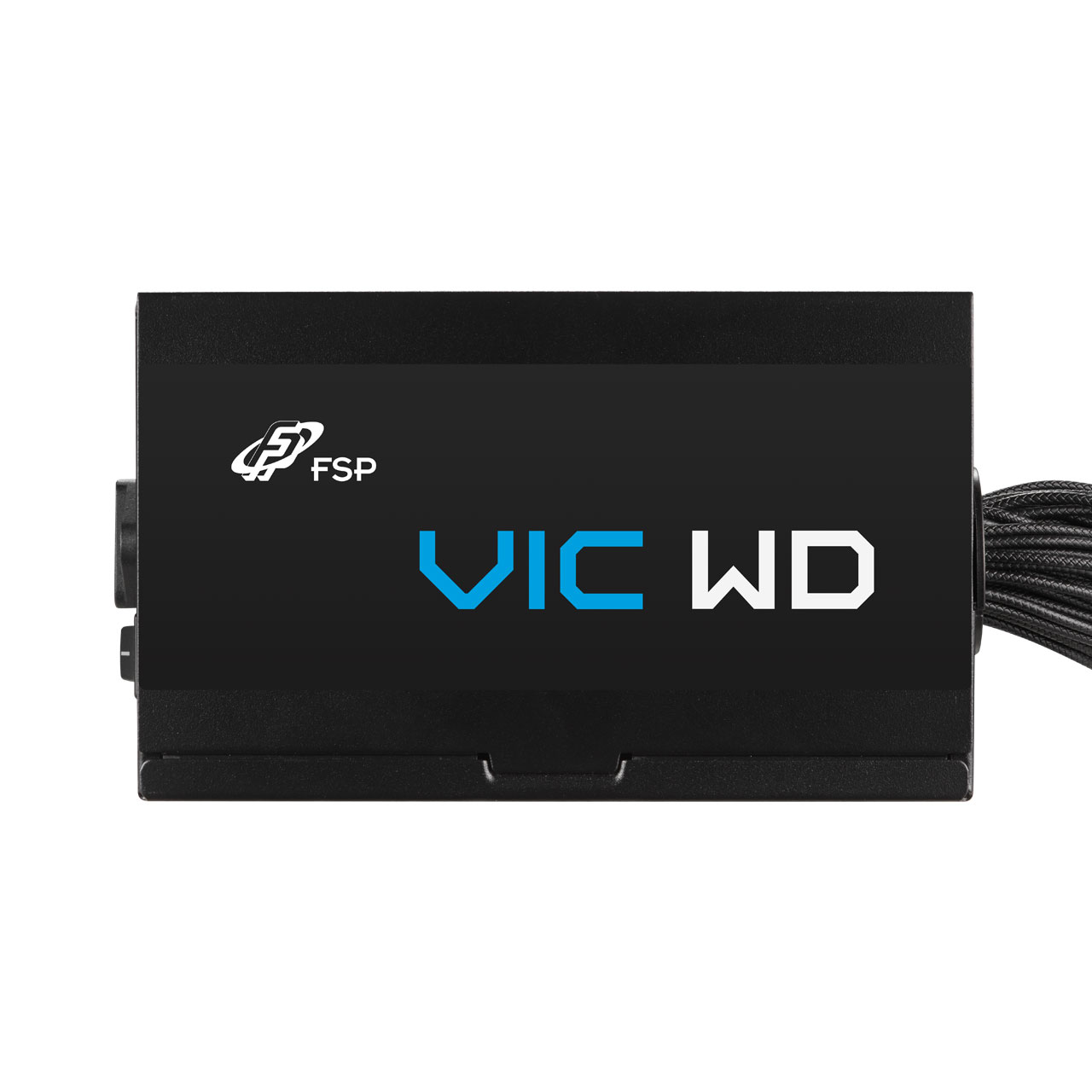

VIC WD 650W
VIC WD 650W
- Complies with ATX12V V2.53 & EPS 12V V2.92
- Efficiency ≧ 85% @ typical load
- 80 PLUS® 230V EU Standard certified
- Active PFC, Power Factor ≧ 0.9
- Ultra-quiet and durable 120mm HDB fan
- Durable 105℃ bulk capacitor
- High-power single +12V rail
- Stable and efficient DC to DC module design
- Premium embossed cables for easy routing
- Protections: OVP, SCP, OPP, UVP, SIP, NLO

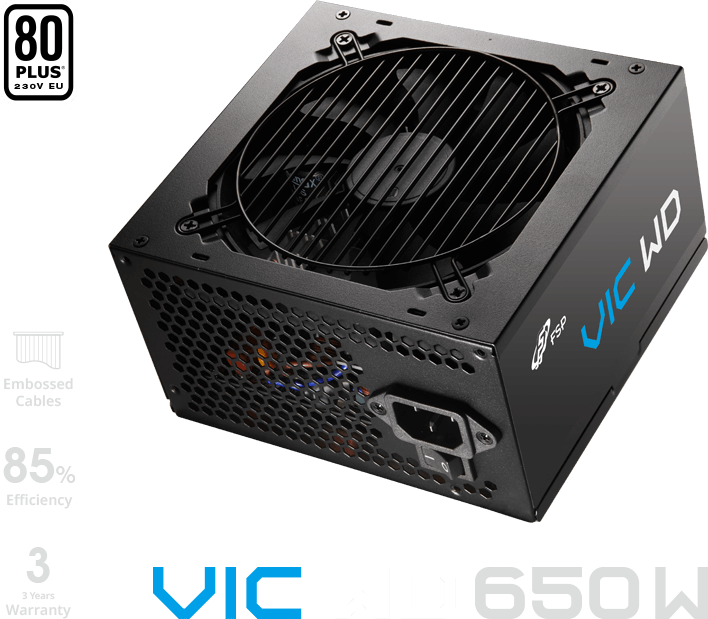

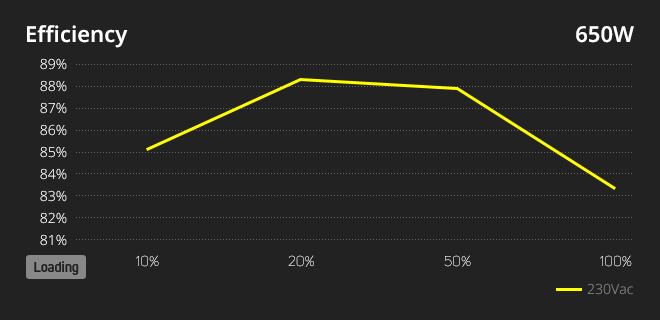

Over 85% High Efficiency with 80PLUS®
Certified by world-class organizations 80 PLUS® 230V EU Standard certification for lower power loss, less heat, and quieter operation.
Power-Ready +12V Single Rail Design
Engineered for power-hungry graphics cards, this design delivers robust power to handle even the most demanding overloading conditions, ensuring peak performance in every gaming session.
Trusted Power for Every Build
Engineered with a proven circuit design and high-quality electrolytic capacitors to ensure sustained stability and long-term operation under high workloads.

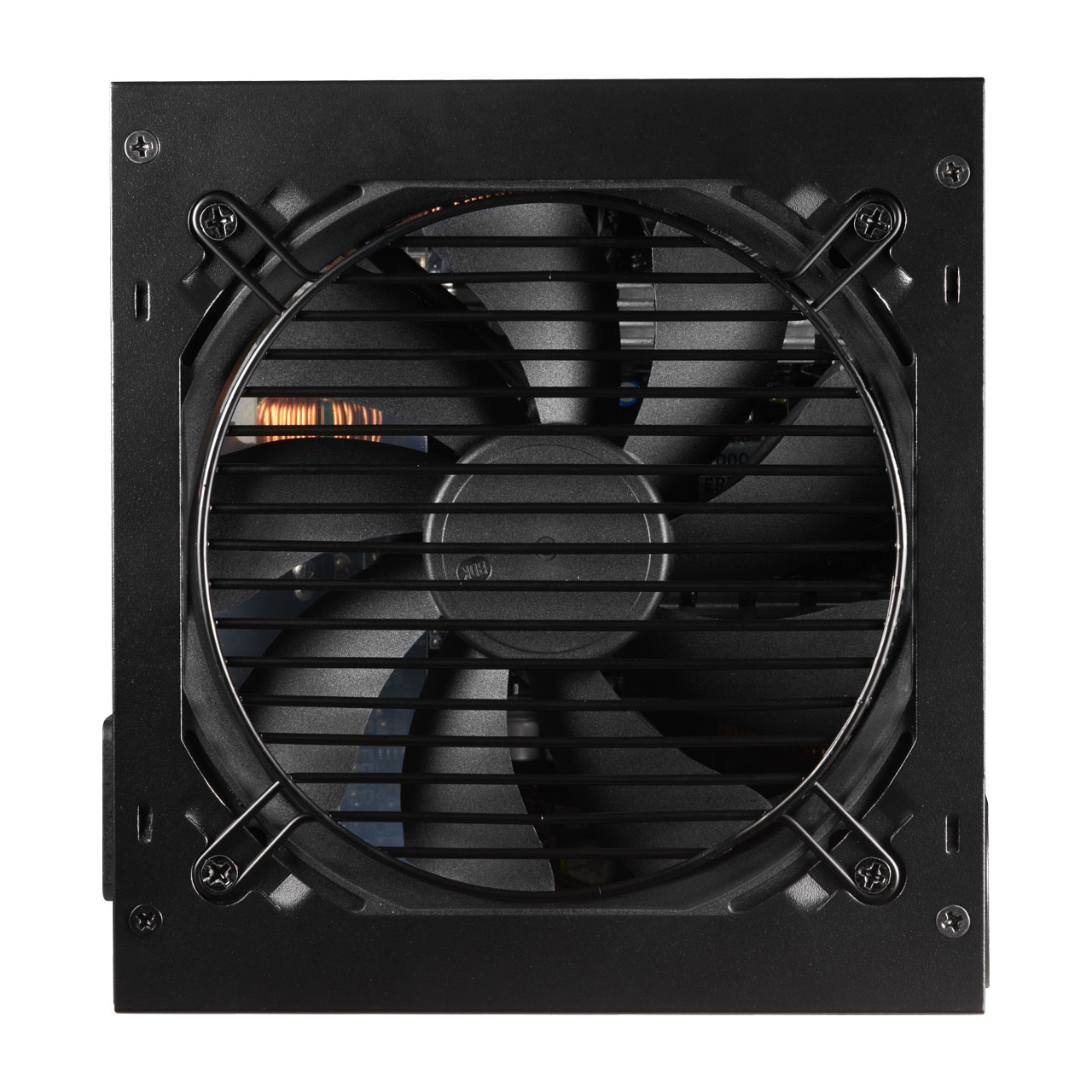

Quiet and Long-lasting HDB Fan
Built with optimized thermal solution and an advanced 120mm HDB fan for cooler components and quieter operation.
Compact PSU Size：140 x 150 x 86mm
140mm in length which is relatively shorter than industry standard, it’s ideal for compact PC or space-constraint environment without compromising on performance.
Thermal Resilience: Power You Can Depend On.
The VIC WD power supply is engineered for reliable power delivery, even in temperatures up to 40°C. Count on stable performance for your everyday computing, ensuring system longevity without heat concerns.
*Performance data based on testing conducted at 25°C ambient temperature.Premium, the Embossed Cables
Featuring improved black, embossed cables that are soft and easy to bend, users can manage them more easily, saving time and creating more space for optimal cooling performance in your PC build.
Strong Power Supply for CPU Needs
This power supply is equipped with dual 4+4-pin PCIe power connectors, delivering ample 12V power to meet the demands of high-performance CPUs.
OVP
Over Voltage Protection
SCP
Short Circuit Protection
OPP
Over Power Protection
UVP
Under Voltage Protection
SIP
Surge and Inrush Protection
NLO
No-load Operation
Complete Protection
Our comprehensive circuit shields your valuable components from harm.
MB 20+4 PIN
1 cable
1 connector
Cable Information：
500mm
CPU
1 cable
1x4+4PIN
1x8PIN
Cable Information :
650mm+150mm
PCIe 6+2 PIN
1 cable
2 connectors
Cable Information :
500mm+150mm
SATA
1 cable
4 connectors
Cable Information :
450mm+150mm+150mm+150mm
MOLEX / SATA
1 cable
3xMOLEX
1xSATA
Cable Information :
450mm+150mm+150mm+150mm
Performance
AC/DC
| AC Input | 200-240V~ 6.3A 50-60Hz | ||||
| DC Output | +3.3V | +5V | +12V | -12V | +5Vsb |
| Max Output Current | 16A | 16A | 49A | 0.3A | 3A |
| Max Combined Power | 100W | 588W | 3.6W | 15W | |
| Total Power | 650W | ||||
Specifications
| Model | VIC-650WD |
|---|---|
| Rated Output Power | 650W |
| Form Factor | ATX12V V2.53 |
| 80 PLUS Certification | 230V EU Standard |
| Input Voltage | 200-240V |
| Input Current | 6.3A |
| Input Frequency | 50-60Hz |
| PFC | Active ≧ 0.9 |
| Efficiency(at typical load) | ≥85% at typical load |
| Fan Type | HDB Bearing, 120mm |
| Dimensions(L x W x H) | 140 × 150 × 86 mm |
| Operation Temp. | 25°C |
| Protection | OVP, SCP, OPP, UVP, SIP, NLO |
| Warranty | 3 Years |
