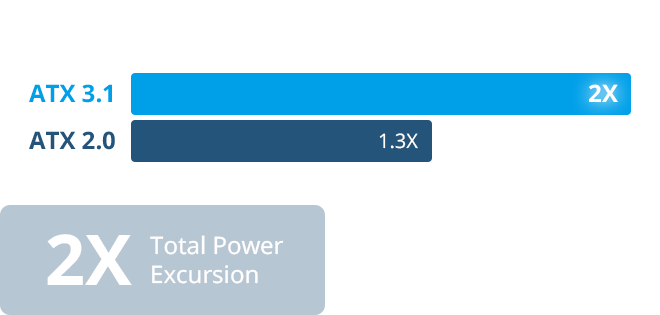

The Future is Now：ATX 3.1 Ready
Following the latest ATX 3.1 regulation, support up to 200% power excursion to ensure peak performance with future hardware upgrades.
Home
Products Power Supply

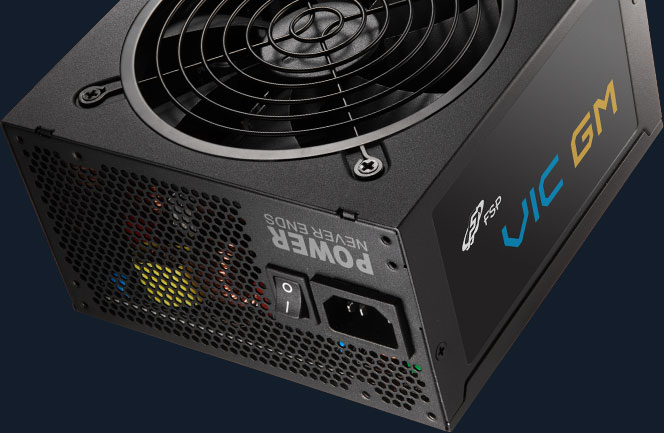

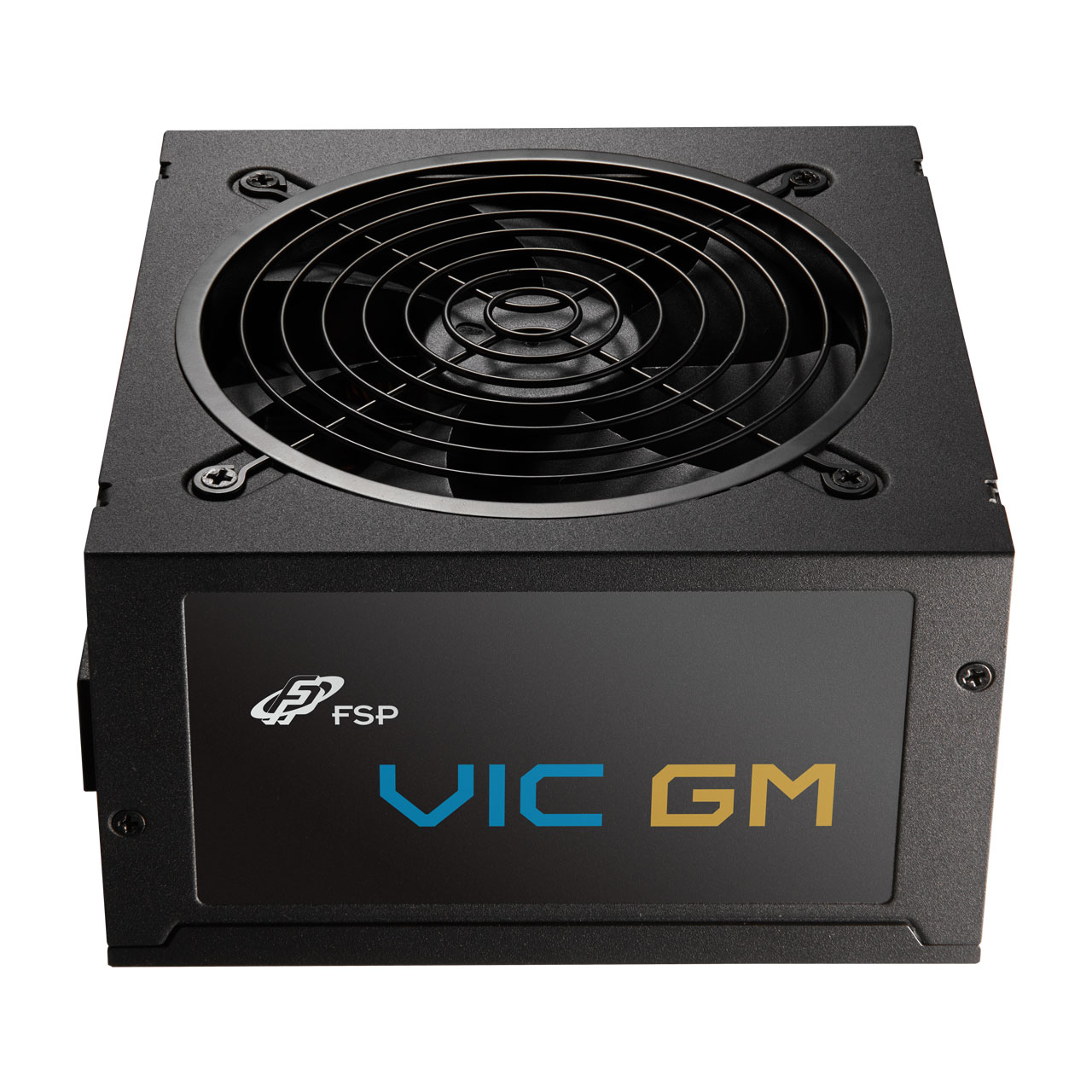

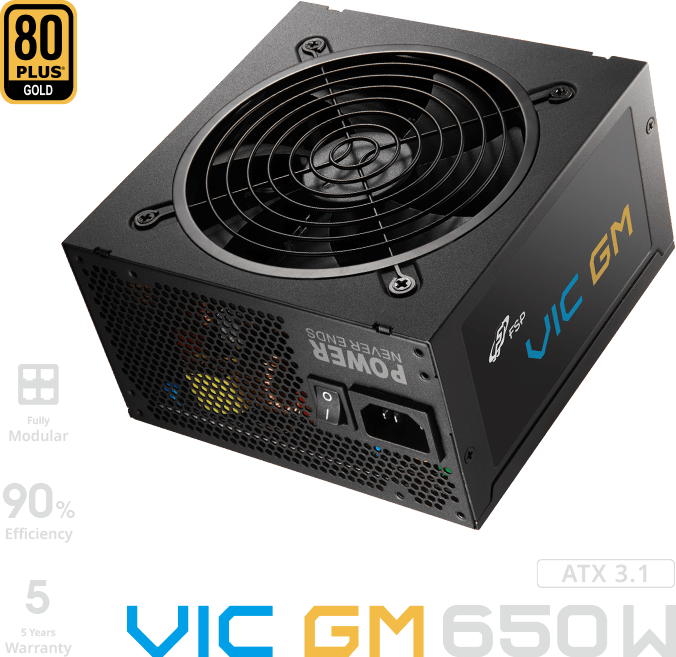

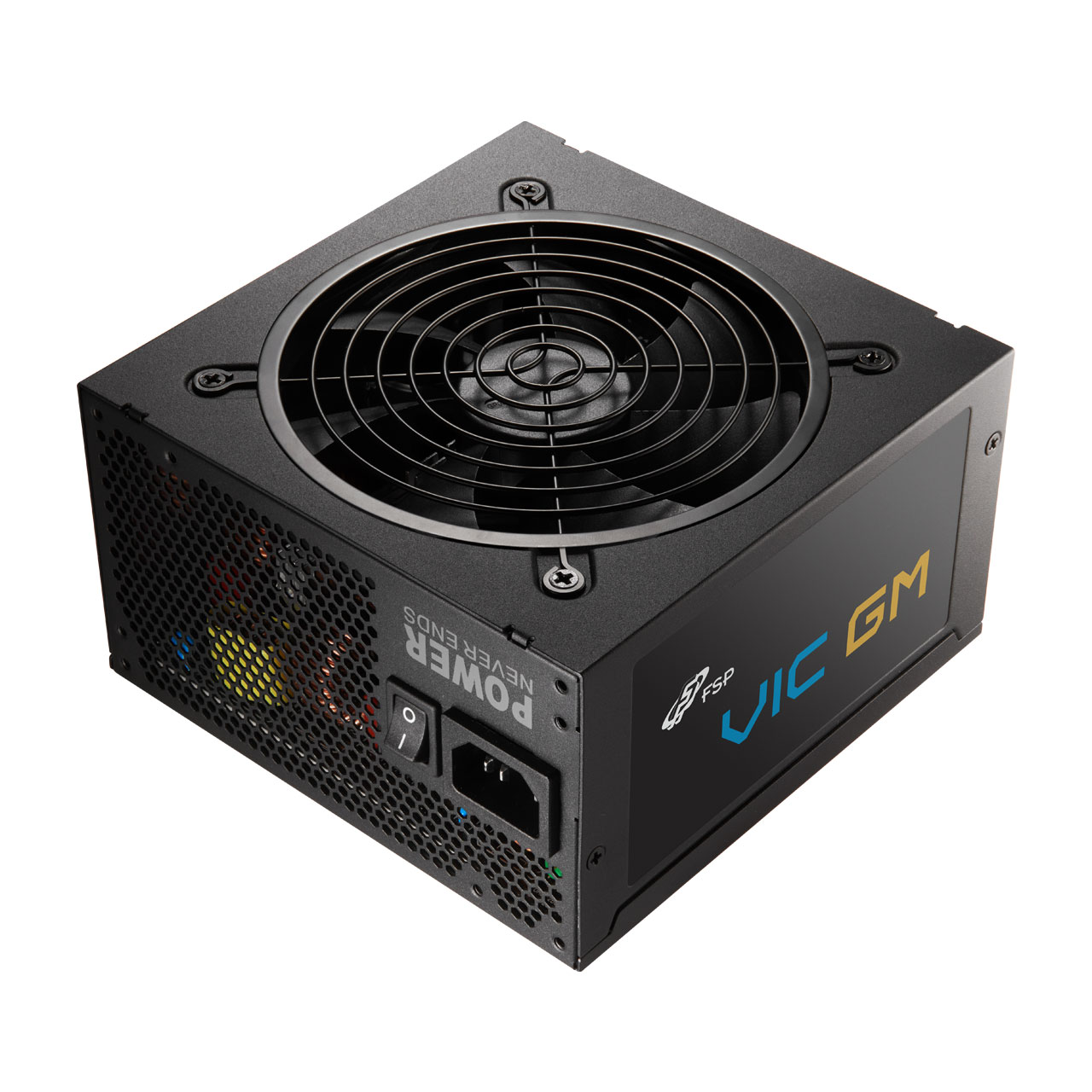

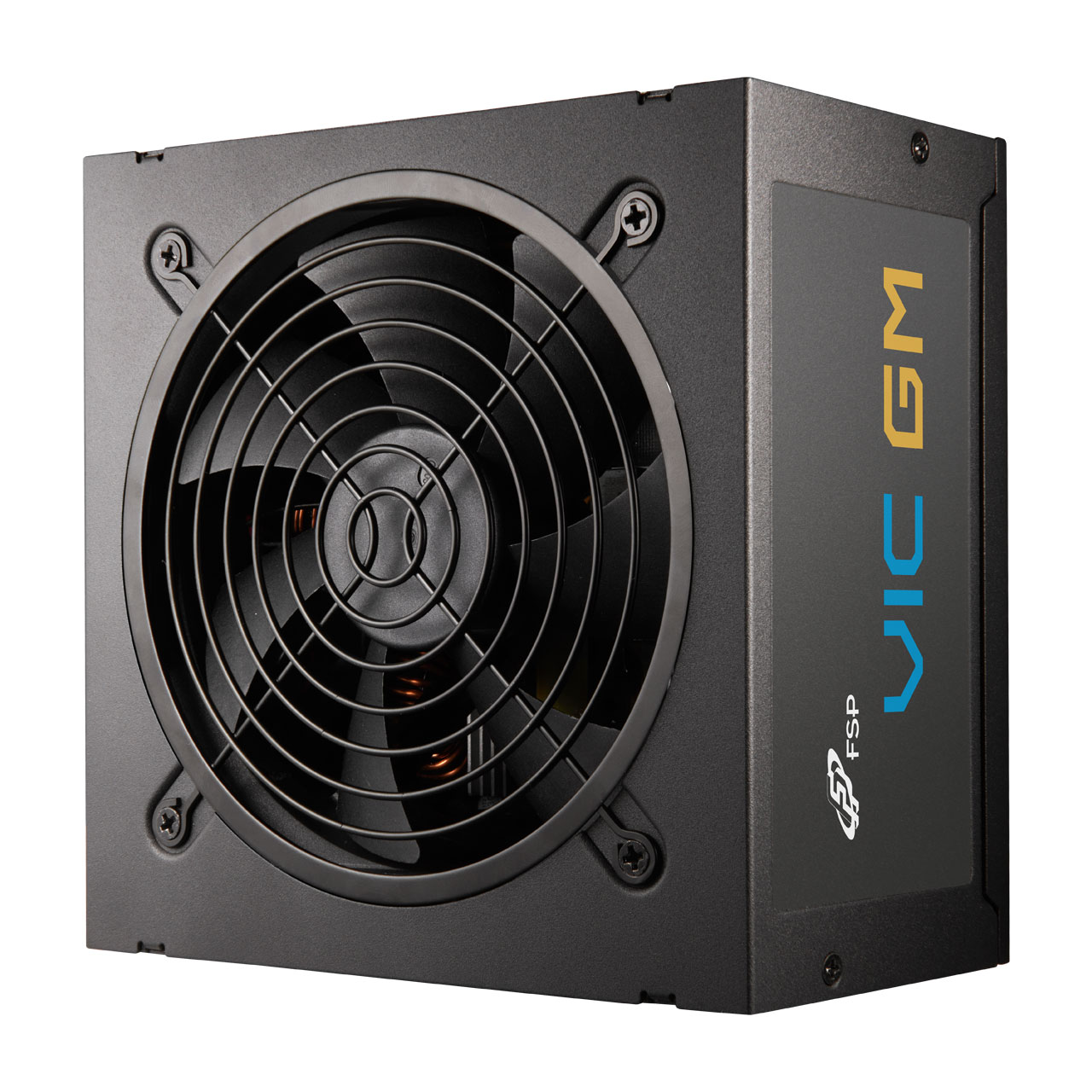

VIC GM 650W
VIC GM 650W
- Complies with ATX12V V3.1 & EPS 12V V2.92
- Supports the latest PCIe 12V-2x6 connector (850W / 750W)
- Efficiency ≧ 90% at typical load
- Active PFC, Power Factor ≧ 0.9
- Quiet and long-lasting 120mm fan
- Durable 420V main capacitor
- Powerful +12V single rail design
- +5V &3.3V DC to DC module design
- Premium, all-black cables for easier cable routing
- Complete Protections: OCP, OVP, SCP, OPP, UVP, OTP, SIP, NLO
- Meet ErP/EuP 2013 Standard
+5V & 3.3V DC to DC Circuit Design
Increase the efficiency and stabilize the output voltage to ensure system stability.

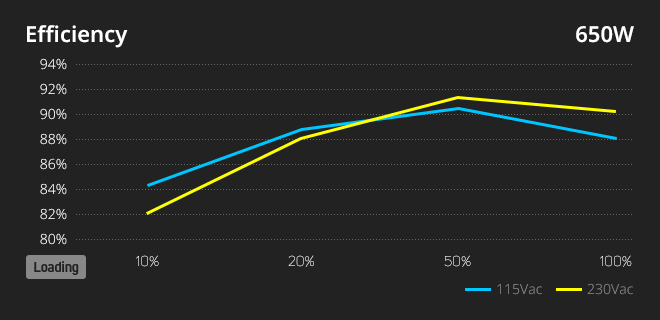

High Efficiency in Gold-certified
Certified by world-class organizations 80 PLUS® gold certification for lower power loss, less heat, and quieter operation
+12V Single Rail Design
Designed for power - intensive graphics cards provides strong power to any overloading condition.
Durable 420V Main Capacitor
The main capacitor inside serves to support working under an extremely harsh environment, such as with high temperatures, peak voltage fluctuations. It stabilizes the performance for high reliability that your system can count on.

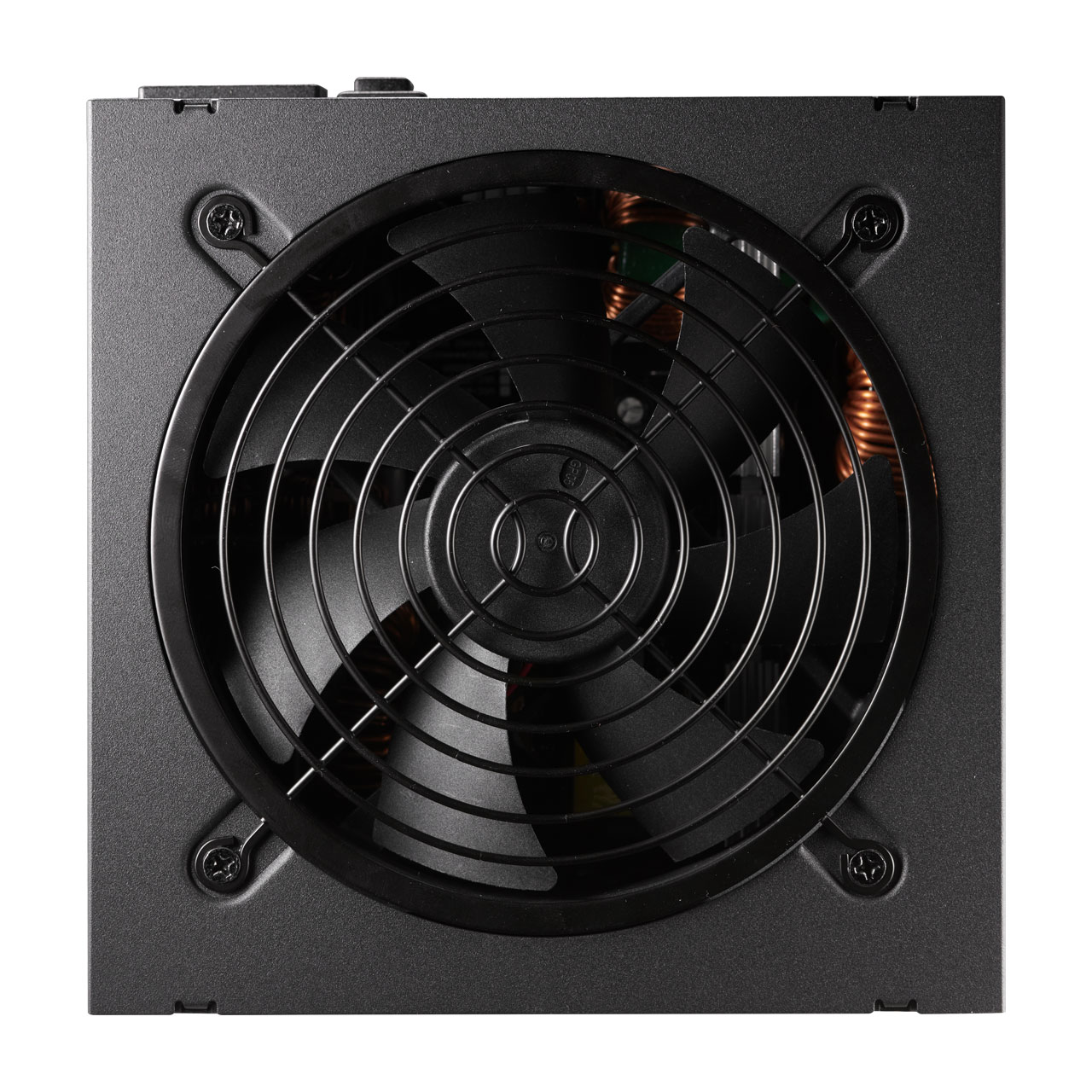

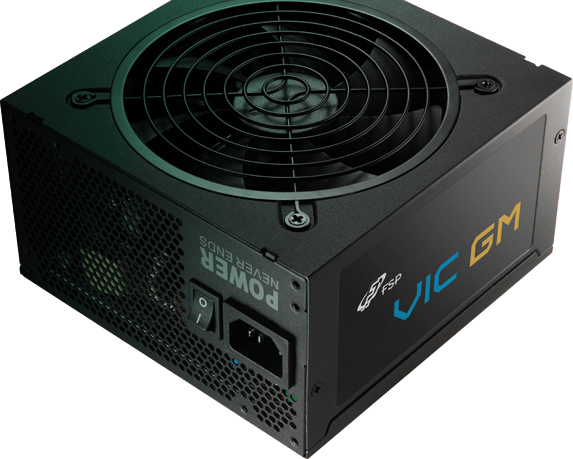

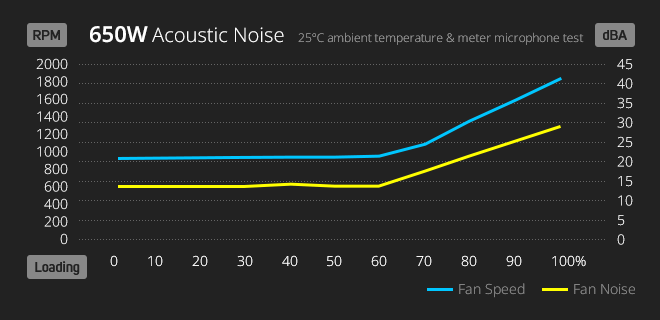

Quiet and Long-lasting Fan
Built with optimized thermal solution and an advanced 120mm fan for cooler components and quieter operation.

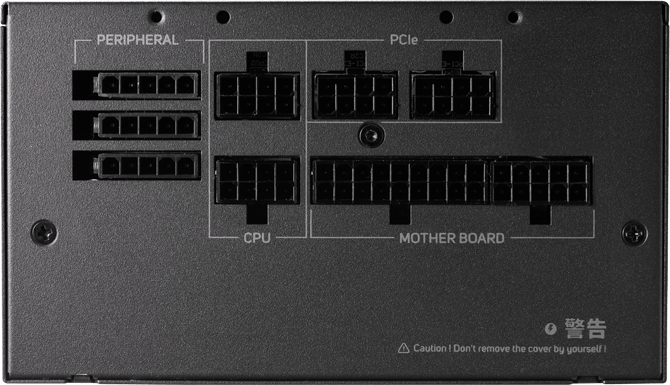

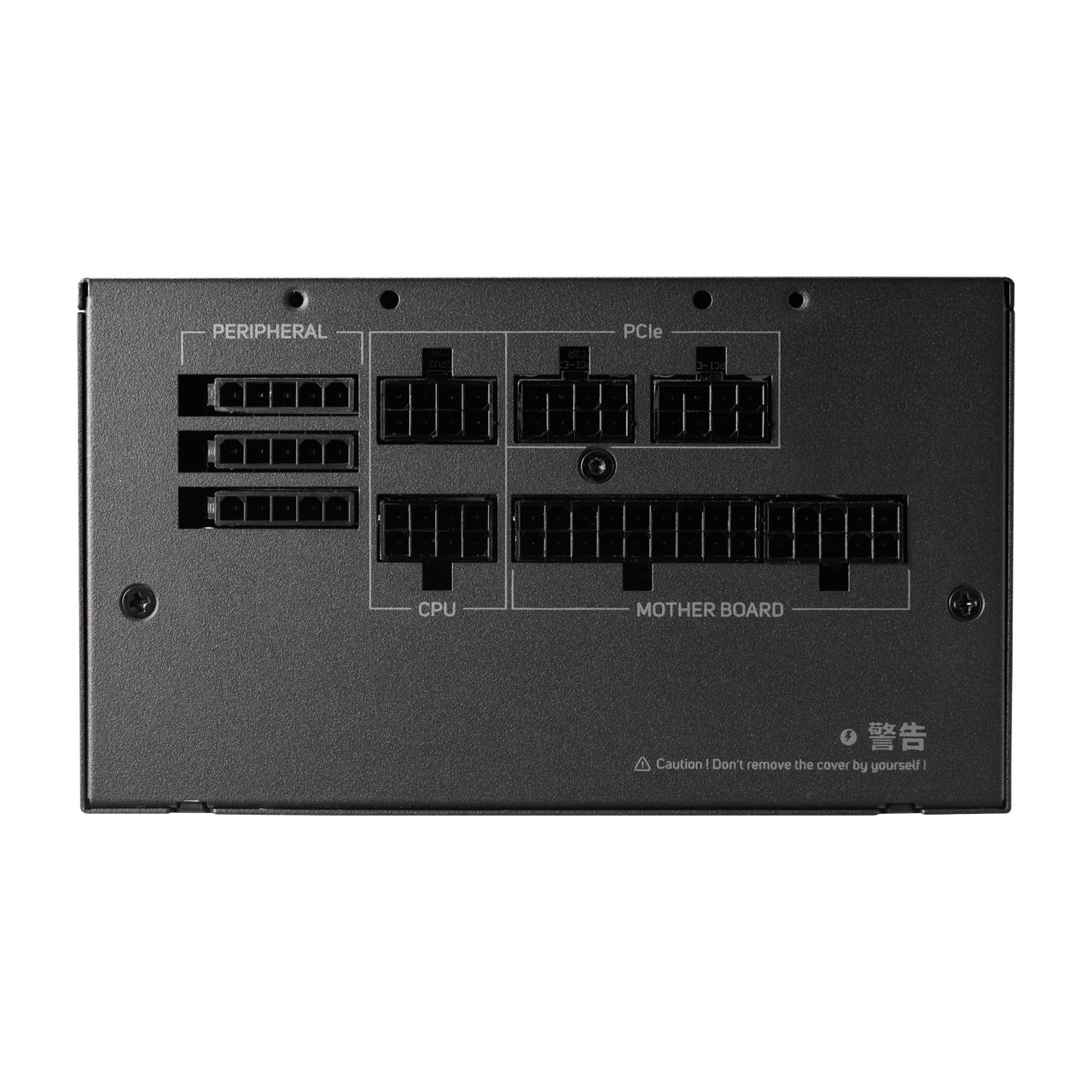

Fully Modular Cabling Design
The VIC GM offers hassle-free installation by letting users connect only the necessary cables, which enhances airflow and minimizes cable clutter inside the system.

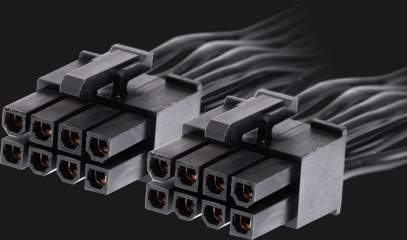

Strong Power Supply for CPU Needs
This power supply is equipped with dual 8-pin PCIe power connectors, delivering ample 12V power to meet the demands of high-performance CPUs.
Thermal Resilience: Power You Can Depend On
The VIC GM power supply is engineered for reliable power delivery, even in temperatures up to 40°C. Count on stable performance for your everyday computing, ensuring system longevity without heat concerns.
*Performance data based on testing conducted at 25°C ambient temperature.
OVP
Over Voltage Protection
OCP
Over Current Protection
OPP
Over Power Protection
OTP
Over Temperature Protection
SCP
Short Circuit Protection
UVP
Under Voltage Protection
SIP
Surge and Inrush Protection
NLO
No-load Operation
Complete Protection
Our comprehensive circuit shields your valuable components from harm.
MB 20+4 PIN
1 cable
1 connector
600 mm
CPU 4+4 PIN
2 cables
2 connectors
700 mm
PCIe 6+2 PIN
1 cable
2 connectors
805 mm
PCIe 6+2 PIN
1 cable
1 connector
650 mm
SATA
1 cable
4 connectors
965 mm
SATA
1 cable
4 connectors
965 mm
MOLEX
1 cable
4 connectors
965 mm
Performance
AC/DC
| AC Input | 100-240V~ 8-4A 50-60Hz | ||||
| DC Output | +3.3V | +5V | +12V | -12V | +5Vsb |
| Max Output Current | 20A | 20A | 54.16A | 0.3A | 3A |
| Max Combined Power | 100W Max | 649.9W | 3.6W | 15W | |
| Total Power | 650W | ||||
Specifications
| Model | VIC-650GM |
|---|---|
| Rated Output Power | 650W |
| Form Factor | ATX12V V3.1 |
| 80 PLUS Certification | Gold |
| Input Voltage | 100-240V |
| Input Current | 8-4A |
| Input Frequency | 50-60Hz |
| PFC | Active ≧ 0.9 |
| Efficiency(at typical load) | ≥90% at typical load |
| Fan Type | HYB bearing, 120mm |
| Dimensions(L x W x H) | 150 × 150 × 86 mm |
| Operation Temp. | 40°C |
| Protection | OCP, OVP, SCP, OPP, UVP, OTP, SIP, NLO |
| Warranty | 5 Years |
