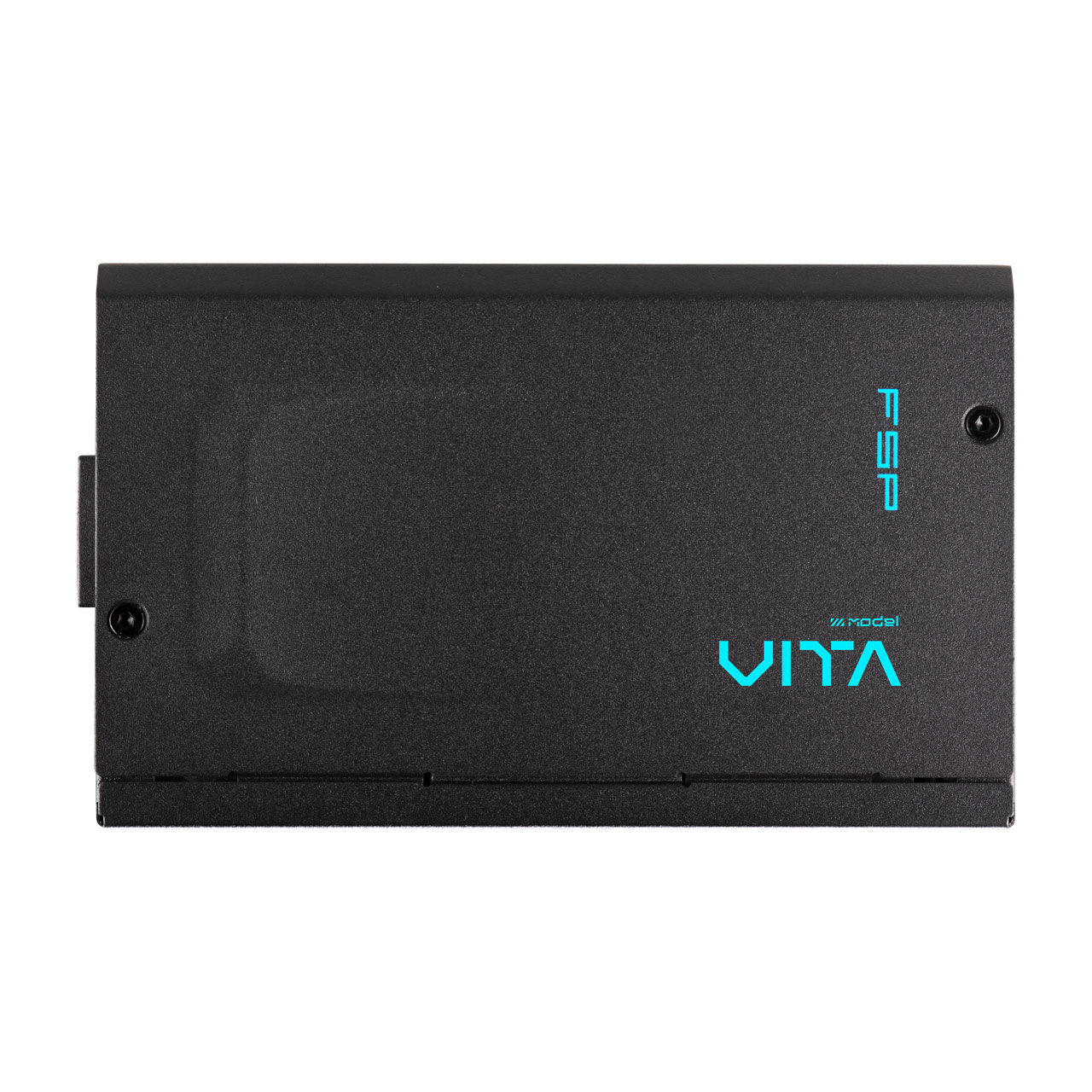

VITA GD 650W

  • Efficiency ≧ 90% at typical load
  • 80 PLUS® gold certified
  • Quiet and long-lasting 120mm HYB fan
  • Premium, all-black cables for easier cable routing
  • Complete protections: OCP, OVP, SCP, OPP, UVP, OTP
  • ATX 3.1
  • 80plus_Gold
  • 62368

The Future is Now:ATX 3.1 Ready

Following the latest ATX 3.1 regulation, this series supports 200% power excursion and ensure peak performance with future hardware upgrades.

+5V & 3.3V DC to DC Circuit Design

Increase the efficiency and stabilize the output voltage to ensure system stability.

High Efficiency in Gold-certified

Certified by world-class organizations 80 PLUS ® gold certification for lower power loss, less heat, and quieter operation.

Powerful Single +12V Rail

Modern CPUs and graphics cards can draw significant amounts of power, especially during peak loads., a single +12V rail PSU offers a good balance of simplicity, power delivery capability, and stability.

Premium, Black Flat Cables

Featuring improved black, flat cables that are soft and easy to bend, users can manage them more easily, saving time and creating more space for optimal cooling performance in your PC build.

105˚C Japanese Bulk Capacitor

The bulk capacitor inside serves to support working under an extremely harsh environment, such as with high temperatures, peak voltage fluctuations. It stabilizes the performance for high reliability that your system can count on.

Stay Cool, Stay Soft

Built with optimized thermal solution and an advanced 120mm HYB fan for cooler components and quieter operation.

Compact PSU size:140 x 150 x 86mm

140mm in length which is relatively shorter than industry standard, it’s ideal for compact PC or space-constraint environment without compromising on performance.

OVP

Over Voltage Protection

OCP

Over Current Protection

OPP

Over Power Protection

OTP

Over Temperature Protection

SCP

Short Circuit Protection

UVP

Under Voltage Protection

Complete Protection

Our comprehensive circuit shields your valuable components from harm.

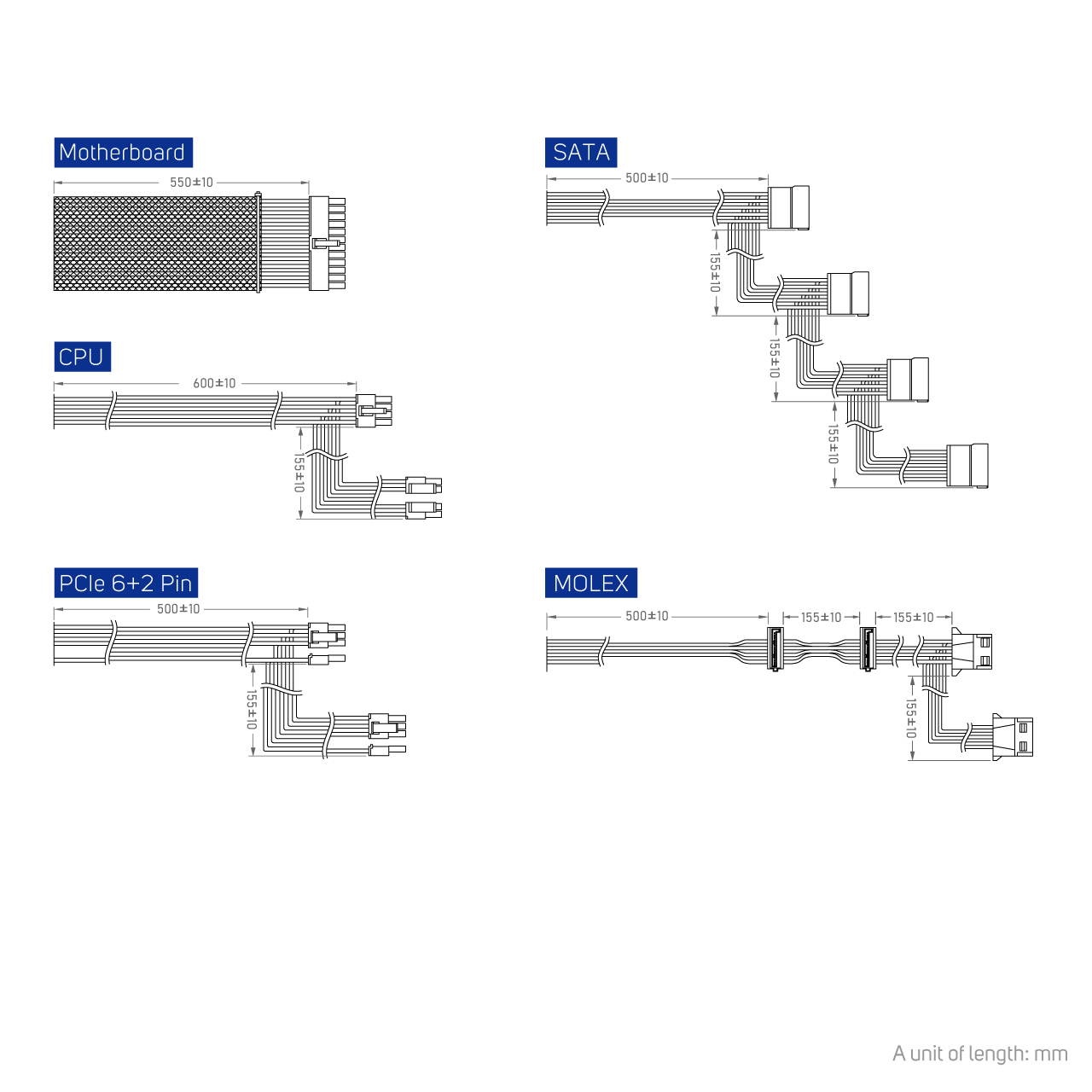

MB 24 PIN

1 cable
1 connector
550 mm

CPU 8 PIN
/ CPU 4+4 PIN

1 cable
8 PIN x1 / 4+4 PIN x1
755 mm

PCIe 6+2 PIN

1 cable
2 connector
655 mm

SATA

1 cable
4 connector
965 mm

MOLEX / SATA

1 cable
MOLEX x2
SATA x2
965 mm

Performance

Efficiency
noise

AC/DC

AC Input100-240V~ 8-4A 50-60Hz
DC Output+3.3V+5V+12V-12V+5Vsb
Max Output Current20A20A54.17A0.3A2.5A
Max Combined Power100W650W3.6W12.5W
Total Power650W

Specifications

Model VITA-650GD
Rated Output Power 650W
Form Factor ATX12V V3.1
80 PLUS Certification Gold
Input Voltage 100-240V
Input Current 8-4A
Input Frequency 50-60Hz
PFC Active ≧ 0.9
Efficiency(at typical load) ≥90% at typical load
Fan Type HYB Bearing, 120mm
Dimensions(L x W x H) 140×150×86 mm
Operation Temp. 40°C
Protection OCP, OVP, SCP, OPP, UVP, OTP
Warranty 5 Years
