  • Complies with ATX12 v2.4 & EPS12 v2.92
  • Efficiency ≧ 88% @ typical Load
  • Active PFC ≧ 0.9
  • Hold up time > 17ms
  • Full modular design with all black round cables
  • +12V single-rail design
  • Dc - Dc module design
  • Wide input voltage 140-265V
  • Semi-fanless design with 135mm FDB fan
  • Use solid capacitor in secondary
  • Complete protextions: OVP, SCP, OPP
  • 80plus_Bronze230VEU

Innovative Semi-fanless with 135mm FDB Fan

0 dB mode for virtually silent operation under 20% load, and the smart 135mm FDB (fluid dynamic bearing) fan automatically starts when over 20% load. This innovative design keeps power supply cool, and your system quiet.

80 Plus® 230V EU Bronze Certification

HYDRO MX series, 80 PLUS® 230V EU bronze certified, saves energy through its high efficiency up to 85% and excesses the standard through its high efficiency up to 88%.

  • DC-to-DC Module Design

    With a 12V SR circuit and the DC to DC structure, HYDRO MX Series ensure you the outstanding conversion efficiency and offers reliability and stability.

  • Solid capacitor in secondary

    Solid capacitor have better quality, protecting your equipment from the capacitor leakage problem and also increasing the life-span of your system.

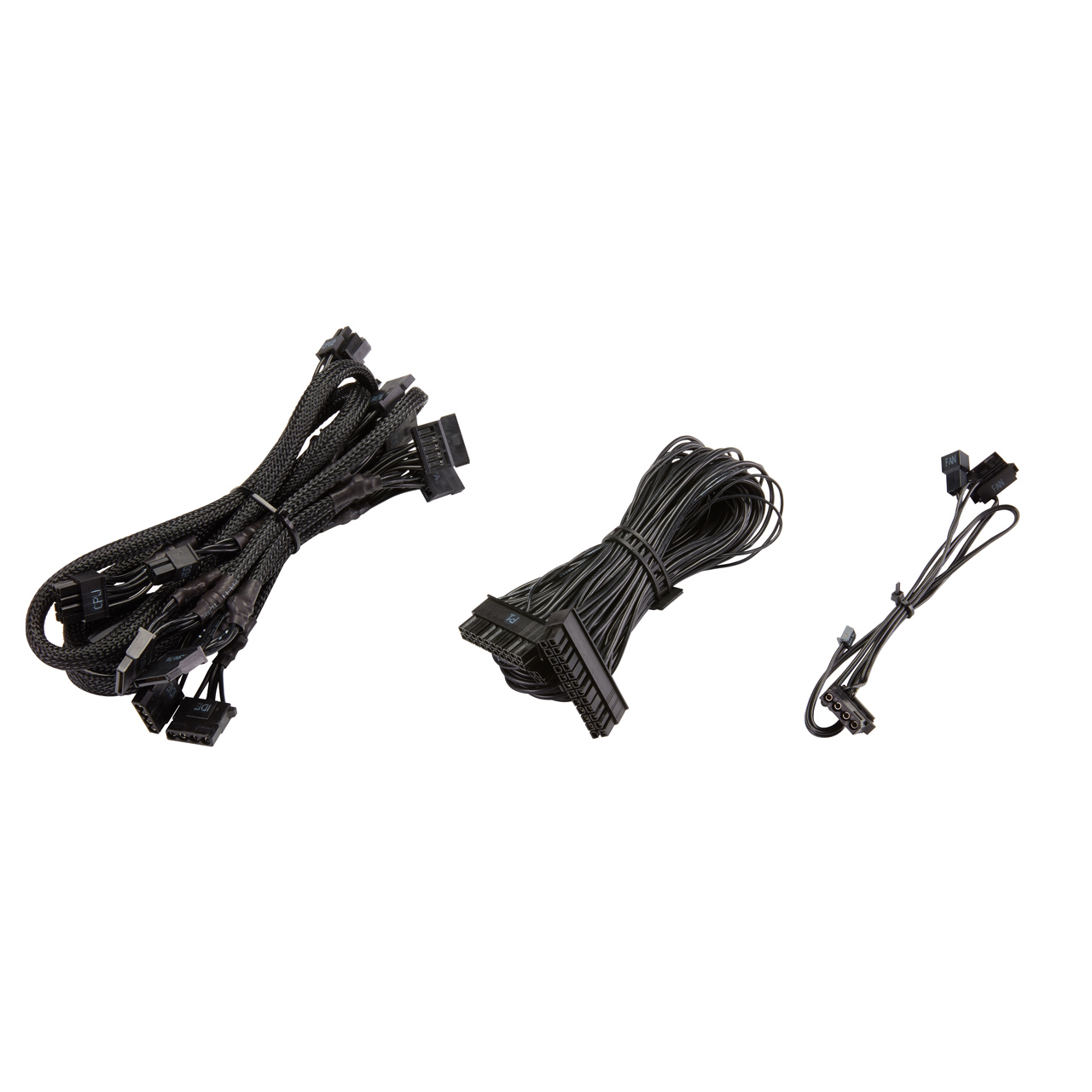

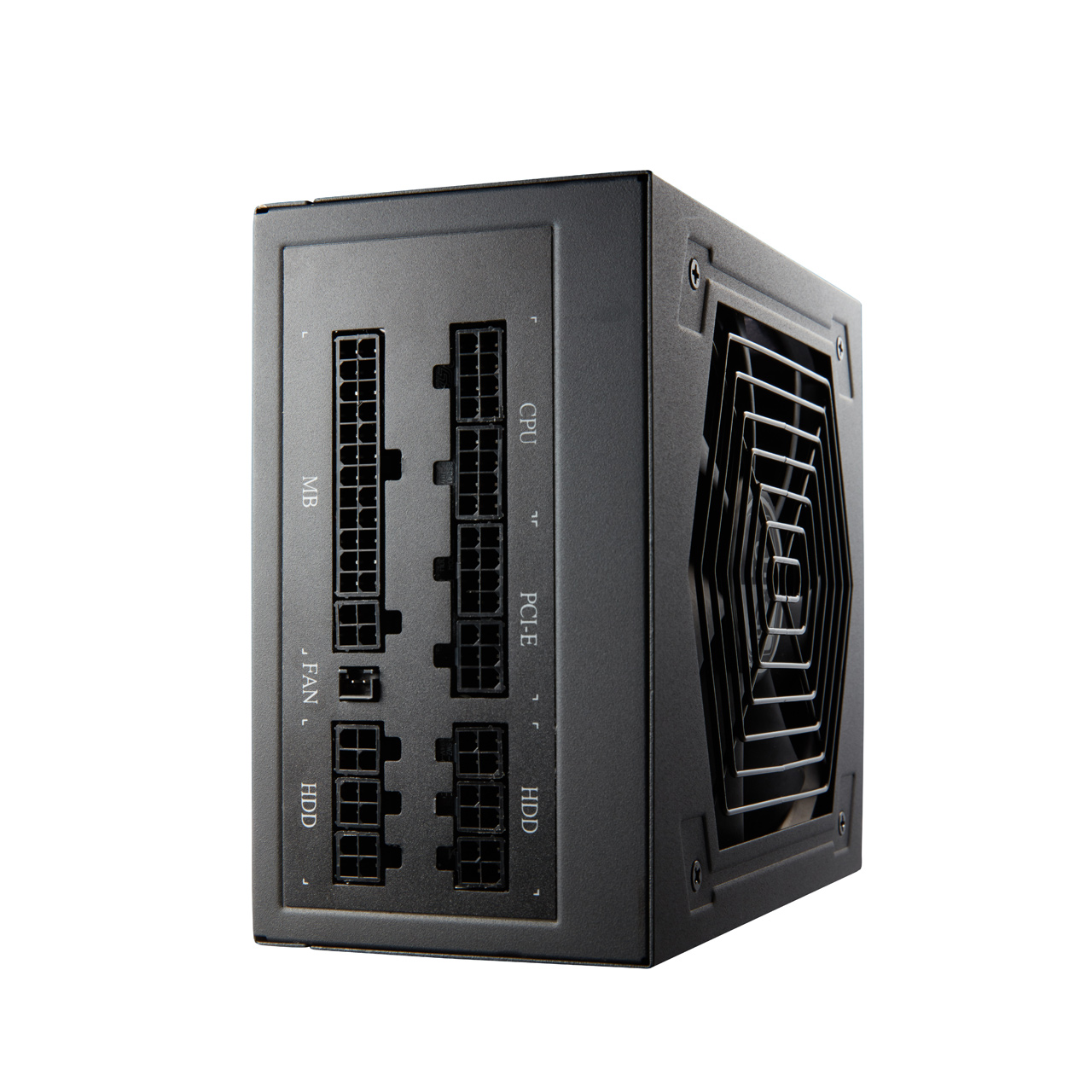

Fully Modular Design with All Black Round Cables

The detachable black round cables make your builds and upgrades easy, with clean, neat results. You can attach the cables you need lets you save valuable internal space and can improve system airflow.


Wide Input Range Power Supply

Wide input voltage 140-265V, can ensure the stability of the system when the input voltage is not stable.


AC Input200-240Vac~  6.3A  50-60Hz
DC Output+3.3V+5V+12V-12V+5Vsb
Max Output Current15A15A62A0.5A3A
Max Combined Power100W744W6W15W
Total Power750W

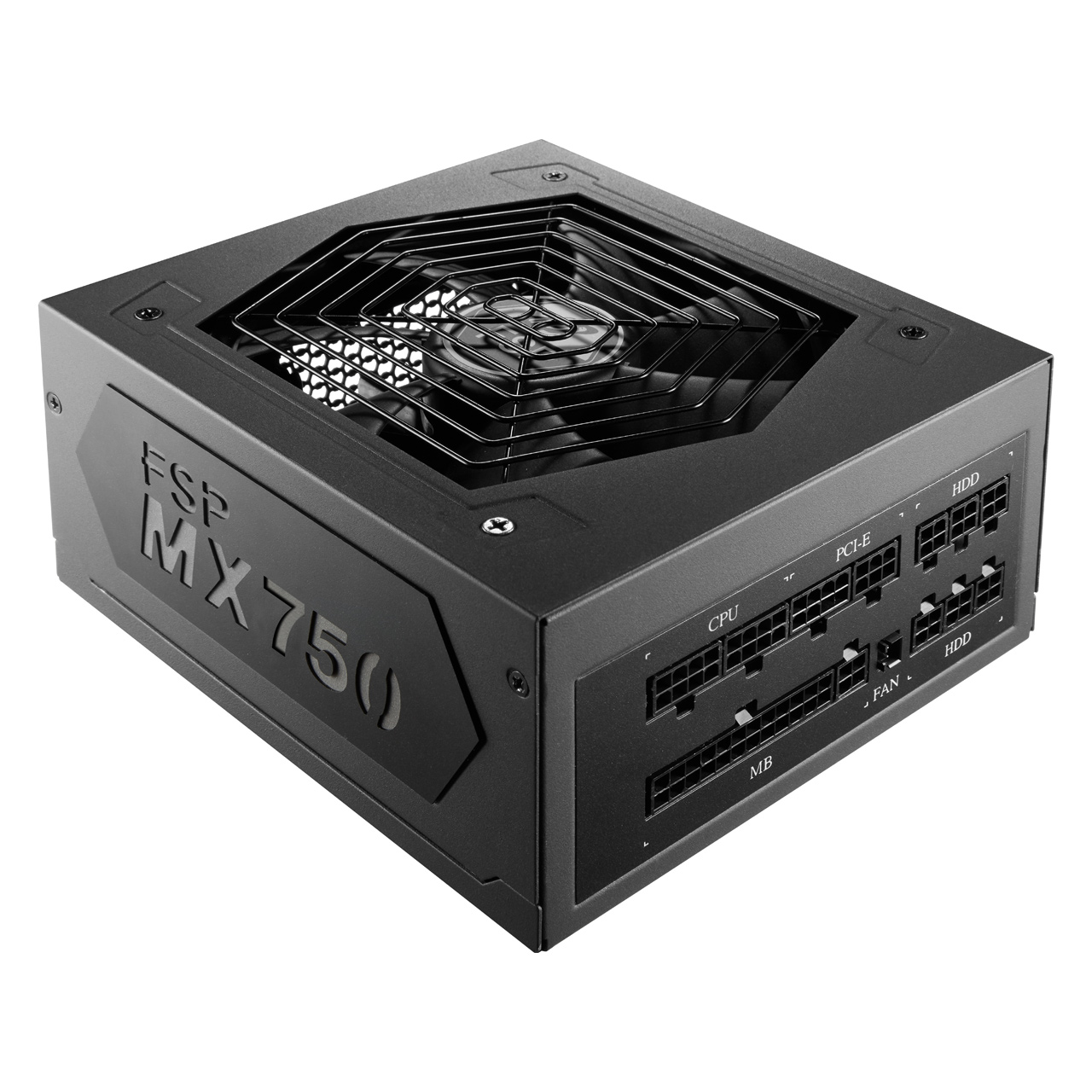

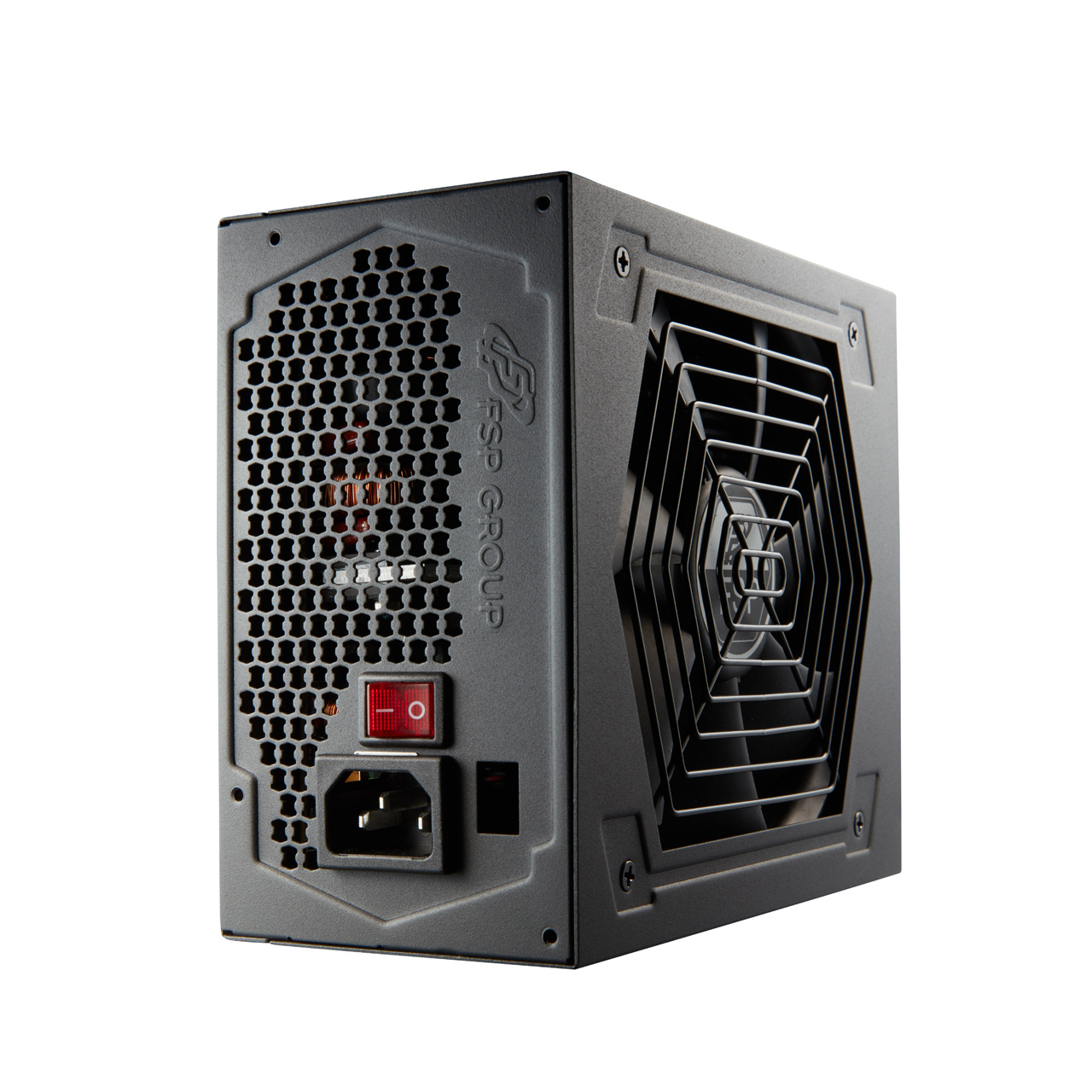

Model FSP750-50YDM
Rated Output Power 750W
Form Factor ATX
80 PLUS Certification 230V EU Bronze
Input Voltage 140-265Vac
Input Current 6.3A
Input Frequency 50-60Hz
PFC Active PFC > 0.9
Efficiency 88% @ typical load
Fan Type 135 X 135 mm FDB Bearing
Dimensions(L x W x H) 150 X 170 X 86 mm
Weight 2863g
Operation Temp. 200,000 Hrs
Protection OVP/SCP/OPP
Safety Approval CCC
