• Complies with ATX 12VO V1.1
  • Efficiency 90% at typical load
  • Active PFC ≧ 0.9
  • Hold up time > 17ms at 90% load
  • I_PSU% signal support
  • +12V single-output design
  • 105°C Japanese bulk capacitors
  • Black module flat line design
  • 92mm silent & long life FDB fan
  • PS2 stand for ATX chassis installation
  • Complete protections: OCP, OVP, OPP, SCP
  • 80plus_Gold

Excellent Efficiency and Power Output

Compared to traditional multi rail, single rail 12VO power supplies that adopt the 12V+12Vsb circuit design, the power conversion efficiency can be effectively enhanced. Output voltage stability can be controlled to reduce energy conversion loss, providing players with a smart risk control experience.

>500W Loading /Standard EfficiencyIntel 12VOIntel Multi.+12VDAGGER PRO 12VO 12VO 750W

I_PSU% Signal Support

I_PSU% provides valuable information on the power supply's performance and utilization, to optimize power delivery for efficient and safe operation.

A New 10-PIN Power Connector to Replace 24-PIN Motherboard

The ATX12VO is a new, smaller plug with 10-pins that replaces the old 24-pin plug on motherboards. It only works with the 12V power type, which helps to make things simpler and reduces the number of cables needed.

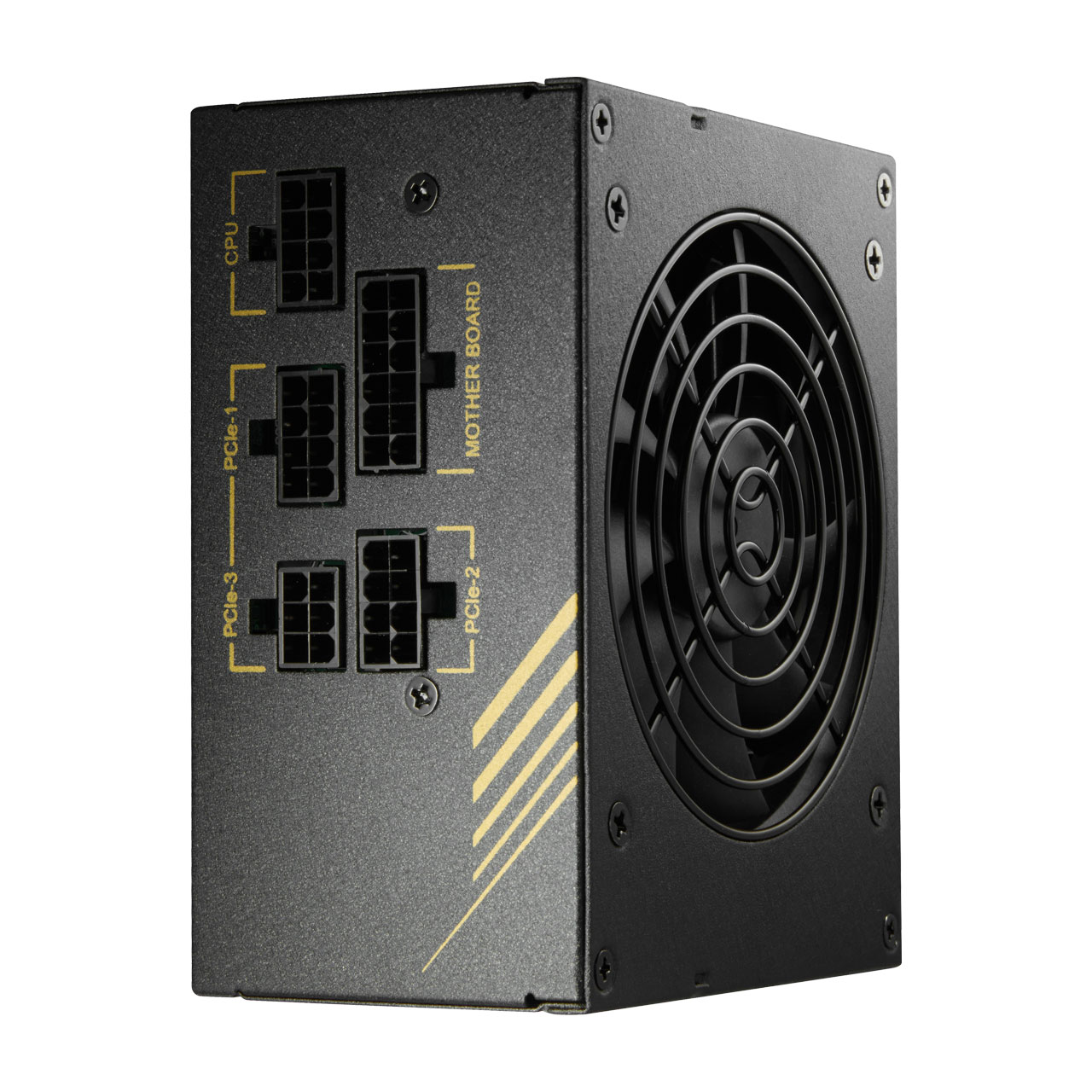

Tiny but Powerful

The DAGGER PRO 12VO series is compatible with most Mini-ITX and Micro ATX small form factor PCs. It is an ideal for home computer rigs but a great alternative for mini-PC enthusiasts.

Easier for Cable Management

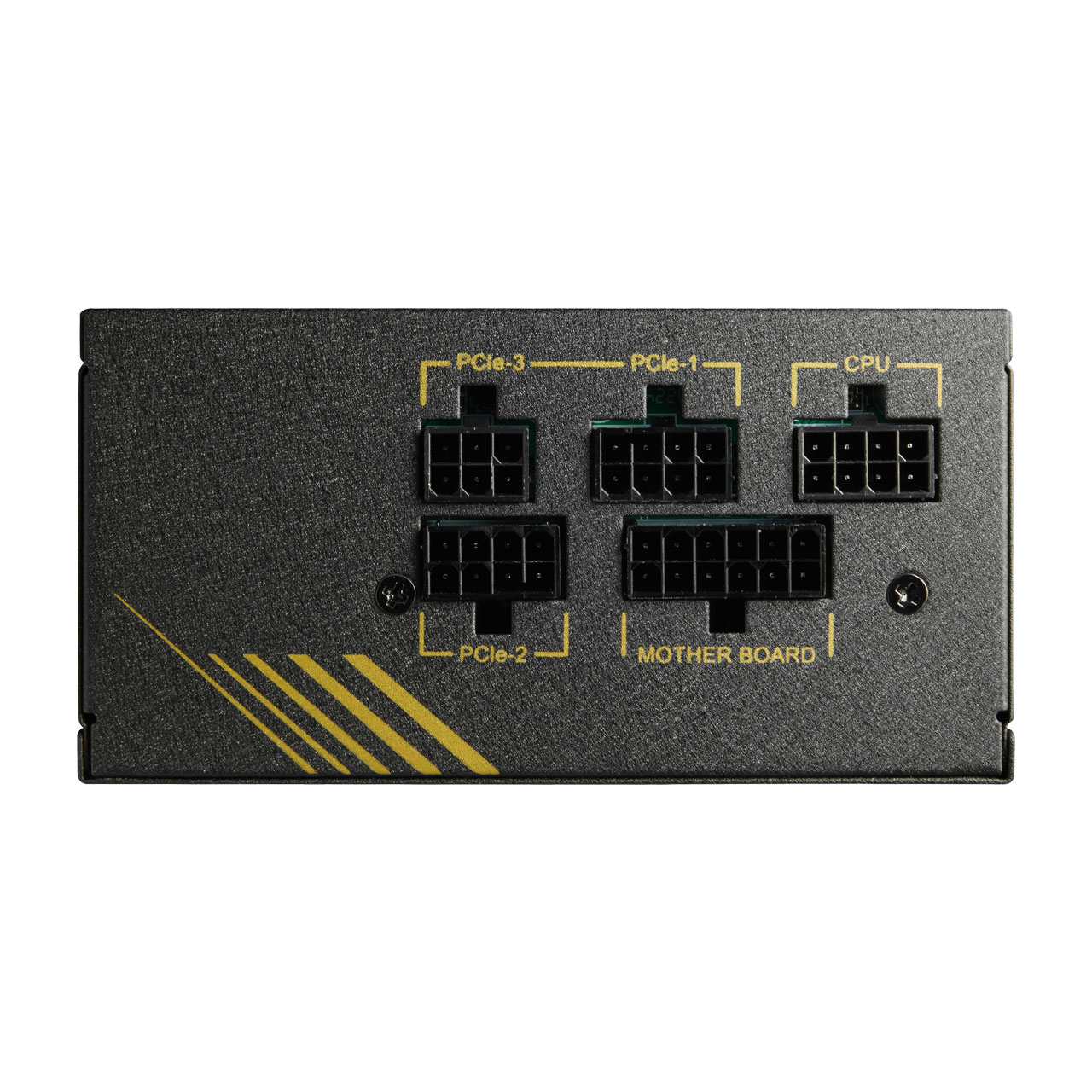

The SFX 12VO power supply wire has been reduced from MB 24 pin to MB 10 pin. The original CPU 4+4 is retained, and PCle 8 pin or 6+2 pin is provided for graphics cards. It’s more easier for cable management, repair, assembly, and optimal heat dissipation in the system space.

Quality and Reliability FDB Fan

Fluid-dynamic bearing provides better lifetime and vibration resistance, especially the advantage of lower noise and steadier performance while operating.

80 Plus® Gold Certification

DAGGER PRO 12VO series is a power supply with 80 PLUS® Gold Certification that guarantees to operate at a minimum of 90% efficiency at 50% load of PSU rated power and as a result to reduce lots of electricity cost.

105°C Japanese Bulk Capacitors

Premium quality, protecting your equipment from the infamous capacitor leakage problem and also increasing the life-span of your equipment.

SFX to ATX Adapter Bracket

Helps users easily install an SFX power supply into an ATX, Micro-ATX or Mini-ITX chassis.




AC Input100-240V~ 10-5A 60-50Hz

DC Output
Max. Wattage750W Max18W Max
Total output continuous shall not exceed750W



Model FSP750-27SCB
Rated Output Power 750W
Form Factor SFX
80 PLUS Certification Gold
Input Voltage 100-240V
Input Current 10-5A
Input Frequency 50-60Hz
PFC Active PFC
Efficiency ≥90% at typical load
Fan Type FDB fan, 92mm
Dimensions(L x W x H) 100x125x63.5 mm
Protection OCP, OVP, OPP, SCP
