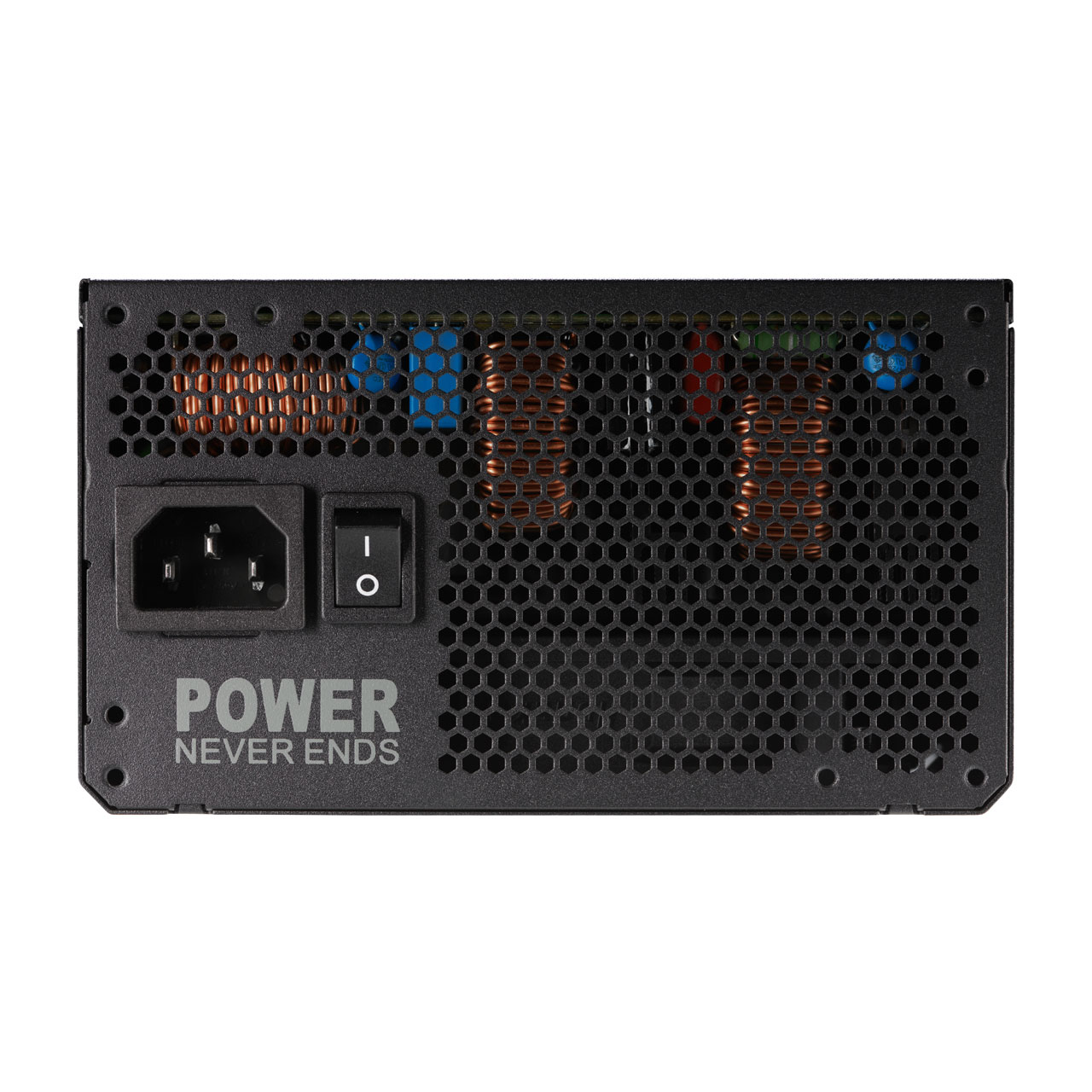

VITA BD 750W

  • Efficiency ≧ 88% at typical load
  • 80 PLUS ® 230V EU bronze certified
  • Hold up time ≥ 12ms at 100% load
  • Premium, all-black cables for easier cable routing
  • Complete protections: OCP, OVP, SCP, OPP, UVP, OTP
  • ATX 3.1
  • PCIe Gen 5.1
  • PCIe 12V-2x6
  • 80plus_Bronze230VEU

Complies with Intel® Power Design Guide ATX 3.1

VITA BD series is compatible with the latest ATX 3.1 regulation to support up to 200% power excursion and with the new interface of PCIe 12V-2x6 connector to ensure peak performance with future hardware upgrades.

+5V & 3.3V DC to DC Circuit Design

Increase the efficiency and stabilize the output voltage to ensure system stability.

High Efficiency in Bronze-certified

Certified by world-class organizations 80 PLUS ® 230V EU Bronze certification for lower power loss, less heat, and quieter operation.

Powerful Single +12V Rail

Modern CPUs and graphics cards can draw significant amounts of power, especially during peak loads., a single +12V rail PSU offers a good balance of simplicity, power delivery capability, and stability.

Premium, Black Flat Cables

Featuring improved black, flat cables that are soft and easy to bend, users can manage them more easily, saving time and creating more space for optimal cooling performance in your PC build.

Premium Bulk Capacitor

The bulk capacitor inside serves to support working under an extremely harsh environment, such as with high temperatures, peak voltage fluctuations. It stabilizes the performance for high reliability that your system can count on.

Stay Cool, Stay Soft

Built with optimized thermal solution and an advanced 120mm fan for cooler components and quieter operation.

OVP

Over Voltage Protection

OCP

Over Current Protection

OPP

Over Power Protection

OTP

Over Temperature Protection

SCP

Short Circuit Protection

UVP

Under Voltage Protection

Fortress-level Protection

Our comprehensive circuit shields your valuable components from harm.

Performance

Efficiency
noise

Cables

 atx cable 24 pinEPS 4 4 pinEPS 4 4 pin12V-2x6pcie 6+2 pinhd satamolex
MB 24 PINCPU 8 PINCPU 4+4 PINPCIe 12V-2x6PCIe 6+2 PINSATAMOLEX
Connectors1111462

AC/DC

AC Input200-240V~ 6A 50-60Hz
DC Output+3.3V+5V+12V-12V+5Vsb
Max Output Current20A20A62.5A0.3A2.5A
Max Combined Power100W750W3.6W12.5W
Total Power750W

Specifications

Model VITA-750BD
Rated Output Power 750W
Form Factor ATX12V V3.1
80 PLUS Certification 230V EU Bronze
Input Voltage 200-240V
Input Current 6A
Input Frequency 50-60Hz
PFC Active ≧ 0.9
Efficiency(at typical load) ≥88% at typical load
Fan Type Sleeve Bearing, 120mm
Dimensions(L x W x H) 140×150×86 mm
Operation Temp. 40°C
Protection OCP, OVP, SCP, OPP, UVP, OTP
Warranty 5 Years
