PIC16300000000000614

Hydro (K) 600W

  • Unique product ID with stylish side sticker
  • Advanced air-flow design in silent operation
  • Complies with newest ATX12V & EPS12V standards
  • Wide input AC range from 160Vac to 280Vac
  • 230V 80PLUS® Bronze certification
  • Efficiency ≧88%
  • Powerful single +12V rail design
  • Ribbon cables for the need of enthusiasts and gamers
  • SLI and Crossfire ready
  • Full protections: OCP, OVP, SCP, OPP
  • Global safety approved
  • 80plus_Bronze230VEU
...

Wide input AC range

Input AC range from 160Vac to 280Vac, a reliable design for any unstable voltage condition.

Intelligent fan control

An advanced fan control design to detect heat and adjust fan speed for optimal cooling performance.

Low noise

120mm fan and special vent hole design to spin quietly and keep cooling under maximum operation.

Sophisticated design

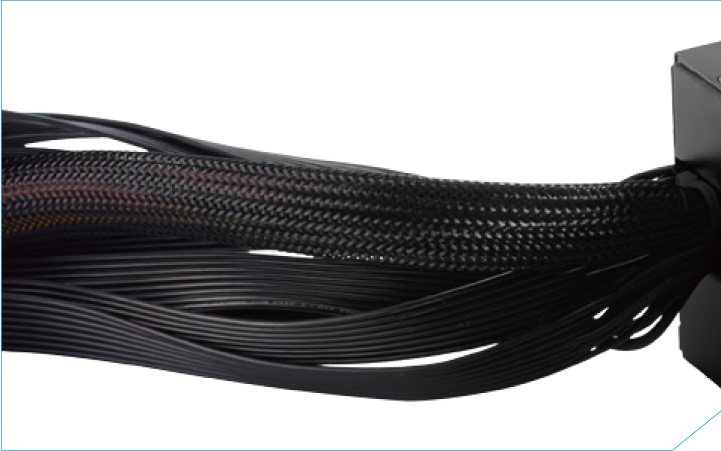

Ribbon cables (exclude MB 20+4 Pin) give any systems a neat and polished look.

Easy Installation

20+4 pin comes with length of 450mm to connect MB easily, and ribbon cables give you a hand to face mess cables in rear panel.

Low power consumption, high energy efficiency

Special design to place the bridge diodes among two EMI filters for low energy loss in Standby mode.

Performance

Efficiency
noise

AC/DC

AC Input200-240Vac~  5A   50-60Hz
DC Output+3.3+512V -12+5Vsb
Max Output Current22A22A46A 0.5A2.5A
Max Combined Power120W552W6W12.5W
Total Power600W

Cables

 atx cable 24 pinEPS 4 4 pinpcie 6+2 pinhd statmolex2.5 floppy
ATX 20+44+4 PINPCI-E 6+2SATAMolex
(PERIPHERAL)
Floppy
Connectors1141031

Specifications

Model HD600
Rated Output Power 600W
Form Factor ATX
80 PLUS Certification 230V Bronze
Input Voltage 200-240Vac
Input Current 5A
Input Frequency 50-60 Hz
PFC Active PFC (>0.9 typical)
Efficiency ≥88% at typical load
Fan Type 120mm Intelligent Silent Fan
Dimensions(L x W x H) 150 × 150 × 86 mm
Weight 1880g
Operation Temp. 0~40°C
Protection OCP/OVP/SCP/OPP
