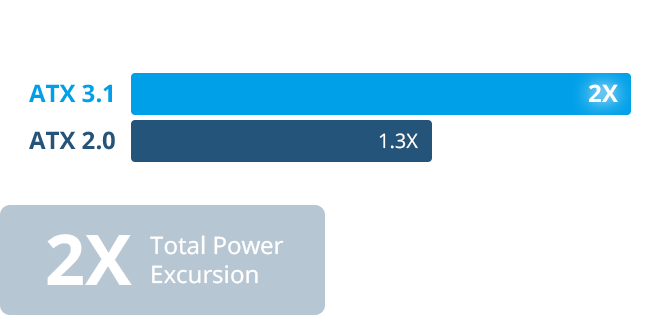

The Future is Now：ATX 3.1
Following the latest ATX 3.1, support up to 200% power excursion to ensure peak performance with future hardware upgrades.
Home
Products Power Supply

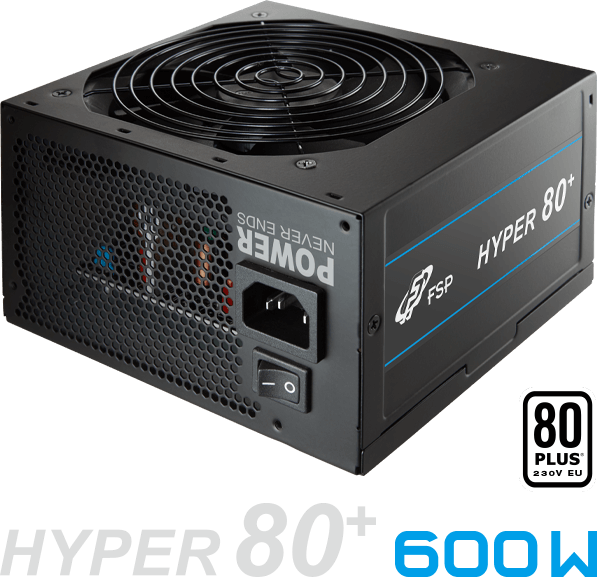

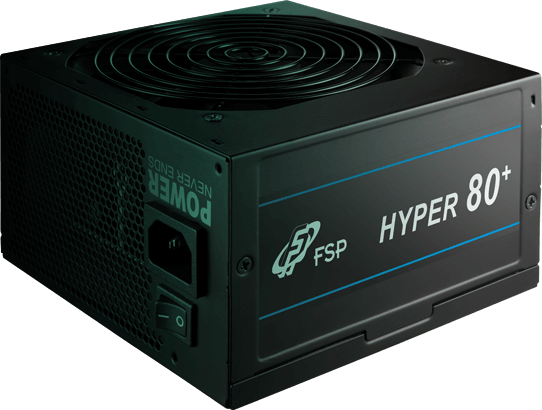

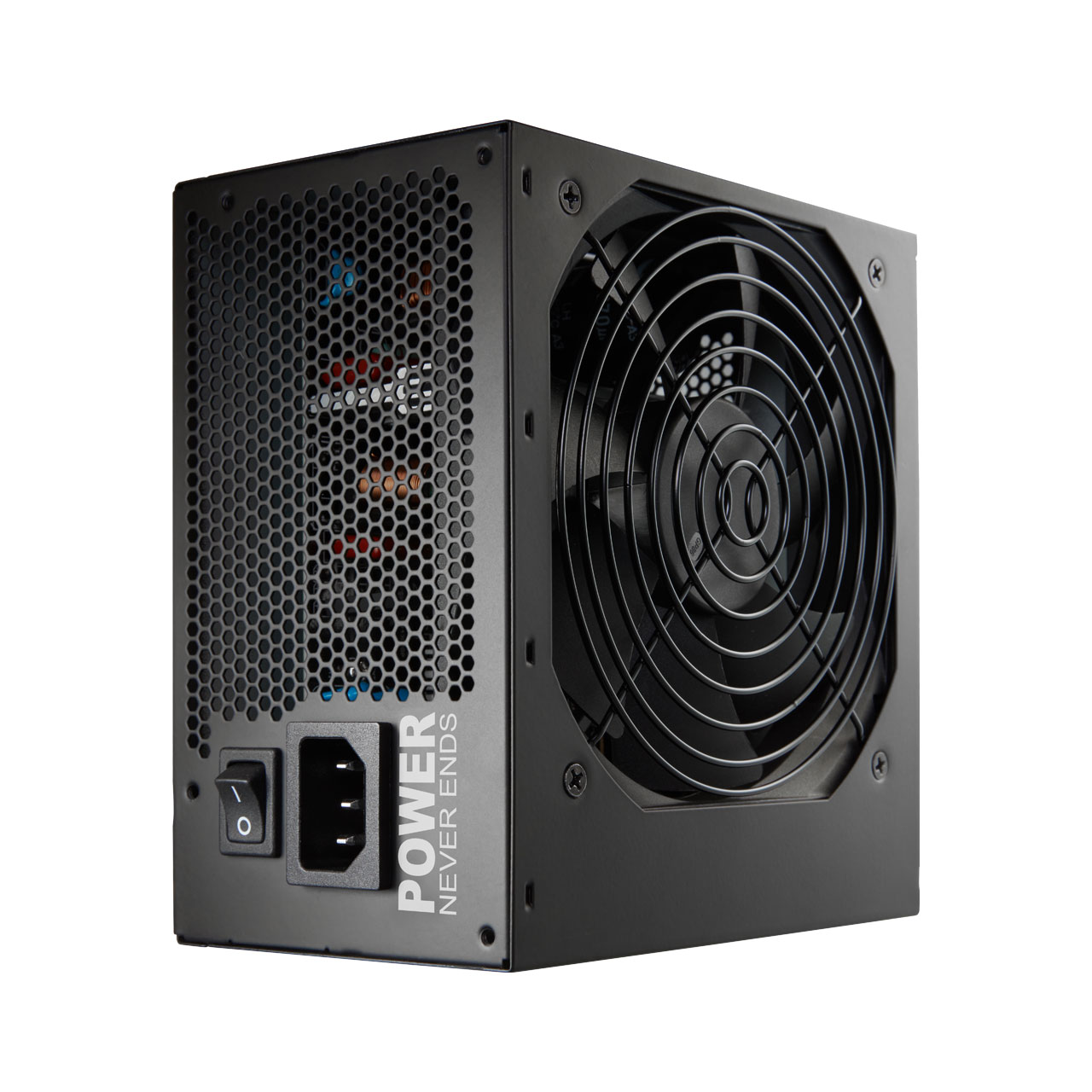

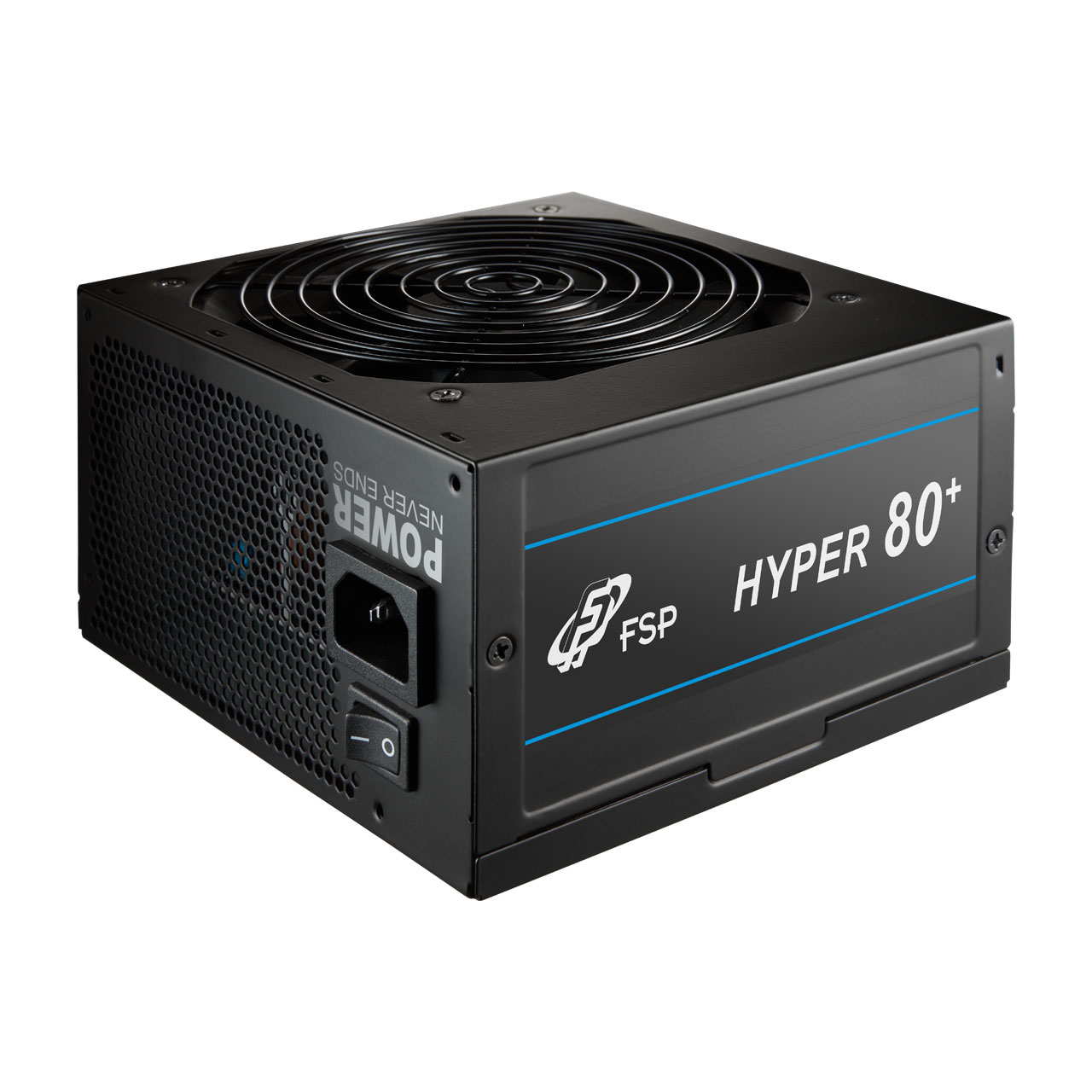

HYPER 80+ 600W
HYPER 80+ 600W
- Complies with ATX12 v3.1 & EPS12 v2.92
- Efficiency ≧ 85% at typical Load
- Active PFC ≥ 0.9
- Hold up time > 12ms at 100% Load
- 120mm hydraulic bearing (HYB) fan
- +12V Single-rail design
- +5V &3.3V DC to DC module design
- All black cables
- Complete protections: OCP/OVP/OPP/SCP
Reliable Circuit Design for Steady Power
The +5V & 3.3V DC to DC circuit design enhances efficiency and stabilizes output voltage for consistent system performance.

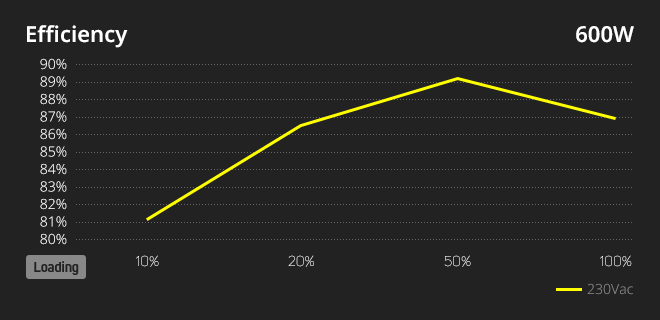

Over 85% High Efficiency with 80PLUS®
Certified by world-class organizations 80 PLUS® 230V EU Standard certification for lower power loss, less heat, and quieter operation.
Power-Ready +12V Single Rail Design
Engineered for power-hungry VGA cards, this design delivers robust power to handle even the most demanding overloading conditions, ensuring peak performance in every gaming session.
Active PFC ≧ 0.9
A minimum power factor of 0.9 guarantees both system stability and efficiency.

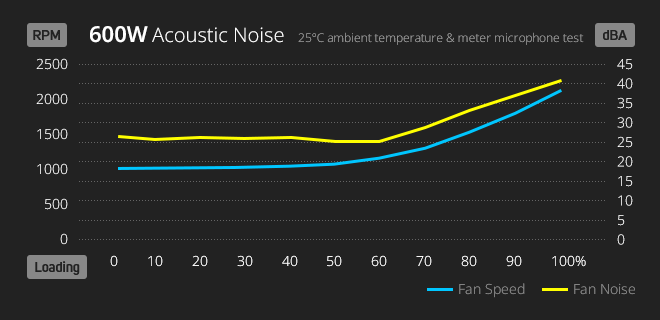

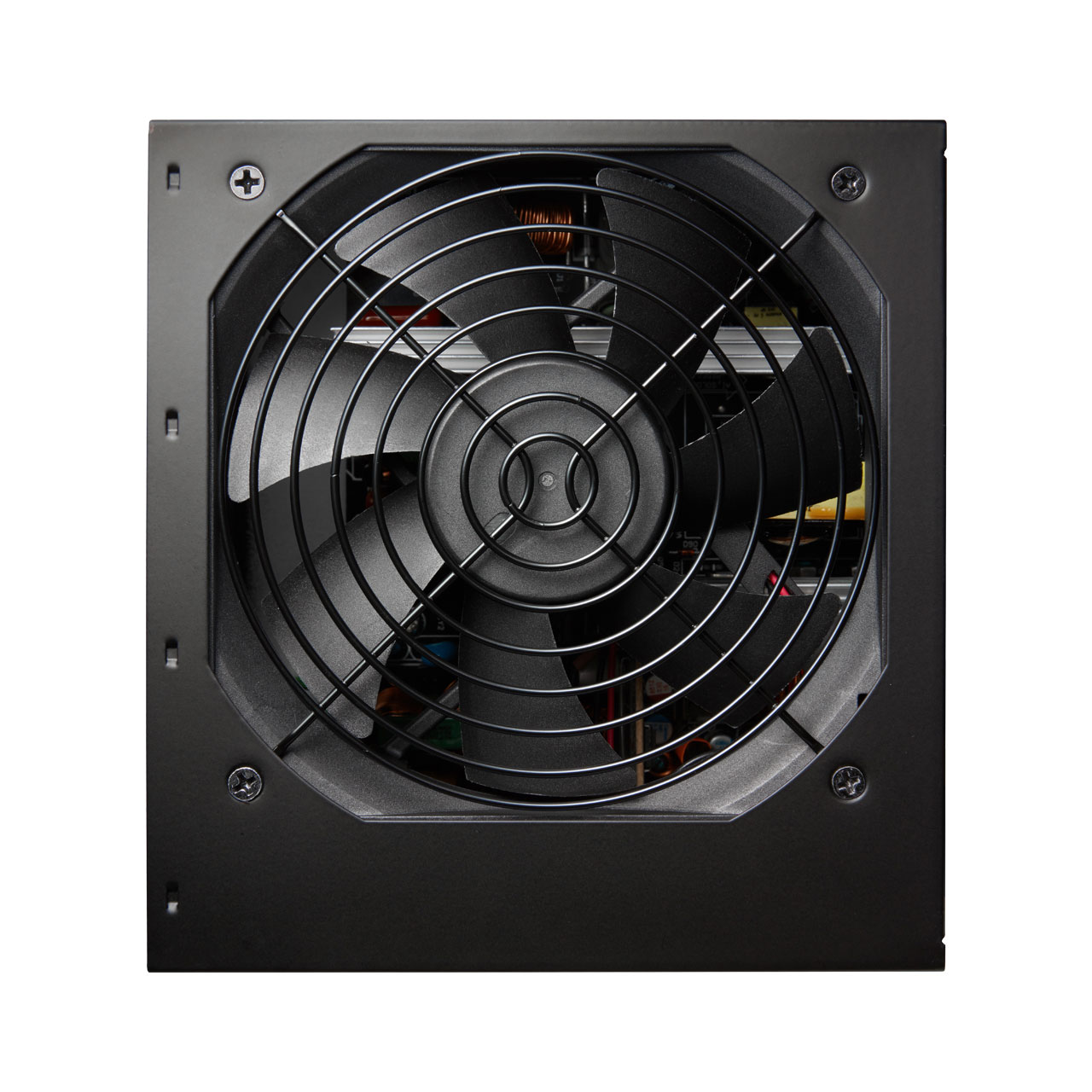

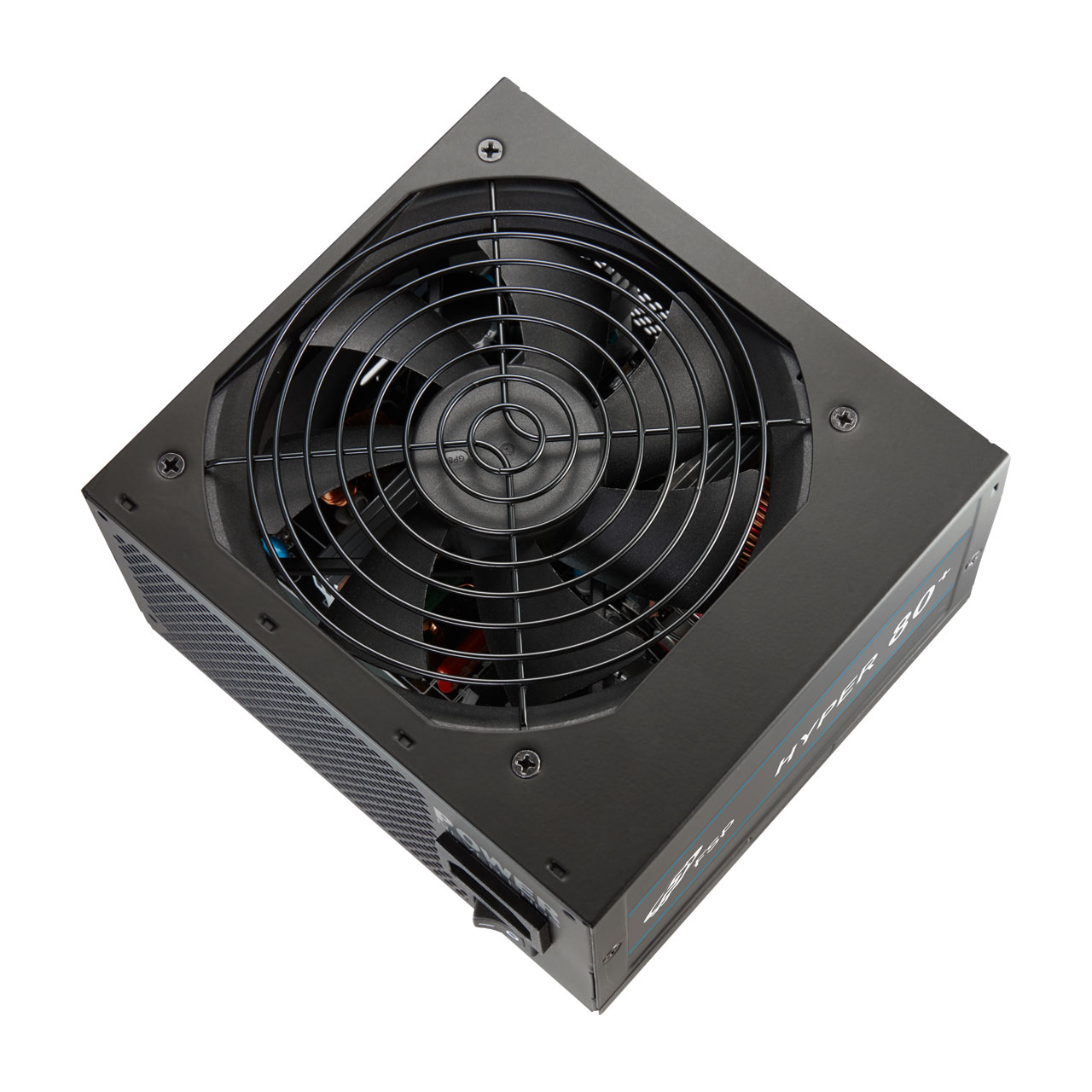

Quiet and Long-lasting HYB Fan
Built with optimized thermal solution and an advanced 120mm HYB fan for cooler components and quieter operation.
Hold Up Time > 12ms at 100% Load
With a hold-up time of over 12ms at 100% load, HYPER 80+ ensures uninterrupted performance during voltage dips.
Thermal Resilience: Power You Can Depend On
The HYPER 80+ power supply is engineered for reliable power delivery, even in temperatures up to 40°C. Count on stable performance for your everyday computing, ensuring system longevity without heat concerns.
*Performance data based on testing conducted at 25°C ambient temperature.
OVP
Over Voltage Protection
OCP
Over Current Protection
OPP
Over Power Protection
SCP
Short Circuit Protection
Advanced Protection
Engineered for reliability, HYPER 80+ features OVP, OCP, OPP, and SCP safeguards. From voltage spikes to short circuits, ensuring stable performance and maximum safety for your critical systems.
MB 20+4 PIN
1 cable
1 connector
*MB 20+4 PIN cable with sleeving
Cable Information：
550mm
CPU
1 cables
1x4+4 PIN
1x8 PIN
Cable Information :
600mm+150mm
PCIe 6+2 PIN
1 cables
2 connectors
Cable Information :
500mm+155mm
MOLEX / SATA
1 cable
2xMOLEX
2xSATA
Cable Information :
500mm+155mm+155mm+155mm
SATA
1 cable
4 connectors
Cable Information :
500mm+50mm+50mm+50mm
Performance
AC/DC
| AC Input | 200-240V~ 4.5A 50-60Hz | ||||
| DC Output | +3.3V | +5V | +12V | -12V | +5Vsb |
| Max Output Current | 20A | 20A | 50A | 0.3A | 2.5A |
| Max Combined Power | 100W | 600W | 3.6W | 12.5W | |
| Total Power | 600W | ||||
Specifications
| Model | HK-600 |
|---|---|
| Rated Output Power | 600W |
| Form Factor | ATX12V V3.1 |
| 80 PLUS Certification | 230V EU Standard |
| Input Voltage | 200-240V |
| Input Current | 4.5A |
| Input Frequency | 50-60Hz |
| PFC | Active ≧ 0.9 |
| Efficiency(at typical load) | ≥85% at typical load |
| Fan Type | HYB Fan, 120mm |
| Dimensions(L x W x H) | 140 × 150 × 86 mm |
| Operation Temp. | 40°C |
| Protection | OCP, OVP, SCP, OPP |
| Warranty | 5 Years |
