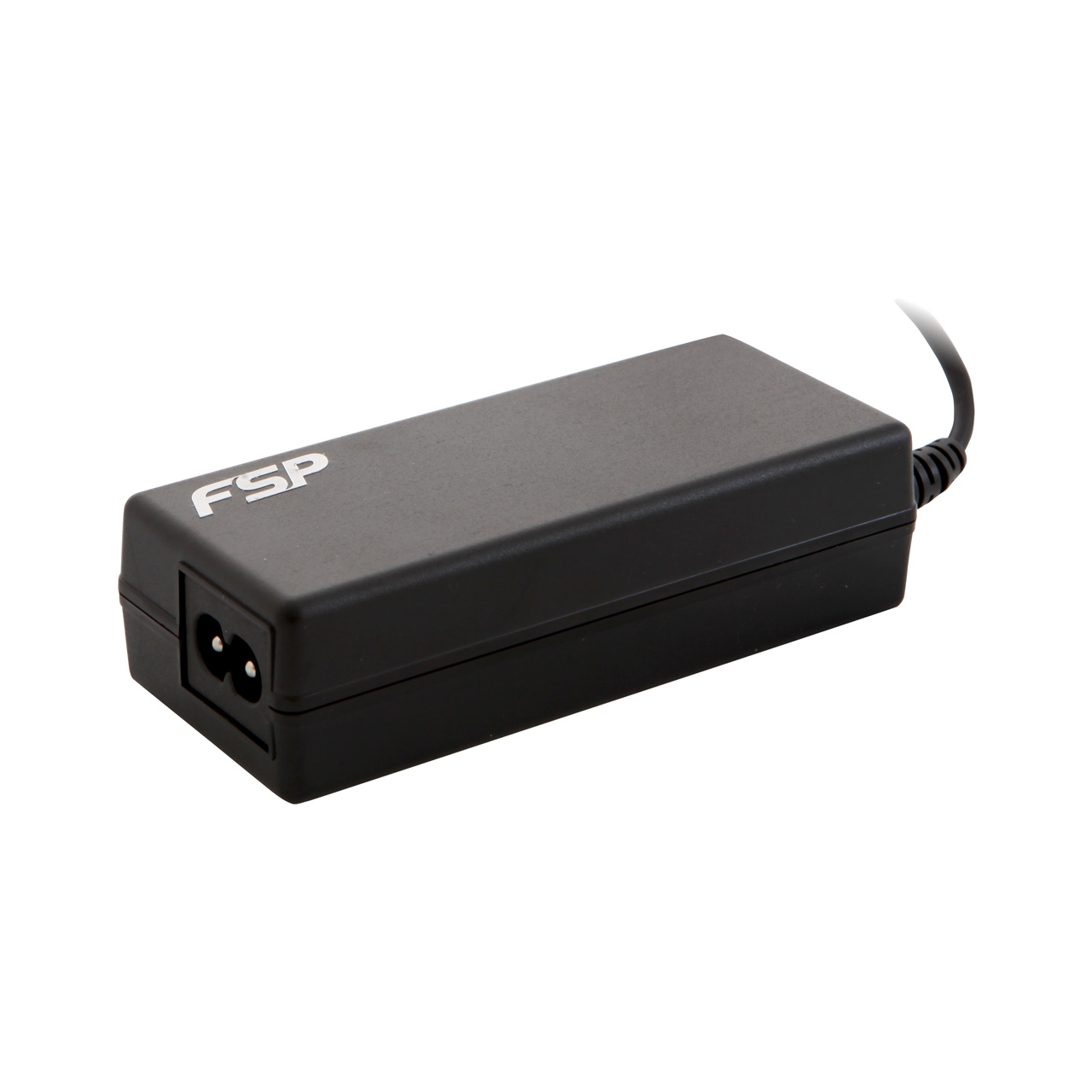

NB 65 is a 65w standard notebook adapter with over 88% high efficiency. 8 changeable output tips are compatible 18-20V input notebooks - IBM, Dell, ACER, COMPAQ, SONY, TOSHIBA, HP, ASUS, LENOVO etc…
Meets CEC and DoE Level VI.
Meets CEC and DoE Level VI.
Compatibility Laptop Brands
Tips Number | Outer | Inter | Color | Compatibility |
1 | 4.75 | 1.7 | YELLOW | ACER, ASUS, HP, LG |
2 | 5.5 | 1.7 | ORANGE | ACER |
3 | 5.5 | 2.1 | BLUE | GATEWAY, HITACHI, LENOVO, NEC, SHARP, TWINHEAD |
4 | 5.5 | 2.5 | WHITE | ACER, ASUS, FUJITSU, HITACHI, HP, IBM, LG, NEC, PANASONIC, TOSHIBA |
5 | 6.3 | 3.0 | GREEN | ASUS |
C | 5.5 | 1.0 | YELLOW | SUMSUNG |
8 | 7.9 | 0.9 | BLACK | LENOVO, IBM |
U8 | 11 | 4.65 | YELLOW | LENOVO, YOGA series |
Specifications
Model | NB 65 |
---|---|
Rated Output Power | 65W |
Input Voltage | 100-240Vac (Full Range) |
Input Frequency | 50-60Hz |
Output Voltage | +18V ~ +20V |
Efficiency | >88% |
Standby Power Consumption | <0.1W |
Dimensions (LxWxH) | 114 x 49 x 29.5 mm / 4.49 x 1.93 / 1.16 inch |
Protection | OVP / OTP / OCP / SCP |
Safety Approval | UL / CUL / FCC / TUV / CE / CB / BSMI |
