NB CEC 90W
NB CEC 90W
Legacy Products
- AC input: 100-240V (Worldwide Usage).
- Compatible with 18~20V input notebooks
- Meets IBM, Dell, ACER, COMPAQ, SONY, TOSHIBA, HP, ASUS, LENOVO etc.
- Meets DoE Level VI
- Standby Power Consumption < 0.1W
- High Efficiency>88%
- High quality assurance
- Patented input fuse protection

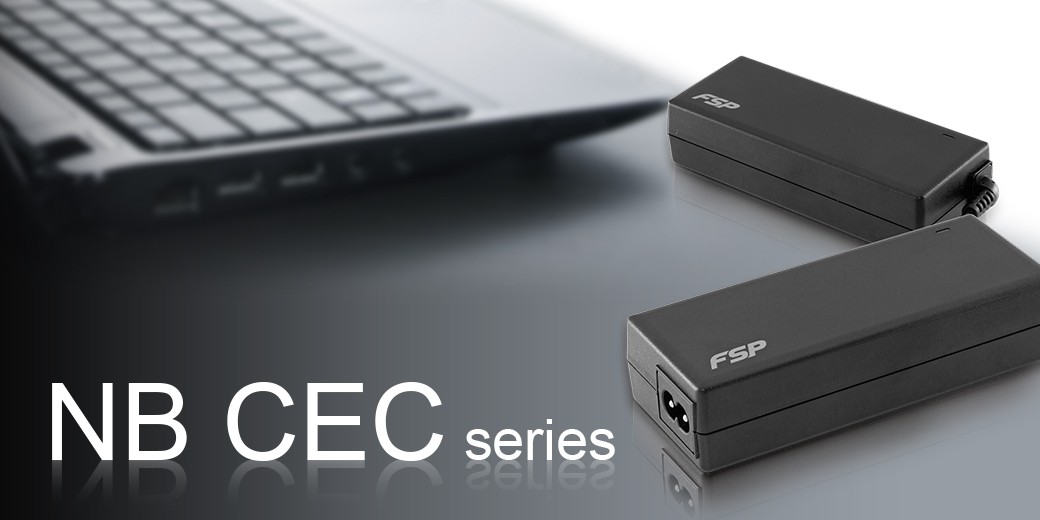

NB 90 is a 90w standard notebook adapter with over 88% high efficiency. 7 changeable output tips are compatible 18-20V input notebooks - IBM, Dell, ACER, COMPAQ, SONY, TOSHIBA, HP, ASUS, LENOVO etc…
Meets CEC and DoE Level VI.
Meets CEC and DoE Level VI.
Highly compatible to Notebooks
Compatibility Laptop Brands
Tips Number | Outer | Inter | Color | Compatibility |
| 1 | 4.75 | 1.7 | YELLOW | ACER, ASUS, HP, LG |
| 2 | 5.5 | 1.7 | ORANGE | ACER |
| 4 | 5.5 | 2.5 | WHITE | ACER, ASUS, COMPAQ, FUJITSU, GATEWAY, HITACHI, HP, IBM, LG, NEC, PANASONIC, PHILIPS, TOSHIBA, WINBOOK |
| 8 | 7.4 | 0.6 | BLACK | DELL |
| 7 | 7.9 | 0.9 | BLACK | IBM, LENOVO |
| 9 | 7.4 | 0.6 | RED | HP |
| U8 | 11 | 4.7 | YELLOW | LENOVO |
| U9 | 4.5 | 3.0 | BLUE | HP |
Be A Provider Of Green Energy Solutions
We will never slacken effort to accomplish the best products!
FSP committed to the development of "green power" and improve power performance fully.In 20 years we hade received many certification in the world, but also hopes to be the global leading provider of green energy solutions.
FSP committed to the development of "green power" and improve power performance fully.In 20 years we hade received many certification in the world, but also hopes to be the global leading provider of green energy solutions.
Selective
Accumulated 20 years of experience in power,FSP always carefully selects every component after long time.
High Standards Testing
FSP faces scrupulous testing at high standards beyond the rest of the industry to ensure the product reliability.
Multiple Protection
FSP also makes the best effort to do product safety.
NB CEC is designed with multiple circuit protection* to keep you and your laptop in safe.
*OVP:over voltage protection/ OCP:over current protection/
OTP:over temperature protection/ SCP: short circuit protection
NB CEC is designed with multiple circuit protection* to keep you and your laptop in safe.
*OVP:over voltage protection/ OCP:over current protection/
OTP:over temperature protection/ SCP: short circuit protection
Tip Finder
Specifications
| Model | NB 90 |
|---|---|
| Rated Output Power | 90W |
| Input Voltage | 100-240Vac (Full Range) |
| Input Frequency | 50-60Hz |
| Output Voltage | +18V ~ +20V |
| Efficiency | >88% |
| Standby Power Consumption | <0.1W |
| Dimensions (LxWxH) | 134 x 58 x 32 mm / 5.28 x 2.28 x 1.26 inch |
| Protection | OVP / OTP / OCP / SCP |
| Safety Approval | UL / CUL / FCC / TUV / CE / CB / BSMI |
