PIC20200000000007644

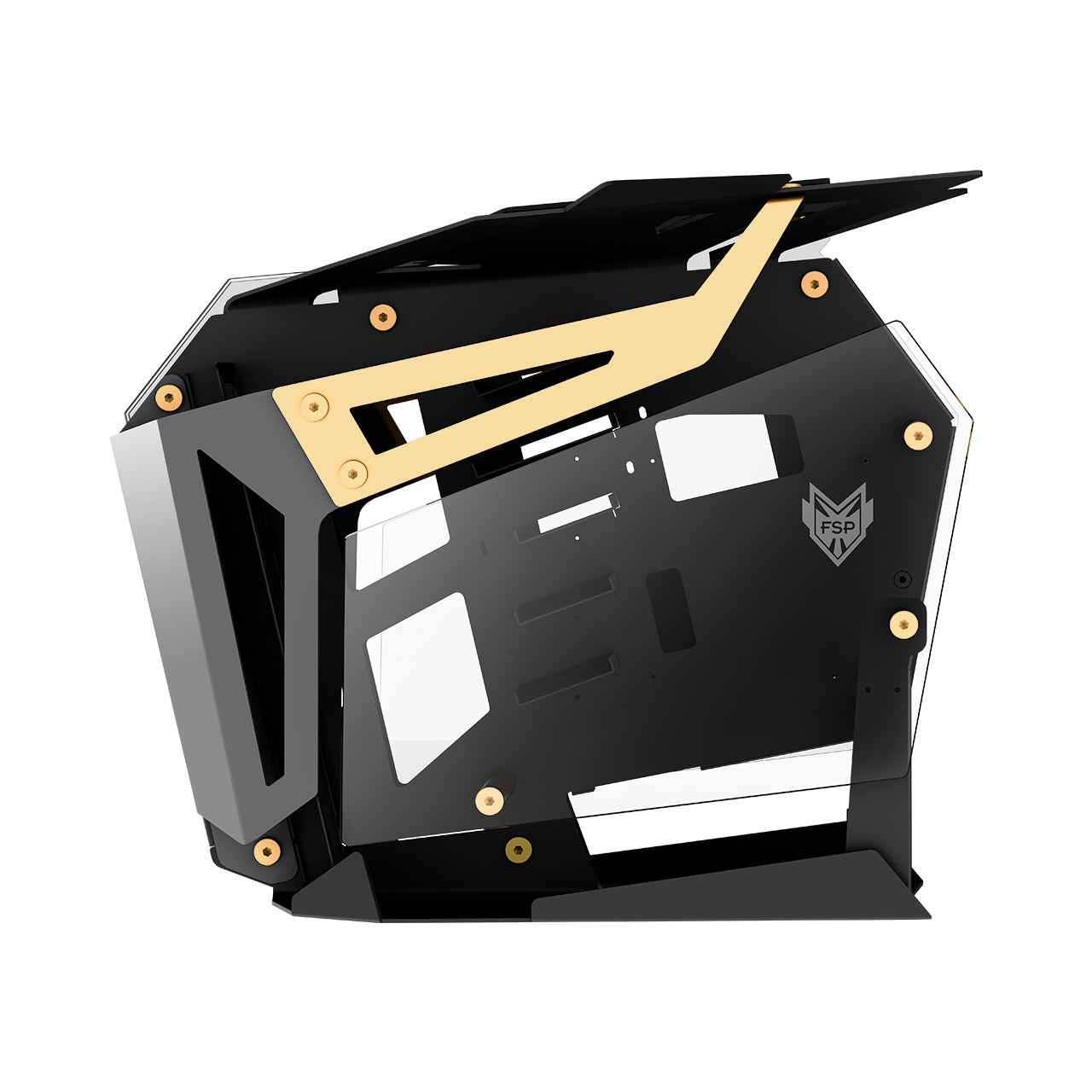

T-WINGS CMT710

T-WINGS save users space at home or in the office and can greatly speed up productivity. The main system supports up to EATX motherboard sizes for extreme gaming workstations and high-end desktop systems, while the sub-system supports mini-ITX motherboards that offers a wide range of capabilities. The strong aluminum frame along with its 4 mm tempered glass panels will protect valuable components and offer maximum heat dissipations through large ventilating gaps. The new T-WINGS chassis offers users the ability to combine two high-end PC systems into a single chassis.
  • Dual chambers for dual water-cooling systems
  • Anodized aluminum frame styled with symmetrical wings for the perfect combination of dynamics and aesthetic
  • Supports dual 360 mm radiator setup
  • Special cable compartment for better cable management
  • Translucent tempered glass panels
  • Supports USB Type-C connectors
  • ARGB lighting effect control with popular motherboards
  • Dual Systems

  • Cable Management

  • USB Type-C Connectors

  • Aluminum Open-air frame

  • Two Options for VGA Installation

  • Dual Water Cooling Systems

A Stylish Symmetrical Design for Hardcore Gamers

T stands for TWINS, the T-WINGS chassis is a fusion of technology and aesthetics that blends in a symmetrical bat wing design with accented colors, which offers enthusiast PC modders the potential to design a work of art that can be beautifully displayed in 360 view.

The shape of the chassis was inspired by the bat wings. The top view form a pair of bat wings encased in the FSP shield logo. The stylish design of the new TWIN’s CMT710 chassis should inspire modders to design unique looking PC builds. FSP has taken great care in designing a robust and flexible case that offers efficiency in airflow and optimized for peak performance under heavy loads.

The T-WINGS chassis was designed for optimal airflow and performance. The winged shaped chassis design offers style and function, while maintaining efficient airflow for optimal system performance under extreme use. Users will be impressed with the T-WINGS solid build quality and how flexible and robust each system can be.

Dual Systems, Double Power

Sometimes one system is just not enough. The T-WINGS is perfect for those situations where the user needs to run two simultaneous systems at once. For example: gamers who live stream can utilize the dual system build to design one system for gaming while the other system manages all of the streaming content, which will help eliminate any lags or system slowdowns that might be present when using single system builds.

SFX PSU

ATX PSU

Intuitive Cable Management

T-WINGS cable routing slots is a unique feature for those looking for a cleaner build aesthetic.

Flexible Cooling Options

T-WINGS supports up to three additional 120 mm fans with the capacity to accommodate two 360 mm radiators, ensuring your cooling performance will never let you down.

Open-air frame with Aluminum

The anodized open-air frame will keep your systems cool while maintaining a stylish look that will appeal to most professional modders.

TYPE-C

Option for Vertical or Horizontal VGA Installation

4 mm Tempered Glass Panels

Sync with Most Motherboards

The addressable RGB center light bar is compatible with most motherboards (eg. ASRock Polychrome Sync, Asus Aura Sync, Gigabyte RGB Fusion, and MSI Mystic Light Sync).

Main System

Sub System

Colors

GOLD
RED

Specifications

Product Name CMT 710
Type Aluminium / Glass Open Frame Case
Color Black & Gold / Black & Red
Materials Aluminium, Tempered Glass
Weight N.W: 26.05 lbs
G.W: 37.5 lbs
Dimension LxDxH(mm) 634 x 455 x 530 mm (25 x 17.9 x 20.9 inch)
Maximum CPU Cooler Height 155 mm
VGA Card Length 380 mm
Expansion Slots 8
M/B Type Two Motherboards
Main:E-ATX, ATX, Micro ATX, ITX
Sub:ITX
I/O Panel Type-C, USB 3.0 x 2, HD Audio
3.5' Drive Bays 2
2.5' Drive Bays 3
Radiator Supply 360 mm x 2 (optional)
Maximum PSU Length Two PSUs
Main:240 mm ATX PSU
Sub:180 mm SFX-L PSU
