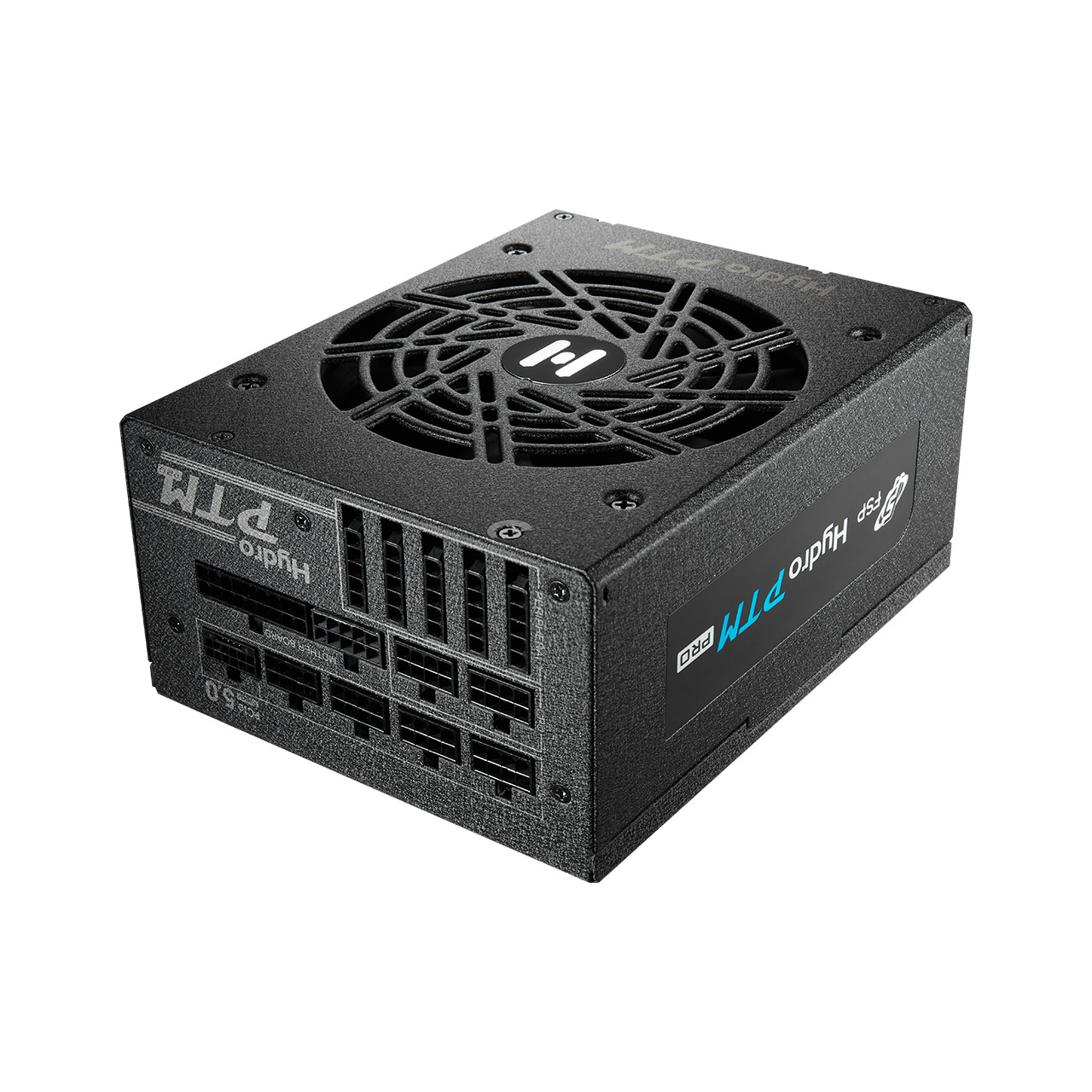

Hydro PTM PRO ATX3.0(PCIe5.0) 1200W

  • Complies with ATX12V V3.0 & EPS12V V2.92
  • Intel Latest CPU ready
  • Global Safety Approved
  • High efficiency ≧ 92%
  • Powerful +12V single rail design
  • Quiet and durable cooling
  • Full Japanese electrolytic capacitors
  • Intelligent fan speed control circuit design
  • Full protections OCP,OVP, SCP,OPP,OTP, UVP
  • High Wattages with 80PLUS® Platinum Certification
  • Unique product ID with changeable side stickers for DIY enthusiasts and gamers
  • 80plus_Platinum
  • ATX 3.0
  • PCIe Gen 5
  • Cybenetics_Platinum
  • Cybenetics A-

▲Know More About ATX 3.0 & PCIe Gen 5

New ATX PSU Specifications

Updated ATX 3.0 specifications for the next-generation hardware power demands and ensure users get the most stable and cost-optimized performance possible with the highest power efficiency.
Click here to know more details.

High Compatibility for High Power

The series comes with native PCIe5.0 connector and also supports 4 slots of PCIe 6+2Pin for graphic card, besides, 2 slots of CPU connector for higher performance.

Conformal Coating Application

Off-Wet, Off-Dust and Off-Stain

The conformal coating which protects the power supply and its internal components from dust, humidity, stains. The Hydro PTM PRO series are covered with conformal coating to guarantee reliable performance in a harsh environment and tested to work perfectly even in 95% relative humidity.

LLC Full-Bridge Topology with DC-DC Module Design

HYDRO PTM Pro series features extremely tight voltage regulation to make the output voltage regulation under +/- 1% above 10% load change and offer you supreme efficiency and voltage stability.

Hydro PTM Pro internal structure
Hydro PTM Pro internal structure

Fully Modular Design for Quick and Easy Installation

Fully modular design simplifies installation and allows you to use only the cables you need, for a neater, cleaner build.

point label

ECO Switch, Quieter and Longer Lasting Fan

When Eco Button is switched on, the PSU runs with lower power consumption and is whisper silent. The fan in the power supply will not operate when the power supply is under 30% loading for silent state.

Hydro PTM Pro

HYDRO PTM Pro series comes with FDB fan and intelligent 0dBA function to reduce noise, and features a longer-lasting life.

Hydro PTM Pro Noise table
Hydro PTM Pro Fan
80 PLUS_PLATINUM

80 Plus® Platinum Certification

Hydro PTM Pro series come with 80 Plus Platinum Certification which means your power supplies consume less heat and have a lower operating cost. The power supplies are guaranteed to operate at a minimum of 92% efficiency at 50% load of PSU rated power.

Efficiency 1200w
10-Year Warranty

10-Year Warranty

FSP is committed to manufacturing high-quality and reliable power supplies. The Hydro PTM series are backed by our 10-year warranty.

Compliance with IEC 62368

FSP Group features the latest in green power technology and provides additional safety approvals to keep its power supplies ahead of regulation changes. FSP has upgraded the majority of its power supplies to the newer IEC 62368 standards.

Hydro PTM Pro
Intel CPU

Supports Latest CPU Systems

HYDRO PTM PRO fully supports high performance systems, complies with the most recent Intel, ATX12V V3.0 & EPS12V v2.92 standars.

Safety Protection

OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP j (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection), a full guardian circuit protections to keep your hardware safe.

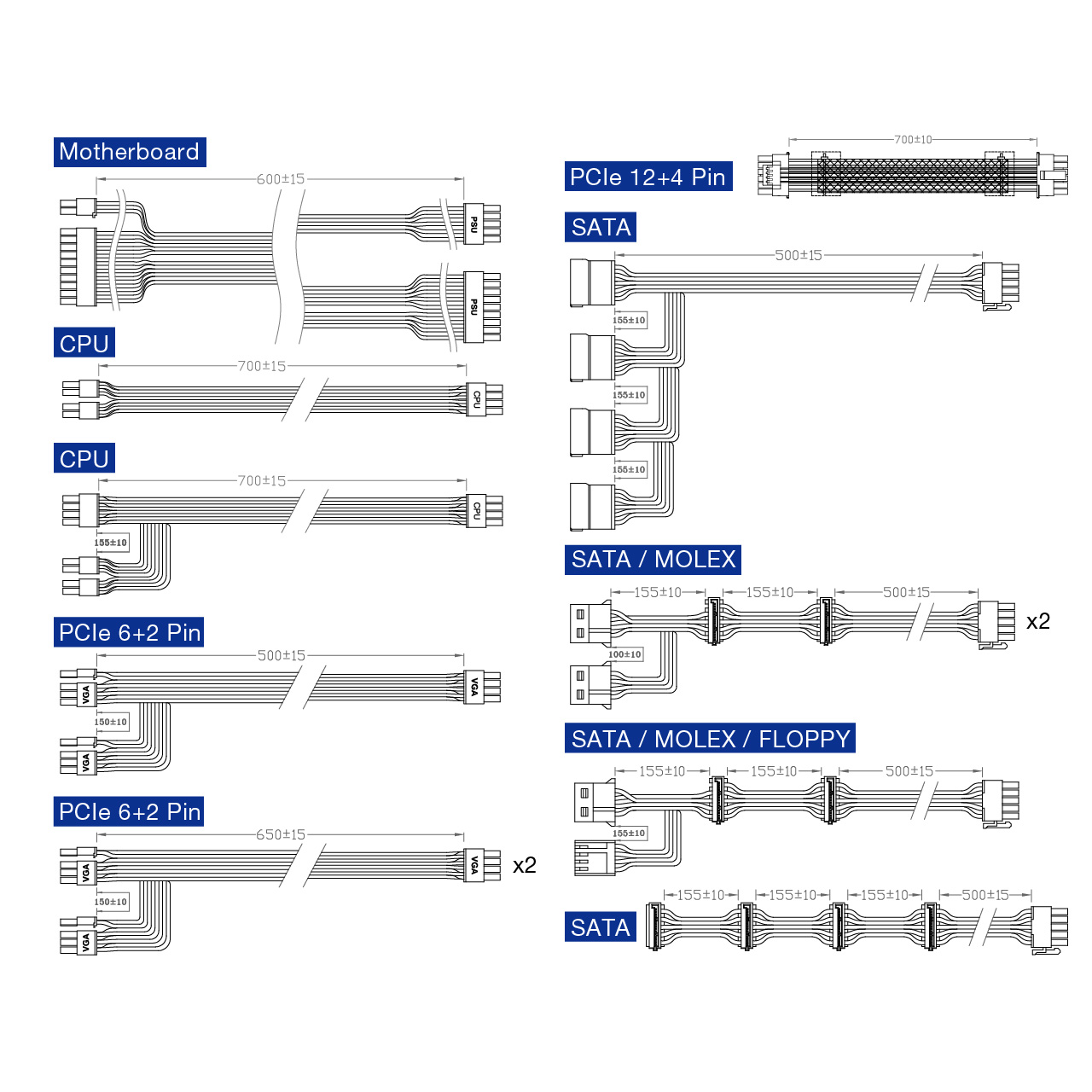

Cables

 atx cable 24 pinEPS 4 4 pinatx cable gen5 pinpcie 6+2 pinhd statmolex2.5 floppy
ATX 20+44+4 PIN12VHPWRPCIe 6+2SATAMolex
(PERIPHERAL)
Floppy
Connectors13161451

AC/DC


AC Input
100-240Vac~  14-9A  50-60Hz (Not for China)
    200-240Vac~  9A      50-60Hz (Only for China)
DC Output+3.3V+5V+12V-12V+5Vsb
Max Output Current20A20A100A0.3A3A
Max Combined Power120W1200W18.6W
Total Power1200W

Specifications

Model HPT2-1200M,Gen5
Rated Output Power 1200W
Form Factor ATX
80 PLUS Certification Platinum
Input Voltage 100-240V
Input Current 14-9A
Input Frequency 50-60Hz
PFC Active PFC
Efficiency ≥92% at typical load
Fan Type FDB Fan, 135mm
Dimensions(L x W x H) 150 x 190 x 86 mm
Protection OCP, OVP, SCP, OPP, OTP, UVP
