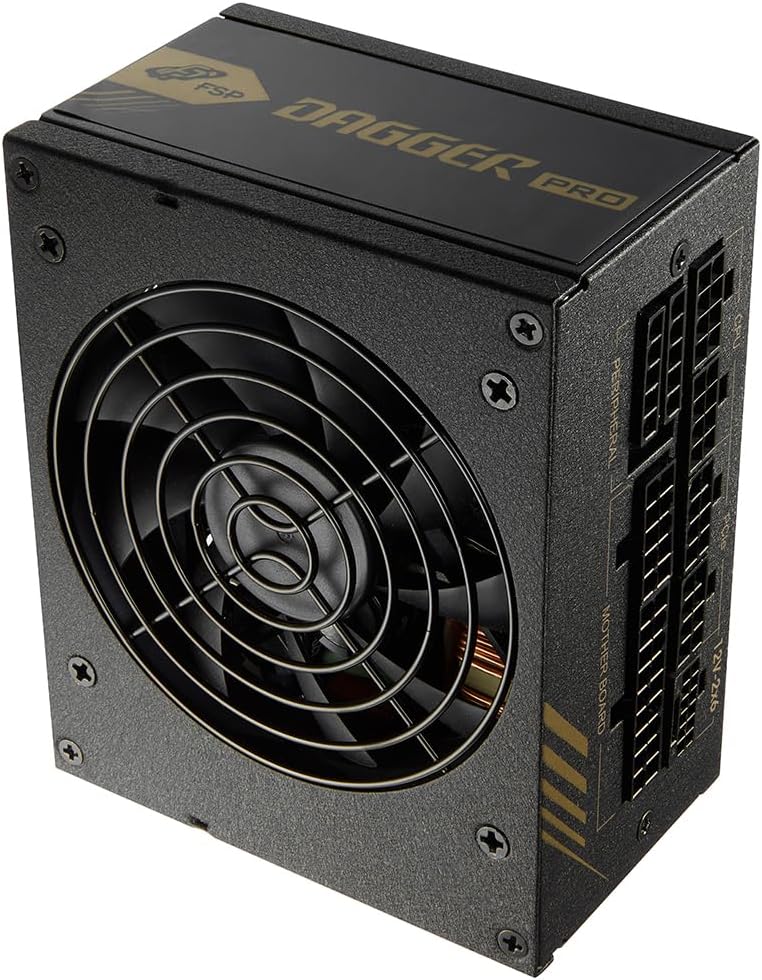

DAGGER PRO ATX3.0(PCIe5.0) 850W
- Compliance with ATX12V V3.0
- Compliance with PCIe 5.0
- Efficiency ≧ 90% at typical load
- MIA IC (Multiple Intelligence Ability) chip set inside
- Semi-fanless design for silent operation
- Quiet and long-lasting 92mm ball bearing fan
- Ribbon cables for the need of enthusiasts
- Powerful single +12V rail design
- Intel Latest CPU ready
- Japanese electrolytic capacitors
- Full protections OCP, OVP, SCP, OPP, OTP
New ATX PSU Specifications
Updated ATX 3.0 specifications for the next-generation hardware power demands and ensure users get the most stable and cost-optimized performance possible with the highest power efficiency.
Click here to know more details.
Tiny but Powerful
The DAGGER PRO ATX3.0 series is compatible with most Mini-ITX and Micro ATX small form factor PCs. It is an ideal for home computer rigs but a great alternative for mini-PC enthusiasts.

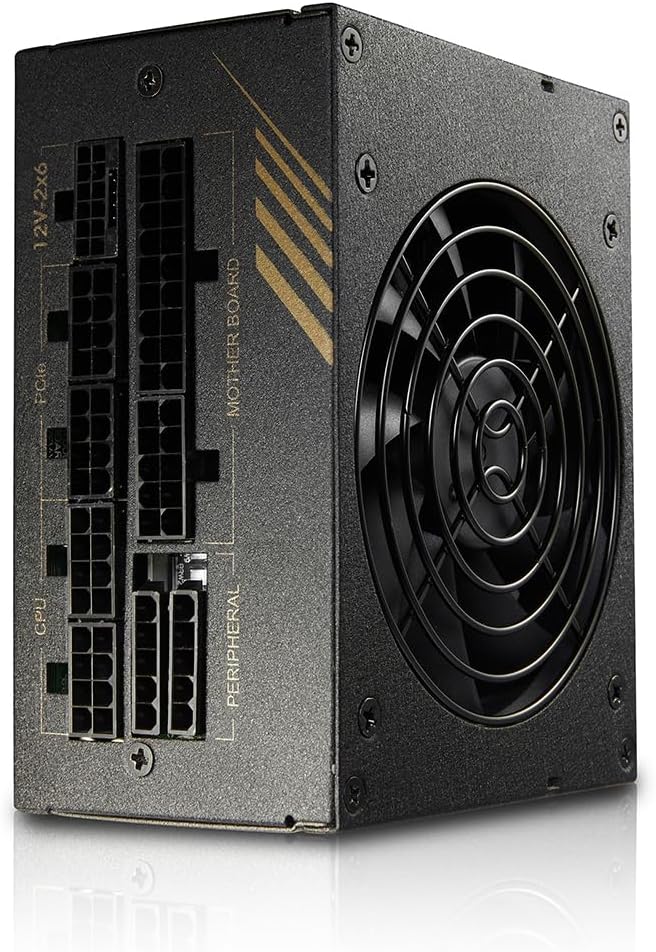

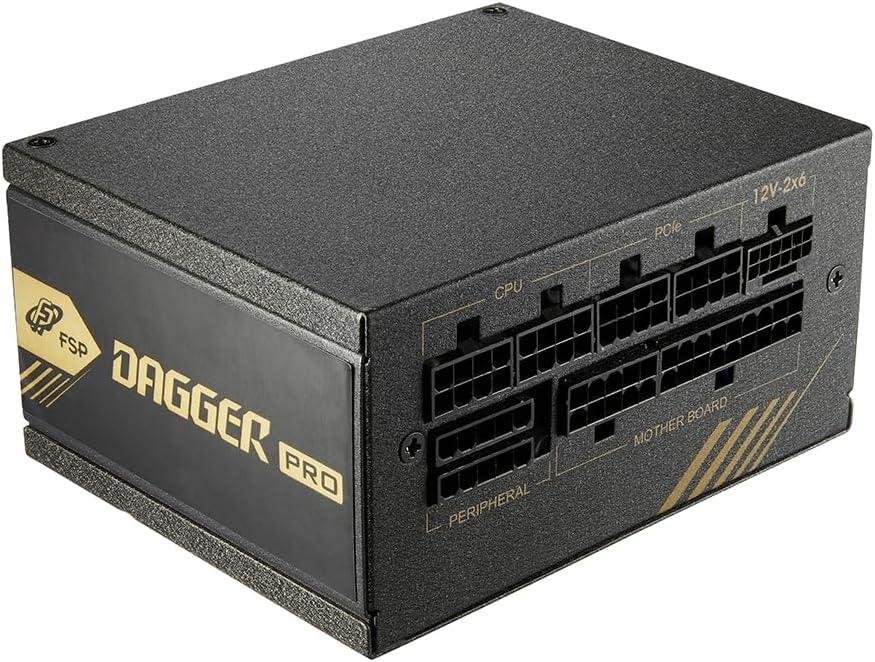

Advance Cable Management and Flat Ribbon Cables
Fully-modular design and flat ribbon cables provide easier installation. An ideal solution for applications with space constraints, enhancing overall airflow efficiency and cable management.

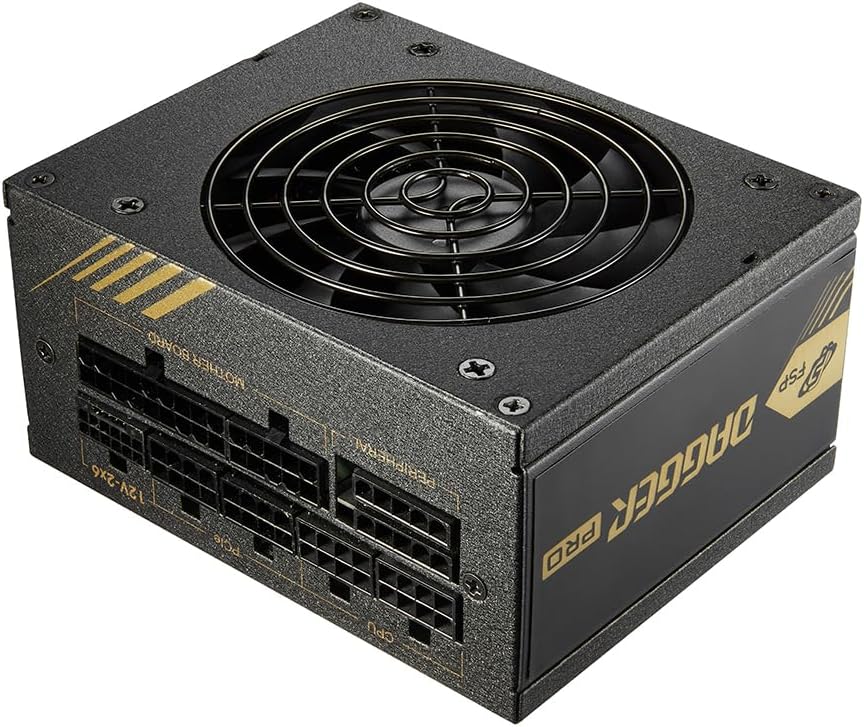

92mm Fan Optimized for Low-noise Operation
Dagger PRO ATX3.0 series is included an advanced semi-fanless design that will spin over 20% loading, make silent and reduce noise under maximum operation.
80 Plus® Gold Certification
DAGGER PRO ATX3.0 series is a power supply with 80 PLUS® Gold Certification that guarantees to operate at a minimum of 90% efficiency at 50% load of PSU rated power and as a result to reduce lots of electricity cost.
Powerful +12V Single Rail for your VGA
VGA card is a component which needs greedy and stable power supporting most. The compact size DAGGER PRO ATX3.0 series comes with a single +12V rail design that offers VGA cards full power individually and to avoid any overloading conditions.
High Compatibility for High Power
The DAGGER PRO 850W comes with a native PCIe 5.0 connector for the latest graphic card and features dual CPU power connectors to support high-end motherboards for gaming enthusiasts.
Japanese electrolytic capacitors
DAGGER PRO ATX3.0 series uses Japanese electrolytic capacitors to ensure a longer lifetime and protect your PSU from sudden power change!
Supports High-end Motherboard

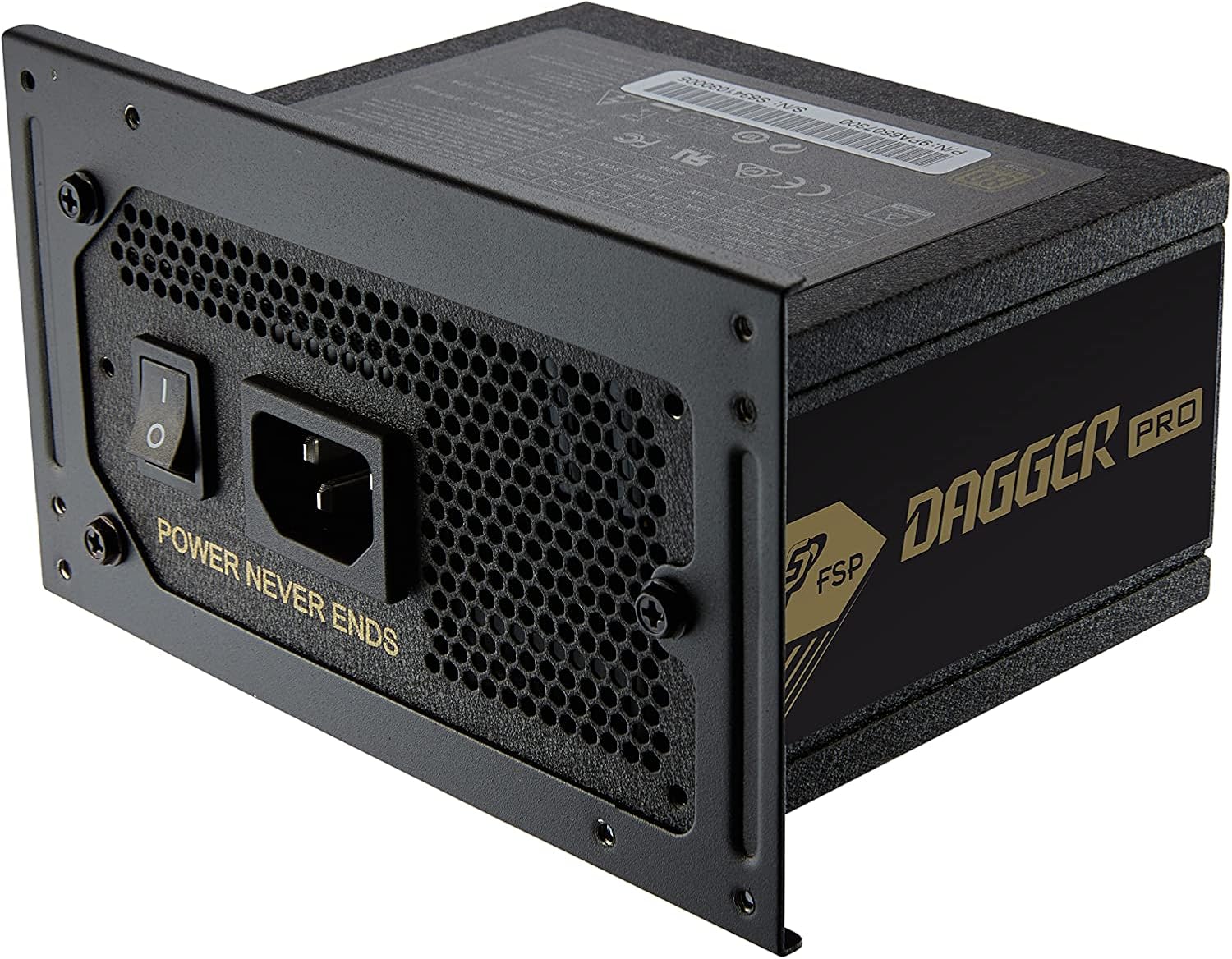

Adapts to your individual requirements, not only does it fit into cases with the SFX form factor, but can also be installed in a simple steps into normal ATX, Micro-ATX or Mini-ITX cases.
|100-240Vac~ 12-6A 50-60Hz (not for china)|
|200-240Vac~ 6A 50-60Hz (Only for china)|
|Max Output Current||20A||20A||70.83A||0.3A||2.5A|
|Max Combined Power||120W||850W||3.6W||12.5W|

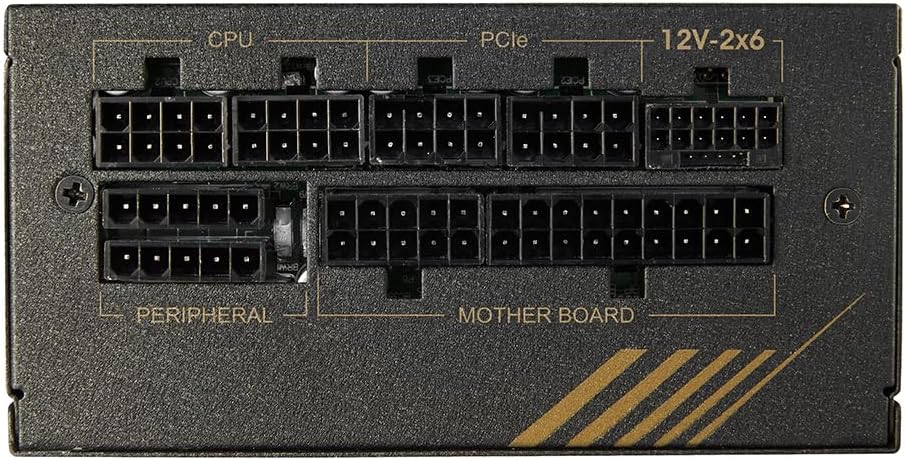

|ATX 20+4||4+4 PIN||PCIe 6+2||12VHPWR||SATA||Molex|
|Rated Output Power||850W|
|80 PLUS Certification||Gold|
|Efficiency||≥90% at typical load|
|Fan Type||ball bearing fan,92mm|
|Dimensions(L x W x H)||125 × 100 × 63.5 mm|
|Protection||OCP, OVP, SCP, OPP, OTP|
