CMT520 (RGB)


Warning: Undefined array key "legacyText" in E:\website\eatcookie\home\model.php on line 70

  • Tempered glass in the front and side panel.
  • 7 x 120mm Fans Mounting Locations, Top x 3, Front x 3, Rear x 1 / 4 x 120mm RGB LED Fans are pre-installed (Addressable RGB for CMT520 PLUS)
  • Optional: 5 x 140mm Fans Mounting Locations, Top x 2, Front x 3
  • RGB lighting mode controller on I/O Panel
  • 8x PCI-E expansion slots, 2x HDD and 4x SSD bays for ultimate expandability.
  • Supports high-end graphics cards up to 423mm in length, and CPU coolers to 163mm in height
  • Supports up to two 360mm radiators
  • Built-in 2x USB 3.0 and 2x USB 2.0 for high speed transfers
  • Support Motherboard's RGB lighting sync
  • *Press the RGB button on the I/O panel for three second to sync motherboard and controller mode

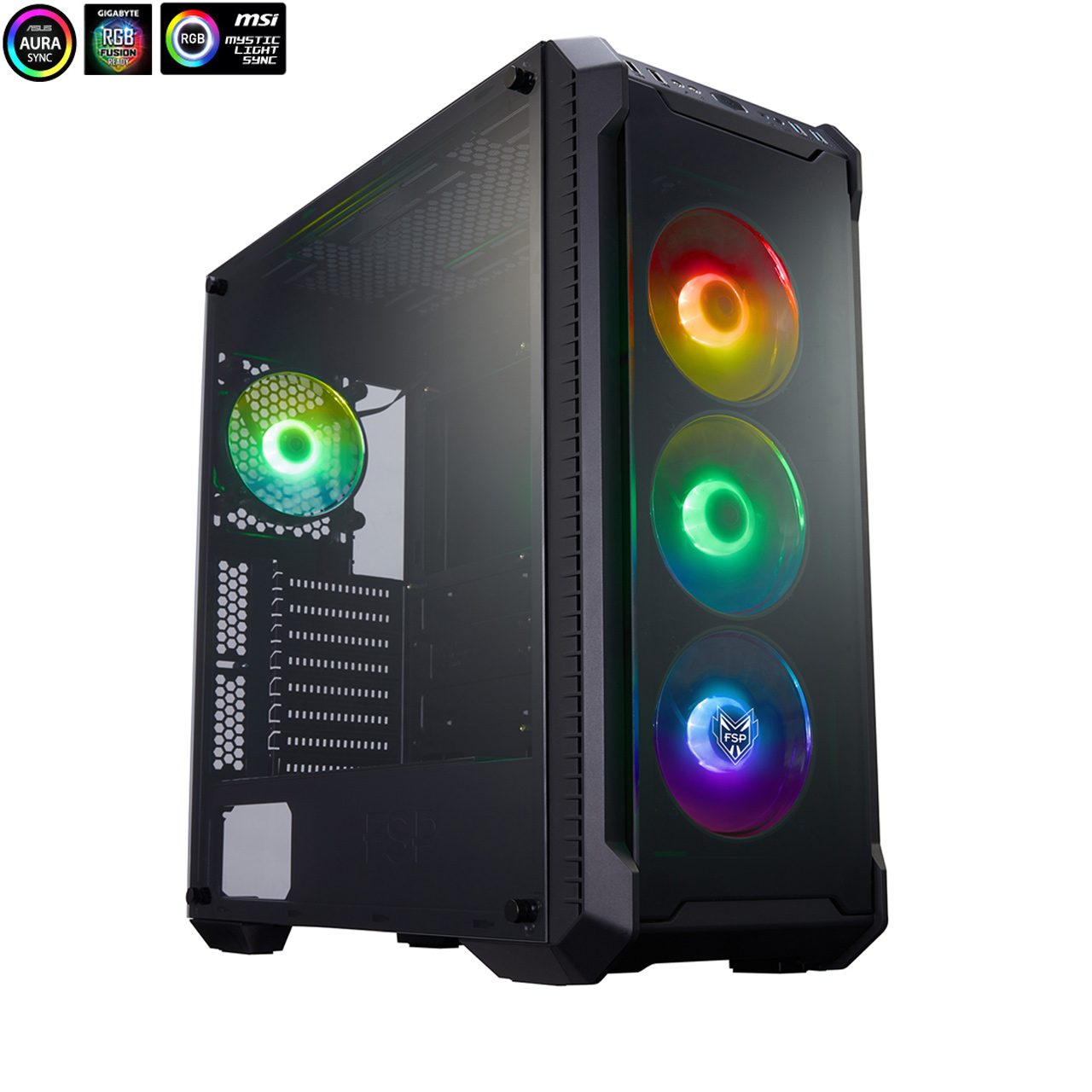

Front and Side Panel Window

With tempered glass windows on the front and side panel, every component of your system is on full display.

Flexible Cooling Options

The CMT520 is complete with four pre-installed 120mm RGB LED fans. With support for up to three additional 120mm/140mm fans and compatibility for up to two 360mm radiators, this case ensures that your cooling performance will never suffer. With plenty of space, you could even modify the case with a professional water-cooling setup.

Choose Your Unique Color

The CMT520 comes standard with 4 pre-installed 120mm RGB LED fans (3x on the front panel and 1x on the rear panel) and a built-in LED controller for vivid lighting. The RGB LED light control buttons are conveniently located on the front panel. Four light modes, complete with the Sync RGB feature, are your gateway to stylish computing.

  • Single Color Static

  • Breathing

  • Flash

  • Flash 3 Colors

  • Sync

Select the mood and color you want.

The Ultimate Expandability

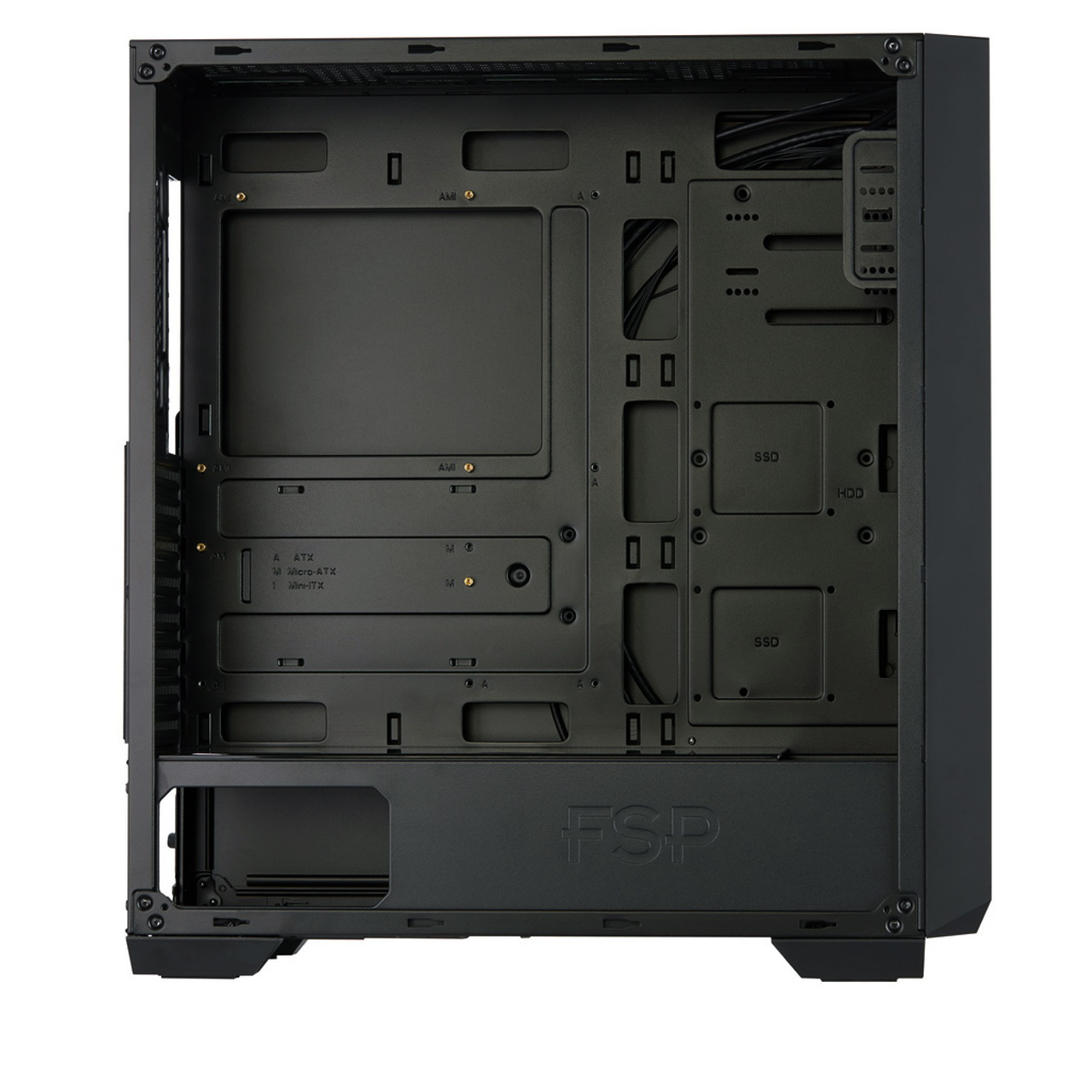

The CMT520 supports most mainstream motherboard form factors such as E-ATX, ATX, Micro-ATX, and ITX, while the PSU is conveniently installed at the bottom of the case.

Smart, Simple Cable Management

Streamlined Airflow

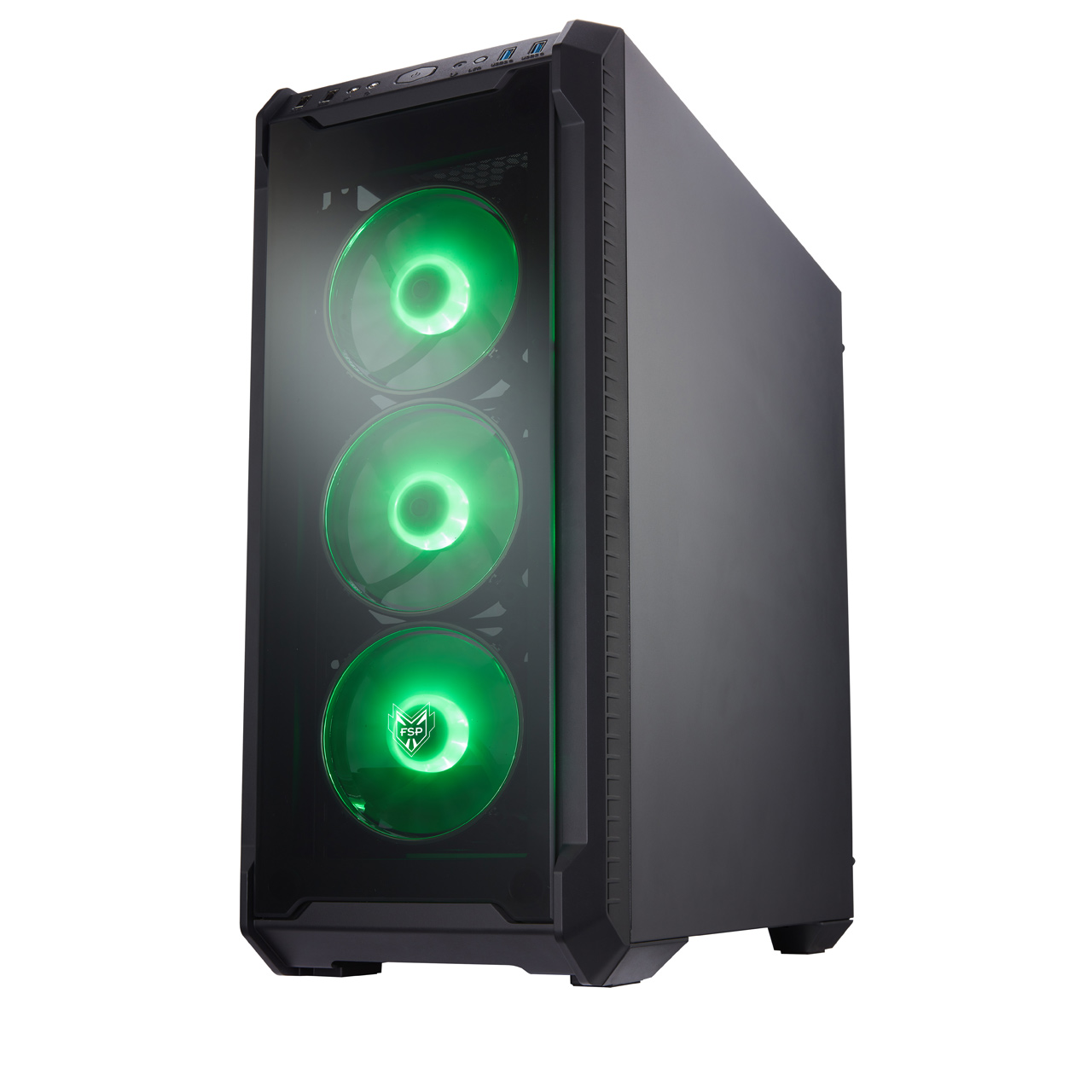

With three 120mm RGB LED fans in the front and a 120mm RGB LED fan pre-installed in the rear, you will always be off to a cool start.

Streamlined-Airflow

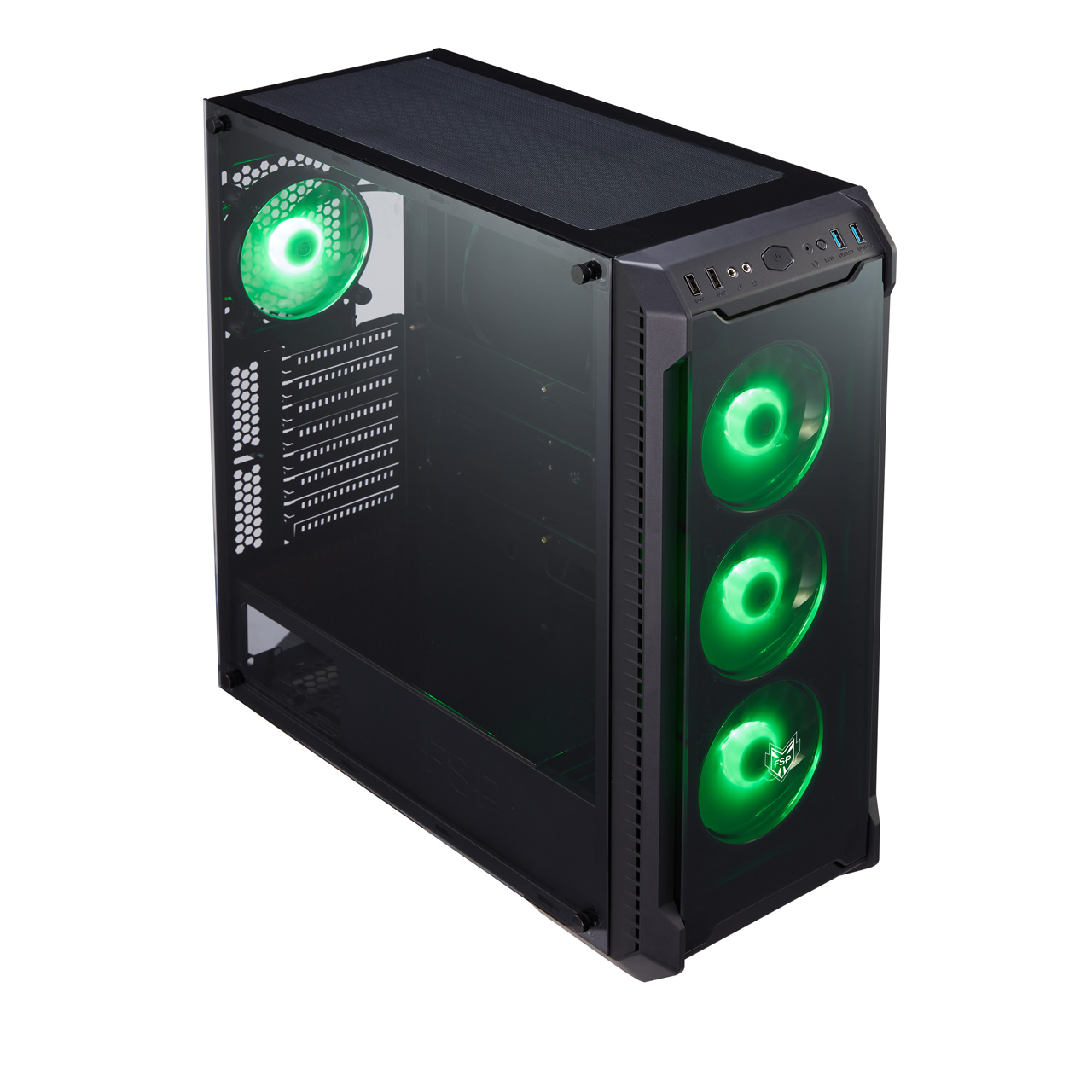

Upgraded I/O Panel

Two USB 3.0 and two USB 2.0 ports promote high-speed data transfers and expansion potential.

Installed Schematic

Halo Cover with magnetic adhesion.

Clean Storage Tray 2 x 3.5"HDD and 4 x 2.5" SSD bays.

CMT520 supports high-end graphics cards with a max length of 423mm.

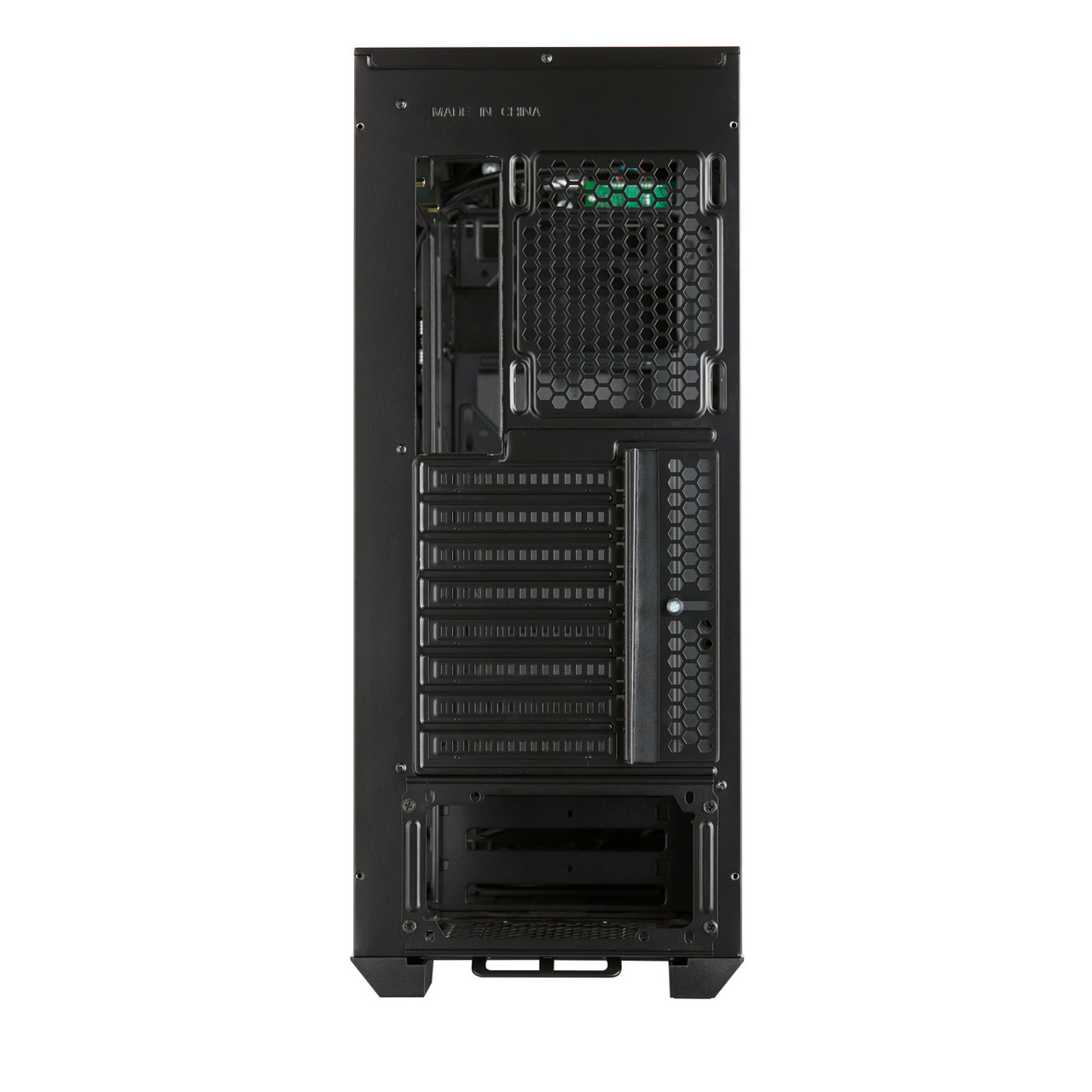

Supporting 8 x PCI-E expansion slots.

*All pictures above are for reference purposes only and should be considered illustrative. Actual product colors may vary due to product enhancements or your monitor settings.

Specifications

Product Name CMT520
Type ATX Mid Tower
Color Black
Materials SPCC, Tempered glass x 2
Weight 8.5KG | 18.73LB
Dimension LxDxH(mm) 495 x 215 x 510mm
19.49 x 8.46 x 20.08inch
Maximum CPU Cooler Height 163mm
VGA Card Length 423mm
Expansion Slots 8
M/B Type E-ATX, ATX, Micro ATX, ITX
I/O Panel USB3.0 x 2, USB2.0 x 2,Audio
Power Supply Type ATX
3.5' Drive Bays 2
2.5' Drive Bays 4
Cooling System Front: 120mm RGB Fan x 3
Rear: 120mm RGB Fan x 1
Fan & Water Cooler Supply Front: 120mm/140mm x 3, or 360mm Radiator x 1
Top: 120mm x 3/140mm x 2 or 360mm Radiator x 1
Rear: 120mm x1
Radiator Supply 360mm x 2
