Home Carcase CMT520 Plus

PIC19700000000007097

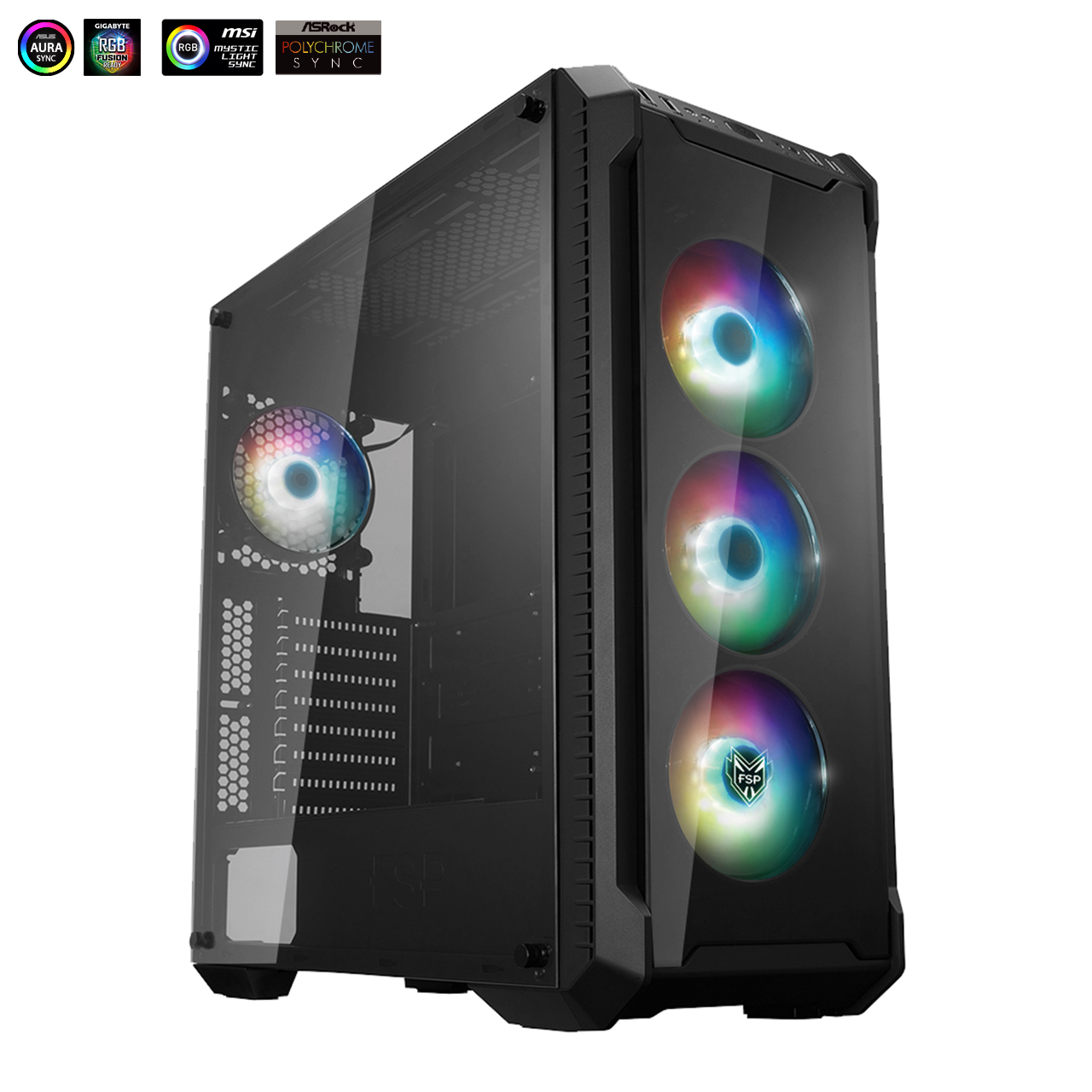

CMT520 Plus

  • Tempered glass in the front and side panel
  • 7 fan mounts support, and pre-installed 4 RGB fan in the front and rear for optimal cooling potential
  • RGB lighting effect control
  • 8 x PCI-E expansion slots , 2 x HDD and 4 x SSD bays for supreme expandability
  • Support high-end graphics cards max to 423mm length, and CPU cooler to 163mm height
  • Support 2 x 360mm radiator
  • Built-in 2 x USB 3.0 and 2 x USB2.0 for high speed transferring
  • Support Motherboard's RGB lighting sync
  • *Pressing the RGB button for three second to switch motherboard sync mode and controller mode

CMT520 Plus has improved the LED effects with 4 pre-installed 120mm addressable ARGB fans to gives you ultra-lighting performance.

Millions of gorgeous colors you can choose!

Front and Side Panel Window

With tempered glass window on the front and side panel, every powerful component in your system will be on display for all to enjoy.

Flexible Cooling Options

The CMT520 Plus is complete with four pre-installed 120mm ARGB LED fans. With support for up to three additional 120mm/140mm fans and compatibility for up to two 360mm radiators, this case ensures that your cooling performance will never suffer. With plenty of space, you could even modify the case with a professional water-cooling setup.

Ultimate Expandability

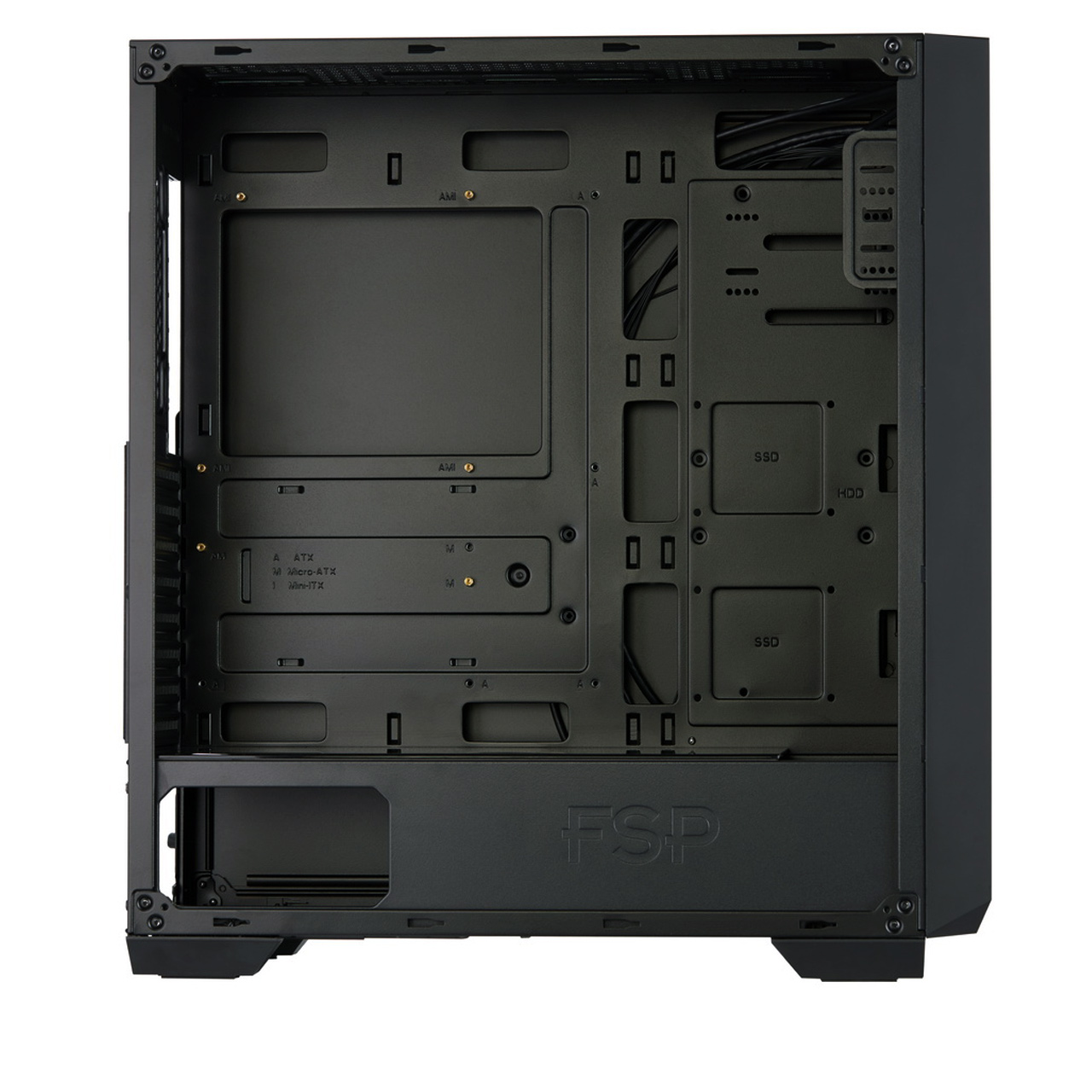

The CMT520 Plus supports most mainstream motherboard form factors such as E-ATX, ATX, Micro-ATX, and ITX, while the PSU is conveniently installed at the bottom of the case.

Smart, Simple Cable Management

Streamlined-Airflow

With three 120mm ARGB LED fans in the front and a 120mm ARGB LED fan pre-installed in the rear, you will always be off to a cool start.

Streamlined-Airflow

Upgraded I/O Panel

Two USB 3.0 and two USB 2.0 ports promote high-speed data transfers and expansion potential.

Installed Schematic

Halo Cover with magnetic adhesion.

Clean Storage Tray 2 x 3.5"HDD and 4 x 2.5" SSD bays.

CMT520 Plus supports high-end graphics cards with a max length of 423mm.

Supporting 8 x PCI-E expansion slots.

*All pictures above are for reference purposes only and should be considered illustrative. Actual product colors may vary due to product enhancements or your monitor settings.

Specificații

Model CMT520
Type ATX Mid Tower
Culoare Black
Materiale SPCC, Tempered glass x 2
Greutate 8.5KG
Dimensiuni LxDxH(mm) 495 x 215 x 510mm
19.49 x 8.46 x 20.08inch
Maximum CPU Cooler Height 163mm
VGA Card Length 423mm
Sloturi de expansiune 8
Tipl plăcii de bază E-ATX, ATX, Micro ATX, ITX
I/O Panel USB3.0 x 2, USB2.0 x 2,Audio
Power Supply Type 200mm ATX
Sloturi de 3.5' 2
Sloturi de 2.5' 4
Sistem de ventilare Front: 120mm ARGB Fan x 3
Rear: 120mm ARGB Fan x 1
Fan&Water Cooler Supply Front: 120mm/140mm x 3, or 360mm Radiator x 1
Top: 120mm x 3/140mm x 2 or 360mm Radiator x 1
Rear: 120mm x1
Radiator Supply 360mm x 2
