Hydro GT PRO ATX3.0(12V-2x6) 850W

  • Complies with ATX12V V3.0 & EPS12V V2.92
  • Efficiency ≧ 90% at typical load
  • Active PFC ≧ 0.9
  • Hold up time > 17ms at 80% load
  • 450V, 105°C Japanese main capacitors
  • +12V single-rail design
  • +5V & 3.3V DC to DC module design
  • Eco semi-fanless fan control switch
  • 120mm fluid dynamic bearing (FDB) fan
  • Semi-modular with black flat cables
  • Complete protection: OCP/OVP/OPP/SCP/OTP
  • PCIe 12V-2x6
  • 80plus_Gold

New ATX PSU Specifications

Updated ATX 3.0 specifications for the next-generation hardware power demands and ensure users get the most stable and cost-optimized performance possible with the highest power efficiency.
Click here to know more details.

Superb Electrical Performance

The LLC topology  allows for zero voltage switching of the main switches thereby dramatically lowering switching losses and boosting efficiency.

Excellent Component Quality

450V, 105°C Japanese main capacitors have premium quality, protecting your equipment from the infamous capacitor leakage problem and also increasing the life-span of your equipment

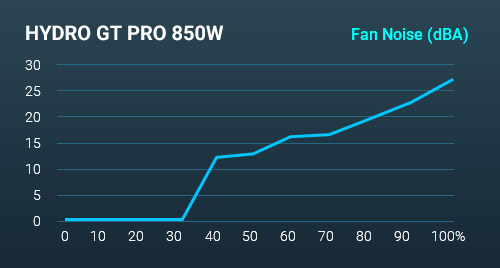

ECO Switch, Quieter and Longer Lasting Fan

The Hydro GT PRO series offers an Eco Switch that allows the PSU to operate quieter uses up less power consumption. When the power supply is equal to or less than 30% load, the power supply enters a silent state and the fan is turned off.

The HYDRO GT PRO series comes with FDB fan and an intelligent 0dBA function to reduce noise and has a longer lasting life span.

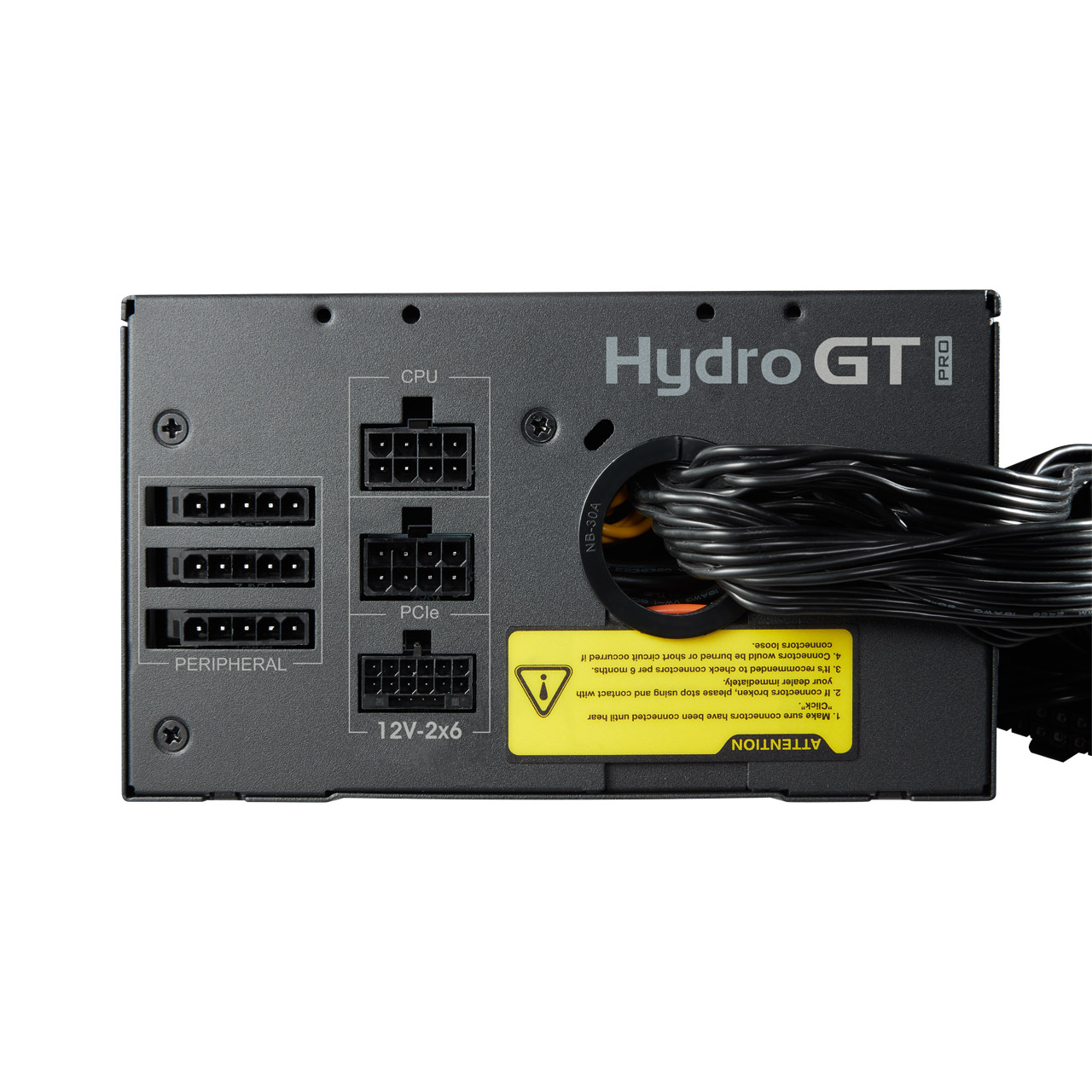

Semi-Modular Design

Hydro GT PRO series is designed semi-modular that not just saves user’s time for installation, but also provides your system a neat and tidy look for cable management.

Black Flat Cable with Multiple EPS12V Connectors

Dual CPU power connectors support modern motherboards and deliver stable power to your CPU, the all black coating flat cables gives Hydro GT PRO series a stylish and quality look.

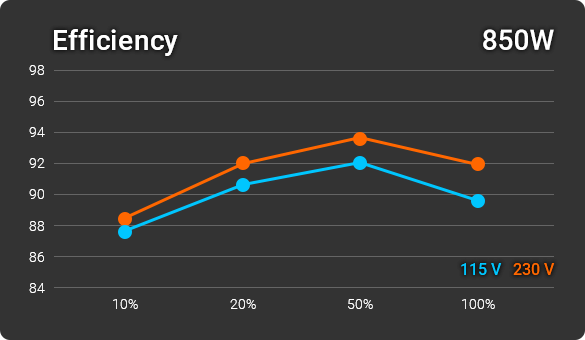

80 Plus® Gold Certification

Hydro GT PRO series is a power supply with 80 PLUS® Gold Certification that guarantees to operate at a minimum of 90% efficiency at 50% load of PSU rated power and reduces electricity cost.

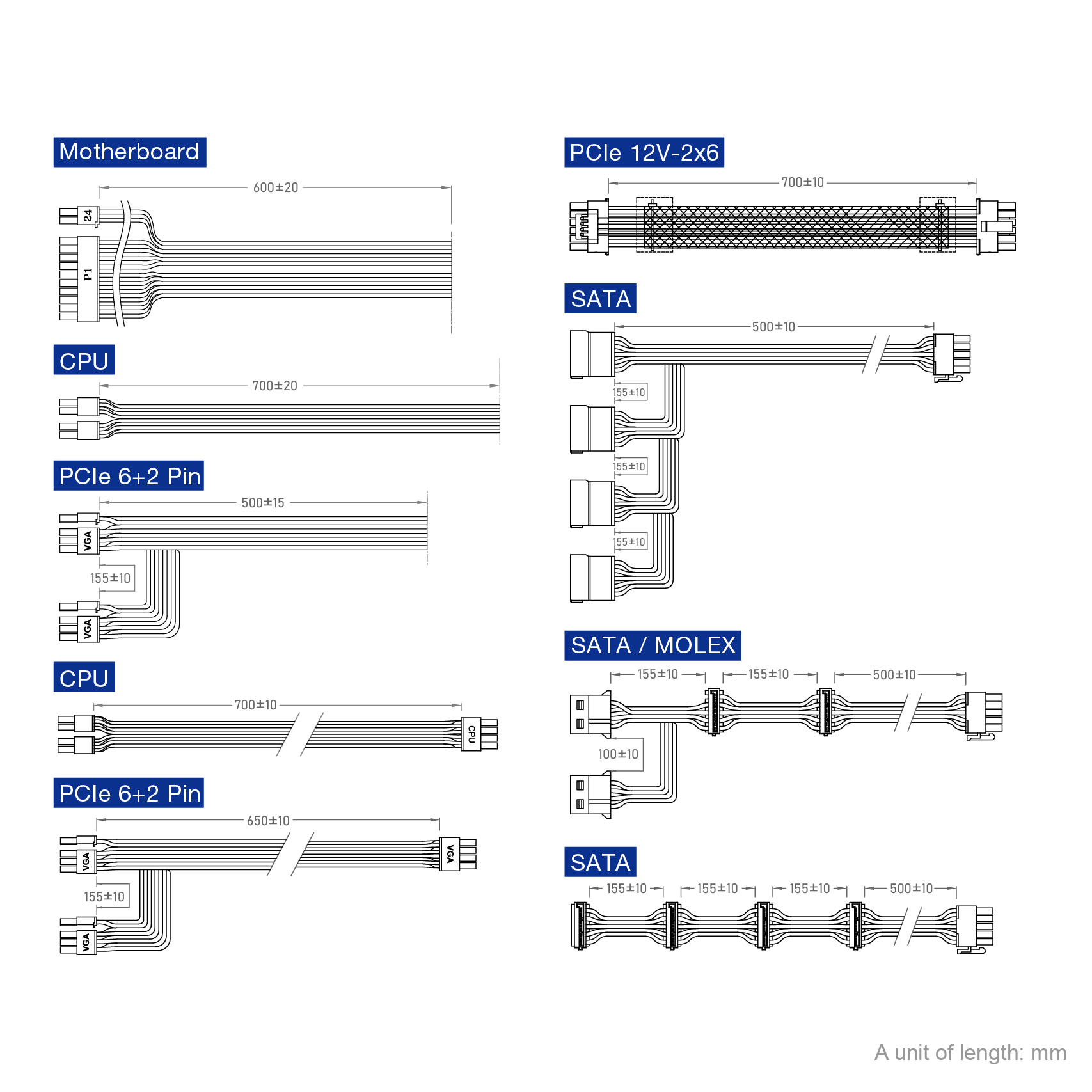

 atx cable 24 pinEPS 4 4 pinEPS 4 4 pinpcie 6+2 pinhd statmolex
MB 20+4 PINCPU 4+4 PINPCIe 12V-2x6PCIe 6+2 PINSATAMolex


AC Input
100-240Vac~  11-5.5A  50-60Hz (Not for China)
200-240Vac~ 5.5A 50-60Hz (Only for China)
DC Output+3.3V+5V+12V-12V+5Vsb
Max Output Current20A20A70.83A0.3A2.5A
Max Combined Power120W850W3.6W12.5W
Total Power850W


모델명 HGT-850
정격 출력 850W
제품 규격 ATX
80 PLUS 인증 Gold
입력 전압 100-240V
입력 전류 11-5.5A
입력 주파수 50-60Hz
PFC회로 Active PFC
효율 ≥90% at typical load
팬 종류 FDB fan, 120mm
제품사이즈(L x W x H) 150 × 150 × 86 mm
