제품
HYDRO G 850W
- Unique product ID with changeable side stickers for DIY enthusiasts and gamers
- Intelligent fan speed control circuit design with 0dBA function
- Server grade circuit and advanced thermal layout design
- Complies with newest ATX12V & EPS12V standards
- High efficiency ≧ 90%
- Active PFC ≧ 99%
- High wattages with 80PLUS® gold certification
- Powerful single +12V rail design
- Advanced full modular design with ribbon cables
- 100% Japan-made E-cap
- SLI and Crossfire ready
- Quiet and long-lasting 135mm FDB fan
- Full protections: OCP, OVP, SCP, OPP, UVP, OTP
- Global safety approved
FSP Hydro G series stands for the needs of PC DIY enthusiasts and gamers who want a high end PSU with stylish ID design but do not want to compromise electronic performance at all.
By server grade circuit and advanced thermal layout design, Hydro G series deliver full load (wattage) at 50°C ambient temperature. Silent operation is considered by intelligent fan speed control circuit design with 0dBA function to fulfill gamers need in playing games.
By server grade circuit and advanced thermal layout design, Hydro G series deliver full load (wattage) at 50°C ambient temperature. Silent operation is considered by intelligent fan speed control circuit design with 0dBA function to fulfill gamers need in playing games.
Stylish in DIY Spirit
Now it is your show time! Changeable side stickers are available for your own theme in PC system.
Modularity
The modular cable design simplifies installation and allows flexibility and simplicity, in choosing only those cables needed.
Unique dissymmetry ID
and vent-hole design
To minimize fan speed and acoustic from turbulence.

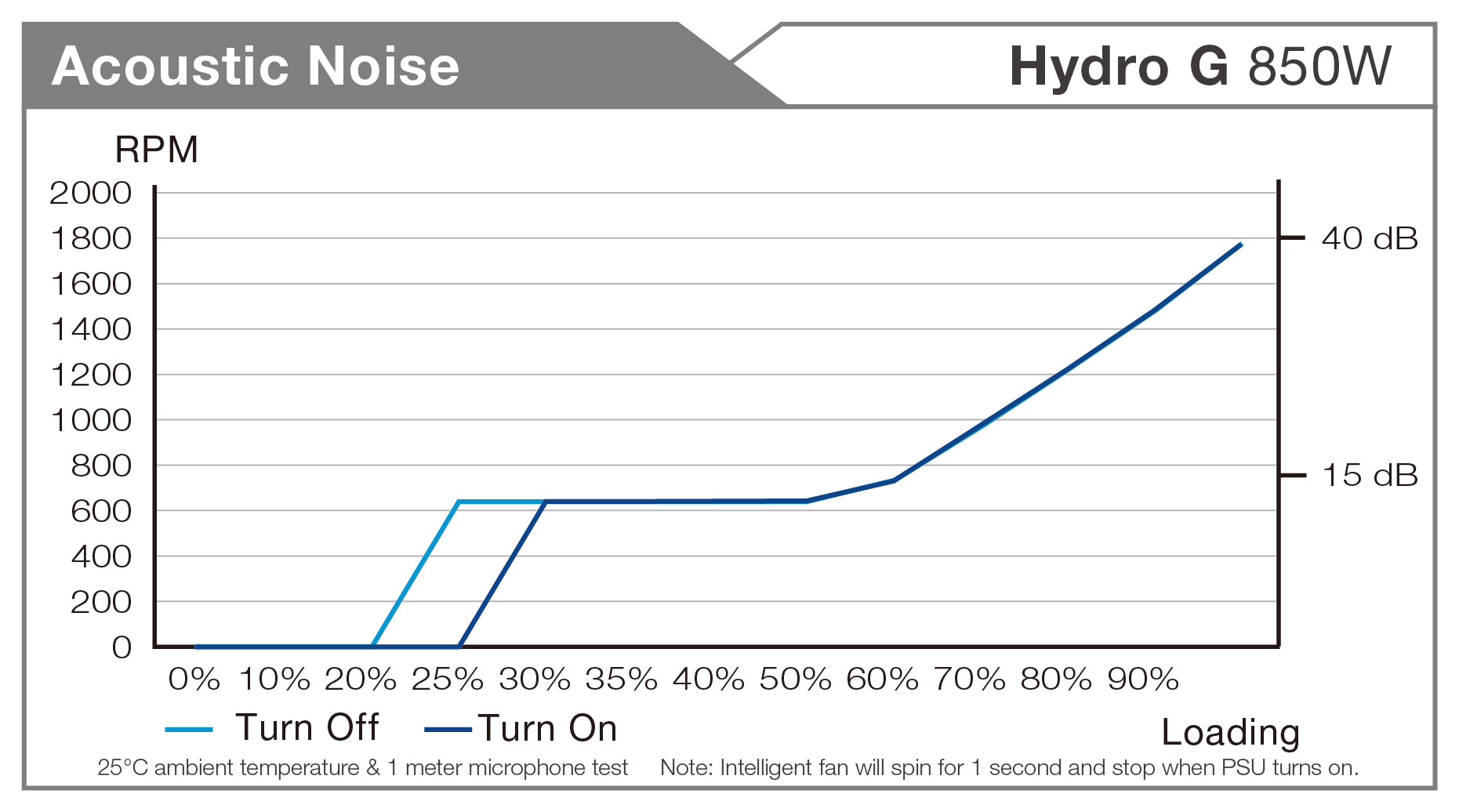

Cooling Power, Play Silent
The smart 135mm FDB (fluid dynamic bearing) fan of Hydro G PSU automatically starts when over 30% load, and automatically stops when lower than 20% load. This smart design keeps power supply cool, and your system quiet.
*Note 1：First time install Hydro G PSU, the fan will spin for 1~3 seconds and stop as signal of intelligent fan control function is good.
*Note 2：Hydro G PSU automatically starts when over 30% load, and stops when under 30% load.
*Note 2：Hydro G PSU automatically starts when over 30% load, and stops when under 30% load.
Performance
AC/DC
| Model No. | HG850 | ||||
| AC Input | 100-240Vac~ 11-5.5A 50-60Hz | ||||
| DC Output | +3.3V | +5V | +12V | -12V | +5Vsb |
| Max Output Current | 25A | 25A | 70.83A | 0.5A | 3.5A |
| Max Combined Power | 150W | 850W | 6W | 17.5W | |
| Total Power | 850W @50°C | ||||
Cables
 |  |  |  |  |  |  | |
| ATX 20+4 | 4+4 PIN | 8PIN | PCI-E 6+2 | SATA | Molex (PERIPHERAL) | Floppy | |
| Connectors | 1 | 1 | 1 | 6 | 12 | 6 | 2 |
제품사양
| 모델명 | HG850 |
|---|---|
| 정격 출력 | 850W |
| 제품 규격 | ATX12V V2.4 & EPS12V V2.92 |
| 80 PLUS 인증 | Gold |
| 입력 전압 | 100-240Vac (Full Range) |
| 입력 전류 | 11-5.5A |
| 입력 주파수 | 50~60Hz |
| PFC회로 | Active PFC (>0.9 typical) |
| 효율 | >90%@ Typical Load |
| 팬 종류 | 135mm FDB Fan |
| 소음 | < 21dBA |
| 제품사이즈(L x W x H) | 150 x 170 x 86mm |
| 제품 무게 | 2730g |
| 작동 온도 | 0~50°C / 32°F~104°F |
| 보호 회로 | OCP/OVP/ SCP/ OPP/ UVP/ OTP |
| 안전 인증 | CE/TUV/FCC/CCC/BSMI/RCM/KC |
