HEXA 85+ PRO(ATX3.1) 750W
HEXA 85+ PRO(ATX3.1) 750W
- Complies with ATX12V V3.1 & EPS12V V2.92
- Support native PCIe 12V-2x6 connector(850W & 750W)
- Efficiency ≧ 85% at typical load
- Active PFC ≧ 0.9
- Hold up time > 17ms at 80% load
- Japanese electrolytic capacitors
- +12V single-rail design
- +5V&3.3V DC to DC module design
- 120mm hydraulic bearing (HYB) fan
- Flat black ribbon cables
- Complete protection: OCP/OVP/OPP/SCP
New ATX PSU Specifications
Updated ATX 3.1 specifications for the next-generation hardware power demands and ensure users get the most stable and cost-optimized performance possible with the highest power efficiency.
80 Plus® Bronze Certification
HEXA 85+ PRO Series, 80 PLUS ® bronze certified, saves energy through its high efficiency up to 85%.
All Black Flat Cables
It gives your system a superior look than ever, and straightforward rather so many entry-level power supplies
Stable DC to DC Output Quality
HEXA 85+ PRO series apply DC to DC modules to improve the reliability and greater compatibility with the quality with low ripple noise to reduce interference of system components, and prolong system lifetime.
+12V Single Rail Design
Designed for power-intensive VGA cards, provides strong power to any overloading condition.
Optimal Cooling
HEXA 85+ PRO series comes with a 120mm quiet hydraulic bearing (HYB) fan and a highly efficient ventilation fan guard to guarantee low noise operations without compromising its cooling efficiency.
Japanese Electrolytic Capacitors
Japanese electrolytic capacitors ensures safety on spare parts for prolonged lifespan and reliability.
Supports High-end Motherboard
For gaming enthusiast, the HEXA 85+ PRO 750W featured dual CPU power connectors for high-end motherboards and stable CPU power delivery.
Energy Related ErP/Eup 2013
Green Power! The total AC power consumption less than 5Vsb rail to meet the new EU Regulation ErP 2013 for modern systems.

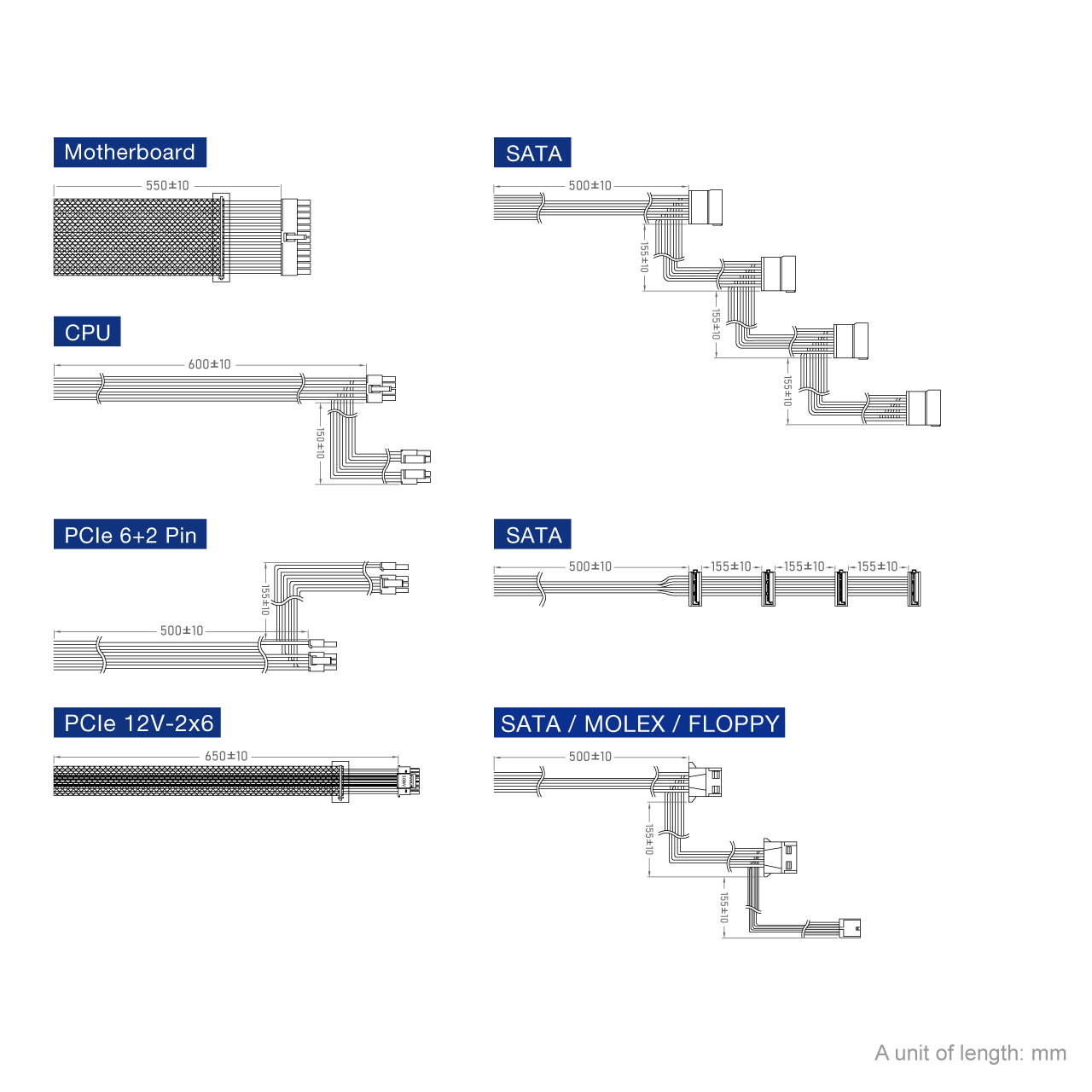

Cables
 |  |  |  |  |  |  | |
| MB 24 PIN | CPU 4+4 PIN | PCIe 12V-2x6 | PCIe 6+2 PIN | SATA | Molex | Floppy | |
| Connectors | 1 | 2 | 1 | 2 | 8 | 2 | 1 |
AC/DC
| AC Input | 100-240V~ 10-5A 50-60Hz | ||||
| DC Output | +3.3V | +5V | +12V | -12V | +5Vsb |
| Max Output Current | 20A | 20A | 62.5A | 0.3A | 3A |
| Max Combined Power | 100W | 750W | 3.6W | 15W | |
| Total Power | 750W | ||||
Specifications
| Model | HA2-750,Gen5 |
|---|---|
| Rated Output Power | 750W |
| Form Factor | ATX |
| 80 PLUS Certification | 80 PLUS® Bronze |
| Input Voltage | 100-240V |
| Input Current | 10-5A |
| Input Frequency | 50-60Hz |
| PFC | Active PFC |
| Efficiency | ≥85% at typical load |
| Fan Type | Hydraulic Bearing (HYB) Fan, 120mm |
| Dimensions(L x W x H) | 150x140x86mm |
| Protection | OCP/OVP/OPP/SCP |
| Warranty | 5 Years |
Download
UserManual_PSU.pdf
