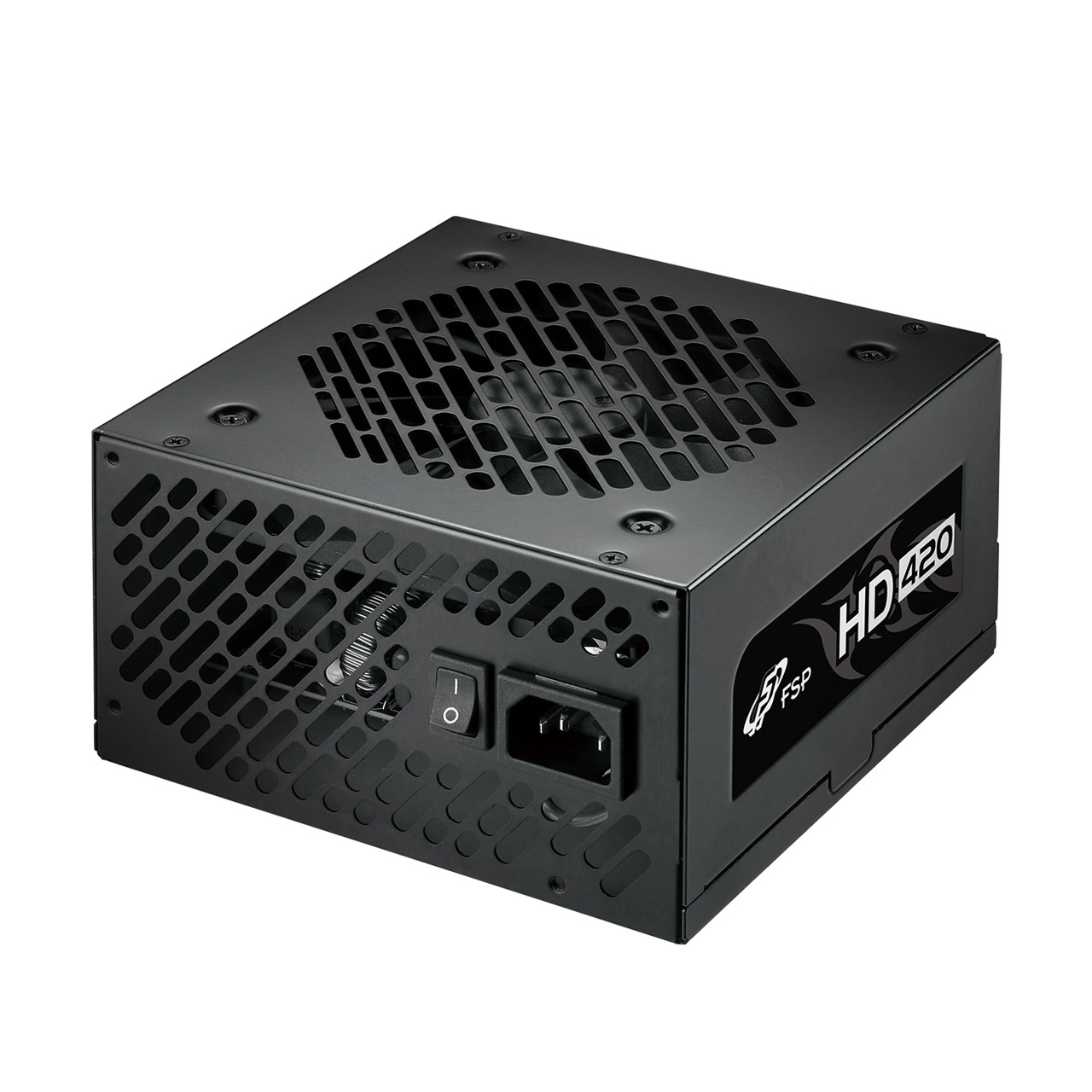

HD 420W
HD 420W
- Advanced air-flow design in silent operation
- Complies with newest ATX12V & EPS12V standards
- Wide input AC range from 160Vac to 280Vac
- Comply with 80PLUS 230V EU standard
- Ribbon cables for the need of enthusiasts and gamers
- Powerful single +12V rail design
- Full protections: OCP, OVP, SCP, OPP, UVP, OTP
Intelligent fan control
An advanced fan control design to detect heat and adjust fan speed for optimal cooling performance.
Low noise
120mm fan and special vent hole design to spin quietly and keep cooling under maximum operation.
Sophisticated design
Ribbon cables (exclude MB 20+4 Pin) give any systems a neat and polished look.
Easy Installation
20+4 pin comes with length of 450mm to connect MB easily, and ribbon cables give you a hand to face mess cables in rear panel.
Low power consumption, high energy efficiency
Special design to place the bridge diodes among two EMI filters for low energy loss in Standby mode.
AC/DC
| AC Input | 200-240Vac~ -4A 50-60Hz | ||||
| DC Output | +3.3V | +5V | +12V | -12V | +5Vsb |
| Max Output Current | 16A | 16A | 31.5A | 0.5A | 2.5A |
| Max Combined Power | 100W | 378W | 6W | 12.5W | |
| Total Power | 420W | ||||
Cables
 |  |  |  |  |  | |
| ATX 24 | 4+4 PIN | PCI-E 6+2 | SATA | Molex (PERIPHERAL) | Floppy | |
| Connectors | 1 | 1 | 2 | 4 | 3 | 1 |
Specifications
| Model | HD420W |
|---|---|
| Rated Output Power | 420W |
| Input Voltage | 200~240Vac |
| Input Current | 4A |
| Input Frequency | 50~60Hz |
| PFC | Active PFC |
| Efficiency | More than 85% @ typical load |
| Weight | 1.512KG |
| Protection | OCP, OVP, SCP, OPP, UVP, OTP |
