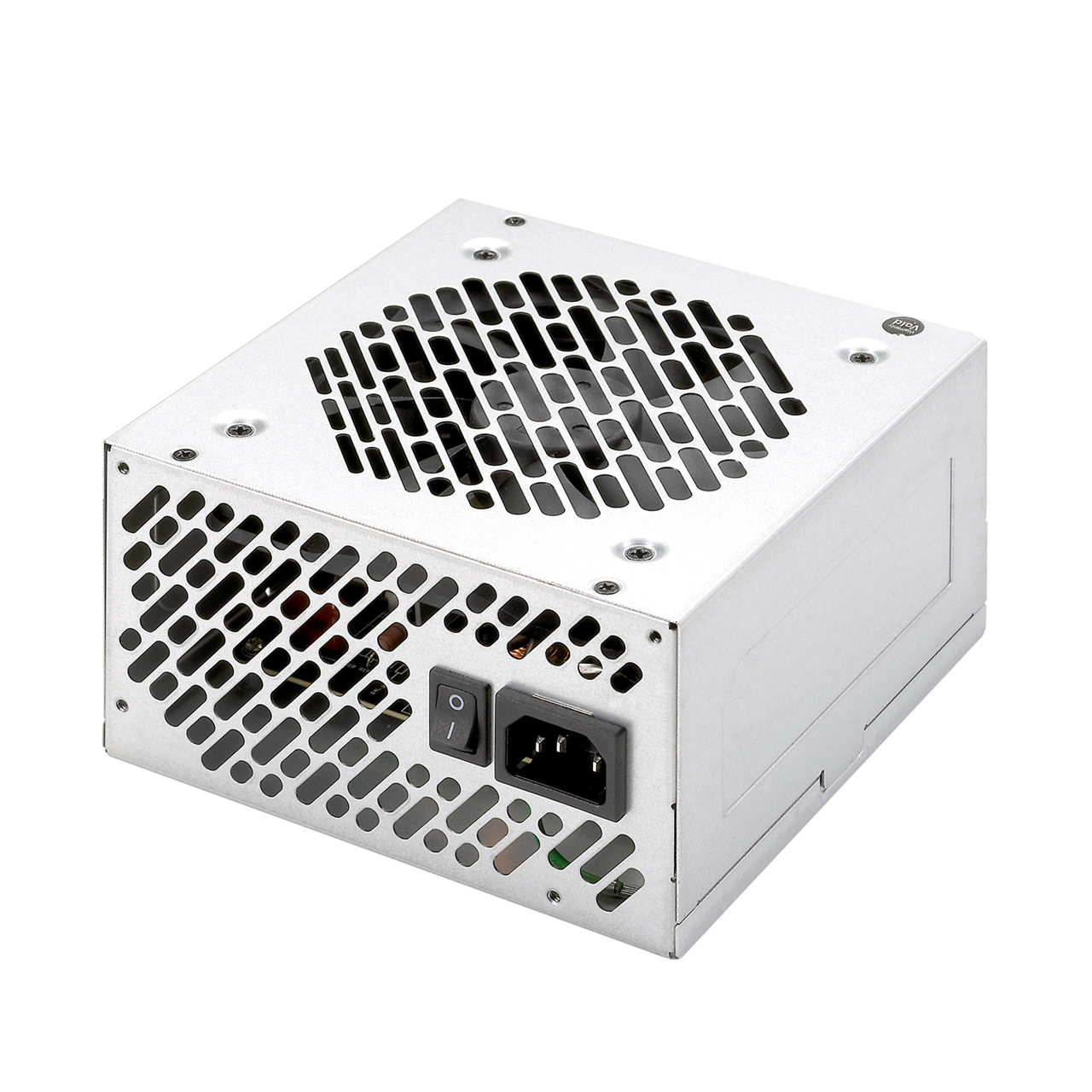

HD 300W
- Advanced air-flow design in silent operation
- Complies with newest ATX12V & EPS12V standards
- Wide input AC range from 160Vac to 280Vac
- Comply with 80PLUS 230V EU standard
- Ribbon cables for the need of enthusiasts and gamers
- Powerful single +12V rail design
- Full protections: OCP, OVP, SCP, OPP, UVP, OTP
![](../upload/day_160302/201603021536127867.jpg)
Intelligent fan control
An advanced fan control design to detect heat and adjust fan speed for optimal cooling performance.
![](../upload/day_160302/201603021548436958.jpg)
Low noise
120mm fan and special vent hole design to spin quietly and keep cooling under maximum operation.
![](../upload/day_160302/201603021549383754.jpg)
Sophisticated design
Ribbon cables (exclude MB 20+4 Pin) give any systems a neat and polished look.
![](../upload/day_160302/201603021552513565.jpg)
Easy Installation
20+4 pin comes with length of 450mm to connect MB easily, and ribbon cables give you a hand to face mess cables in rear panel.
![](../upload/day_160302/201603021553311996.jpg)
Low power consumption, high energy efficiency
Special design to place the bridge diodes among two EMI filters for low energy loss in Standby mode.
AC/DC
AC Input | 200-240Vac~ -3A 50-60Hz | ||||
DC Output | +3.3V | +5V | +12V | -12V | +5Vsb |
Max Output Current | 13A | 14A | 22A | 0.5A | 2.5A |
Max Combined Power | 85W | 264W | 3.6W | 12.5W | |
Total Power | 300W |
Cables
![]() | ![]() | ![]() | ![]() | ![]() | |
ATX 24 | 4+4 PIN | SATA | Molex (PERIPHERAL) | Floppy | |
Connectors | 1 | 1 | 4 | 3 | 1 |
Specifications
Model | HD300W |
---|---|
Rated Output Power | 300W |
Input Voltage | 200~240Vac |
Input Current | 3A |
Input Frequency | 50~60Hz |
PFC | Active PFC |
Efficiency | More than 85% @ typical load |
Weight | 1.512KG |
Protection | OCP, OVP, SCP, OPP, UVP, OTP |
