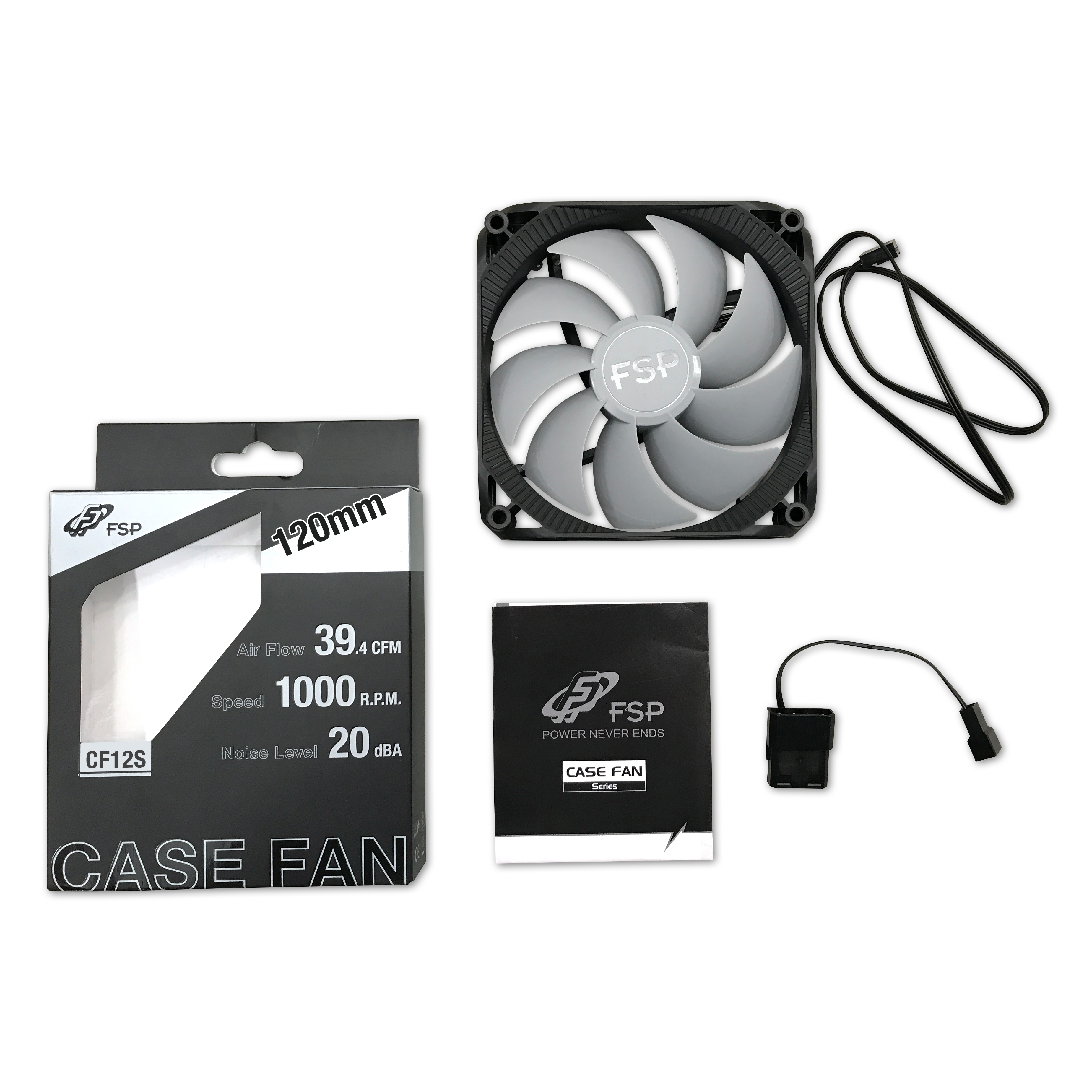

12cm CF12S

  • Well-balanced cooling performance.
  • Better than standard case fans, reduces vibration for quiet operation.
  • Paragliding blade shape for airflow improvement.
  • Optimized fan blades, two surface treatments.

Optimized Blade Design

Paragliding Blade Design ensures the heat between the airflow and fan blades is constant along the length, giving a uniform blade loading for high efficiency and low noise.

Stable And Affordable Sleeve Bearings

Sleeve bearings are affordable for moderate to high-speed applications, offering more stability and durability.

Two Surface Treatments

Nine fan blades, impellers with smooth and frosted surface are engineered to generate large volumes of air to cool the system.

Perfect Balance Between Silent and Performance



Model CF12S01 (without LED)
CF12S11 (with Blue LED)
Dimensions 120 x 120 x 25 mm
Bearing Type Sleeve
RPM 1000 RPM±15%
Air Flow 39.4 CFM
Noise Level 20 dB(A)
Rated Voltage 12 VDC
Rated Current 0.09A
Life Hours 30,000 Hours
Power connector 3-Pin
