PIC18300000000006136

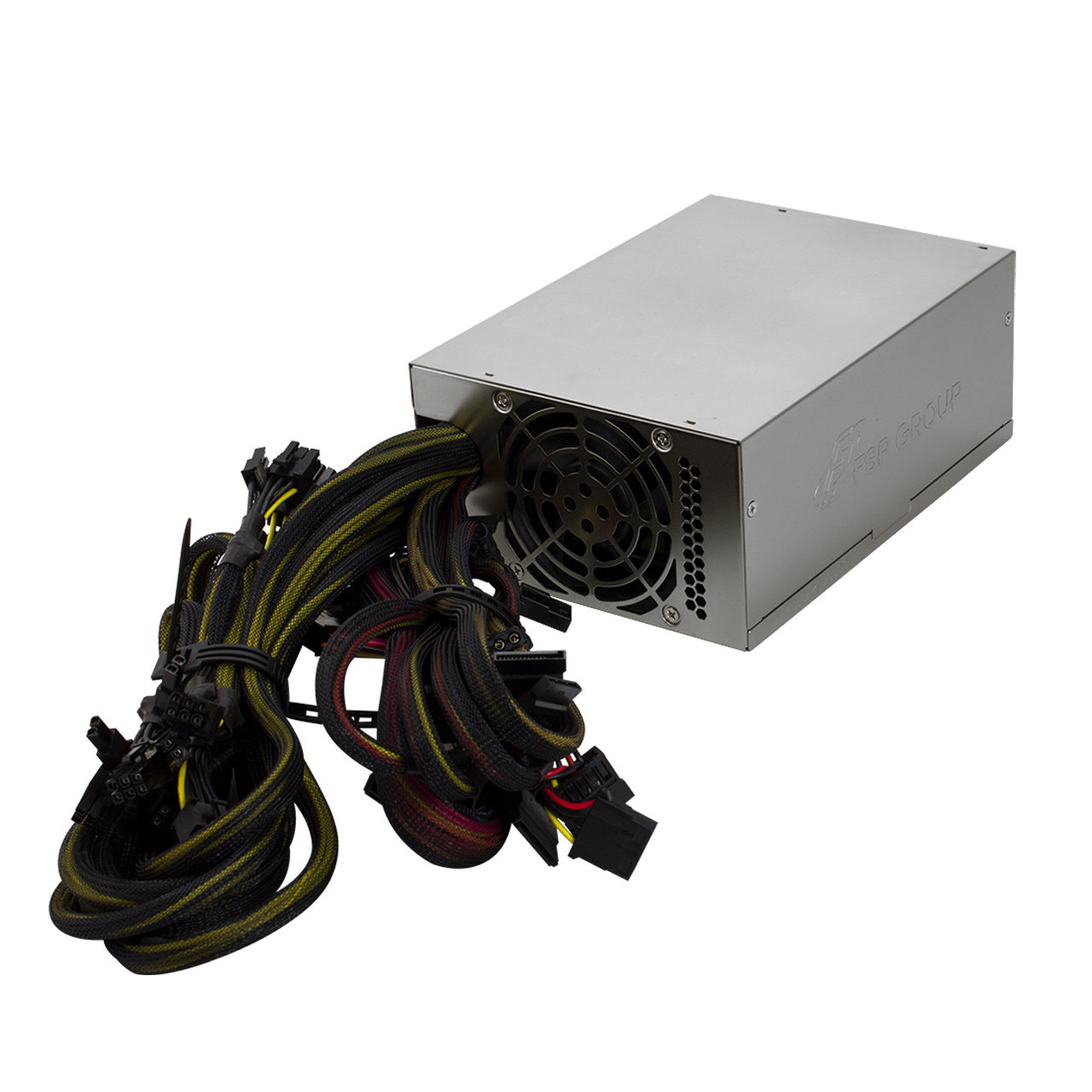

CANNON 1300W

  • Complies with ATX12 v2.4 & EPS12 v2.92
  • Efficiency ≧ 88% at typical Load
  • Active PFC ≧ 0.9
  • Hold up time > 17ms at 80% Load
  • +12V Single-Rail Design with D2D 5V&3.3V
  • 2 ball bearing Long life Fan
  • Complete Protections: OCP/OVP/OPP/SCP

Mining Power Supply

Cannon 1300W is capable of powering all high end GPU, GPU Mining Ethereum, ETH, Bitcoin, BlackCoin, Dash, Dogecoin, Litecoin, Namecoin, Nxt, Peercoin, and Primecoin.

Design with Mining Build

Design with Mining Build

Sleeve cable and 12 sets of PCI-E 6+2 PIN connectors make it easy to build a PC for mining.

Design with Mining Build in icon

Dual Ball-bearing 8 cm Fan

Built in 2 (back and front) ball-bearing 8 CM fans for better inner airflow and cooling performance.


Elegant Nickel-plated Surface Design

Nickel-plated surfaces enhance corrosion resistance, and wear resistance, enabling whole day mining under rigorous environments.

PSU internalPSU internal

Industrial-level Components Inside

Featured with 3 big bulk capactitors and other durable industrial-level components to lead long product lifespan.

DC to DC Module Design

Cannon 1600W offers supreme efficiency, voltage stability and high system compatibility, making it a desirable component for your mining rigs.

Multi-Protection

Complete protection: OCP, OVP, SCP, OPP


Cables

 atx cable 24 pinEPS 4 4 pinpcie 6+2 pinhd statmolex2.5 floppy
ATX 24 PIN4+4 PINPCI-E 6+2SATAMolex
(PERIPHERAL)
Floppy
Connectors1112960

AC/DC

AC Input220-240Vac~  8A  50-60Hz
DC Output+3.3V+5V+12V-12V+5Vsb
Max Output Current15A15A108A0.5A3A
Max Combined Power103W1296W6W15W
Total Power1300W

Specifications

Model FSP1300-55YD
Rated Output Power 1300W
Form Factor ATX / EPS
Input Voltage 200-240Vac
Input Current 8A
Input Frequency 50-60Hz
PFC Active PFC > 0.9
Efficiency 88%(at typical load)
Fan Type ball 80x80x25mm x2
Dimensions(L x W x H) 210 X 150 X 86mm
Weight 3.6 kg
Protection OCP/OVP/OPP/SCP
Safety Approval CB , CCC
