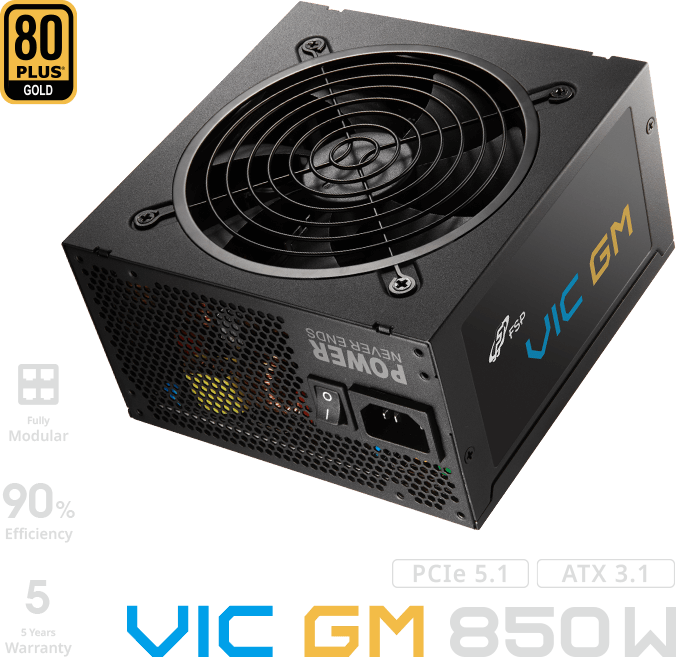

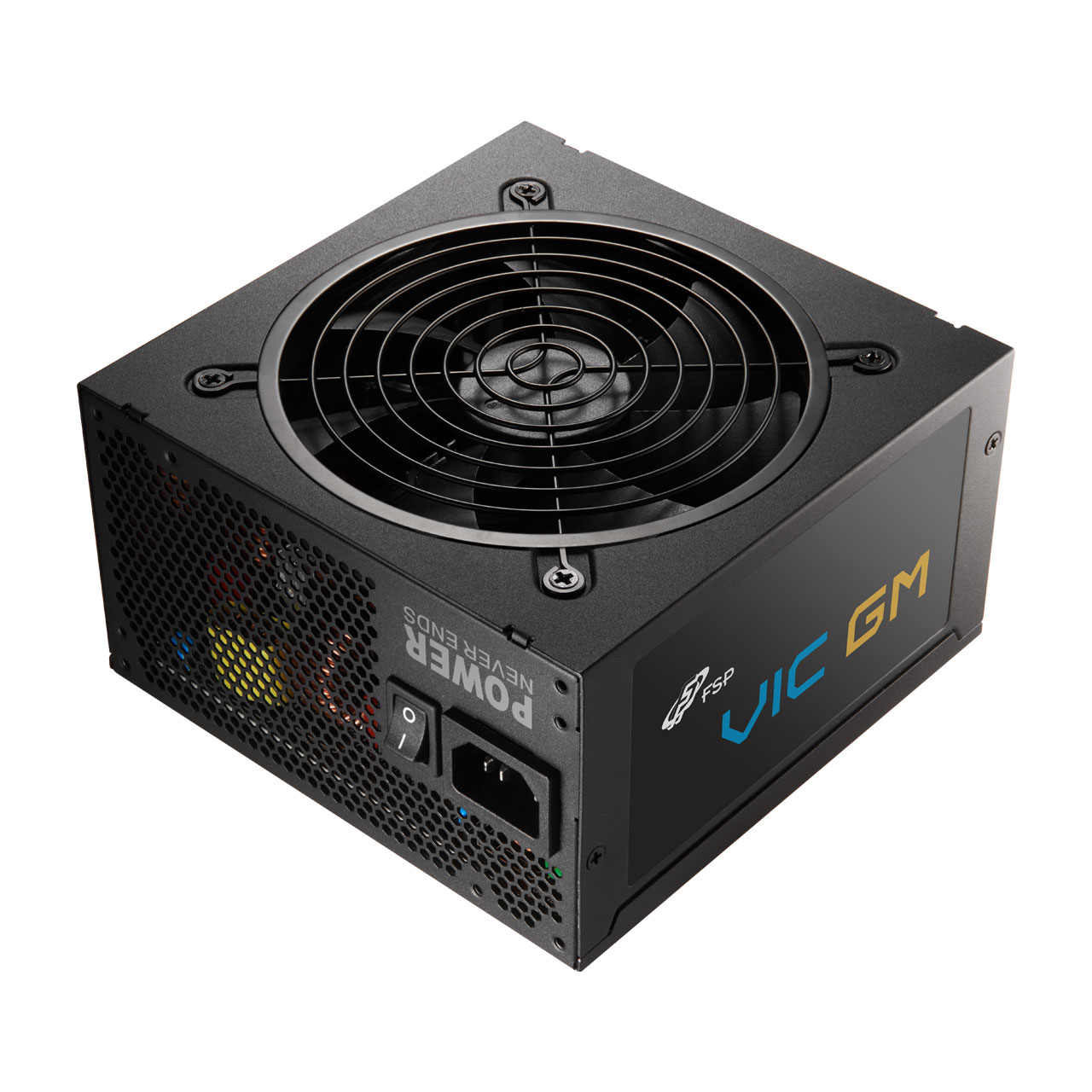

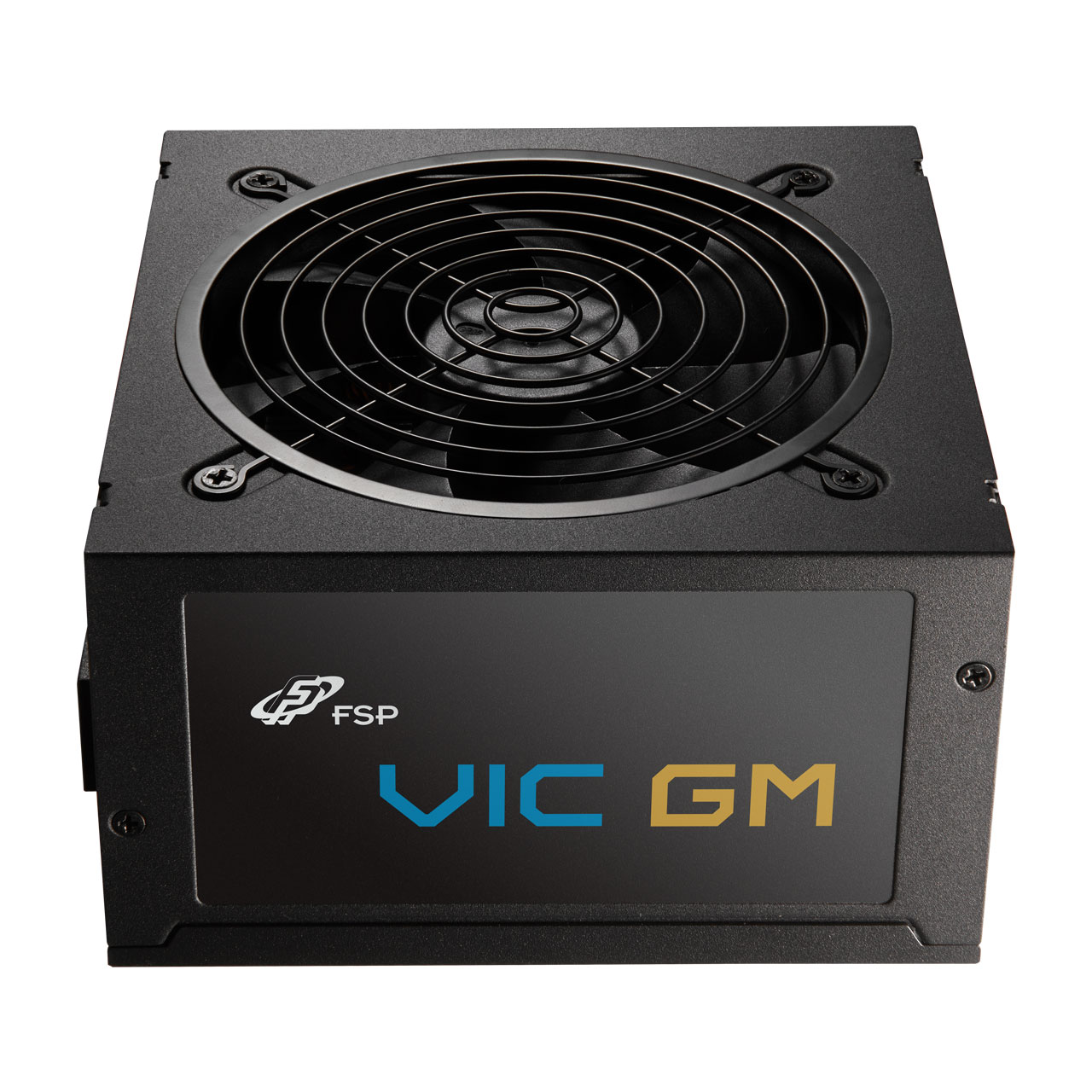

VIC GM 850W

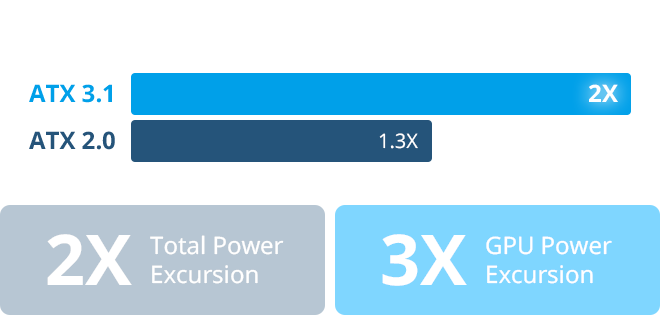

Following the latest ATX 3.1 & PCIe Gen 5.1 regulation, support up to 200% power excursion and with the new interface of PCIe 12V-2x6 connector to ensure peak performance with future hardware upgrades.
*750W / 850W models are available with PCIe Gen 5.1 connector

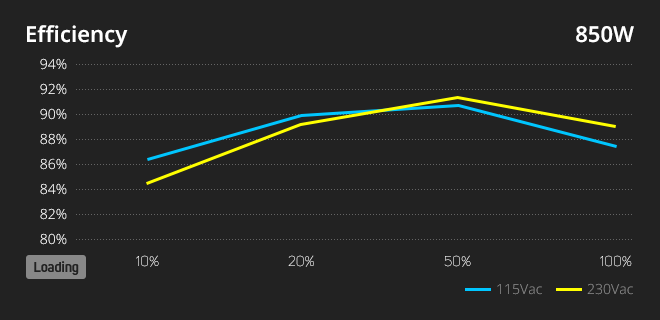

Increase the efficiency and stabilize the output voltage to ensure system stability.
Certified by world-class organizations 80 PLUS® gold certification for lower power loss, less heat, and quieter operation
Designed for power - intensive graphics cards provides strong power to any overloading condition.
The main capacitor inside serves to support working under an extremely harsh environment, such as with high temperatures, peak voltage fluctuations. It stabilizes the performance for high reliability that your system can count on.

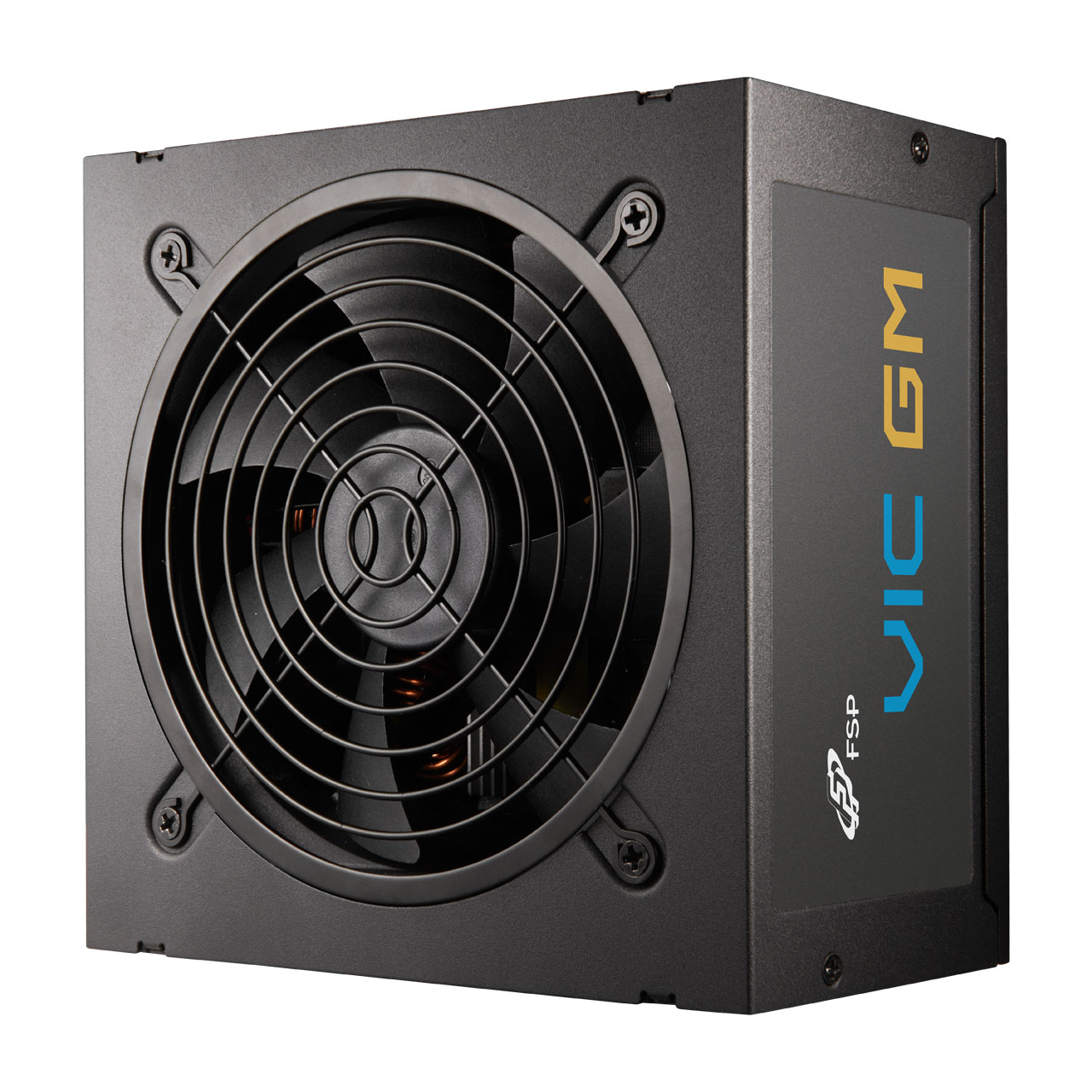

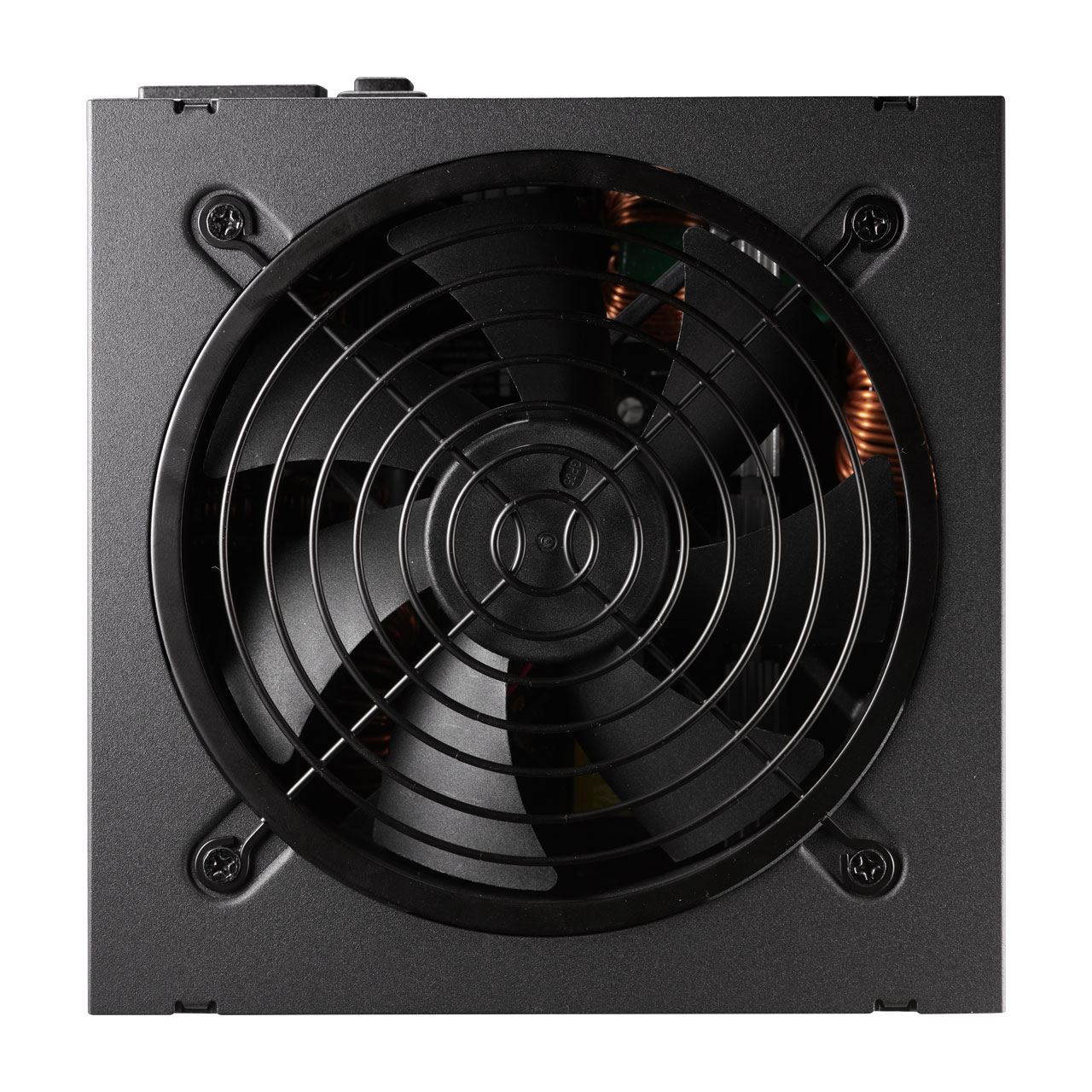

Built with optimized thermal solution and an advanced 120mm fan for cooler components and quieter operation.
The VIC GM offers hassle-free installation by letting users connect only the necessary cables, which enhances airflow and minimizes cable clutter inside the system.
This power supply is equipped with dual 8-pin PCIe power connectors, delivering ample 12V power to meet the demands of high-performance CPUs.
The VIC GM power supply is engineered for reliable power delivery, even in temperatures up to 40°C. Count on stable performance for your everyday computing, ensuring system longevity without heat concerns.

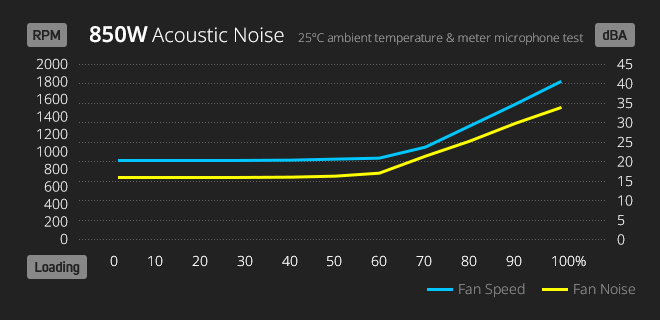

*Performance data based on testing conducted at 25°C ambient temperature.
Over Voltage Protection
Over Current Protection
Over Power Protection
Over Temperature Protection
Short Circuit Protection
Under Voltage Protection
Surge and Inrush Protection
No-load Operation
Our comprehensive circuit shields your valuable components from harm.

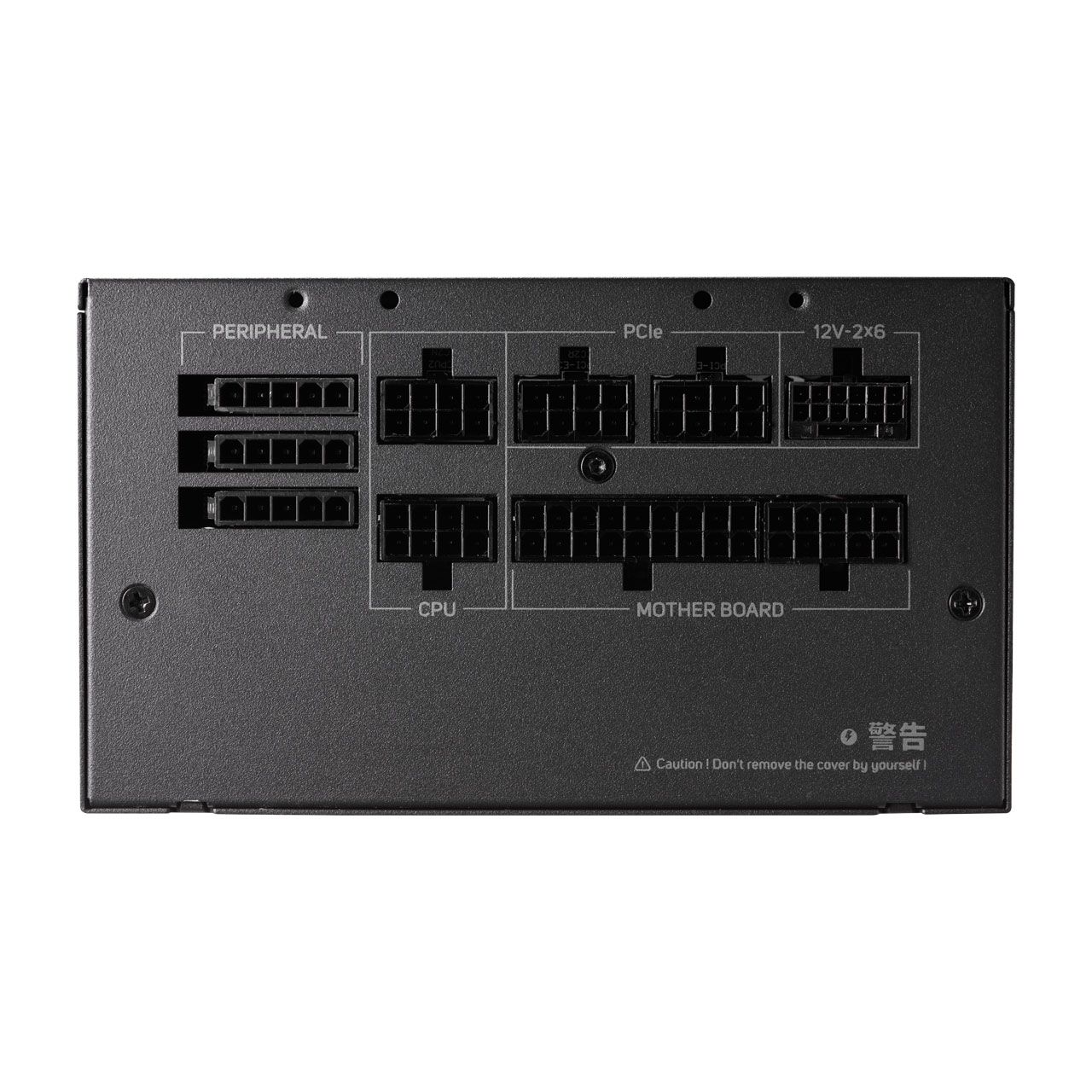

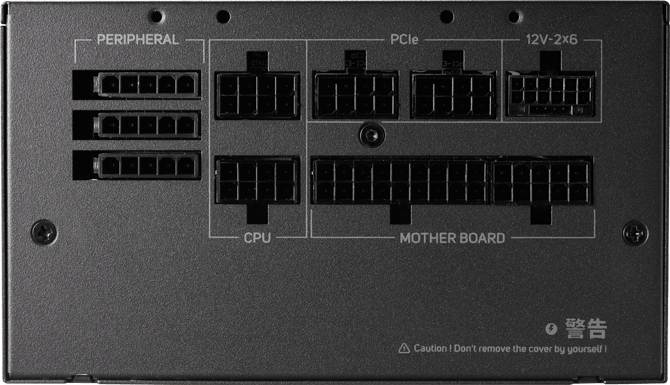

MB 20+4 PIN
CPU 4+4 PIN
PCIe 6+2 PIN
PCIe 6+2 PIN
PCIe 12V-2x6
SATA
SATA
MOLEX
| AC Input | 100-240V~ 10.5-5A 50-60Hz | ||||
| DC Output | +3.3V | +5V | +12V | -12V | +5Vsb |
| Max Output Current | 20A | 20A | 70.83A | 0.3A | 3A |
| Max Combined Power | 100W | 850W | 3.6W | 15W | |
| Total Power | 850W | ||||
| Model | VIC-850GM |
|---|---|
| Rated Output Power | 850W |
| Form Factor | ATX12V V3.1 |
| 80 PLUS Certification | Gold |
| Input Voltage | 100-240V |
| Input Current | 10.5-5A |
| Input Frequency | 50-60Hz |
| PFC | Active ≧ 0.9 |
| Efficiency(at typical load) | ≥90% at typical load |
| Fan Type | HYB bearing, 120mm |
| Dimensions(L x W x H) | 150 × 150 × 86 mm |
| Operation Temp. | 40°C |
| Protection | OCP, OVP, SCP, OPP, UVP, OTP, SIP, NLO |
| Warranty | 5 Years |
