Engineered for professionals, this chassis supports up to 21 hard drives(share with SSD), 360mm radiators, and 420mm graphics cards. Perfect for demanding tasks like 3D rendering, AI, and video editing, it offers the flexibility and performance needed for any high-end workstation.
Support up to 360mm radiators.
Support up to 280mm or 420mm (remove HDD bracket) graphics cards.

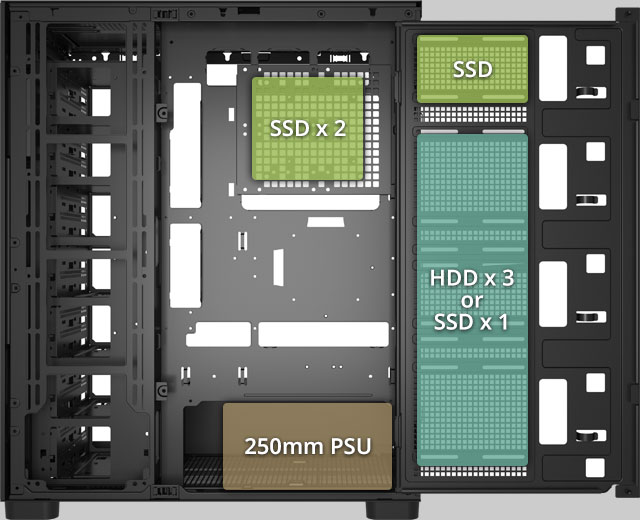

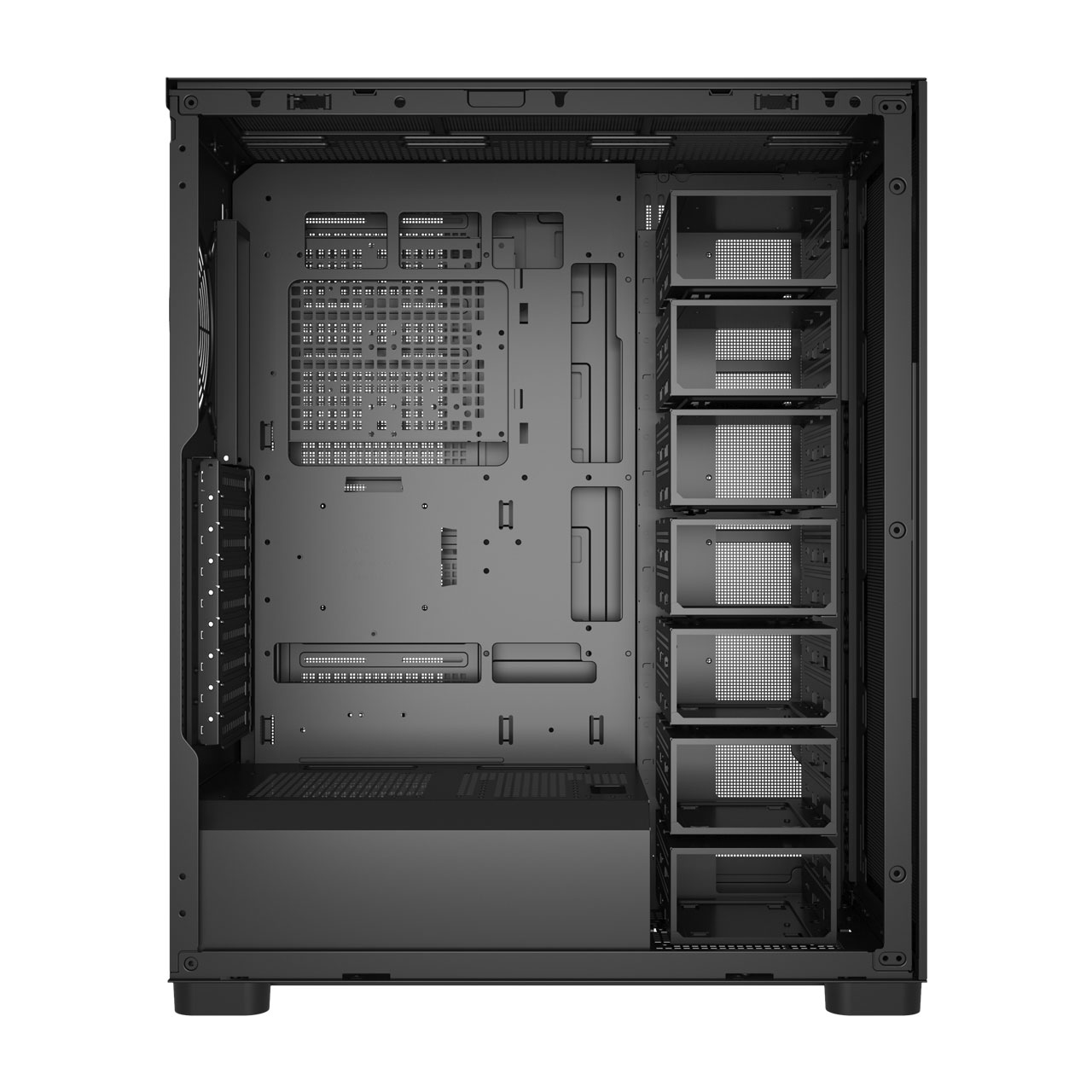

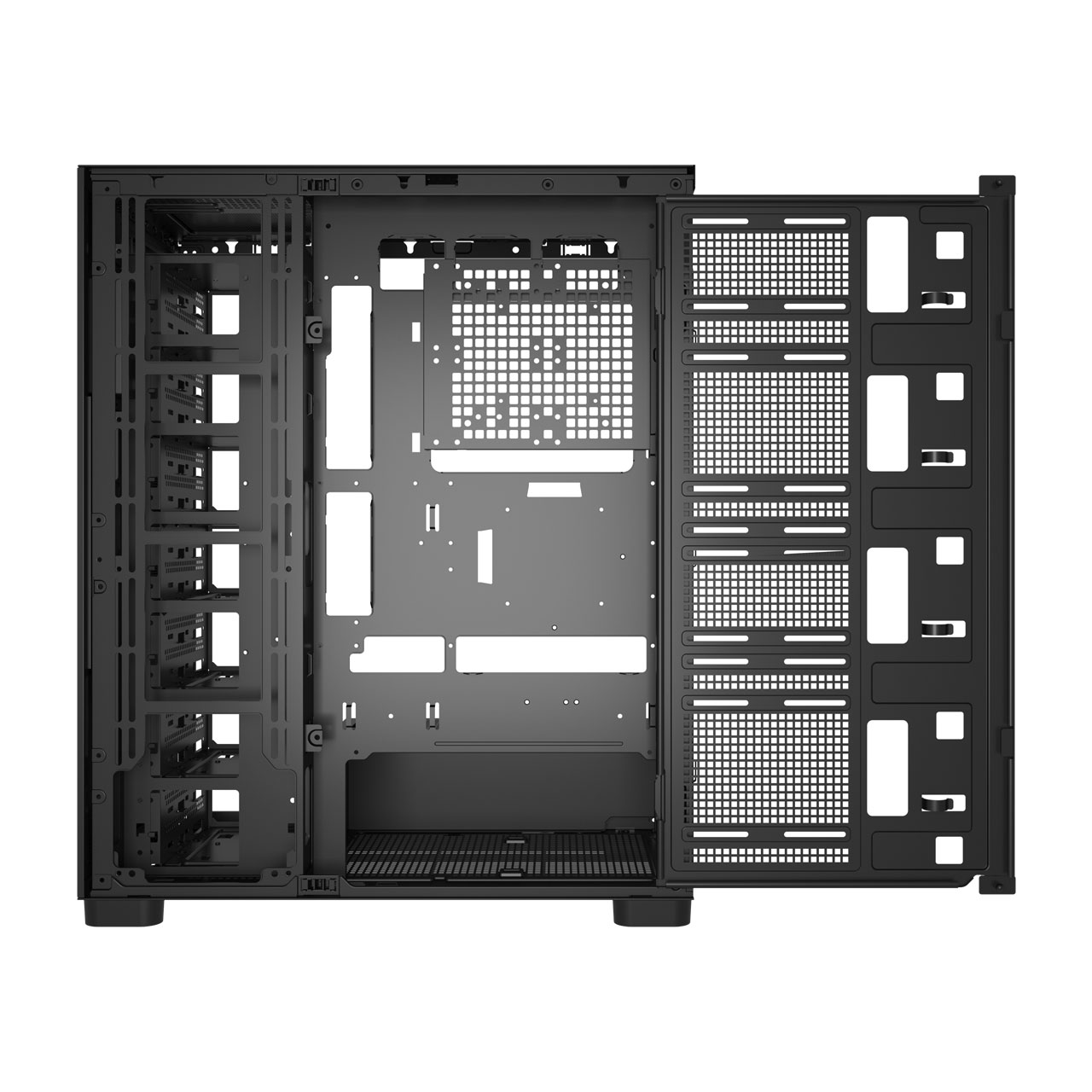

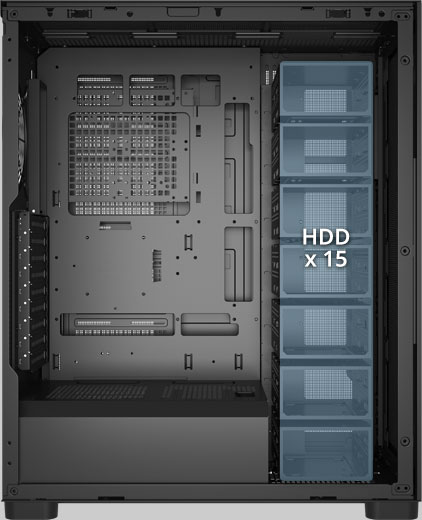

Designed for users with extensive storage needs, this chassis offers dedicated space and optimized drive bays to support a large number of hard drives. Perfect for data-intensive applications such as media production, backup systems, and enterprise storage solutions.
| Model Name | U660-B |
|---|---|
| Type | Server (Multi-HDD) |
| Color | Black |
| Materials | 0.8mm SPCC |
| Dimension DxWxH (mm) / (inch) | 451x258x568mm |
| Maximum CPU Cooler Height | 180mm |
| Graphics Card Length | 280mm or 420mm (Remove HDD bracket) |
| Expansion Slots | 9 (Support vertical graphics card insertion) |
| MotherBoard Support | EEB, E-ATX(Remove five HDD bracket), ATX, M-ATX, Mini-ITX |
| External I/O port | USB3.0 x 2, Type-C |
| Power Supply Type | 250mm ATX |
| 3.5“ HDD | 18(E-ATX support 7) |
| 2.5" SSD | 1+3(share with HDD) |
| Fan&Water Cooler Support | Side: 120mm x 4 or 140mm x 3 or 360mm Radiator Top: 120/140mm x 3 or 360mm Radiator Bottom: 120mm x 3 Rear: 120/140mm x 1 |
| Max Radiator Support | 360mm |
| EAN/UPC | EAN:4711498482594 UPC:845685016300 |
