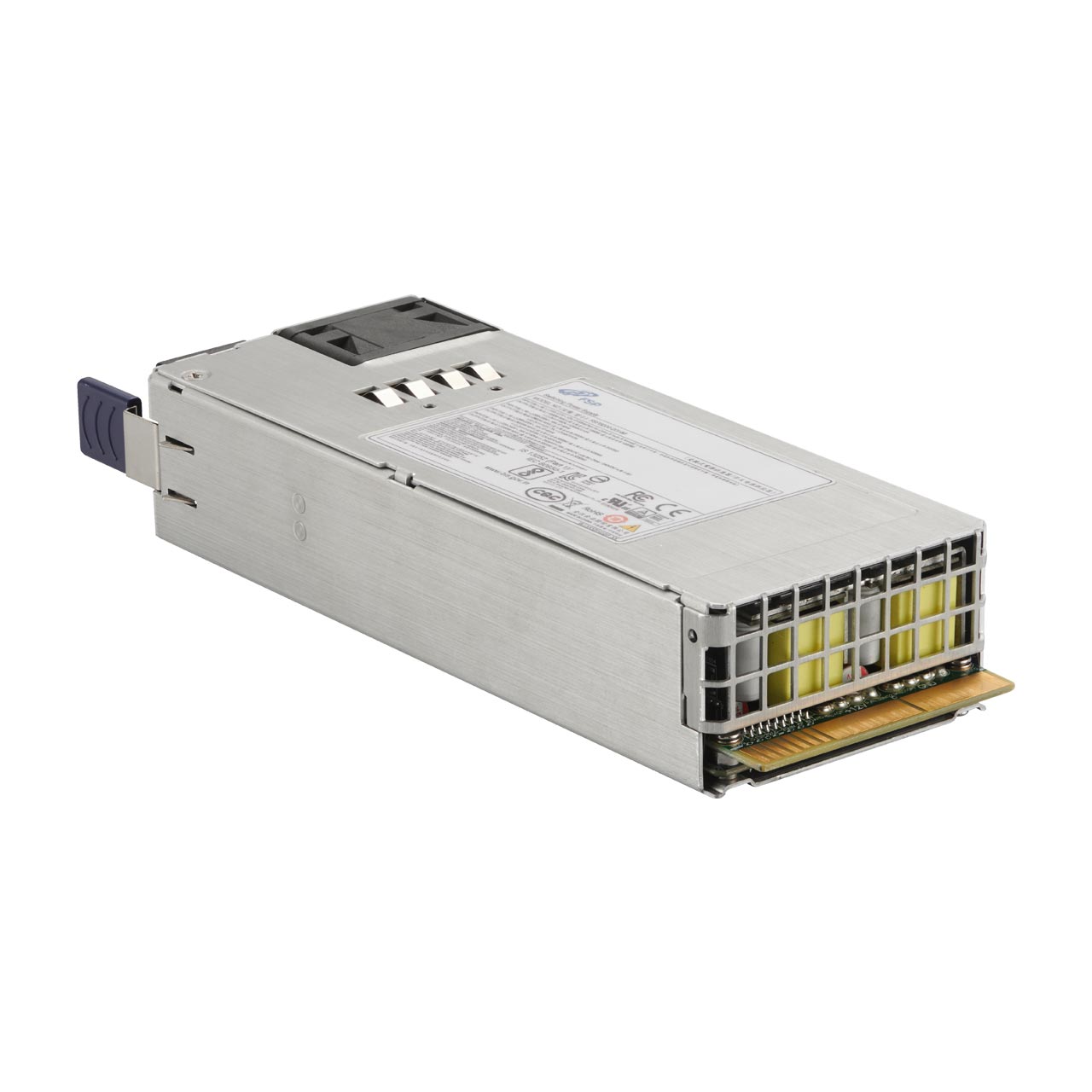

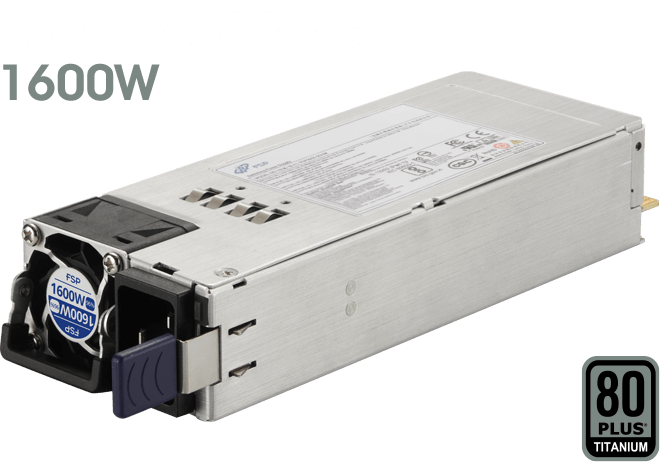

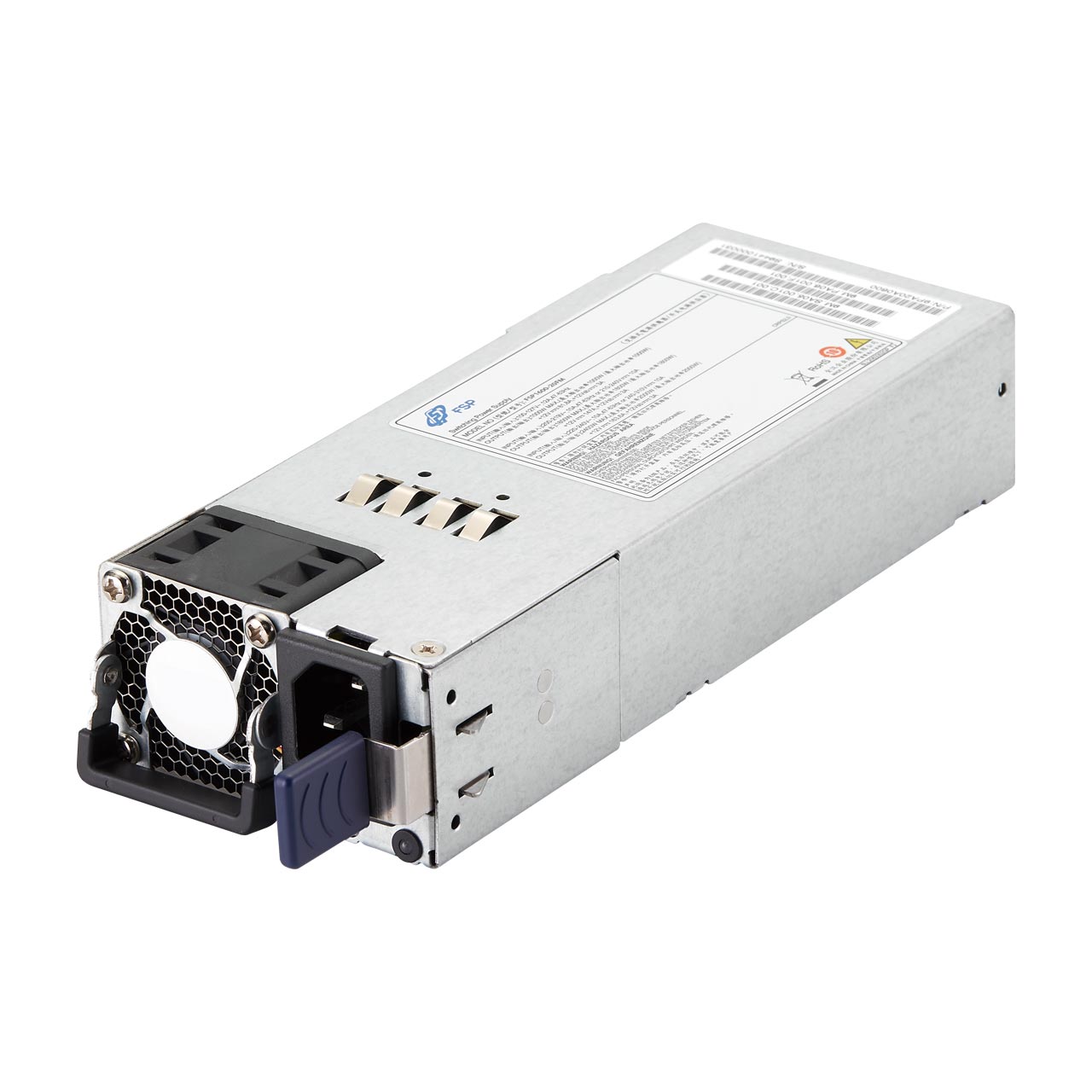

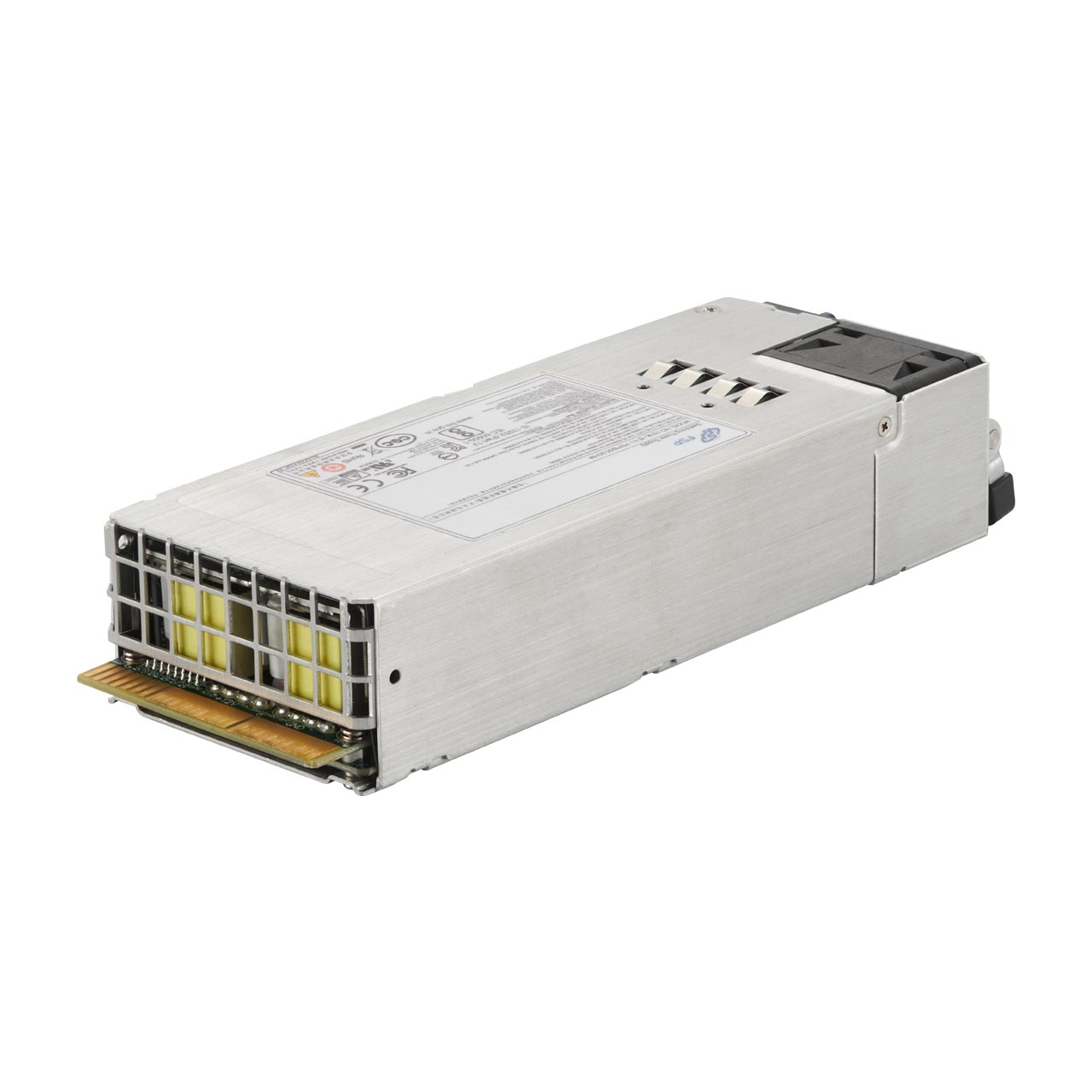

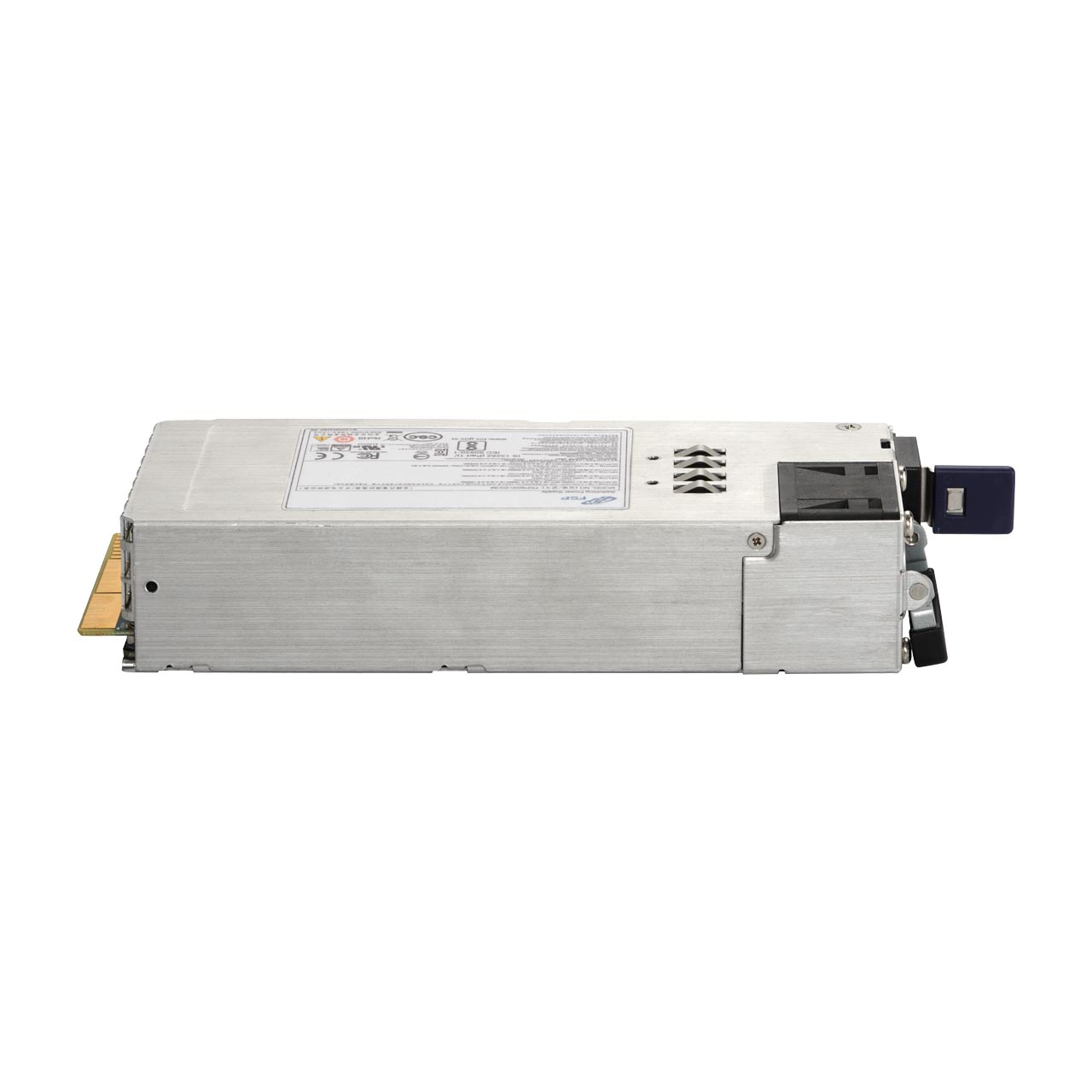

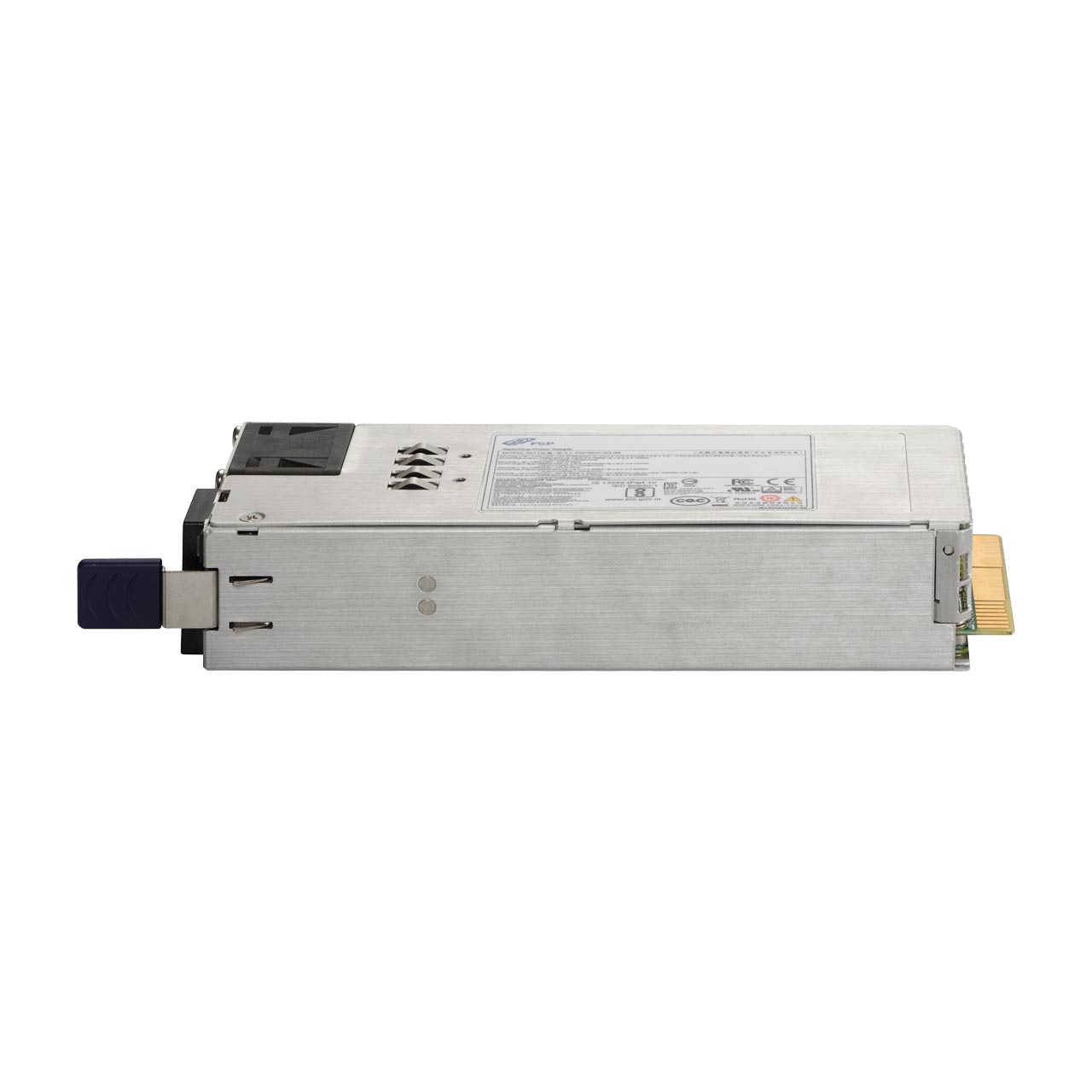

TWINS CRPS 1600W
Delivers a massive 1600W total capacity to support multi-GPU configurations and high-performance computing clusters.
Engineered with Low Ripple & Noise technology to safeguard your most sensitive workstation components.
Achieve peak energy conversion with 80 Plus® Titanium certification, minimizing thermal waste during intense 8K rendering or AI model training.
Designed to operate flawlessly at high altitudes, far exceeding standard consumer grade limitations.
Maintains a staggering 250,000 hours MTBF even under harsh 55°C operating conditions.
Integrated PMBus 1.2 support allows for real-time monitoring of voltage, current, and temperature directly through the motherboard.
Delivering ultra-stable power with low ripple & noise, TWINS CRPS supports multi-GPU, and enterprise-grade systems, perfect for workstations, servers, and HPC clusters.
Providing stable power for high-wattage GPU arrays.
Reliable operation in compact, mission-critical server environments.
The silent backbone for 3D creators and data scientists.
Our dedicated Power Distribution Boards(PDB) are engineered specifically for CRPS modules, ensuring lossless power delivery and simplified cable management for system integration requiring ATX form factor.
Optional Accessories
MB 20+4 PIN
Cable Information：
CPU 8 PIN
Cable Information :
PCIe 12V-2x6
Cable Information :
SATA/Floppy
Cable Information :
PMBus
Cable Information :
| AC Input | 100-127V~ | 200-240V~ | |||
| 12A | 9.5A | ||||
| 47-63Hz | |||||
| DC Output | +12.2V | +12VSB | +12.2V | +12VSB | |
| Max Current | 83.33A | 3A | 133.3A | 3A | |
| Max Combined | 1000W | 1600W | |||
| Model | FSP1600-20HM |
|---|---|
| Rated Output Power | 1600W |
| Form Factor | CRPS |
| 80 PLUS Certification | Titanium |
| Input Voltage | 100-240Vac |
| Input Current | 12-9.5A |
| Input Frequency | 50-60Hz |
| PFC | 0.99 at full load |
| Efficiency(at typical load) | Efficiency ≧ 94% at typical load |
| Fan Type | Dual Ball Bearing, 40 x 28mm |
| Dimensions(L x W x H) | 185 × 73.5 × 39 mm |
| Operation Temp. | 0℃ to 55℃ |
| Protection | OCP, OVP, SCP, OPP, UVP, OTP |
| Warranty | 3 Years |
