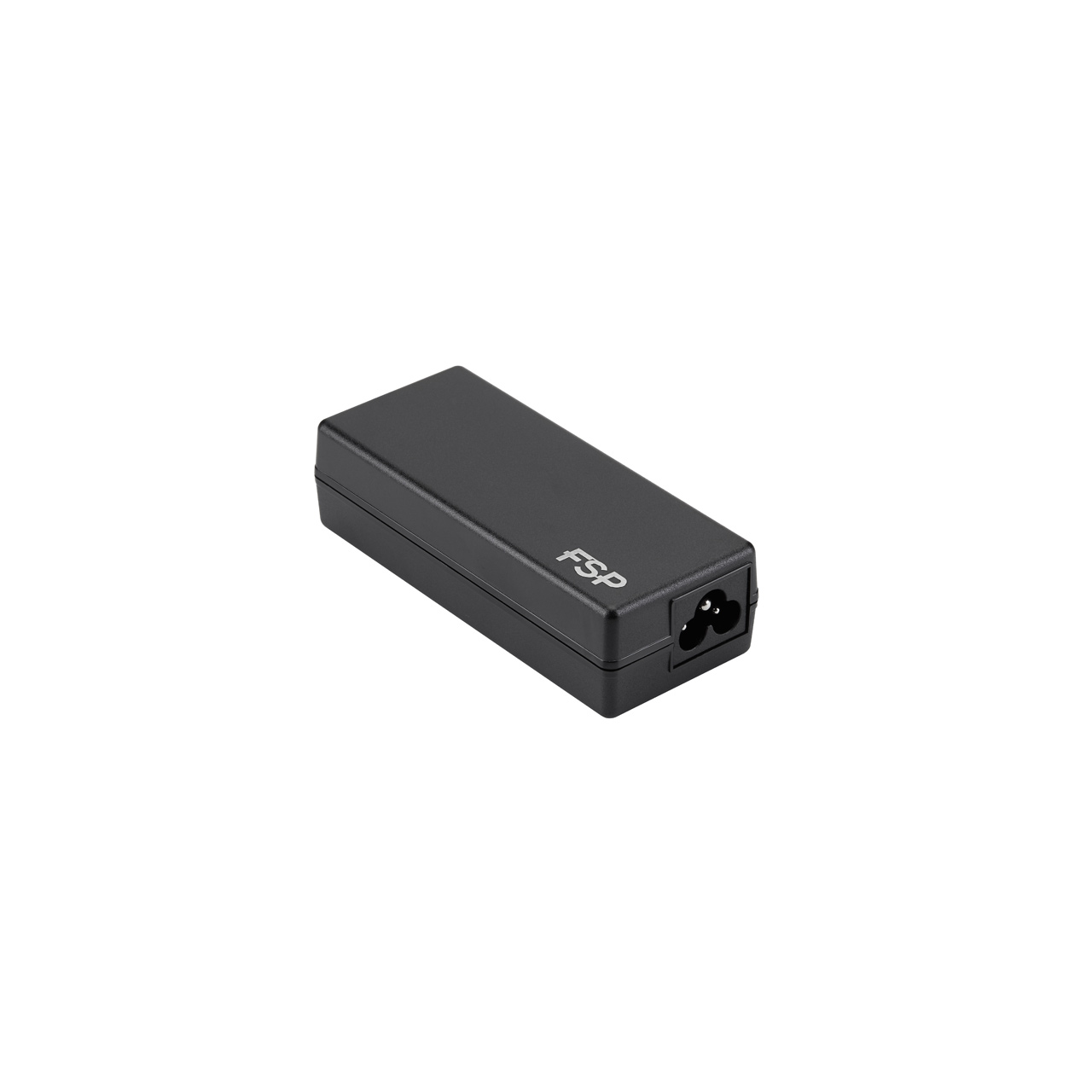

NB PRO 45W

NB PRO Series is a standard notebook adapter with over 88% high efficiency and complete protection.
  • AC input 100-240Vac for Worldwide usage
  • Efficiency ≧ 88%
  • DC Output 19V
  • Compatible with most 18~20V input Laptops
  • 9 exchangeable tips
  • Meet DoE level VI & Coc Tier 2
  • Complete Protections: OCP/OVP/OPP/SCP

Be A Provider Of Green Energy Solutions

...
We will never slacken effort to accomplish the best products!

Compliant with IEC/EN 62368

FSP Group features the latest in green power technology, and provides a full array of additional safety approvals to keep designs ahead of the changing regulations. FSP has upgraded the majority of our power supplies to comply with the new IEC/EN 62368 standard for your gaming rigs.

Selective

Accumulated 20 years of experience in power, FSP always carefully selects every component after long time.

High Standards Testing

FSP faces scrupulous testing at high standards beyond the rest of the industry to ensure the product reliability.

Multiple Protection


FSP also makes the best effort to do product safety.
NB PRO is designed with multiple circuit protection* to keep you and your laptop in safe.
*OVP:over voltage protection/ OCP:over current protection/
OTP:over temperature protection/ SCP: short circuit protection
NB Pro is a 90w standard notebook adapter with over 88% high efficiency. 7 changeable output tips are compatible 18-20V input notebooks - IBM, Dell, ACER, COMPAQ, SONY, TOSHIBA, HP, ASUS, LENOVO etc…

Meets CEC and DoE Level VI.

Highly compatible to Notebooks

Compatibility Laptop Brands

Tips Number
Outer
Inter
Color
Compatibility
U14.751.7YELLOWHP
U25.51.7WHITETOSHIBA, LENOVO
U36.51.4YELLOWSONY
U45.51.7ORANGEACER, ASUS
U54.01.1REDASUS
U63.01.1BLACKACER, ASUS, SAMSUNG
U74.60.6GARYDELL, HP, ASUS
U8114.7YELLOWLENOVO
U94.50.6BLUEHP

Tip Finder

Specifications

Model NB PRO 45W
Rated Output Power 45W
Input Voltage 100-240Vac (Full Range)
Input Frequency 50-60Hz
Output Voltage +18V ~ +20V
Efficiency >88%
Dimensions (LxWxH) 108 x 46.3 x 30mm
Protection OVP / OTP / OCP / SCP
Safety Approval UL / TUV / CE / BSMI / RCM
