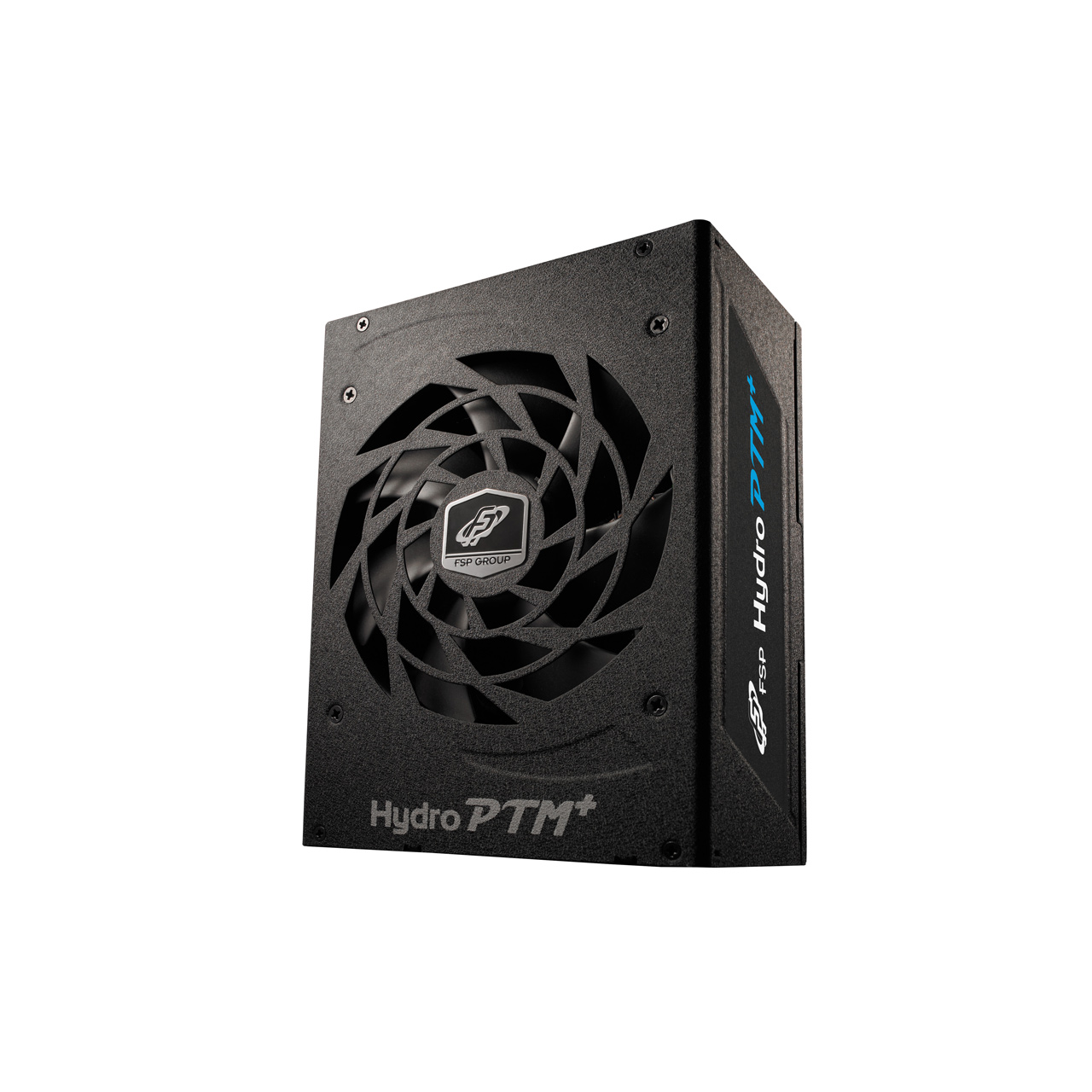

HYDRO PTM+ 1200W

Other Model
Other Same Wattage
FSP’s latest PSU - Hydro PTM+ is a unique, patented liquid-cooled PSU developed to meet the industry’s highest safety standards. Created exclusively in collaboration with Bitspower, a renowned maker of liquid cooling solutions for PC. This is the world's first mass-produced liquid-cooled PSU with 80 PLUS® Platinum certification and stunning LED lights to ensure that your system will always stand out. With the liquid cooling feature enabled, the 1200W model is able to increase its power rating from 1200W to 1400W, while the 850W is able to increase its power rating from 850W to 1000W. It delivers extra power without the need of the PSU fan for cooling, while still remaining efficient (below 50%) when running in silent mode.
  • Complies with ATX12V v2.4 & EPS12V v2.92
  • High Efficiency ≥ 92%
  • Active PFC ≥ 0.9
  • Complies with 80PLUS® Platinum Certification
  • Hybrid Cooling System with 135mm Silent Fan & liquid cooling
  • +12V Single-Rail Design
  • Full Modular with Ribbon Cables
  • Full Japanese Capacitors
  • World’s First Platinum Liquid Cooled PSU
  • Build-in RGB Lighting & Controller
  • Unique Product ID with changeable Side Stickers for DIY Enthusiasts and Gamers
  • Complete Protections: OCP, OVP, SCP, OPP, OTP
  • Global Safety Approved

Unique and Rugged ID for Mod

Any serious PC build enthusiast will simply love HYDRO PTM+. Its unique combination of features includes: gorgeous LED RGB lighting, a power rating of 1200W when air cooled, going up to 1400W when liquid cooled, and an 80 PLUS® Platinum certification with 92% efficiency rating.

Buy HYDRO PTM+ Limited Edition
Here

Intelligent Fan Speed Control

HYDRO PTM+ 1200W was built to be silent. Fanless mode (0 dBA) is engaged at below 50% of system load for silent operation when water-cooling is installed. Once surpassing the predefined thermal limitation, the 135 mm FDB fan automatically and dynamically starts to spin according to the system load.

PSU ON with LCS
Fan OFF
PSU ON with LCS
Fan ON

Aura Sync

FSP has teamed up with ASUS to bring Aura Sync RGB lighting technology, enabled through Aura Sync compatible motherboards, providing a nearly endless spectrum of RGB lighting colors and patterns for your system.

Excitement of Power Overclocking

Liquid Cooled Power On! An innovative water-cooling solution, HYDRO PTM+ enables overclocking of the peak output from 1200W up to 1400W when enabled.

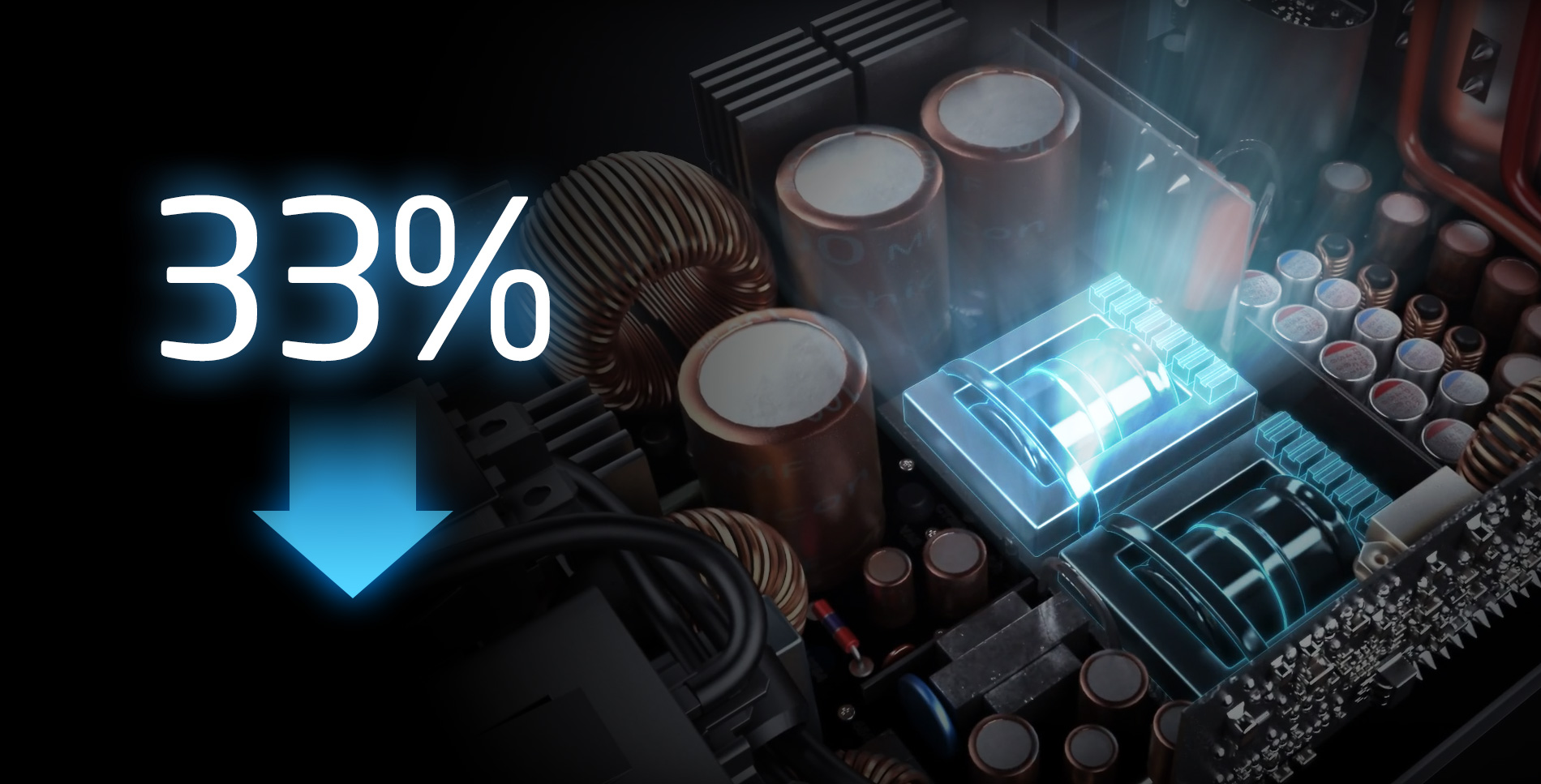

Ultimate Cooling

In the lab test, under 50˚C ambient temperature and 100% loading condition, HYDRO PTM+ provides the supreme cooling performance from 100˚C to 70.8˚C on Transformer when liquid cooled power on.

FSP Co-developed with Bitspower

Bitspower, a renowned creator of PC liquid-cooling solutions and visionary of revolutionary manufacturing, firmly stands behind FSP's team of engineers and product developers.

Supports Latest CPU Systems

HYDRO PTM+ fully supports high performance systems, complies with the most recent Intel and AMD, ATX12V v2.4 & EPS12V v2.92 specifications.

Full Modular Design with Ribbon Cable

The modular cable design simplifies installation, improves ventilation and gives flexibility and simplicity, allowing you to choose only the necessary cables.

Advance Circuit Design

Server Grade Design

Copper bars joint mainboard and daughter board to boost conversion efficiency.

100% Japan-made E-cap

Reliable power and prolonged life span.

Dual Transformer Design

The design provides ultimate performance & highest protection for your system!

DC – DC Module Design

Innovative solutions to fit design constraints offer supreme efficiency, voltage stability and high system compatibility.


Cables

 atx cable 24 pinEPS 4 4 pinpcie 6+2 pinhd statmolex2.5 floppy
ATX 20+44+4 PINPCI-E 6+2SATAMolex
(PERIPHERAL)		Floppy
Connectors1281241

AC/DC

AC Input100-240Vac~  15-9A  50-60Hz
DC Output+3.3V+5V+12V-12V+5Vsb
Max Output Current24A24A100A0.3A3A
Max Combined Power120W1200W3.6W15W
Total Power1200W

Specifications

Model HPT1200M
Rated Output Power 1200W
Max. Output Power 1400W
Form Factor ATX
80 PLUS Certification Platinum
Input Voltage 100-240Vac
Input Current 15-9A
Input Frequency 60/50Hz
Efficiency > 92%
Fan Type FDB Fan, 135mm
Dimensions(L x W x H) 150 x 220 x 86mm
Weight 3.22kg
Protection OCP, OVP, SCP, OPP, OTP
