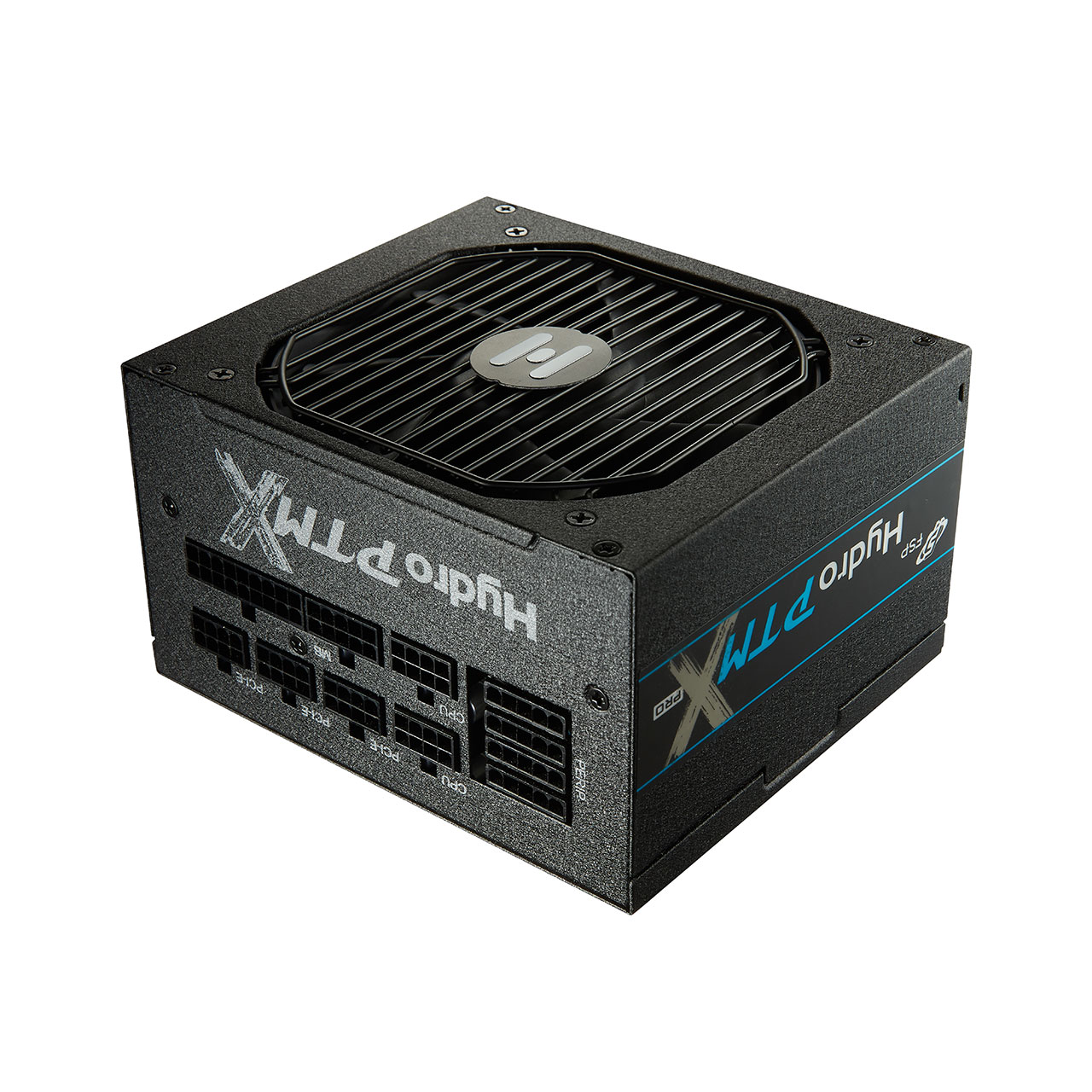

Hydro PTM X PRO 850W
- Complies with latest Intel® power supply design guide
- Efficiency ≧ 92% @ typical load
- Active PFC ≧ 0.9
- 450V, 105°C Japanese bulk capacitors
- Japanese electrolytic capacitors
- Industrial-grade design with conformal coating application
- +12V single-rail design
- +5V & 3.3V DC to DC module design
- Eco semi-fanless fan control switch
- 120mm fluid dynamic bearing (FDB) fan
- Fully modular cabling design
- Black flat cables
- Changeable side stickers for DIY enthusiasts and gamers
- Complete protection: OCP/OVP/OPP/SCP/OTP
High Power Density
Compared to general high-efficiency & high wattage PSU 190mm length, the Hydro PTM X PRO series delivers over 1000W with shorter size of 130mm.
ECO Switch, Quieter and Longer Lasting Fan
Under 30% loading, you will enjoy 0 dBA experience when eco semi-fanless fan control switch is on.
Exclusive Conformal Coating
Covered with exclusive conformal coating protects it from dust, stains, humidity and guarantees to offer better and reliable performance in harsh environments.
LLC Half Bridge Topology
Zero voltage switching of the main switches thereby dramatically lowering switching losses and boosting efficiency.
450V, 105°C Japanese Bulk Capacitors
Hydro PTM X PRO series uses Japanese Bulk capacitors to ensure a longer lifetime and protect your PSU from sudden power change.
80 Plus® Platinum Certification
Hydro PTM X PRO series is a power supply with 80 PLUS® Platinum provides over 92% efficiency at the load of 50 % and reduces electricity cost.
Powerful +12V Single Rail for your VGA
Hydro PTM X PRO series offers VGA cards full & stable power individually and to avoid any overloading conditions.
Fully Modular Design with Black Flat Cable
Fully-modular design not just for easier installation, but also provides your system a neat and tidy look.
Multiple EPS12V and PCIe Connectors
Hydro PTM X PRO series features multiple EPS12V and PCIe connectors, it’s ready to deliver full power to 12V power-hungry components in a PC build.
Stylish & Changeable Side Sticker
Includes unique side stickers for DIY enthusiasts and gamers.
|ATX 20+4||4+4 PIN||PCI-E 6+2||SATA||Molex|
|100-240Vac~ 11-5.5A 50-60Hz (Not for China)|
|200-240Vac~ 5.5A 50-60Hz (Only for China)|
|Max Output Current||20A||20A||70.83A||0.3A||3A|
|Max Combined Power||120W||850W||18.6W|
|Rated Output Power||850W|
|80 PLUS Certification||Platinum|
|Fan Type||FDB fan, 120mm|
|Dimensions(L x W x H)||130×150×86 mm|
|Operation Temp.||100,000 Hrs|
|Protection||OCP,OVP OPP, SCP, OTP|
