Hydro PTM X PRO ATX3.0 PCIe5.0 1200W

Other Model
Other Same Wattage
FSP Hydro PTM X PRO series fully modular low noise power supplies with 130mm length deliver up to 1200W and high efficiency 80 Plus® Platinum power to your PC build. With the LLC Half Bridge Topology circuit design and 450V, 105°C Japanese main bulk capacitors, PC parts receive premium power and stable input.
  • Complies with ATX12V V3.0 & EPS12V V2.92
  • Efficiency ≧ 92% @ typical load
  • Active PFC ≧ 0.9
  • 450V, 105°C Japanese bulk capacitors
  • Japanese electrolytic capacitors
  • Industrial-grade design with conformal coating application
  • +12V single-rail design
  • +5V & 3.3V DC to DC module design
  • Eco semi-fanless fan control switch
  • 120mm fluid dynamic bearing (FDB) fan
  • Fully modular cabling design
  • Black flat cables
  • Changeable side stickers for DIY enthusiasts and gamers
  • Complete protection: OCP/OVP/OPP/SCP/OTP

▲Know More About ATX 3.0 & PCIe Gen 5

Power Excursion to 200%

Increased tolerance for high power spikes, for the compatible PSU platforms. For 450W PSU, up to 200% of the PSU's rated power for 100μs with a 10% duty cycle.

High Power Density

Compared to general high-efficiency & high wattage PSU 190mm length, the Hydro PTM X PRO series delivers over 1200W with shorter size of 130mm.

ECO Switch, Quieter and Longer Lasting Fan

Under 30% loading, you will enjoy 0 dBA experience when eco semi-fanless fan control switch is on.

Exclusive Conformal Coating

Covered with exclusive conformal coating protects it from dust, stains, humidity and guarantees to offer better and reliable performance in harsh environments.

LLC Half Bridge Topology

Zero voltage switching of the main switches thereby dramatically lowering switching losses and boosting efficiency.

450V, 105°C Japanese Bulk Capacitors

HYDRO PTM X PRO series uses Japanese Bulk capacitors to ensure a longer lifetime and protect your PSU from sudden power change.

80 Plus® Platinum Certification

HYDRO PTM X PRO series is a power supply with 80 PLUS® Platinum provides over 92% efficiency at the load of 50 % and reduces electricity cost.

Powerful +12V Single Rail for your VGA

HYDRO PTM X PRO series offers VGA cards full & stable power individually and to avoid any overloading conditions.

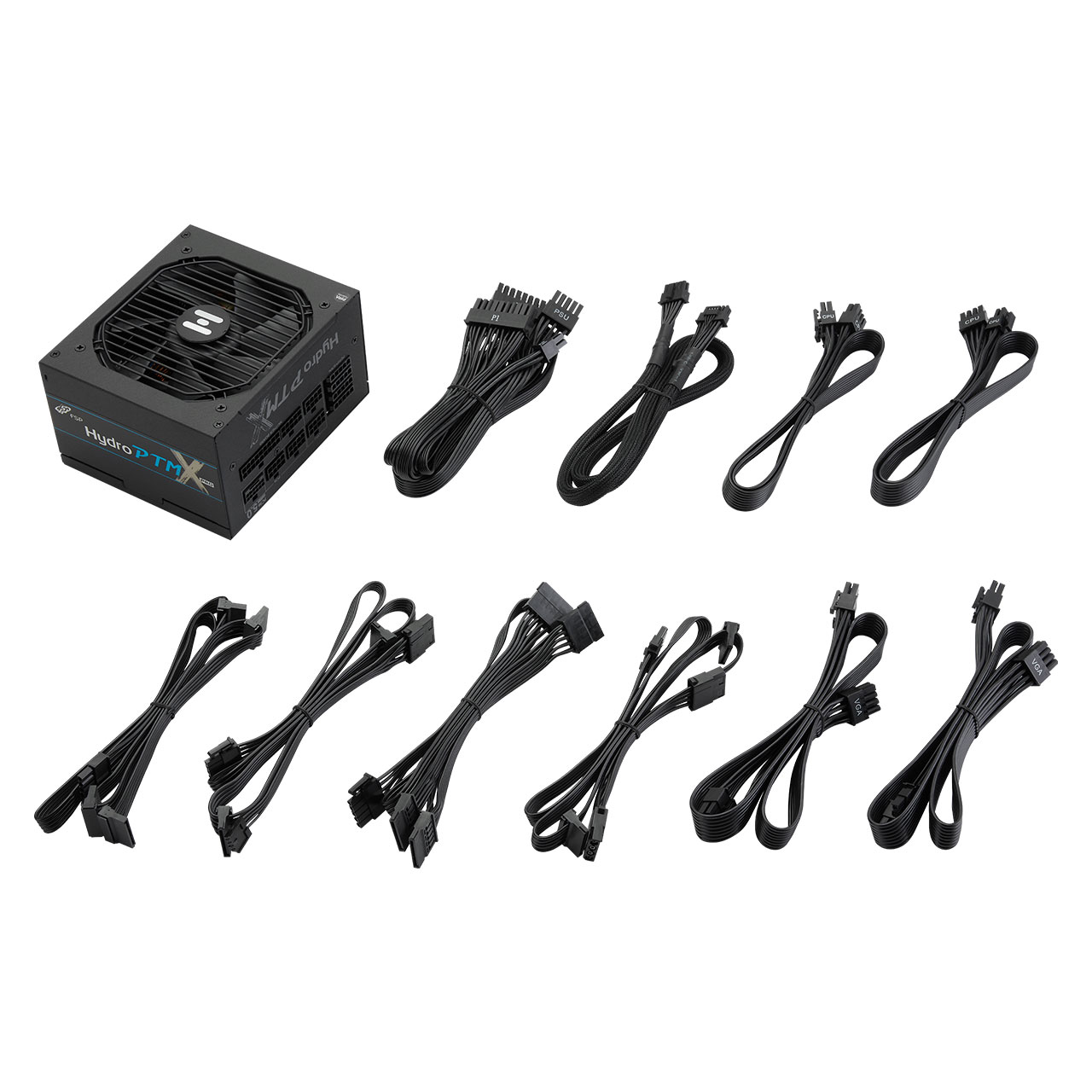

Fully Modular Design with Black Flat Cable

Fully-modular design not just for easier installation, but also provides your system a neat and tidy look.

Stylish & Changeable Side Sticker

Includes unique side stickers for DIY enthusiasts and gamers.

Cables

 atx cable 24 pinEPS 4 4 pinEPS 4 4 pinpcie 6+2 pinhd statmolexEPS 4 4 pin
ATX 244+4 PINPCIe 12+4PCI-E 6+2SATAMolex
(PERIPHERAL)		Floppy
Connectors12141231

AC/DC

AC Input100-240Vac~  10-5A  50-60Hz
DC Output+3.3V+5V+12V-12V+5Vsb
Max Output Current20A20A100A0.3A3A
Max Combined Power120W1200W18.6W
Total Power1200W

Specifications

Model HPT3-1200M,Gen5
Rated Output Power 1200W
Form Factor ATX
80 PLUS Certification Platinum
Input Voltage 100-240V
Input Current 10-5A
Input Frequency 50-60Hz
PFC Active PFC
Efficiency 92%
Fan Type FDB fan, 120mm
Dimensions(L x W x H) 130×150×86 mm
Operation Temp. 100,000 Hrs
Protection OCP,OVP OPP, SCP, OTP
