HydroPTM 750W

Legacy Products

  • Unique product ID with changeable side stickers for DIY enthusiasts and gamers
  • Intelligent fan speed control circuit design
  • Advanced thermal layout design
  • Complies with newest ATX12 v2.4 & EPS12 v2.92 standards
  • High efficiency ≧ 92%
  • Active PFC ≧ 99%
  • High Wattages with 80PLUS® Platinum Certification
  • Powerful +12V single rail design
  • Advanced full modular design with ribbon cables
  • Full Japan-made electrolytic capacitors
  • Support 6+2 pin PCI-Express Connectors
  • Quiet and Long-Lasting 135mm FDB Fan
  • Complete Protections: OCP, OVP, SCP, OPP, UVP, OTP
  • Global Safety Approved
  • 80plus_Platinum
  • VR READY
FSP's Hydro PTM power supply series are equipped with the highest grade components such as DC-DC module design and 100% Japanese capacitors. These power supplies offer 80 PLUS® Platinum rated efficiency, voltage stability, and ripple suppression. With the support of high-quality 135mm FDB fan, the Hydro PTM series are extremely cool and quiet. The series come with changeable unique side stickers and a fully modular cable system, they are ideal for DIY enthusiasts, gamers, and overclockers.

Low Loads for Silent Operation

Hydro PTM series are featured with intelligent fan speed control circuit design which uses a diameter of 135mm, fluid dynamic bearing, for low noise and reliable operation at low and medium loads.
...

LLC Half Bridge Topology with DC-DC Module Design

HYDRO PTM series features extremely tight voltage regulation to make the output voltage regulation under +/- 1% at any load change and offer you supreme efficiency and voltage stability.

80 Plus® Platinum Certification

Hydro PTM series come with 80 Plus Platinum Certification which means your power supplies consume less heat and have a lower operating cost. The power supplies are guaranteed to operate at a minimum of 92% efficiency at 50% load of PSU rated power.

...

10-Year Warranty

FSP is committed to manufacturing high-quality and reliable power supplies. The Hydro PTM series are backed by our 10-year warranty.
...

Fully Modular Design for Quick and Easy Installation

Fully modular design simplifies installation and allows you to use only the cables you need, for a neater, cleaner build.
...

Unique & Stylish Design in DIY Spirit

The power supplies come with 3 changeable side stickers to show your style, perfect for DIY enthusiasts and gamers.

Safety Protection

OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP j (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection), a full guardian circuit protections to keep your hardware safe.
100% Japan-made E-cap
 DC – DC Module Design
Ribbon Cable Design
 Full Modular
FSP has over 20 years of experience in manufacturing power supplies. Every chosen component has been carefully selected and backed by our extensive research and development.
...

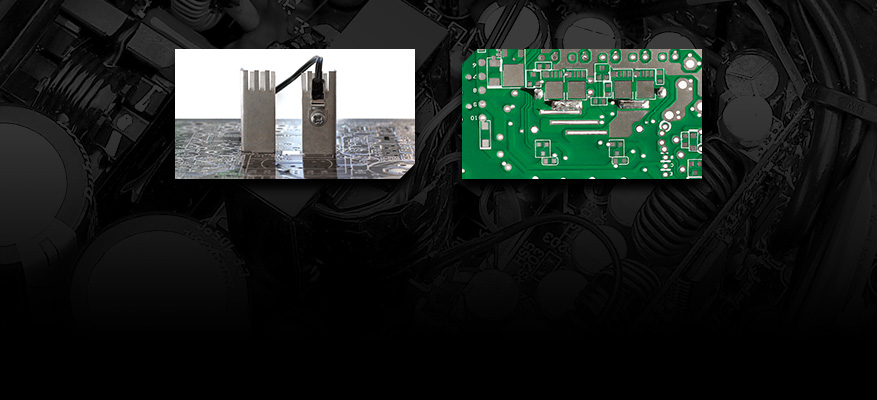

Innovative heat sink design for improved heat transmission of +12V MOSFET from bottom to top PCB

A new heat dissipation design that conducts heat through a thermal pad (located at the bottom of the PSU) transforms the PSU into a heat-sink and helps to cool down the system.

Performance

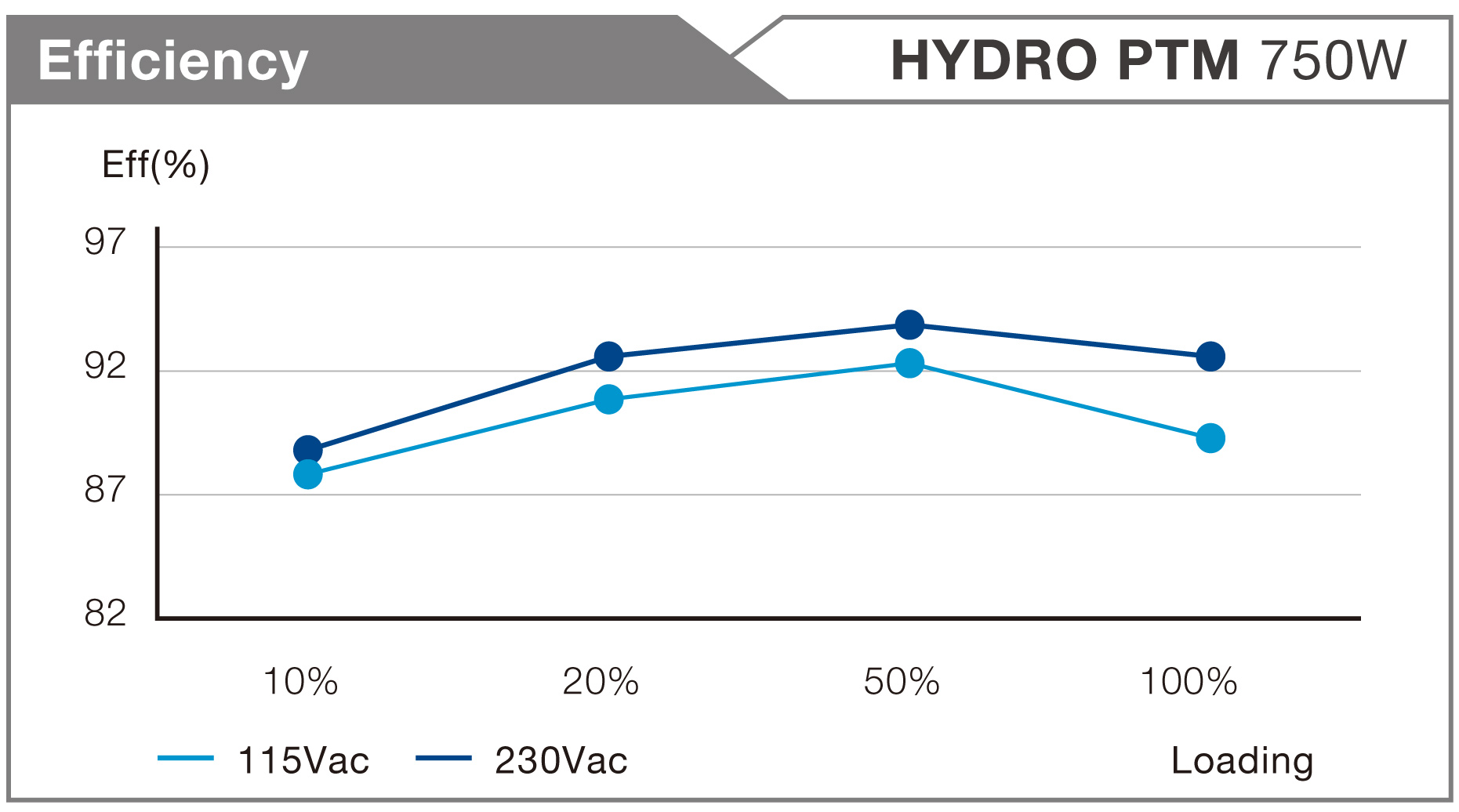

Efficiency
noise

AC/DC

AC Input100-240Vac~  10-5A  50-60Hz
DC Output+3.3V+5V+12V-12V+5Vsb
Max Output Current20A20A62.5A0.3A2.5A
Max Combined Power120W750W3.6W12.5W
Total Power750W

Cables

 atx cable 24 pinEPS 4 4 pinpcie 6+2 pinhd statmolex2.5 floppy
ATX 244+4 PINPCI-E 6+2SATAMolex
(PERIPHERAL)
Floppy
Connectors1261451

Specifications

Model HPT750M
Rated Output Power 750W
Form Factor ATX
80 PLUS Certification Platinum
Input Voltage 100-240Vac
Input Current 10-5A
Input Frequency 60/50Hz
PFC Active PFC
Efficiency >92%
Fan Type FDB Fan, 135mm
Dimensions(L x W x H) 150 x 170 x 86 mm
Weight 1.68kg
Protection OCP, OVP, SCP, OPP, UVP, OTP
