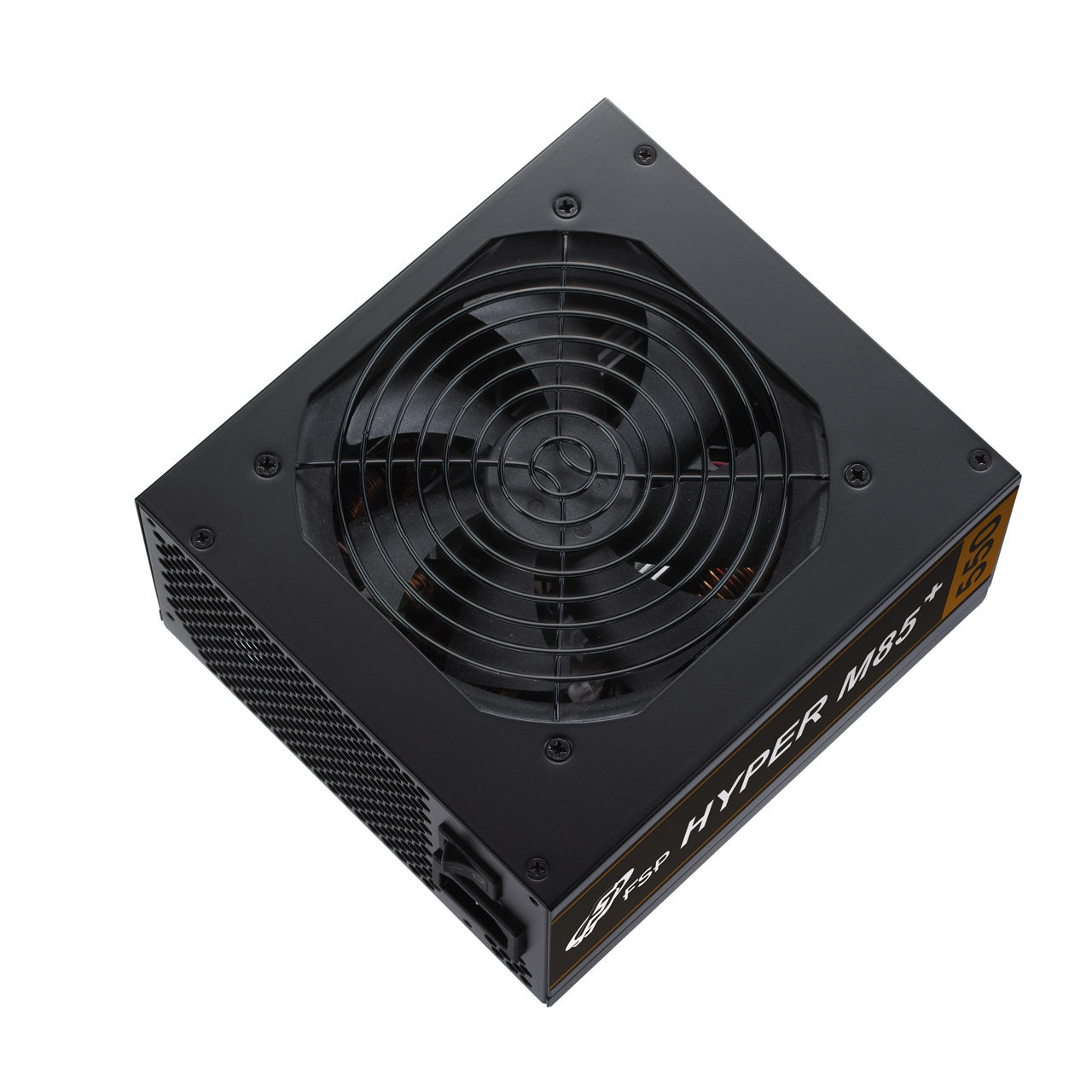

HYPER M85+ 550W

Hyper M85+ Series, FSP brand new 80 PLUS Bronze semi-modular ATX PSU, featured with DC to DC module and +12V single-rail design, taken with full Japanese e-capacitors and quiet 120mm silent fan,built in with complete protections: OCP, OVP, SCP, OPP, OTP and approved by global safety regulation. Hyper M 85+ Series comes out with two models – 550W and 650W.

Complies with ATX12V V2.4 & EPS12V V2.92
High Efficiency ≥ 85% @ Typical Load
Active PFC ≧ 0.9
Comply with 80PLUS® Bronze Certification
+12V Single-Rail Design
Full Japanese E-capacitors
Semi Modular Design with Ribbon Cable
Quiet 120mm Silent Fan
Complete Protections: OCP, OVP, SCP, OPP, OTP
Global Safety Approved

FSP HYPER M85+ series of semi-modular ATX PSU feature excellent electrical performance, are 80 PLUS Bronze certified. HYPER M85+ units feature Japanese electrolytic capacitors with a full protection suite. The modular cable system assists with a clean installation and helps maximize airflow through your computer's case.

80 Plus® Bronze Certification

550W HYPER M85+ series comes with 80 PLUS bronze certified saves energy through its high efficiency up to 85%.

DC to DC Module Design Provides Stable Power Outputs

HYPER M85+ series designed with DC-DC module are able to provide a consistent power source and good power conversion efficiency, which is the right power for your needs.

Fast Installation with Semi-modular Design

The semi-modular ATX PSU with flat black ribbon cables makes installation fast and straightforward, with good-looking results and enhances airflow patterns inside the case.

120mm Low Noise Fan

120mm quiet fan and high ventilation- effect fan guard design makes HYPER M85+ spin quietly and keep cooling under maximum operation.

Full Japanese E-capacitor Inside

The high-quality Japanese E-capacitors can prolong product's life span by producing supreme stability and performance with low impedance characteristics.

Complete Protection

OCP, OVP, SCP, OPP, UVP, OTP, a full guardian of circuit protections to keep hardware safe.

Performance

AC/DC

AC Input	100-240Vac~ 10-5A 50-60Hz
DC Output	+3.3V	+5V	+12V	-12V	+5Vsb
Max Output Current	20A	20A	45.84A	0.3A	2.5A
Max Combined Power	100W		550W	3.6W	12.5W
Total Power	550W

Cables


	ATX 20+4	4+4 PIN	PCI-E 6+2	SATA	Molex (PERIPHERAL)	Floppy
Connectors	1	1	4	8	3	1

Specifications

Model	HA550M
Form Factor	ATX PSU
80 PLUS Certification	Bronze
Input Voltage	100-240 Vac
Input Current	10-5A
Input Frequency	60-50 Hz
PFC	Active PFC
Efficiency	85%
Fan Type	Sleeve Fan, 120mm
Dimensions(L x W x H)	150 x 165 x 86 mm
Operation Temp.	100,000 Hrs.
Protection	OCP, OVP, SCP, OPP, OTP
