Hydro M PRO 700W
- Complies with ATX12 v2.52 & EPS12 V2.92
- Efficiency≧ 88% @ typical load
- Active PFC ≧ 0.9
- Hold up time ≧ 17ms @ 80% Load
- Semi-modular design with ribbon cables
- 450V, 105°C capacitors for a long product life cycle
- 120mm hydraulic bearing (HYB) fan
- +5V & 3.3V DC to DC module design
- +12V Single-Rail Design
- Complete protections : OCP/OVP/OPP/SCP
Semi-modular design with ribbon cables
We know what builders need. The all black coating ribbon cables give your system a superior look.
Low Noise, Less Heat
Hydro M PRO series is equipped with the 120mm hydraulic bearing fan (HYB) which makes optimum cooling and reduces noise. Moreover, the lifespan of fan is longer than standard one.

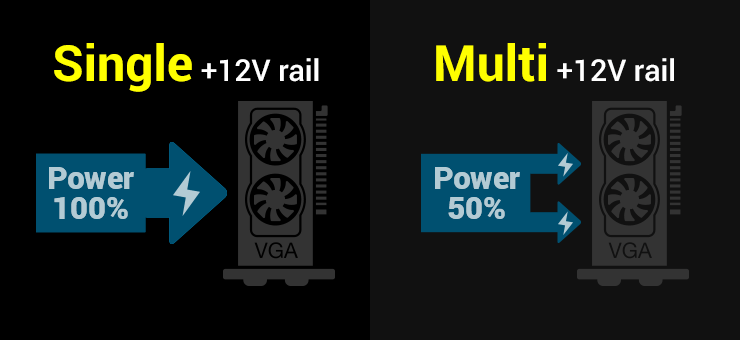

+12V Single Rail Design
Designed for power-intensive VGA cards, provides strong power to any overloading condition.
450V 105°C, Heave-duty Capacitor
The bulk capacitor inside serves to support working under an extremely harsh environment, such as with high temperatures, peak voltage fluctuations. It stabilizes the performance for high reliability that your system can count on.
Stable DC to DC Output Quality
Hydro M PRO series applies DC to DC modules to improve the reliability for greater compatibility as well as low ripple noise to reduce interference of system components for a prolonged system lifetime.
80 Plus® Bronze Certification
With an 230V 80 Plus ®rating, Hydro M PRO series delivers over 88% high efficiency.
Energy Related ErP/Eup 2013
Green Power! The total AC power consumption less than 5Vsb rail to meet the new EU Regulation ErP 2013 for modern systems.
|ATX 20+4||4+4 PIN||PCI-E 6+2||SATA||Molex|
|AC Input||200-240V~ 5A 50-60Hz|
|Max Output Current||20A||20A||58A||0.3A||2.5A|
|Max Combined Power||100W||696W||3.6W||12.5W|
|Rated Output Power||700W|
|80 PLUS Certification||80 PLUS® 230V EU Bronze|
|Fan Type||HYB Fan, 120mm|
|Dimensions(L x W x H)||150 x 140 x 86mm|
|Protection||OCP, OVP, OPP, SCP|
