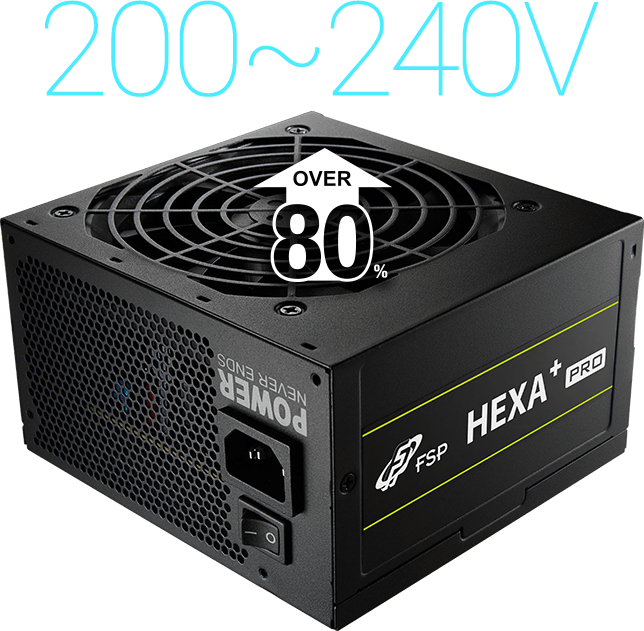

HEXA+ PRO 500W

  • Complies with ATX12 v2.4 & EPS12 v2.92
  • Efficiency ≧ 80% at typical load
  • Active PFC ≧ 0.9
  • Hold up time > 17ms at 80% load
  • +12V single-rail design
  • +5V &3.3V DC to DC module design
  • 120mm silent & long life Fan
  • Complete protections: OCP/OVP/OPP/SCP
  • 62368

Meets 80% Efficiency

It generates less heat to your PC system and saves you more from energy bills.

Guaranteed Output

DC to DC Module Design

HEXA+ PRO series with DC to DC circuit design offers benefits such as better compatibility and reliability.

Compliant with IEC/EN 62368

FSP Group features the latest in green power technology, and provide a full kinds of additional safety approvals to keep designs ahead of the changing regulations.

+12V Single Rail Design

Designed for power- intensive VGA cards Provides strong power to any overloading condition.

Durable Custom Fan with Thermal Control Design

An advanced 12CM sleeve fan makes optimal cooling and reduces noise even when you're pushing your system hard.

All Black Ribbon Cables

The all black coating ribbon cables give your system a superior look rather so many entry-level power supplies.

Energy Related ErP/Eup 2013

Green Power! The total AC power consumption of the completed system is less than 5Vsb rail to support the new EU Regulation ErP 2013 for modern day systems.

Cables

 atx cable 24 pinEPS 4 4 pinpcie 6+2 pinhd statmolex2.5 floppy
ATX 244+4 PINPCI-E 6+2SATAMolex
(PERIPHERAL)
Floppy
Connectors112521

AC/DC

AC Input200-240Vac~  4A  50-60Hz
DC Output+3.3V+5V+12V-12V+5Vsb
Max Output Current16A16A41A0.3A2.5A
Max Combined Power85W492W3.6W12.5W
Total Power500W

Specifications

Model H3-500
Rated Output Power 500W
Form Factor ATX
Input Voltage 200-240V
Input Current 4A
Input Frequency 50-60Hz
PFC Active PFC
Efficiency ≥80% at typical load
Fan Type Sleeve Fan, 120mm
Dimensions(L x W x H) 150x140x86 mm
Weight 1435 g
Protection OCP, OVP, OPP, SCP
