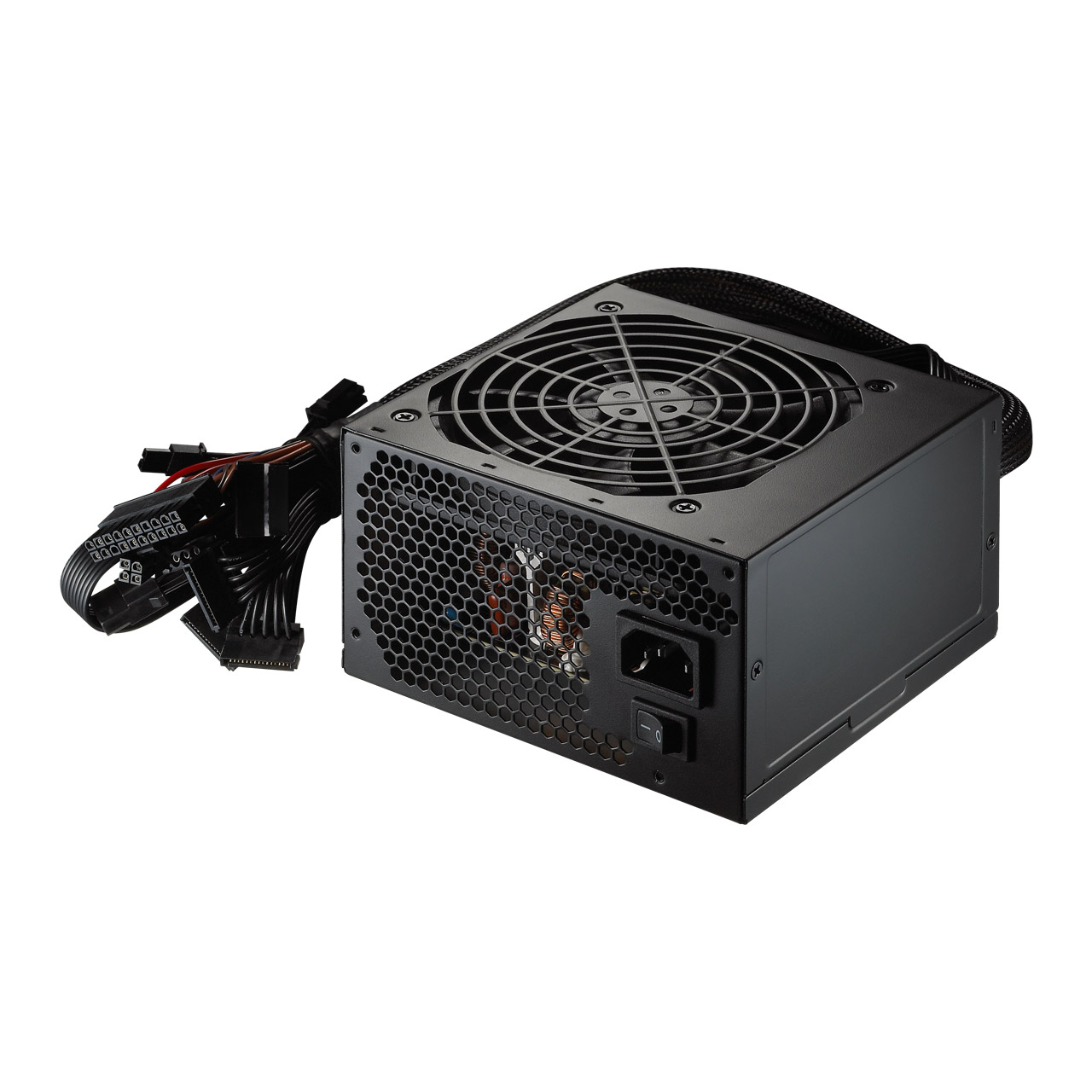

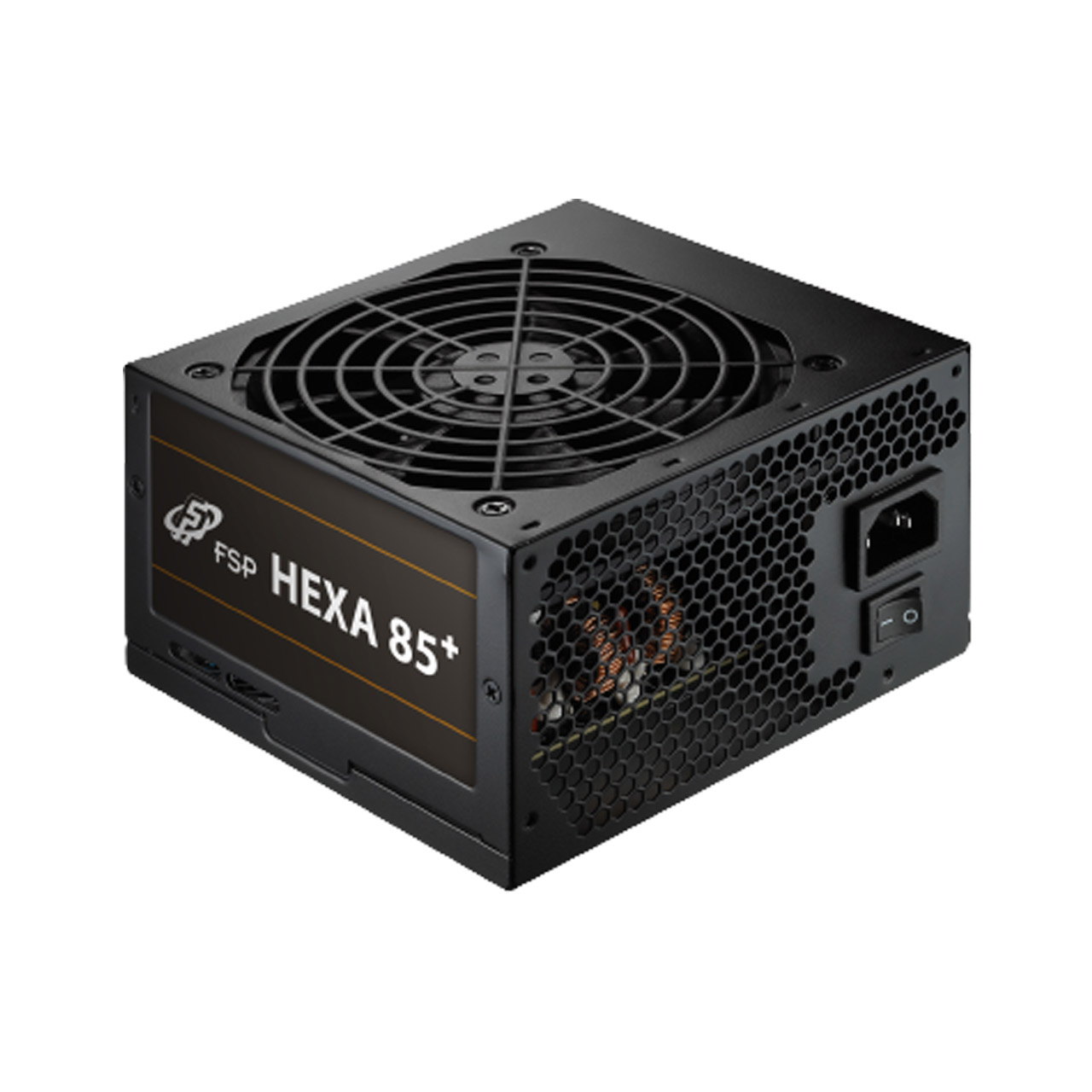

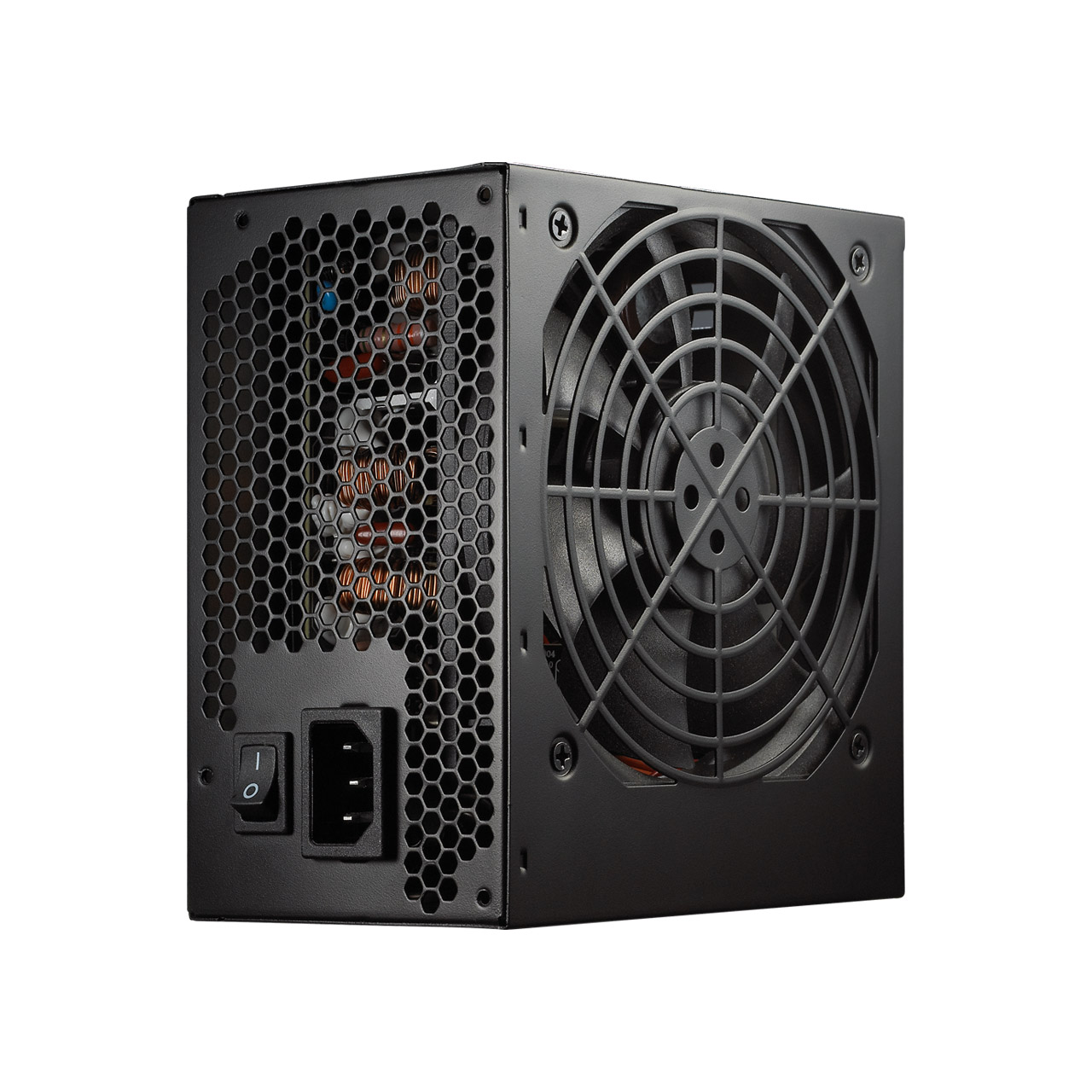

HEXA 85+ 450W
HEXA 85+ 450W
- Complies with ATX12 v2.4 & EPS12 v2.92
- High efficiency ≧ 85%
- Active PFC ≧ 90%
- Comply with 80 PLUS® bronze certification
- +12V single-rail design
- Full Japanese E-capacitors
- Quiet 120mm silent fan
- Complete protections: OCP, OVP, SCP, OPP, OTP
- Global safety approved
HEXA 85+ series is the best choice for PC DIY mainstream users. It is a power supply with efficiency more than 85%, designed with DC to DC module and +12V single rail design. Complete circuit protection insides, normally found in high level power supplies, increases safety and current stability.
80 Plus® Bronze Certification
HEXA 85+ , 80 PLUS ® bronze certified, saves energy through its high efficiency up to 85%.
DC to DC Module Design Provides Stable Power Outputs
HEXA 85+ is designed with DC-DC module which features good power conversion efficiency at 95% or better, excellent output voltage steadiness and magnetic amplifier’s ripple noise better than conventional ones.
120mm Low Noise Fan
HEXA 85+ series is equipped with a ultra-quiet 120mm fan, extremely low noise level and the high ventilation-effect fan guard design guarantees it spins quietly and keeps cooling under maximum operation.
High Quality Japanese E-capacitor Inside
The high-quality Japanese E-capacitors can prolong product's life span by producing supreme stability and performance with low impedance characteristics.
Complete Protection
OCP, OVP, SCP, OPP, UVP, OTP, a full guardian of circuit protections to keep hardware safe.AC/DC
| AC Input | 100-240Vac~ 7-3.4A 50-60Hz | ||||
| DC Output | +3.3V | +5V | +12V | -12V | +5Vsb |
| Max Output Current | 16A | 16A | 37.5A | 0.3A | 2.5A |
| Max Combined Power | 100W | 450W | 3.6W | 12.5W | |
| Total Power | 450W | ||||
Cables
 |  |  |  |  |  | |
| ATX 20+4 | 4+4 PIN | PCI-E 6+2 | SATA | Molex (PERIPHERAL) | Floppy | |
| Connectors | 1 | 1 | 2 | 8 | 2 | 1 |
Specifications
| Model | HA450 |
|---|---|
| Rated Output Power | 450W |
| Form Factor | ATX PSU |
| 80 PLUS Certification | Bronze |
| Input Voltage | 100-240 Vac |
| Input Current | 7-3.5A |
| Input Frequency | 60-50 Hz |
| PFC | Active PFC |
| Efficiency | 85% |
| Fan Type | Sleeve Fan, 120mm |
| Dimensions(L x W x H) | 150 x 140 x 86 mm |
| Weight | 1.409 kg |
| Protection | OCP, OVP, SCP, OPP, OTP |
