Products

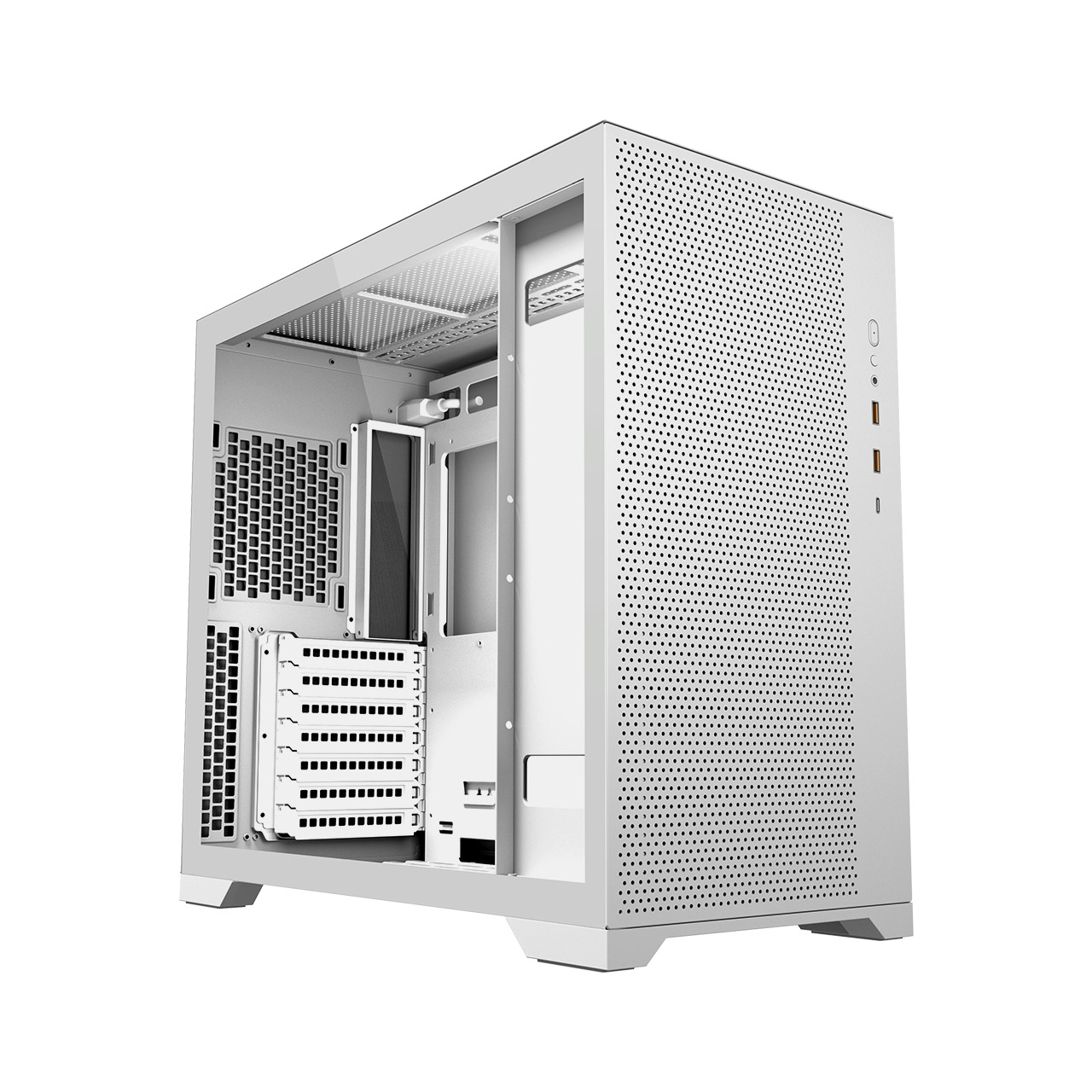

CMT580W
- Ultra simplified & beauty exterior design
- Pre-installed 120mm x 4 fans
- Lighting speed Type-C USB3.2 Gen2
- Support graphics card Height 335mm
- Vertical & horizontal installation slots
- Easy cable management design
Ultra simplified & beauty
Beauty without reducing heat dissipation
Pre-installed 120mm x 4 cooling fans
- Quieter but powerful
- Support maximum 360mm radiator
More space to upgrade at anytime
Support E-ATX, ATX, Micro ATX, Mini-ITX motherboard
Easy cable management design
Built-in multiple holes for cable

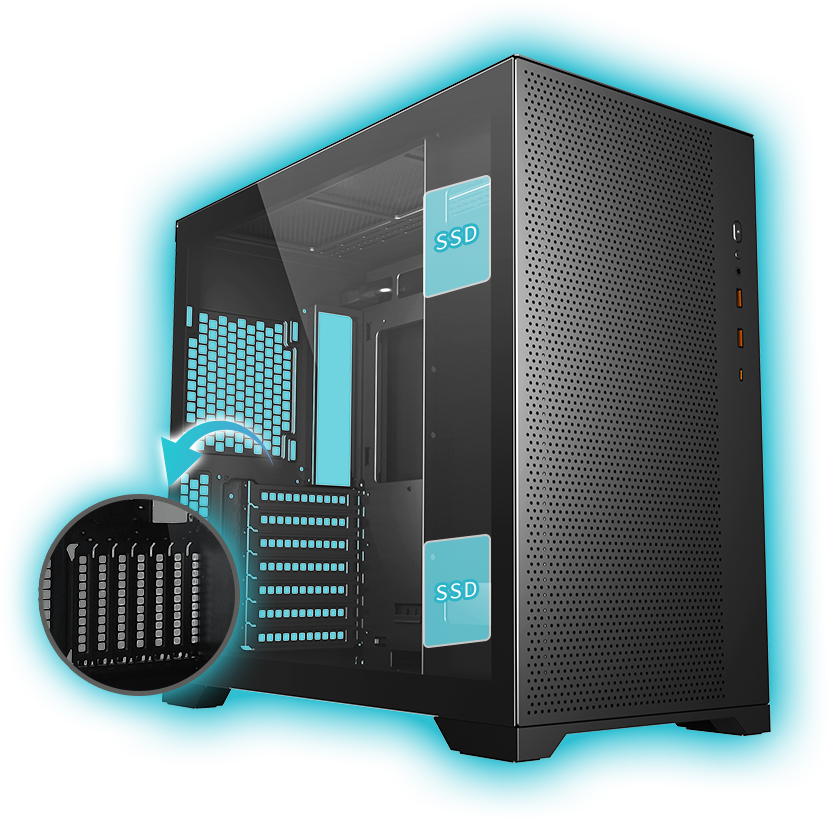

- 7 expansion slots, support both vertical & horizontal installation
- Exclusive space for hard drives
Tools free panel design
Easy changed panels in just 5 seconds
Remove the top screw, pull up to disassemble panels
The left and right side panels can easily be exchanged at anytime
Lightning transmission I/O port
- Built in USB 3.2 Gen 2 Type - C
Specifications
| Model Name | CMT580W |
|---|---|
| Color | White |
| Materials | 0.8mm SPCC |
| Weight | 7.9kg |
| Dimension DxWxH (mm) / (inch) | 450x220x408mm |
| Maximum CPU Cooler Height | 160mm |
| Graphics Card Length | 335mm |
| Expansion Slots | 7 |
| MotherBoard Support | E-ATX, ATX, Micro ATX, Mini-ITX |
| External I/O port | USB3.2 Gen1 x 2, USB3.2 Gen2 Type-C , HD Audio (2 in 1) |
| Power Supply Type | 170mm ATX |
| 3.5“ HDD | 2 |
| 2.5" SSD | 2 |
| Fan Including(pre-install) | Bottom: 120mm x 3 (3 in 1) Back: 120mm x 1 |
| Fan&Water Cooler Support | Top: 120mm x 3 or 140mm x 2 Bottom: 120mm x 3 (Pre-installed) or 140mm x 2 Back: 120mm x 1 (Pre-installed) |
| Max Radiator Support | Top：280/360mm Bottom：280/360mm |
| Packaging Information | Gross weight：8.8kg Carton size：500x288x488mm EAN：4713224527876 |
Download
CMT580B&CMT580W Manual.pdf
