CMT520 CMT520

CMT520 Plus

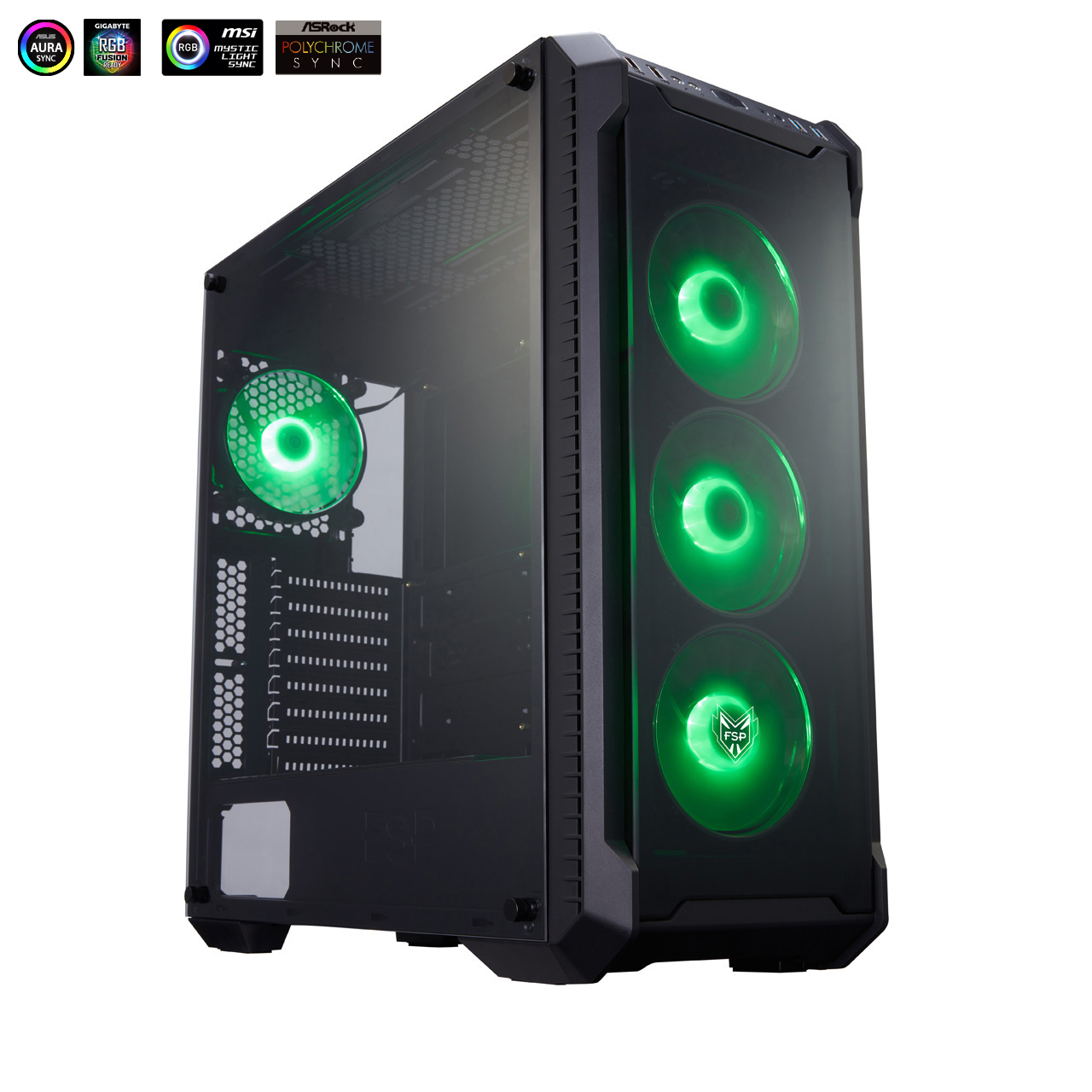

CMT520 is a PC case with an excellent cooling potential. It comes with 4 built-in 120mm RGB LED fans and a LED controller, which supports the sync function. The unique acrylic halo cover for PSU reflects lights inside the case for your dynamic light theme. 2 tempered glass windows on the front and side panel to put all your component in display. The CMT520 also offers ample space for your motherboard, expansion cards, and cooler. The CMT520 is a full-featured mid-tower case for your high-end PC build.

Tempered glass in the front and side panel
7 fan mounts support, and pre-installed 4 RGB fan in the front and rear for optimal cooling potential
RGB lighting effect control
8 x PCI-E expansion slots , 2 x HDD and 4 x SSD bays for supreme expandability
Support high-end graphics cards max to 423mm length, and CPU cooler to 163mm height
Support 2 x 360mm radiator
Built-in 2 x USB 3.0 and 2 x USB2.0 for high speed transferring
Support Motherboard's RGB lighting sync
*Pressing the RGB button for three second to switch motherboard sync mode and controller mode

Front and Side Panel Window

With tempered glass window on the front and side panel, every powerful component of your system in on display for all to enjoy.

Flexible Cooling Options

The CMT520 is complete with four pre-installed 120mm RGB LED fans. With support for up to three additional 120mm/140mm fans and compatibility for up to two 360mm radiators, this case ensures that your cooling performance will never suffer. With plenty of space, you could even modify the case with a professional water-cooling setup.

Find Your Personal Color

The CMT520 comes standard with 4 pre-installed 120mm RGB LED fans (3x on the front panel and 1x on the rear panel) and a built-in LED controller for vivid lighting. The RGB LED light control buttons are conveniently located on the front panel. Four light modes, complete with the Sync RGB feature, are your gateway to stylish computing.

Single Color Static
Breathing
Flash
Flash 3 Colors
Sync

Select the mood and color you want.

Ultimate Expandability

The CMT520 supports most mainstream motherboard form factors such as E-ATX, ATX, Micro-ATX, and ITX, while the PSU is conveniently installed at the bottom of the case.

Smart, Simple Cable Management

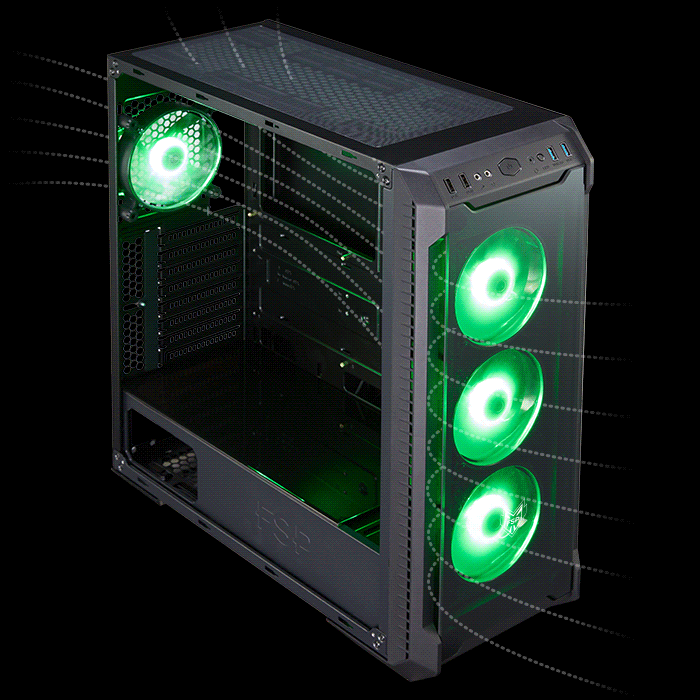

Streamlined-Airflow

With three 120mm RGB LED fans in the front and a 120mm RGB LED fan pre-installed in the rear, you will always be off to a cool start.

Upgraded I/O Panel

Two USB 3.0 and two USB 2.0 ports promote high-speed data transfers and expansion potential.

Installed Schematic

Halo Cover with magnetic adhesion.

Clean Storage Tray 2 x 3.5"HDD and 4 x 2.5" SSD bays.

CMT520 supports high-end graphics cards with a max length of 423mm.

Supporting 8 x PCI-E expansion slots.

*All pictures above are for reference purposes only and should be considered illustrative. Actual product colors may vary due to product enhancements or your monitor settings.

Specifications

Model Name	CMT520
Type	ATX Mid Tower
Color	Black
Materials	SPCC, Tempered glass x 2
Weight	8.5KG
Dimension DxWxH (mm) / (inch)	495 x 215 x 510mm 19.49 x 8.46 x 20.08inch
Maximum CPU Cooler Height	163mm
VGA Card Length	423mm
Expansion Slots	8
MotherBoard Support	E-ATX, ATX, Micro ATX, ITX
External I/O port	USB3.0 x 2, USB2.0 x 2,Audio
Power Supply Type	200mm ATX
3.5“ HDD	2
2.5" SSD	4
Fan Including(pre-install)	Front: 120mm RGB Fan x 3 Rear: 120mm RGB Fan x 1
Fan&Water Cooler Support	Front: 120mm/140mm x 3, or 360mm Radiator x 1 Top: 120mm x 3/140mm x 2 or 360mm Radiator x 1 Rear: 120mm x1
Max Radiator Support	360mm x 2
