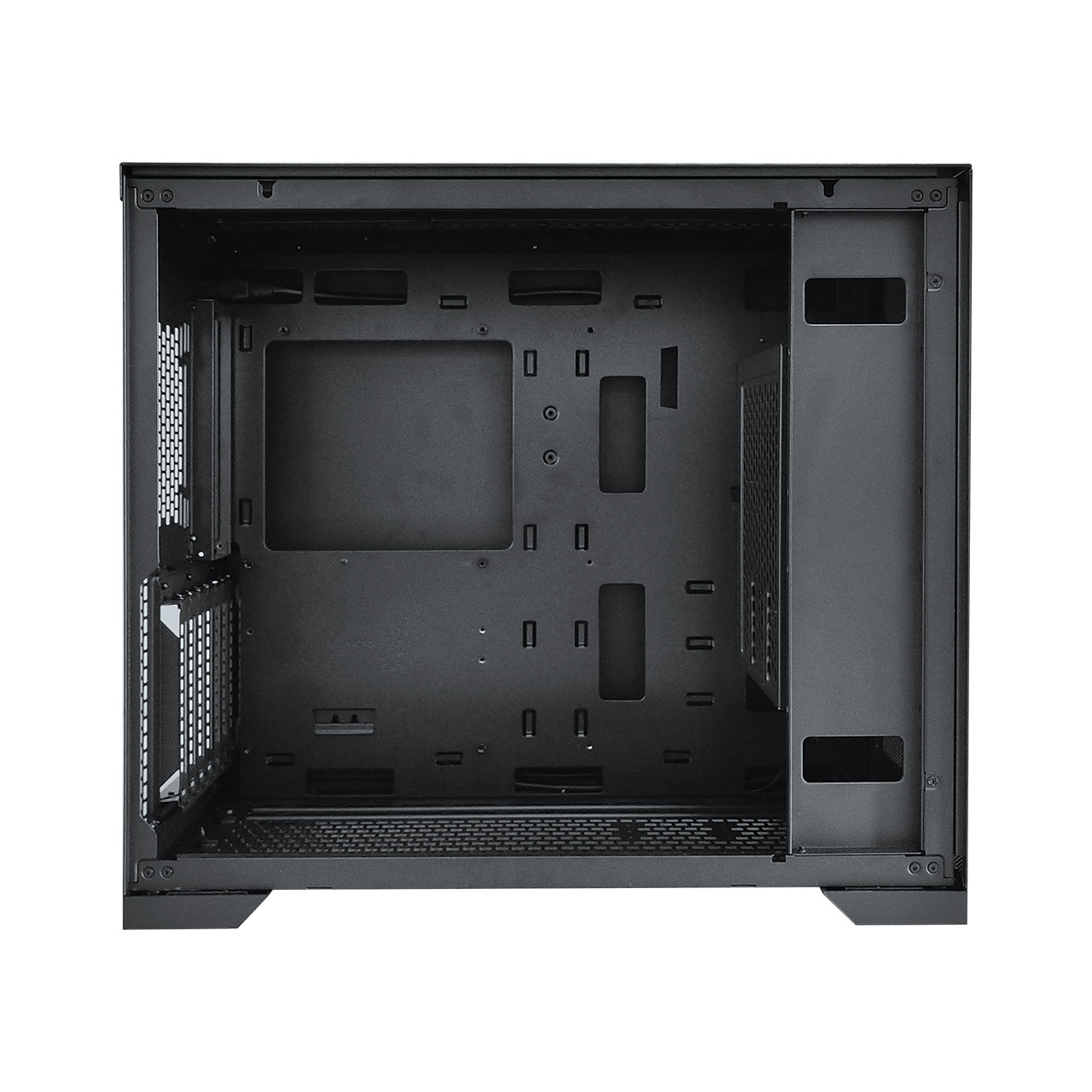

CMT580B
CMT580B
- Ultra simplified & beauty exterior design
- Pre-installed 120mm x 4 fans
- Lighting speed Type-C USB3.2 Gen2
- Support VGA Height 335mm
- Vertical & horizontal installation slots
- Easy cable management design
Ultra simplified & beauty
Beauty without reducing heat dissipation
Pre-installed 120mm x 4 cooling fans
- Quieter but powerful
- Support maximum 360mm radiator
More space to upgrade at anytime
Support E-ATX, ATX, Micro ATX, Mini-ITX motherboard
Easy cable management design
Built-in multiple holes for cable
- 7 expansion slots, support both vertical & horizontal installation
- Exclusive space for hard drives
Tools free panel design
Easy changed panels in just 5 seconds
Remove the top screw, pull up to disassemble panels
The left and right side panels can easily be exchanged at anytime
Lighting transmission I/O port
- Built in USB 3.2 Gen 2 Type - C
Spezifikation
| Produktname | CMT580B |
|---|---|
| Farbe | Black |
| Materialien | 0.8mm SPCC |
| Gewicht | 7.9kg |
| Abmessung (HxBxT) | 450x220x408mm |
| Maximale CPU Kühler-Höhe | 160mm |
| VGA Kartenlänge | 335mm |
| Erweiterungssteckplätze | 7 |
| M/B Typ | E-ATX, ATX, Micro ATX, Mini-ITX |
| I/O Bedienfeld | USB3.2 Gen1 x 2, USB3.2 Gen2 Type-C , HD Audio (2 in 1) |
| Netzteil-Typ | 170mm ATX |
| 3.5' Laufwerkseinschübe | 2 |
| 2.5' Laufwerkseinschübe | 2 |
| Kühlsystem | Bottom: 120mm x 3 (3 in 1) Back: 120mm x 1 |
| Lüfter- und Wasserkühler Verso | Top: 120mm x 3 or 140mm x 2 Bottom: 120mm x 3 (Pre-installed) or 140mm x 2 Back: 120mm x 1 (Pre-installed) |
| Radiator Versorgung | Top：280/360mm Bottom：280/360mm |
Download
CMT580B&CMT580W Manual.pdf
