FlexGURU PRO 300W

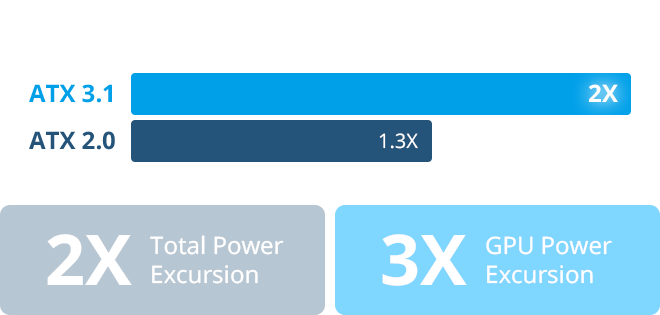

  • 符合 ATX12V V3.1 / Flex ATX V2.1 标准（650W）
  • 符合 ATX12V V2.52 / Flex ATX V1.23 标准（500W）
  • 符合 UL / EN / IEC 国际安全标准
  • 典型负载下效率 ≥90%（650W 典型负载下 ≥92%）
  • 80PLUS 金牌认证（650W 为白金认证）
  • 智能风扇转速控制
  • 静音长寿命 40mm 滚珠轴承风扇
  • 黑色线材，满足发烧友需求
  • 强劲单路 +12V 输出设计
  • 主电容采用日系电解电容
  • 通用安装支架
  • 完整保护功能： 650W：UVP 欠压保护、OVP 过压保护、SCP 短路保护、OPP 过功率保护、OTP 过温保护、SIP 浪涌保护、NLO 无负载保护
  • 完整保护功能：500W：UVP 欠压保护、OVP 过压保护、SCP 短路保护、OPP 过功率保护、OTP 过温保护
  • 80plus_Gold
  • 62368

Fully Modular Design

Fully modular design with all black ribbon cables simplifies installation, which allows you to use only the cables you need, for a much neater build.

High Power Density

FlexGURU PRO series featured with high power density, 20% higher than any Flex PSU in the same wattage and frame.

Firm Installation with Beetle Technology

FSP pioneered the development of the Beetle technology in FLEX-ATX PSU, and we applied it on the  FlexGURU PRO series. The new technology strengthens the fixation adequacy by 25% which makes the PSU  fit in most of the Flex-ATX chassis in the market.

Excellent Thermal Performance

Unlike general FLEX PSUs, FlexGURU PRO series is designed with inner 40mm fan, noise cancellation and achieving maximum cooling at all times.

90% Efficiency Conversion

The efficiency of your power supply directly affects your system's performance. FlexGURU PRO 300W has a guaranteed typical efficiency of 90%, offer the high conversion power to boost your system.

Application Field

Industrial PC

  • Industrial PC

  • Point of Sale System

  • Network communication

  • Surveillance

  • Edge Computer

  • Home Theater Personal Computer

  • NAS Server

  • Gaming & Creator PC

Keep in Compliance IEC 62368

FSP Group brings you the latest technologies in renewable energy, they provide a full range of additional safety features to keep up with the latest regulations. FSP has upgraded the majority of their power supplies to the latest UL# 62368 standard.

Safety Protection

OVP (Over Voltage Protection), UVP (Under Voltage Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection), a full guardian circuit protections to keep your hardware safe.

Japanese Electrolytic Capacitors

Using Japanese electrolytic capacitors, FlexGURU PRO series offers a stable output and long-term reliability you need.

Performance

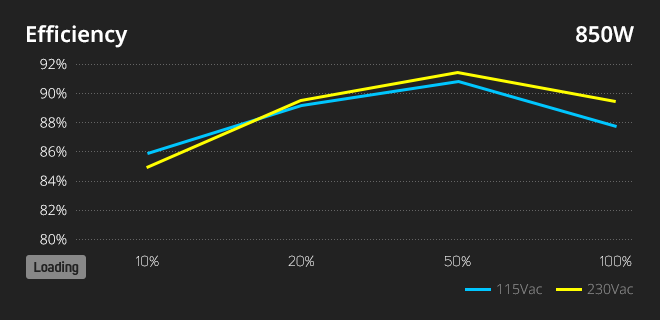

Efficiency

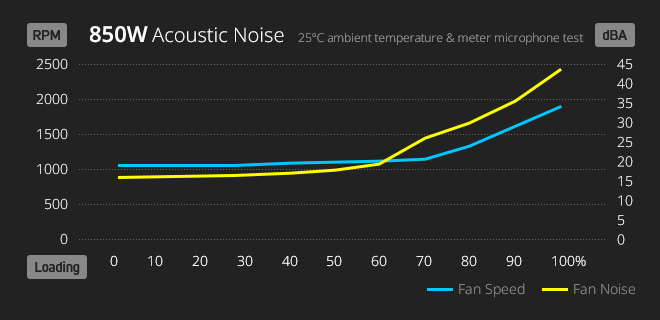

noise

AC/DC

AC Input100-240Vac~  6-3A  50-60Hz
DC Output+3.3V+5V+12V-12V+5Vsb
Max Output Current12A14A25A0.3A3A
Max Combined Power70W
Total Power300W

Cables

 atx cable 24 pinEPS 4 4 pinhd statmolex2.5 floppy
ATX 20+44+4 PINSATAMolex
(PERIPHERAL)		Floppy
Connectors11421

规范

型号 FSP300-57FCB
额定功率 300W
规格 FLEX ATX
80 PLUS 认证 Gold
输入电压 100-240V
输入电流 6-3A
输入频率 50-60Hz
PFC Active PFC
效率 ≥90% at typical load
风扇类型 Ball Bearing, 40mm
尺寸(L x W x H) 150 x 40.5 x 81.5mm
保护 OCP,OVP, SCP,OPP,OTP
