Complies with Intel® Power Design Guide ATX 3.1
Following the latest ATX3.1 regulation and PCIe Gen 5, the PSUs can hold up to the maximum total power excursion.
High Compatibility for High Power
The series comes with native PCIe Gen 5 connector and also supports 2 slots of PCIe 6+2Pin for graphic card, besides, 2 slots of CPU connector for higher performance.
High Efficiency in Gold-certified
Certified by world-class organizations 80 PLUS® with gold certifications for lower power loss, less heat, and quieter operation.

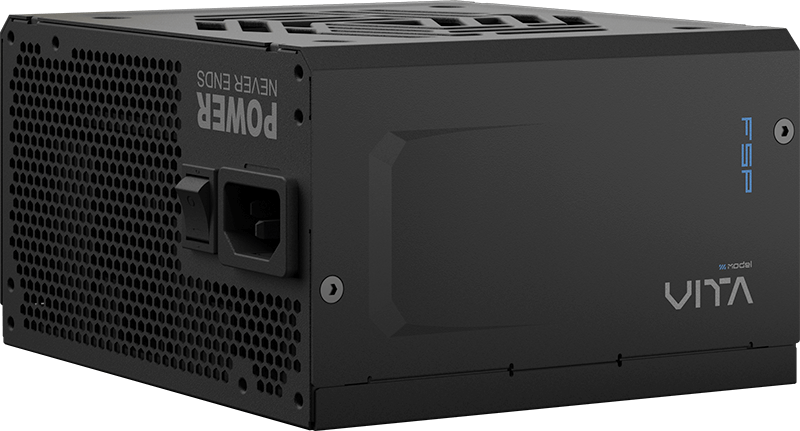

Compact PSU Size:140 x 150 x 86mm
140mm in length which is relatively shorter than industry standard, it’s ideal for compact PC or space-constraint environment without compromising on performance.
Fully Modular Cabling Design
To make power supply installation easy and allows users to use only the needed cables, improving airflow and reducing system clutter.
105°C Japanese Bulk Capacitor
Maximize reliability and performance by using top-quality Japanese electrolytic capacitors for a longer lifespan.
120 mm Hydraulic Bearing (HYB) Fan
Quality bearing keeps fan noise to a minimum while providing maximum cooling performance.
Cables
MB 20+4 PIN | CPU 4+4 PIN | PCIe 12V-2x6 | PCIe 6+2 PIN | SATA | MOLEX | |
Connectors | 1 | 2 | 1 | 4 | 8 | 4 |
AC/DC
AC Input | 100-240Vac~ 11-5.5A 50-60Hz (Not for China) | ||||
200-240Vac~ 5.5A 50-60Hz (Only for China) | |||||
DC Output | +3.3V | +5V | +12V | -12V | +5Vsb |
Max Output Current | 20A | 20A | 70.83A | 0.3A | 3A |
Max Combined Power | 100W | 850W | 3.6W | 15W | |
Total Power | 850W |
规范
型号 | VITA-850GM (White Edition) |
---|---|
额定功率 | 850W |
规格 | ATX12V V3.1 |
80 PLUS 认证 | Gold |
输入电压 | 100-240V; 200-240V |
输入电流 | 11-5.5A; 5.5A |
输入频率 | 50-60Hz |
PFC | 主动式 ≧ 0.9 |
效率 | 转换效率≥90% |
风扇类型 | HYB 风扇, 120mm |
尺寸(L x W x H) | 140×150×86 mm |
操作温度 | 40°C |
保护 | OCP, OVP, SCP, OPP, UVP, OTP |
