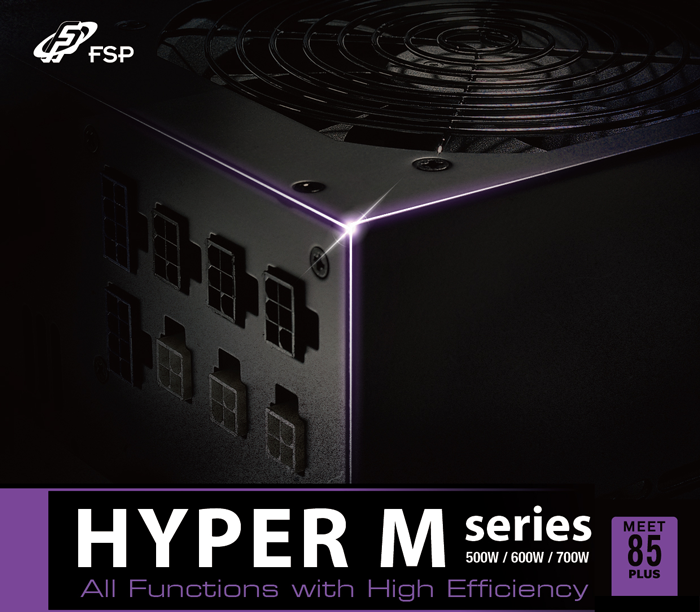

HYPER M (semi-modulaire) 500W
- Complies with newest ATX12V & EPS12V standards
- Efficiency ≧ 85%
- Semi-Modular Design
- Active PFC, Power Factor≧99%
- +12V Single Rail Design
- PCI-Express 6+2 Pin Connectors for VGA Card
- All Sleeved Cables
- 120mm Fan
- Complete Protections: OCP, OVP, SCP
- Multiple Safety Approval
- Garantie 5 ans
All Functions with High Efficiency
HYPER M Series features semi-modular and 2 sets above 6+2 pin connectors, with 85% efficiency, +12 single rail design to provide strong power to any overloading conditions.HYPER M series is available in 3 wattages, ranging from 500W, 600W to 700W for your choice. It must be a best choice to your limited budget gaming system!
Fast and Neat
Semi-Modular Design
The modular cable design simplifies installation and allows flexibility and simplicity, in choosing only those cables needed.
Stay Cool and Silent
Matching with a quiet and long lasting 120mm fan, under a comfortable temperature all the time.
 | Efficiency ≧85% |  | Active PFC |
 | Easy Installation Neat Build |  | 2013 ErP/EuP Ready |
 | Quiet and Durable Cooling |  | Intel Haswell Refresh Platform Already |
AC/DC
| Model No. | MF500MS | ||||
| AC Input | 200-240Vac ~ 4A 50-60Hz | ||||
| DC Output | +3.3V | +5V | +12V | -12V | +5Vsb |
| Max Output Current | 20A | 20A | 38A | 0.3A | 3.0A |
| Max Combined Power | 120W | 456W | 18.6W | ||
| Total Power | 500W | ||||
Cables
 |  |  |  |  |  | |
| ATX 20+4 | 4+4 PIN | PCI-E 6+2 | SATA | Molex (PERIPHERAL) | Floppy | |
| Connectors | 1 | 1 | 2 | 9 | 4 | 2 |
Spécifications
| Modele | MF500MS |
|---|---|
| Puissance de sortie | 500W |
| Format | ATX12V V2.4 & EPS12V V2.92 |
| Tension d'entree | 200-240Vac |
| Courant d'entree | 4A |
| Frequence d'entree | 50-60Hz |
| PFC | Active PFC (>0.9 typical) |
| Efficacite | Meet 85% @ Typical Load |
| Type de ventilation | 120mm Sleeved Fan |
| Bruit | < 19dBA |
| Dimensions(L x W x H) | 150 x 165 x 86 mm |
| Poids | 1690g |
| Temperature de fonctionnement | 0~40°C / 32°F~104°F |
| Protection | OVP/OCP/SCP |
