Introduction

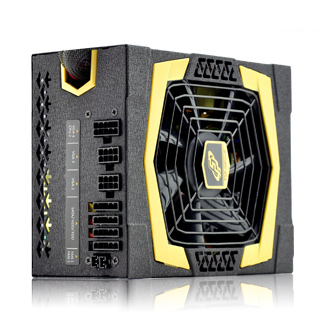

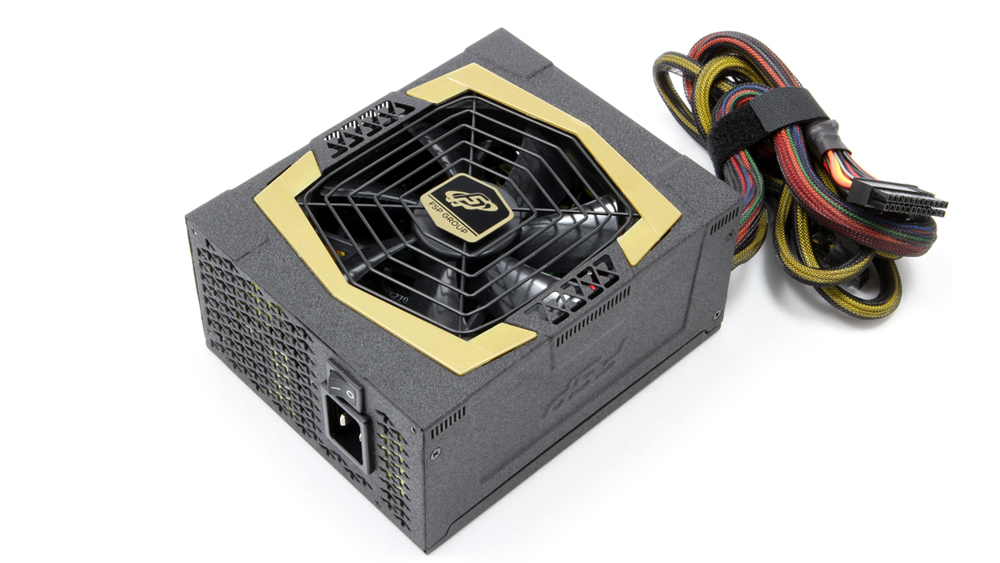

AURUM PRO 850
AURUM Pro Series power supply units is a single rail line-up of FSP Power Supply family with 80 PLUS Gold Certification (>90% efficiency). AURUM Pro Series combines premium quality and efficiency, making it the most ideal choice for those who seek for high performance, reliability and quality at the same time. AURUM PRO series power supply not only smaller in size but also offer best performance and protection to your system. AURUM Pro Series design with dual transformers to maximize efficiency and the arrow-shaped ventilation to provide remarkable air ventilation and super cooling performance. AURUM’s sleek design and unique rugged Granite-Touch finishing makes it a Power Supply you can count on for years to come.
AURUM Pro 850 provides true single rail 850W output power, featuring 135mm PWM long life HDB (Hydro Dynamic Bearing ) fan for quiet operation and with Japanese capacitors for reliability. It also comes with Dual high efficiency transformers to deliver stable power and certifies with 80PLUS Gold rating for over 90% efficiency. For those of you that are active power users, system builders, and performance enthusiasts, FSP AURUM Pro 850 is your ideal solution for your gaming system or current PC upgrade.
 |
True Single Rail - Dual Transformer Matrix Design FSP’s own patented designs to provide Ultimate Performa nce & Highest Protection to your system! |
| -Dual Transformer Matrix Design minimizes energy loss, and maximizes efficiency and cooling. | |
| -Evenly distributed load current sharing and output power sharing allow balanced utilization and heat dissipation. | |
| -Reduced transformer sizes, and increased power density to optimize air flow and cooling. | |
 |

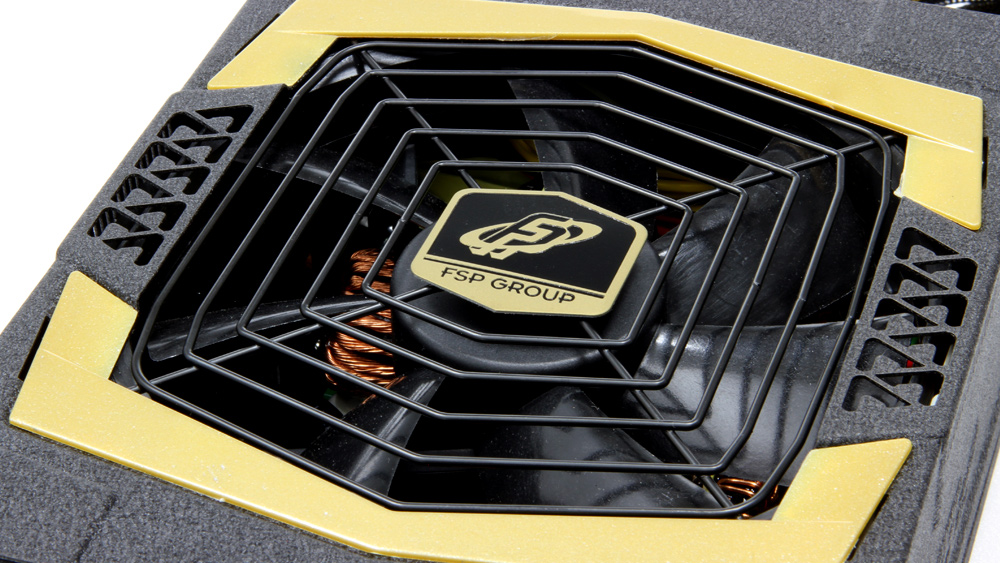

Arrow FlowTM Technology for regulated outward airflow Arrow-shaped ventilation makes use of Aero dynamics and Physical properties of hot air to improve and speed up hot air extraction. |
 |
Low Profile Flat Cabling system-optimize airflow 1) 60cm EPS12v 8P+4P, good wiring for case 2) High extension with rich cable combination 3) Special flat cable, optimized the air flow |
 |
Active PFC Power factor ≧99% |
 |
105 °C Japanese-made Capacitor Makes prolonged life span possible |
 |

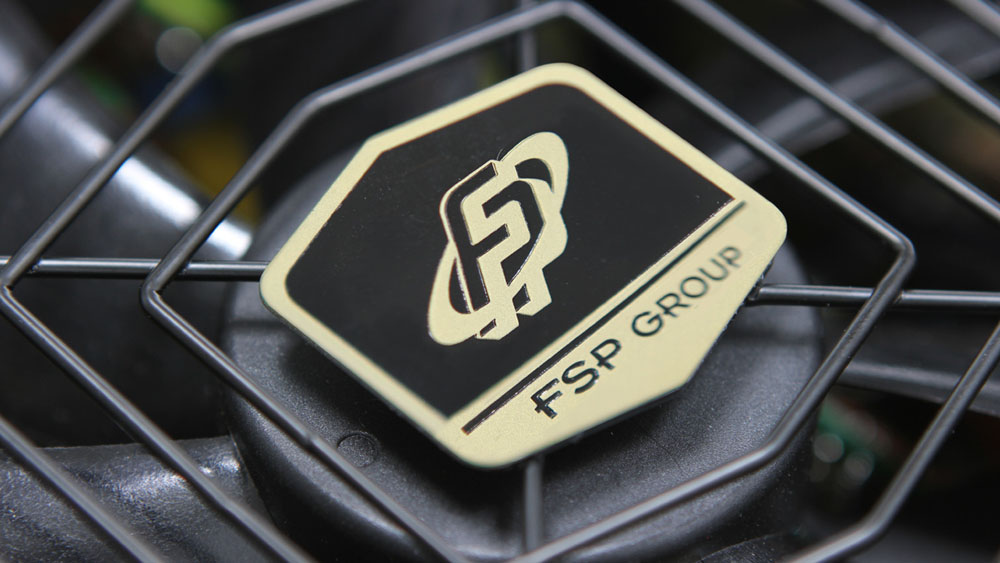

Quiet and durable cooling power by low noise and long-lasting HDB fan |
 |
Full Safety Approved Let OCP/OVP/SCP/OPP/OTP/UVP protect you and your system |
 |

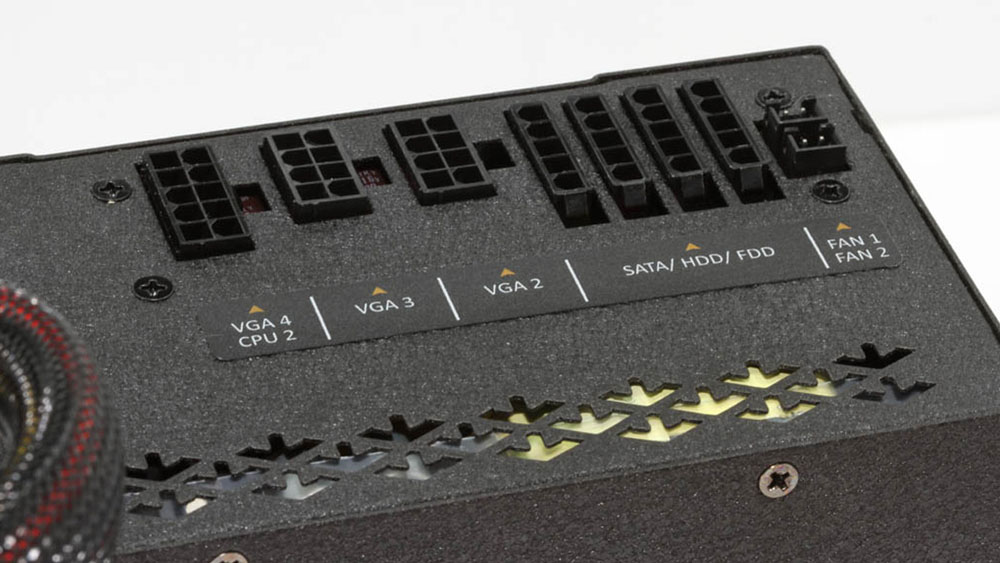

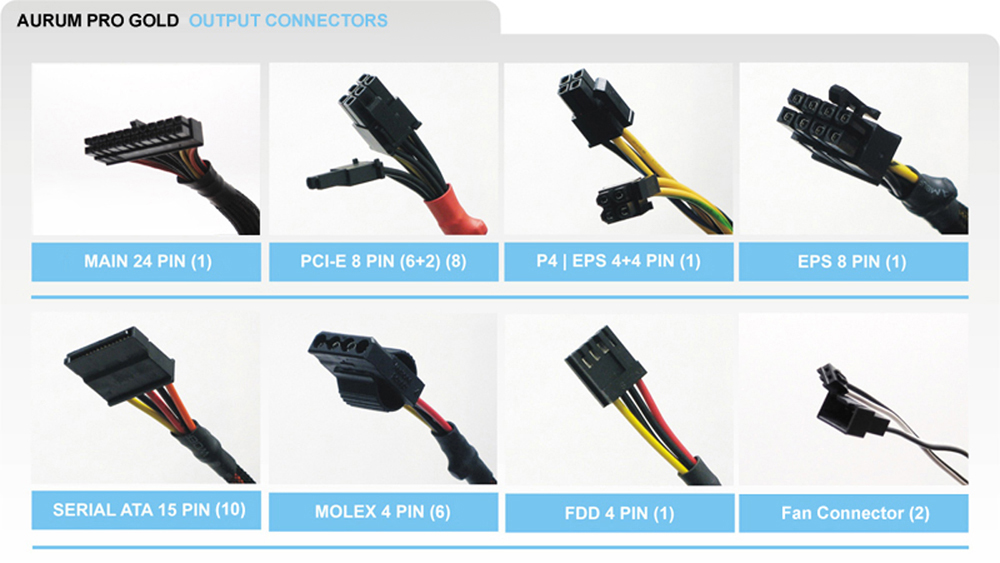

Cables and Connectors
Features
- 850-WATT | ATX 2.3 | EPS 2.92 | SLI Certified
- Compatible with Latest Intel/AMD CPUs
- SUPPORTS Intel® Core™ i3/ i5/ i7
- ATI CrossFireX™ Certified
- 80 PLUS Gold Certified | High Efficiency > 90%
- Quiet, long lasting 135mm HDB(Hydro Dynamic Bearing) Fan

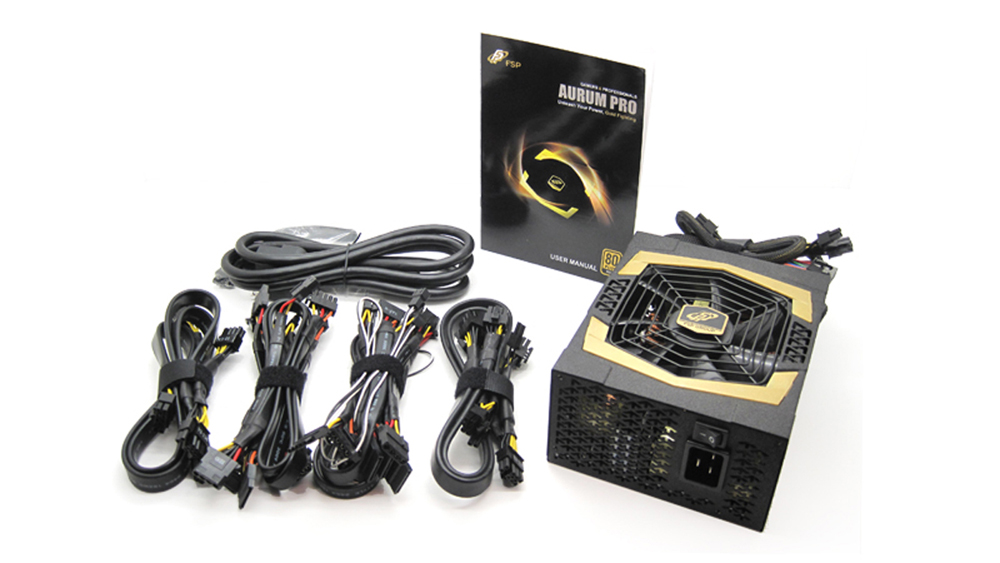

- Modular Cable Management System
- Low Profile Flat Cabling System
- True Single +12V output circuits
- Industrial Grade Components
- 105 °C Japanese-Made Capacitor
- Arrow-Shaped Ventilation Holes
- Unique Rugged Granite-Touch Finishing
- Thermal Coated (Black) with Gold Crown
- 2x external fan connectors
- 8x 6+2pin PCI-Express graphic card connectors
- True Single Rail - Dual Transformer Matrix Design
- Complete Protections: OCP, OVP, SCP, OPP, OTP, UVP
- Energy Saver Standby @ 1-Watt
- Safety Approvals: : OCP, CE, FCC, CB, UL, TUV, GOST, CCC
Specifications

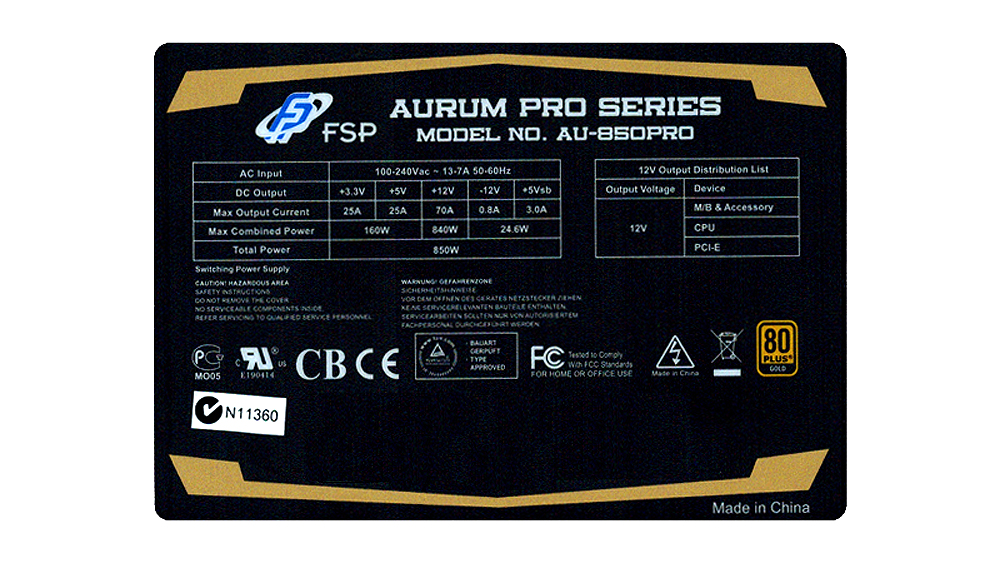

| Model | AU-850PRO |
| Efficiency | 90% |
| Input Voltage | 100 ~ 240Vac |
| Frequency | 50 ~ 60Hz |
| PFC | Active PFC (0.99) |
| Power Provided | 850 |
| Over-Current Protection | V |
| Over-Voltage Protection | V |
| Short-Circuit Protection | V |
| Line Type/ Main connector | 20+4 Pins |
| EPS 12V 4+4 pin Connector | 1 |
| Line Type/ 4 pins Floppy Connector | 1 |
| Line Type/ S-ATA Connector | 10 |
| Line Type/ 4 pins Molex Connector | 6 |
| PCI-E 6+2 pin Connector | 8 |
| Case Color | Black |
| Chassis Fan | 135mm Hydro Dynamic Bearing Fan |
| Noise | <27 dBA |
| Form Factor | ATX 12V V2.31 & EPS 12V V2.92 |
| Safety Approval | cUL, FCC, CE, TUV, GOST, BSMI, CCC |
| Dimensions(Lx W x H)mm | 180 x 150 x 86 |
