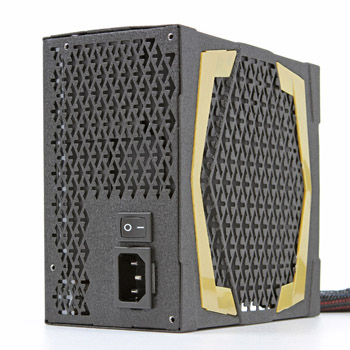

AURUM XILENSER 500

AURUM XILENSER 500 (Modular)

The world's first 500W fanless PSU "AURUM Xilenser ", Zero Noise with high efficiency. No. 1 choice for your HTPC, Lab, Studio environment. The perfect choice of your fanless power supply unit.
  • AURUM XILENSER 500 01
  • AURUM XILENSER 500 02
  • AURUM XILENSER 500 03
  • AURUM XILENSER 500 04
  • 80Plus Gold

Introduction

FSP AURUM Xilenser

The only choice of the fanless power supply

AURUM Xilenser is 80PLUS GOLD certified with over 90% efficiency, continuing FSP’s unique commitment to energy efficiency with more 80PLUS certified power supplies than any other manufacturer. The high efficiency and superior passive cooling maintains a low PSU temperature – even under pressure. It is the perfect combination of premium quality and efficiency, making it the ideal choice for those who seek state of the art performance with zero noise. The completely silent and fanless operation makes it the perfect solution for your Home Theatre PC (HTPC), lab and studio environment.

(This product is only available in certain countries. Please contact your local dealer for more detail.)

100% perfect zero-noise - Absolute 0dB

FSP’s own patented designs to provide Ultimate Performa  nce & Highest Protection to your system.

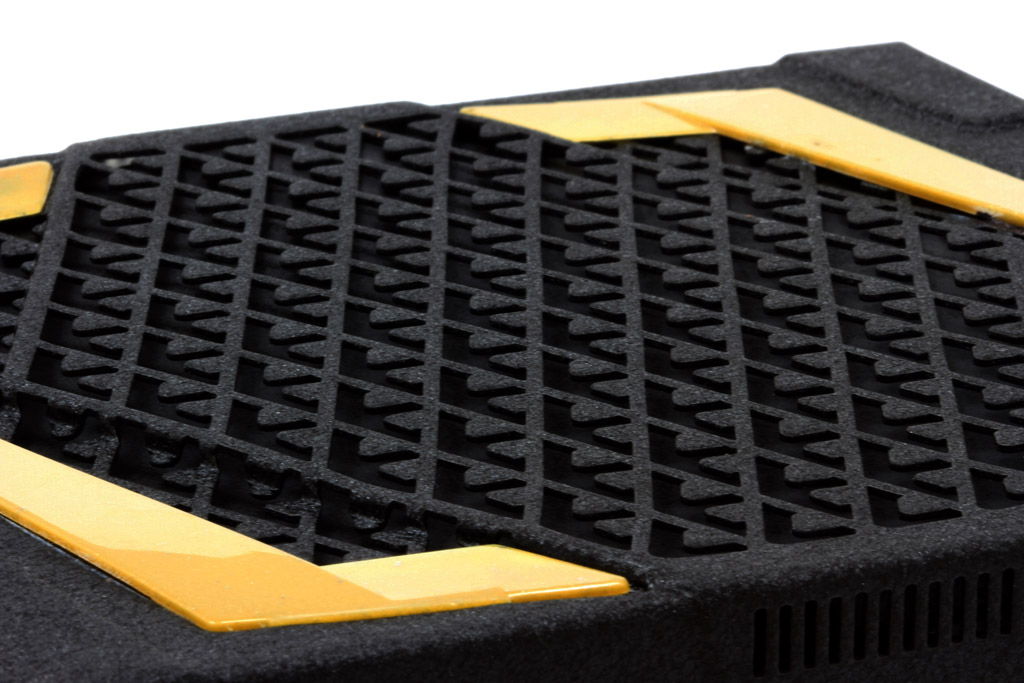

Unique Airflow Technology
Uniquely designed ventilation holes that allow natural aero dynamics to improve air extraction, keeping your PSU cooler than ever.
Low Profile Flat Cabling system-optimize airflow
1) 60cm EPS12v 8P+4P,  good wiring for case
2) High extension with rich cable combination
3) Special flat cable, optimized the air flow
Active PFC
Power factor ≧99
100% Japanese-made Capacitor
makes prolonged life span possible
Multiple Safeties & Protections Approved
let OVP/ UVP/ OCP/ SCP/ OPP protect you and your system





Fully compatible with 4th generation Intel Core Series processors
FSP's power supply provide 100% Compatible with Haswell CPUs.


back to top

Features

  • Complies with ATX12 v2.3 & EPS12 v2.92
  • Meets 80PLUSR GOLD Certification, High efficiency > 90%
  • Dual +12V output circuits
  • Zero Noise: 0dB
  • 99% Active PFC
  • 2x 6+2pin PCI-Express graphic card connector ready
  • Industrial Grade Component: 100% Japanese capacitor
  • Complete Protections: OCP, OVP, SCP, OPP, UVP
  • Multiple Safety Approved

back to top

Specifications

Product Specification
Model AU-500FL
Efficiency 90%
Input Voltage 100 ~ 240Vac
Frequency 50 ~ 60Hz
PFC Active PFC (0.99)
Power Provided 500
Over-Current Protection V
Over-Voltage Protection V
Short-Circuit Protection V
Line Type/ Main connector 20+4 Pins
EPS 12V 4+4 pin Connector 1
4 pin Floppy Connector 1
SATA Connector 5
4 pin Molex Connector 4
PCI-E 6+2 pin Connector 4
Case Color Black
Chassis Fan Fanless
Noise 0 dBA
Form Factor ATX 12V V2.3 & EPS 12V V2.92
Safety Approval UL/cUL, FCC, CE, GOST, Nemko, CCC, BSMI
Dimensions(Lx W x H)mm 160 x 150 x 86
