AURUM PRO 1200 | AURUM PRO Series | Power Supply

Introduction

FSP AURUM PRO SERIES

Uncompromising Performance with High Wattage

AURUM PRO series is designed to meet the needs of PC enthusiasts such as overclockers/multi-GPU gamers. It is also the perfect choice for professional workstation. Built with industrial-grade components and Japanese capacitor, AURUM PRO provides clean, stable and powerful output to ultimately fulfill your system.

AURUM PRO’s sleek design and unique rugged Granite touch finishing makes it truly regal PSU like no others. With 80PLUS GOLD certification it provides high efficiency, makes AURUM PRO Series a perfect combination of premium quality and performance.

True Single Rail

Dual Transformer Matrix Design

FSP’s own patented designs to provide Ultimate Performa nce & Highest Protection to your system!

-Dual Transformer Matrix Design minimizes energy loss, and maximizes efficiency and cooling.

-Evenly distributed load current sharing and output power sharing allow balanced utilization and heat dissipation.

-Reduced transformer sizes, and increased power density to optimize air flow and cooling.

Unique Airflow Technology
Uniquely designed ventilation holes that allow natural aero dynamics to improve air extraction, keeping your PSU cooler than ever!

Hybrid Synergy 12V Rail Design
Hybrid Synergy Design on 12v rails with max loads pledges compatibility to graphics cards and systems

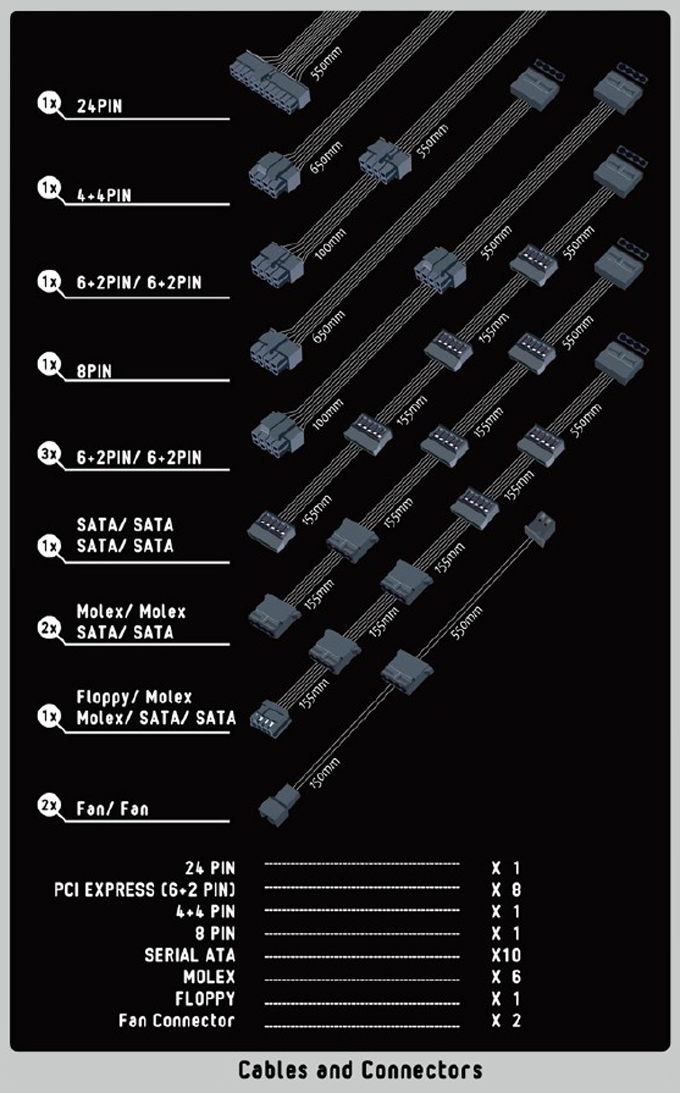

Low Profile Flat Cabling system-optimize airflow
1) 60cm EPS12v 8P+4P, good wiring for case
2) High extension with rich cable combination
3) Special flat cable, optimized the air flow

	Active PFC Power factor >99		Quiet and durable cooling power by low noise and long-lasting FDB fan
	105 °C Japanese-made Capacitor makes prolonged life span possible		Multiple Safeties & Protections Approved let OVP/ UVP/ OCP/ SCP/ OTP/ OPP protect you and your system

Features

True Single +12V output circuits
High efficiency > 90%, meets 80 PLUSR GOLD Certification
Use Japanese capacitor : Industrial Grade Component
Complies with ATX 12V 2.3 & EPS 12V 2.92 version
2 x external fan connectors ready
6+2pin PCI-Express graphic card connector ready
Dual-OTP (Over Temperature Protection)
Quiet , long lasting 135mm HDB (Hydro dynamic Bearing) Fan
Complete Protections: OCP (+-100A), OVP, SCP, OPP, OTP, UVP
Multiple Safety Approved: OCP, CE, FCC, CB, UL, TUV, GOST, CCC

Specifications

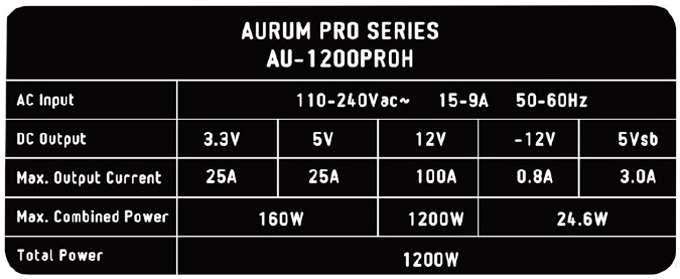

Product Specification
Model	AU-1200PRO(H)
Efficiency	90%
Input Voltage	100 ~ 240Vac
Frequency	50 ~ 60Hz
PFC	Active PFC (0.99)
Power Provided	1200
Over-Current Protection	V
Over-Voltage Protection	V
Short-Circuit Protection	V
Line Type/ Main connector	20+4 Pins
EPS 12V 4+4 pin Connector	1
EPS 12V 4 pin Connector	1
4 pin Floopy Connector	1
SATA Connector	10
4 pin Molex Connector	6
PCI-E 6+2 pin Connector	8
Case Color	Black
Chassis Fan	135mm Hydro Dynamic Bearing Fan
Noise	<32 dBA
Form Factor	ATX 12V V2.31 & EPS 12V V2.92
Safety Approval	cUL, FCC, CE, TUV, GOST, BSMI, CCC
Dimensions(Lx W x H)mm	180 x 150 x 86
