Best choice in performance - RAIDER Series
The worldwide leader in high-performance power supply unit manufacturer announces RAIDER Series Power Supply. It is one of the mainstream 80 PLUS® Silver certified, efficiency > 88% and it comes with the +12V single rail, SATA array cable design, MIA IC TM and POST SR (Post Synchronous Rectification). This new series of product features exclusive full-sleeves, black PCB, also meet 2013 ErP standard (Energy Related Product).The RAIDER series' 450/550/650/750 W models are made for overclocking players, hardware enthusiasts and DIY experts!
Fully compatible with 4th generation Intel Core Series processors
FSP's power supply provide 100% Compatible with Haswell CPUs.
SATA Array Cable, Easy Installation
-50mm intervals for 4 SATA device installation
-Optimized the airflow in case
-No-hassle with case side panel
+12V Single Rail Design
-Designed for power-intensive VGA cards.
-Provides strong power to any overloading condition.
POST SR (Post Synchronous Rectifier)
Optimized the 3.3V/5V/12V start-up setting, with ZCS PFC benefits, it may avoid the switching loss and strengthen the effiency significantly.
Multiple PCI-E Connectors
PCI-E 6+2 pin connectors for all kinds of graphic cards
(Multiple Intelligence Ability) Chipset
|-Constant Hold up control performs continuous adjustments according to the output load in order to achieve the best possible efficiency;|
|-PFC Double-circuited Over Voltage Protection (OVP) ensures maximum protection to Capacitor;|
|-Zero-Current Switch on PFC ensures minimal energy wasted on switching, Low EMI and low ripple noise contribute to High Efficiency.|

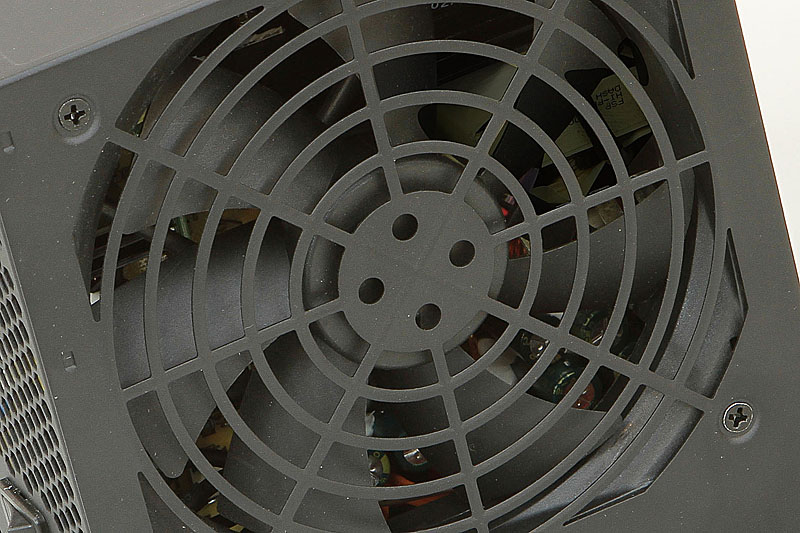

120mm Quiet Fan
20% loading < 18dBA, 50% Loading < 19dBA, 100% Loading < 25dBA
- +12V Single Rail Design
- SATA Array Cable Design
- 120mm Quite Fan
- All Series come with PCI-E 6+2 Pin Connectors
- FSP MIA ICTM Inside
- 80 PLUS® Silver Certified, efficiency > 88%
- Complies with ATX 12V 2.31 & EPS 12V 2.92 Version
- Active PFC, power factor ≧99%
- Complete Protections : OCP, OVP, OPP, SCP, UVP
- Full Safety Approved
|PFC||Active PFC (0.99)|
|Line Type/ Main connector||20+4Pin*1|
|EPS 12V 4+4 pin Connector||1|
|4 pin Floopy Connector||1|
|4 pin Molex Connector||3|
|PCI-E 6+2 pin Connector||2|
|Form Factor||ATX 12V V2.31 & EPS 12V V2.92|
|Safety Approval||CE, FCC, CB, UL/CUL, TUV, BSMI, CCC, GOST, C-tick|
|Dimensions(Lx W x H)mm||150 x 140 x 86|
