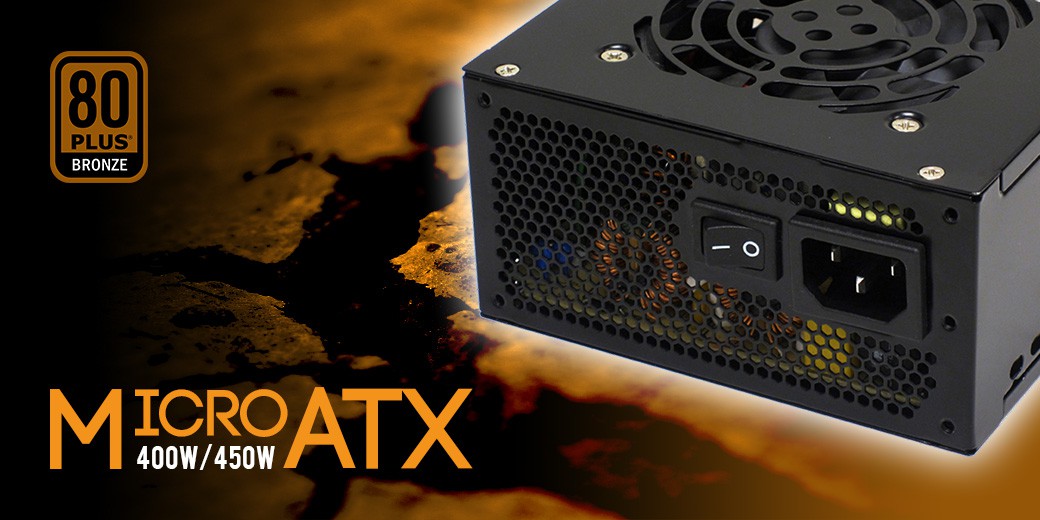

FSP Group Micro ATX 400W

Micro ATX - Bronze 400W

  • Supports AMD/Intel CPU systems
  • Micro ATX for PCs
  • High power conversion efficiency | 80 plus bronze certified
  • 80mm cooling fan system
  • Includes SFX to PS2 bracket for easy fitting into standard ATX cases
  • Thermal control system linked to fan
  • Energy saver | 1W standby mode
  • 80plus_Bronze230VEU
Designed to fit most compact small form factor PC systems with high-power output in mind. Power specification is fully compatible to Intel and AMD power CPU and standard PC configurations. It features 80mm cooling fan with thermal sensing technology. It is an excellent choice for compact, small form factor systems integration that demands higher power output requirement.

FSP Quality Assurance Program, a manufacturer's direct service guarantees quality and performance for a period of 3-Year, included. All models are qualified for RoHS, Lead-Free, Green Product (G.P) global environmental friendly status.
FSP Group Micro ATX - Bronze

Inside the Box

  • Micro-ATX Power Supply
  • SFX to PS2 Bracket
  • User's Manual
  • Power Cord
  • Screws
  • 3-Year Warranty

AC/DC

AC Input100-240Vac~  6-3.5A  50-60Hz
DC Output+3.3V+5V+12V1+12V2-12V+5Vsb
Max Output Current21A22A17A16A0.5A2.5A
Max Combined Power120WN/AN/AN/A
Total Power400W

Cables

 atx cable 24 pinEPS 4 4 pinpcie 6+2 pinhd statmolex2.5 floppy
ATX 244+4 PINPCI-E 6+2SATAMolex
(PERIPHERAL)
Floppy
Connectors111331

Specifications

Model FSP400-60GHS(85)-R
Rated Output Power 400W
Form Factor Micro ATX
80 PLUS Certification Bronze
Input Voltage 115V AC to 230V AC
Input Current < 4.5 A @ 115 Vrms, 60 Hz. < 2.5 A @ 230 Vrms, 50 Hz.
Input Frequency 47 ~ 63Hz
PFC ACTIVE PFC | FULL RANGE
Efficiency > 85% @ Typical Load
Fan Type Single, 80mm sleeve-bearing fan linked with Thermal Sensor
Dimensions(L x W x H) 4.92" x 3.94" x 2.50"
Weight 2.21 lbs
Protection OVP/OCP/SCP
Safety Approval UL, cUL, TUV, CB, CE, FCC
