PIC16100000000000315

Nano 400

  • Compact size with stand and mounting flexibility
  • Excellent microprocessor control guarantees high reliability
  • Auto restart while AC is recovering
  • Simulated sine wave
  • Cold start function
  • Full protection: Discharge, overcharge, short circuit, and thermal protection

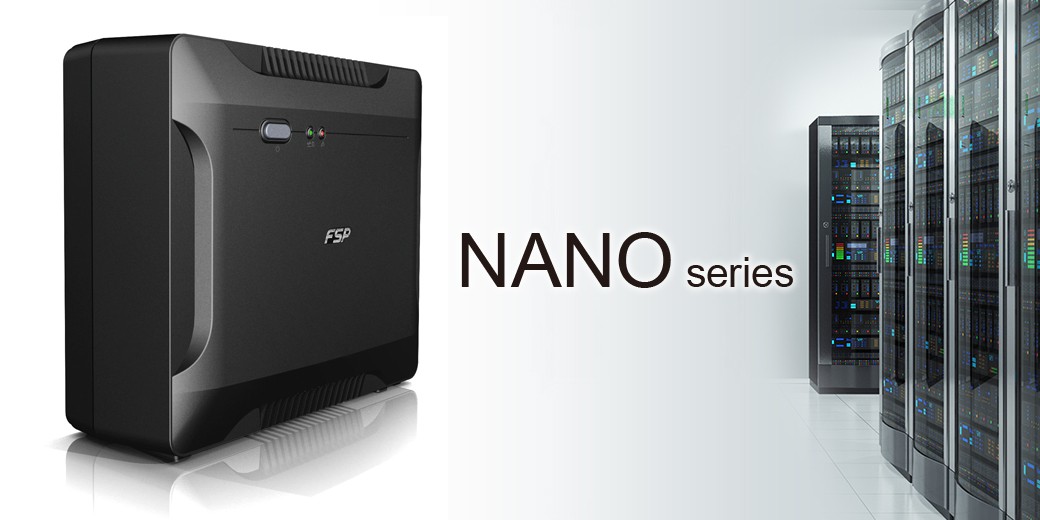

The Nano UPS provides comprehensive protection in a small and economic package.
It is more compact and offers greater comprehensive power protection against surges and spikes. This UPS will continue providing stable power to connected equipment and enable to shutdown PC safely during power failure.
Its embedded microprocessor controller guarantees high reliability
It will automatically restart while AC power is recovering. With Simulated sine wave
And cold start function, it s perfect for any home or small office application.

• Compact size with stand and mounting flexibility
• Excellent microprocessor control guarantees high reliability
• Auto restart while AC is recovering
• Simulated sine wave
• Cold start function

Specifications

Model Nano 400
Input Capacity 400 VA / 240 W
Input Voltage Range 90-145 VAC / 180-270 VAC
Input Frequency Range 60/50 Hz (auto sensing)
Output AC Voltage Regulation ±10%
Output Frequency 60 Hz or 50 Hz ±1 Hz
Output Waveform(Batt. Mode) Simulated Sine Wave
Transfer Time Typical 2 ~ 6 ms
Battery Type & Number 12 V/4.5 Ah, 1
Battery Typical Recharge Time 8 hours up to 90% capacity
Weight 2.2 kg
Noise Less than 40dB
Dimensions(L x W x H) 228 x 82.5 x 207 mm
Humidity 0-90 % RH @ 0- 40°C (non-condensing)
