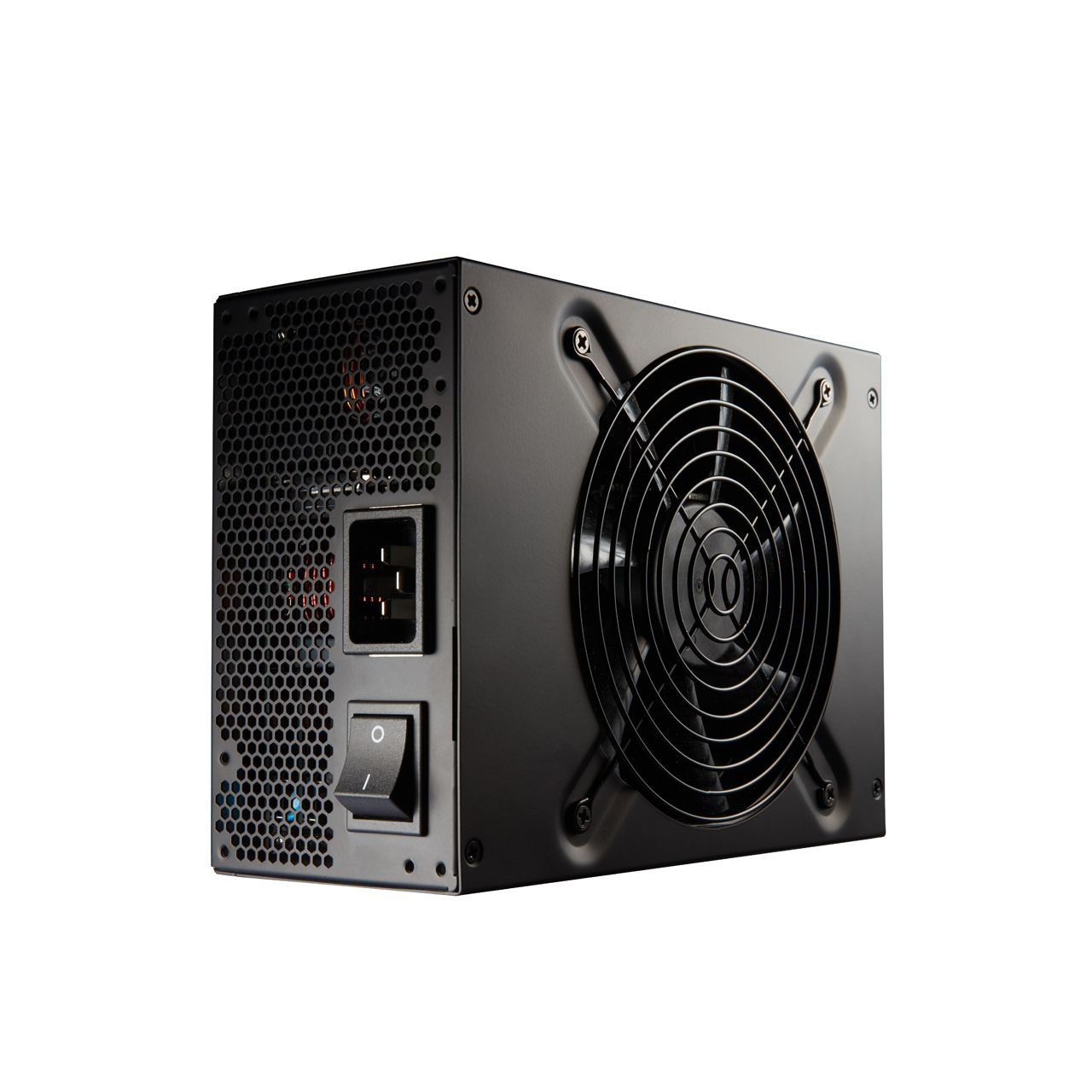

CANNON 2000W

CANNON 2000W has been designed to provide stable output for your mining rigs with features such as 18 sets of PCI-E 6+2 PIN slots, and a 135mm FDB fan with internal component arrangement for increased airflow at rigorous mining environments. CANNON 2000W is definitely a premium on high efficiency PSUs for your mining rigs.
  • Complies with ATX12 v2.4 & EPS12 v2.92
  • Efficiency ≧ 92% @ typical Load
  • Active PFC ≧ 0.9
  • Hold up time > 17ms @ full load
  • Full modular design with all black round cable
  • Supports dual sets of CPU slots
  • Provides 18pcs PCI-e for high-load system
  • +12V single-rail design
  • 5V & 3.3V rail with DC to DC Design
  • Intelligent fan control with 135mm fan
  • Standby wattage < 0.5W
  • Complete protections: OVP, OCP, UVP, SCP, OPP, OTP
Streamlined-Airflow

Supports Multiple Sets of Slots

The necessity for multi-rail PSUs is most important in your mining build, Cannon 2000W supports 18 sets of PCI-E 6+2 PIN slots and is able to operate for a maximum of 9 graphics cards simultaneously.

Mining Power Supply

Cannon 2000W is capable of powering all high end GPU, and GPU Mining Ethereum, ETH, Bitcoin, BlackCoin, Dash, Dogecoin, Litecoin, Namecoin, Nxt, Peercoin, Primecoin.

Real Output for Your Component

At 230 volt input voltage, Cannon 2000W has enough power draw to handle your load of mining GPUs and system, and is able to provide full 2000 watt power to ensure sufficient power provided.

For Rigorous Mining Environments

Without any suitation, Cannon 2000W provides stable and longer periods of consecutive output for whole day mining in the rigorous environments.

Long-Lasting 135mm FDB Fan

During mining, GPU may generate serious heat. Cannon 2000W matched with intelligent fan control and 135mm fan can eddictly improve your cooling system performance.

Streamlined-Airflow

Full Modular Design with Ribbon Cable

The modularity of a mining PSU is not only easy installation but also more imporant for the type of rig you intend to build.

DC to DC Module Design

Cannon 2000W offers supreme efficiency, voltage stability and high system compatibility, is definitely places a premium on high efficiency PSUs for your mining rigs.

Japan-made E capacitors

Cannon 2000W with Japan-made E capacitors offers supreme efficiency, voltage stability and high system compatibility for your mining rigs.

Cables

 atx cable 24 pinEPS 4 4 pinpcie 6+2 pinhd statmolex2.5 floppy
ATX 20+44+4 PINPCI-E 6+2SATAMolex
(PERIPHERAL)
Floppy
Connectors12181641

AC/DC

AC Input100-240Vac~  15-12A  50-60Hz
DC Output+3.3V+5V+12V-12V+5Vsb
Max Output Current25A25A166.6A0.5A4A
Max Combined Power150W2000W6W20W
Total Power2000W @200-240Vac
1500W @115-200Vac
1200W @100-115Vac

Specifications

Model FSP2000-50AGPBI
Rated Output Power 2000W @ 200-240Vac
1500W @ 115-200Vac
1200W @ 100-115Vac
Form Factor ATX / EPS
Input Voltage 100-240Vac
Input Current 15-12A
Input Frequency 50-60Hz
PFC Active PFC > 0.9
Efficiency 92% @ typical load
Fan Type 135mm FDB Fan
Dimensions(L x W x H) 200 X 150 X 86mm
Weight 2.64 kg
Operation Temp. 200,000 Hrs
Protection OCP/OVP/OPP/SCP/UVP/OTP
Safety Approval TUV / CE / UL / FCC / RCM / BSMI / KC
