HV + 500W
HV + 500W
- Complies with ATX 12V v2.4 & EPS 12V v2.92
- Up to 85% efficiency
- Active PFC, power factor ≧ 0.9
- Powerful +12V single rail design
- Multiple PCIe 6+2 pin graphic card connectors
- 120mm quiet fan
- Complete protections: OCP, OVP, SCP, OPP, UVP
- Meet ErP/EuP 2013 standard
True Power, You Can Count On
With 0.9 Active Power Factor Correction, the HV+ series comes across with guarantee wattage of continuous power, delivers full power to your PC system.
Optimal Cooling
An advanced thermal control fan makes optimal cooling and reduces noise under maximum operation.
Reliable & Durable: Engineered in Detail

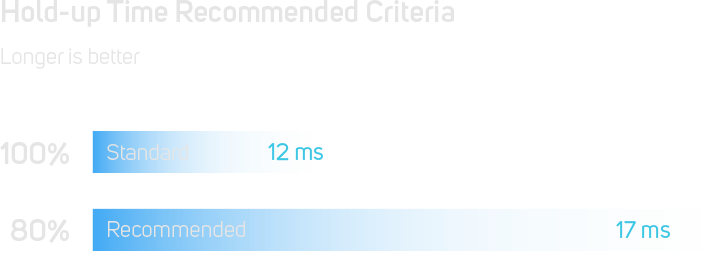

Hold-up time indicates the length of time a power supply is able to maintain a consistent output voltage at a regular output level, after it is shut down or in a power shortage. This length of time is able to prevent instabilities in the computer system, or prevent interferences in case of sudden short circuit, overload, power outages, voltage sink in the power system.
Powerful +12V Single Rail Design
HV+ series offers Graphic Cards full & stable power individually and to avoid any overloading conditions.
80 Plus® Certification
HV+ series meet 80 PLUS 230V EU Standard and rated for greater efficiency to 87%, so you'll enjoy lower energy bills.
AC/DC
| AC Input | 200-240V~ 4A 50-60Hz | ||||
| DC Output | +3.3V | +5V | +12V | -12V | +5Vsb |
| Max Output Current | 20A | 20A | 38A | 0.3A | 3.0A |
| Max Combined Power | 120W | 456W | 18.6W | ||
| Total Power | 500W | ||||
Cables
 |  |  |  |  | |
| MB 24 PIN | CPU 4+4 PIN | PCIe 6+2 PIN | SATA | MOLEX | |
| Connectors | 1 | 1 | 2 | 6 | 2 |
Specifications
| Model | HP500S |
|---|---|
| Rated Output Power | 500W |
| Form Factor | ATX |
| 80 PLUS Certification | 230V EU Standard |
| Input Voltage | 200-240V |
| Input Current | 4A |
| Input Frequency | 50-60Hz |
| PFC | Active ≧ 0.9 |
| Efficiency | ≥85% at typical load |
| Fan Type | Sleeve Bearing Fan, 120mm |
| Dimensions(L x W x H) | 140 × 150 × 86 mm |
| Protection | OCP, OVP, SCP, OPP, UVP |
