CMT 110 CMT110

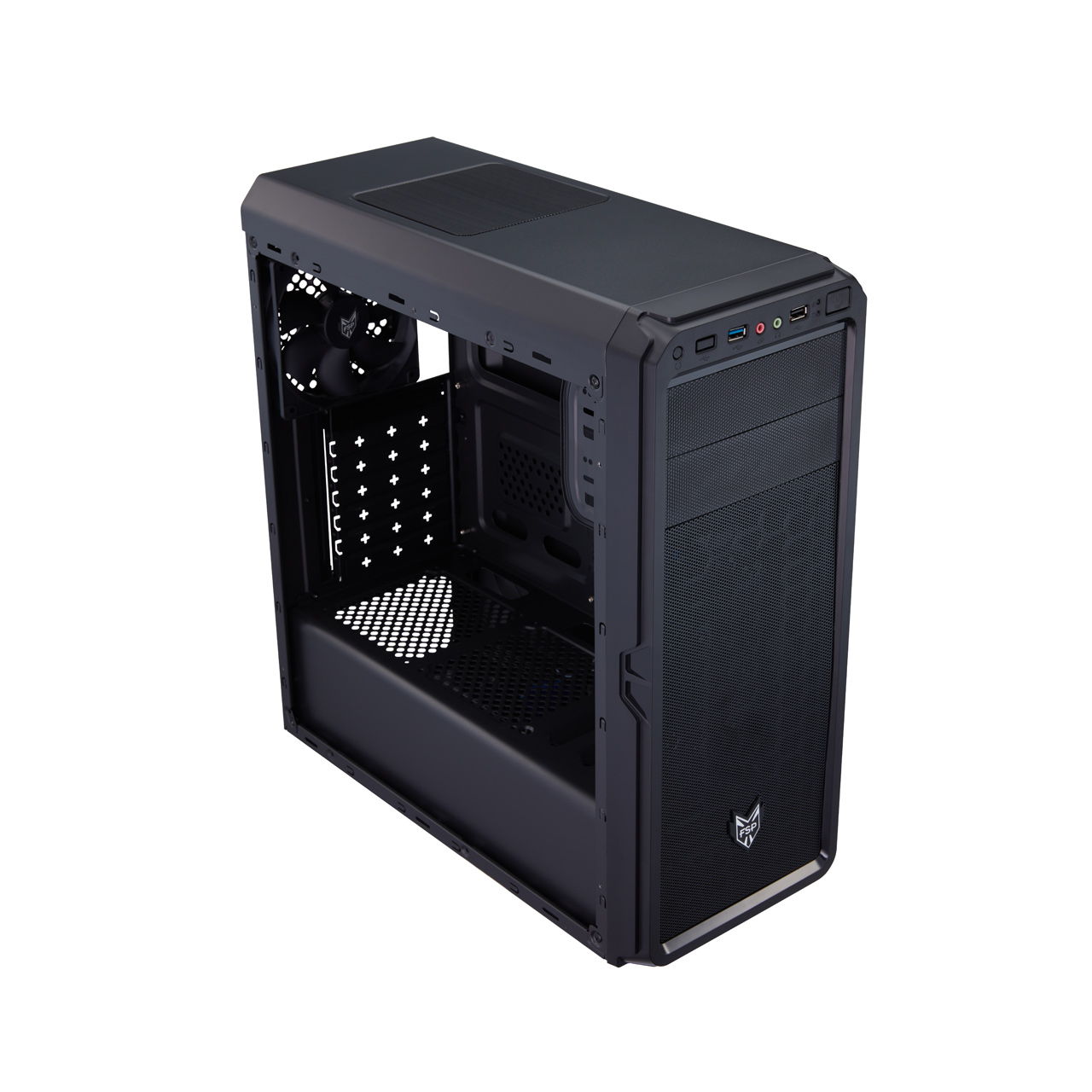

Although FSP CMT110 series PC cases are compact, they provide a supreme performance system build for minimalist gamers. The internal layout of the CMT110 series is simple and yet friendly for a quick build. Its internal black coating and steel structure offer your build a refined look. The CMT110 series PC cases come with the builder-focused features, they have the expansive storage space of 1 x SSD, 2 x ODD and 2 x HDD for high flexibility to upgrade and they come s with at least one port of USD3.0 on the front panel for transmitting data at high speed, the CMT110 series are the PC cases that you’ll be proud to show off to your peers.
  • Mid tower size with clean and sleek design.
  • 6 fan mounts support, pre-installed a 120mm fan.
  • 7 x PCI-E expansion slots , 2 x ODD, 2 x HDD and 1 x SSD bays for supreme expandability.
  • Supports high-end graphics cards max. to 340mm length, and CPU cooler to 160mm height.
  • Supports USB 3.0 for high speed transferring.
  • Transparent side panel window to view your components (only with CMT110A)
Clean, Sleek and simple look

Clean, Sleek And Simple Look

Elegant design ATX case PC cases, CMT110 Series, with gear logo and sleek panel design provide classic styles for classic gaming, enterprise, household and all kinds of customers.

Clean, Sleek and simple look

Cooling System Options

Detachable Mesh Top Cover

CMT110 series are designed to help keep your PC dust-free. The simple construction and magnetic adhesion allows easy removal and cleaning of your case and also improving air filters on the top.

detachable mesh top cover

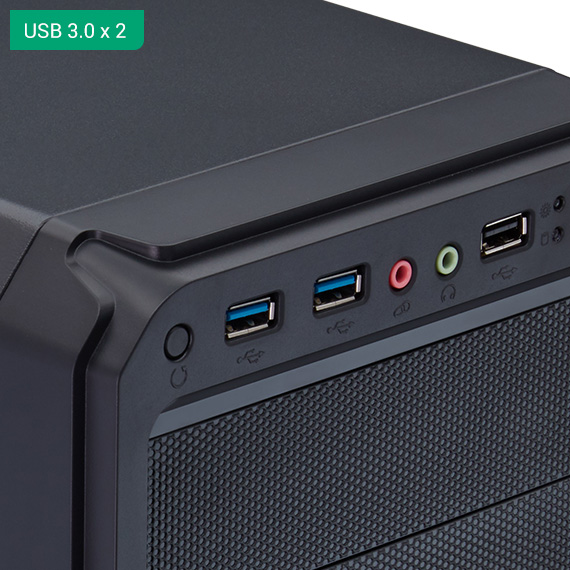

Interface Detail about IO Port

CMT110 series with more USB ports and regular interfaces, more convenient and more considerate.

Interface Detail about IO Port

Installed Schematic

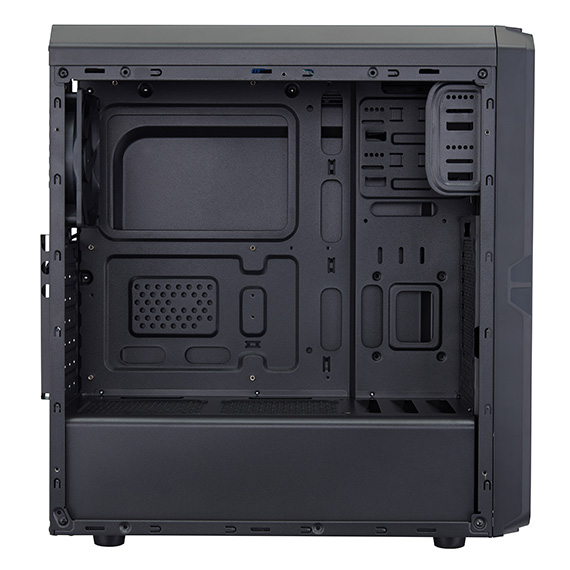

Clean internal layout

Simple and friendly layout for quick build-up in short time.

Intuitive cable management

Cable routing slots provide efficiently neat build.

Smooth airflow solution

Low-interference airflow path to keep key components in cool.

Detail Feature about Models

Specifications

Model Name CMT110/CMT110A
Type ATX Mid Tower
Color Black
Materials SPCC, Plastic
Weight 3.74kg
Dimension DxWxH (mm) / (inch) 415x185x450mm / 15.4x7.3x17.7inch
Maximum CPU Cooler Height 160mm
VGA Card Length 340mm
Expansion Slots 7
MotherBoard Support ATX, Micro ATX
External I/O port CMT110:
USB3.0 x 1, USB2.0 x 1, Audio
CMT110A:
USB3.0 x 2, USB2.0 x 1, Audio
Power Supply Type 170mm ATX
5.25" ODD 2
3.5“ HDD 2
2.5" SSD 1
Fan Including(pre-install) Rear: 120mm x 1 (pre-installed)
CMT110A:
120mm Blue x 2(optional)
120mm Red x 2(optional)
Fan&Water Cooler Support Front: 120mm x 2 (optional)
Top: 120mm x 1 (optional)
Rear/Inside: 120mm x 3 (optional)

Download
