NB H 110W

The universal adapter NB H Series is a combination of adapter and USB Hub.With multiple embedded USB 3.0 ports, it adds more convenience as an excellent solution for ultra-books an slim laptops users.
  • Detachable cables design , Adapter and HUB 2 in 1
  • Compatible with USB 3.0 / 2.0 / 1.1 hosts and devices
  • Built -in USB 3.0 speedy ports
  • Changeable output tips for maximum compatibility
  • Total output: 110W(95W for NB, 15W for USB3.0 hub),65W(50W for NB,10W for USB3.0 hub)

The First one worldly : Adapter + HUB  2 in 1

High Efficiency

Highly compatible to Notebooks of Acer, ASUS, COMPAQ, DELL,FUJITSU,HP, LENOVO, LG TOSHIBA…

Data Transmission function

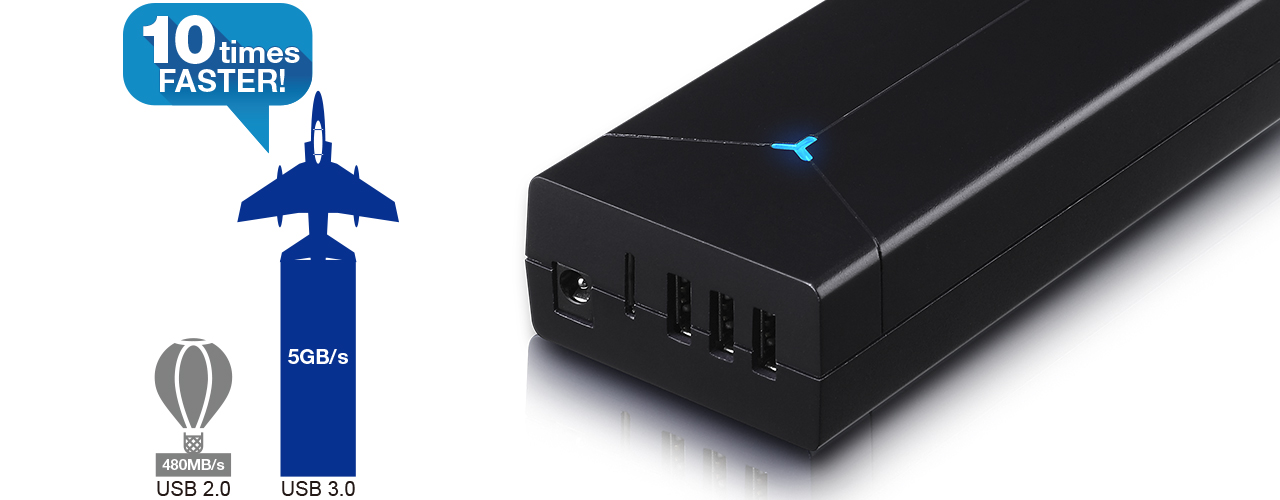

Built-in 3 USB 3.0 Ports

Working with Various Devices

Printer Hard Disk Memory Stick Mouse Keyboard

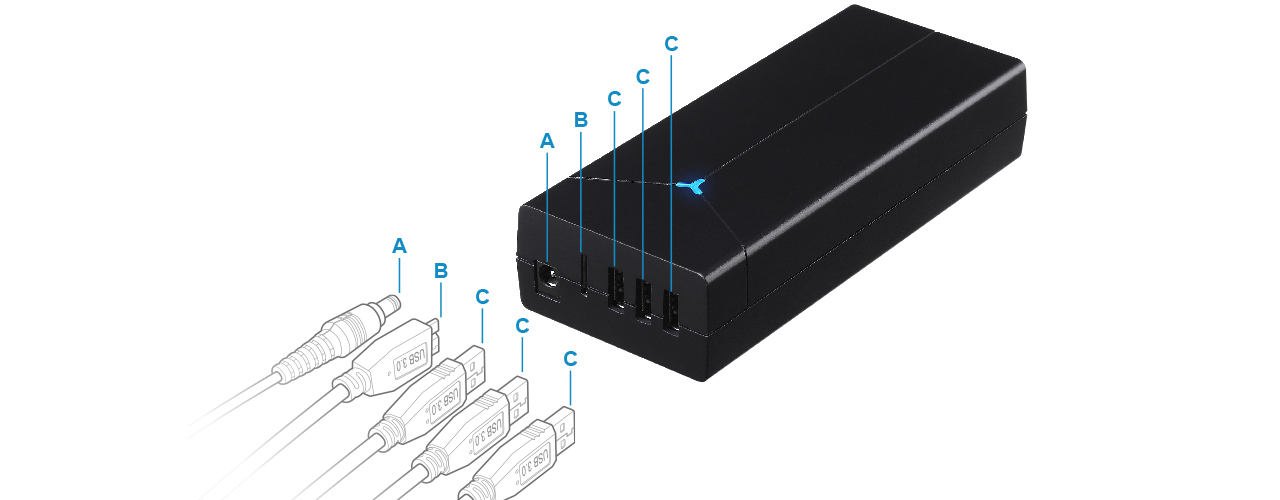

Detachable Cable Design

A: Power Onput Port
B: Port for Data Transfer
C: USB Port

Application

NB H is a good helper, let's look at what is can do.

Charging a laptop

Transmitting data (PS: This process can be carried out without AC power)

Charging smart phones

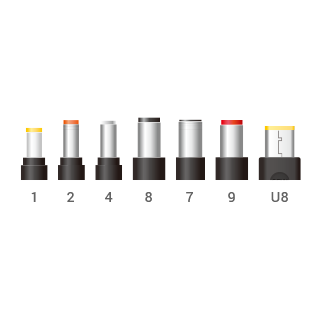

Compatibility Laptop Brands

Tips Number
Outer
Inter
Color
Compatibility
14.751.7YELLOWACER, ASUS, HP, LG
25.51.7ORANGEACER
45.52.5WHITEACER, ASUS, COMPAQ, FUJITSU,
GATEWAY, HITACHI, HP, IBM, LG, NEC
PANASONIC, PHILIPS, TOSHIBA, WINBOOK
87.40.6BLACKDELL
77.90.9BLACKIBM, LENOVO
97.40.6RedHP
U8114.7YELLOWLENOVO

Tip Finder

Specifications

Model NB H 110
Rated Output Power 110W
Input Voltage 100-240Vac (Full Range)
Input Frequency 50-60Hz
Output Voltage 19V, 5.08A / USB: 5V, 0.9A
Output Rating 5.08A
Efficiency ≧ 87%
Standby Power Consumation <0.1W
Dimensions (LxWxH) 159 x 66 x 34 mm / 6.25 x 2.59 x 1.3 inch
Protection OVP / OTP / OCP / OPP / SCP
Other Model
